Description
- Model Number: DG-85
- Brand Name: qiaoandianzi
- Origin: Mainland China
- color: white and gray

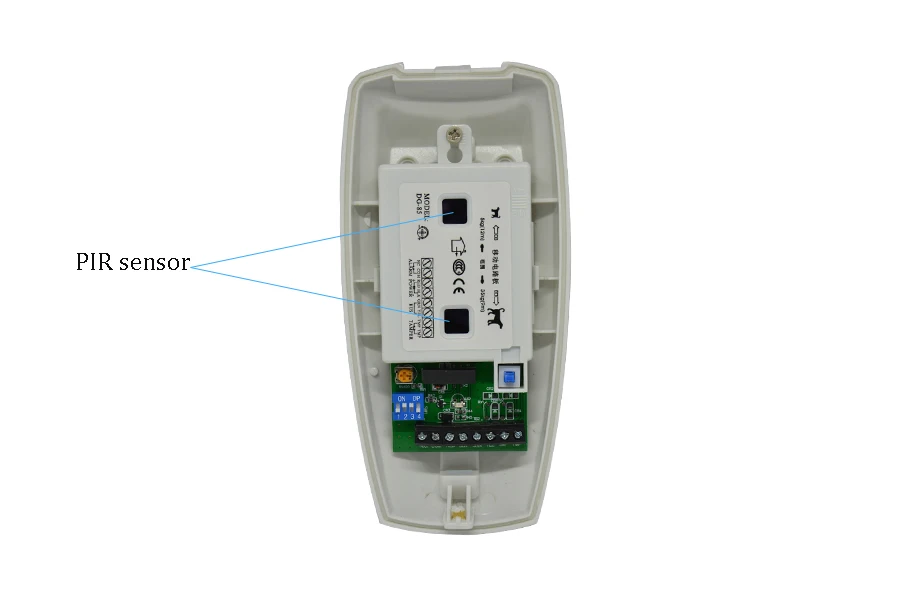

- Sensor type: Dual Element Infrared*2
- Sensor geometry: Rectangular

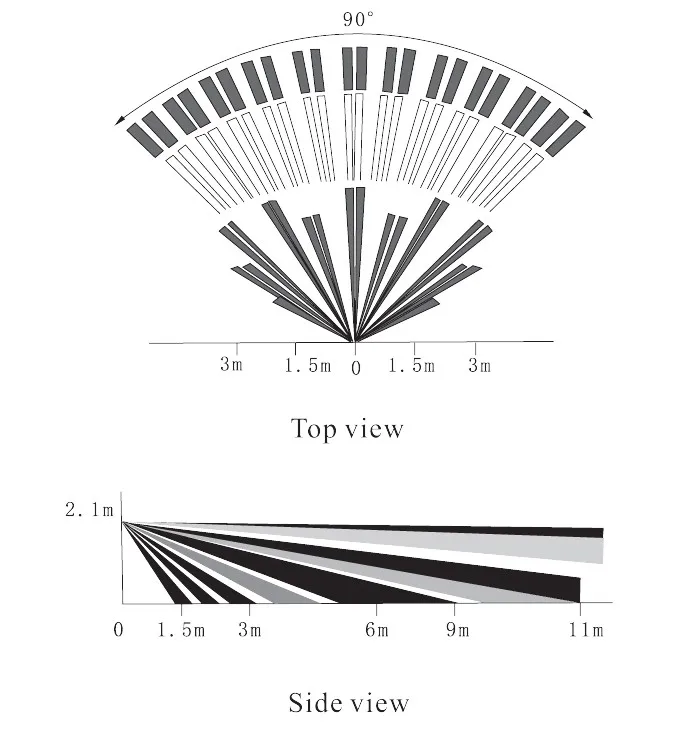

- Coverage: 11m*11m(35ft*35ft)90′ viewing angle
- Operating Voltage: 9-16VDC
- Installation height: 2m to 2.7m(7ft to 9ft)
- Tamprer switch: N.C
- is_customized: Yes

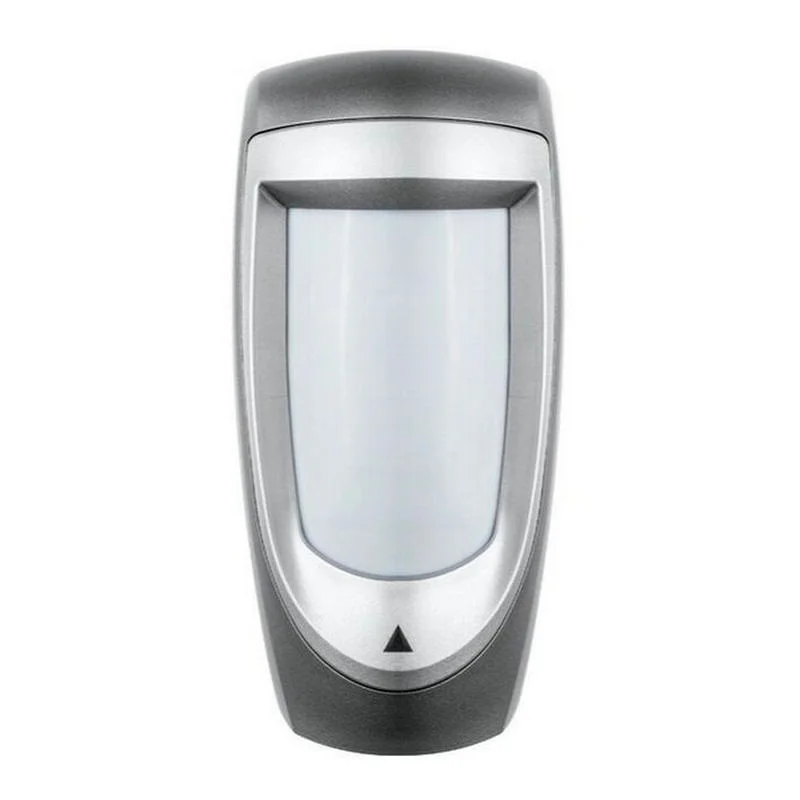

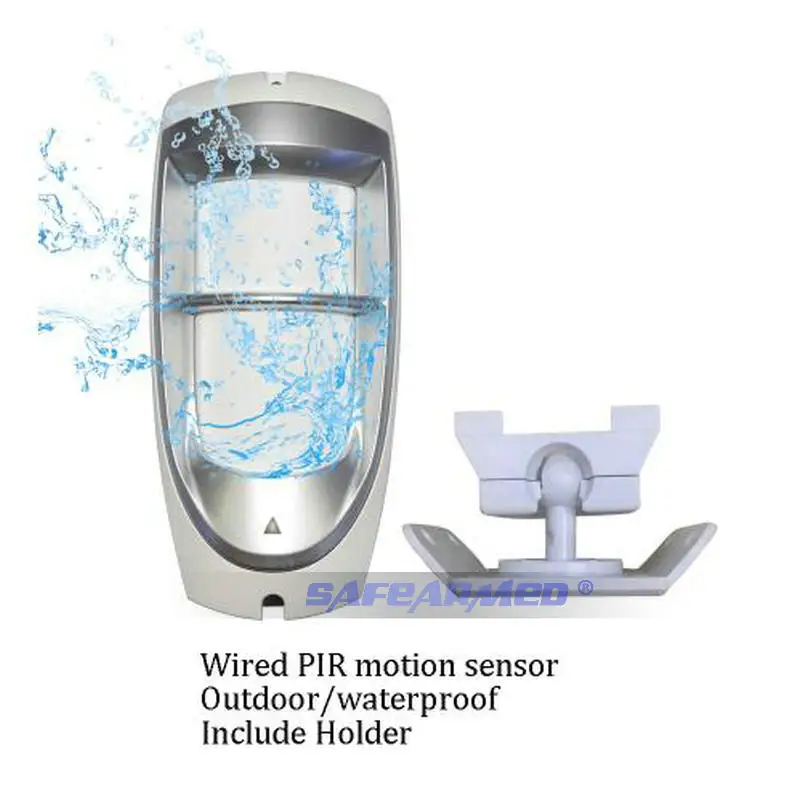

The Digigard DG85 combines a special weatherproof design and the proven technology of our Digigard High-Security Motion Detector with Pet Immunity (DG75) to provide the same reliable protection—outdoors.
Impact and temperature resistant casing(-35 C to 50 C / -31 F to 122 F)
Extremely reliable and false-alarm free
Dual Optical Filtering System

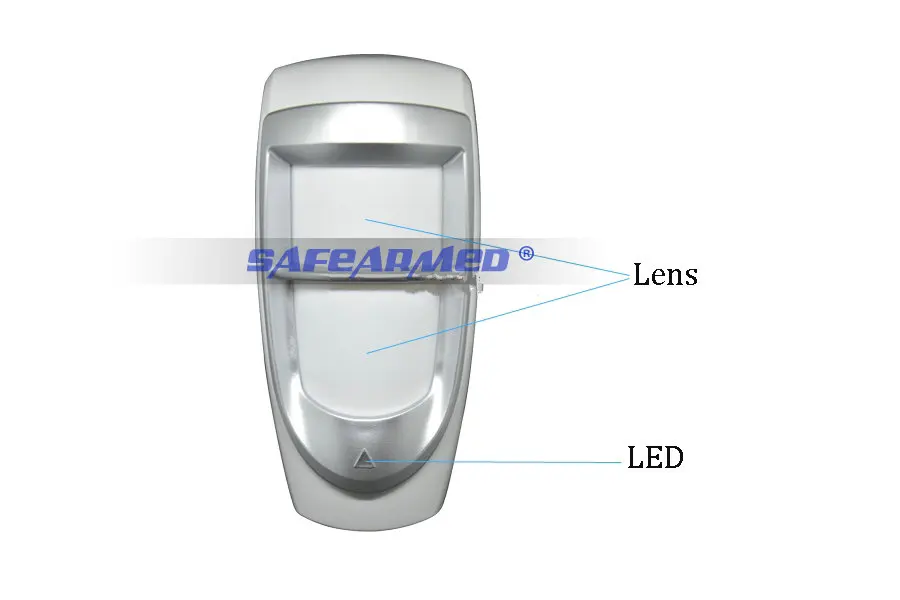

UV protected lens
Patented Animal Immunity (up to 40kg/90lbs)

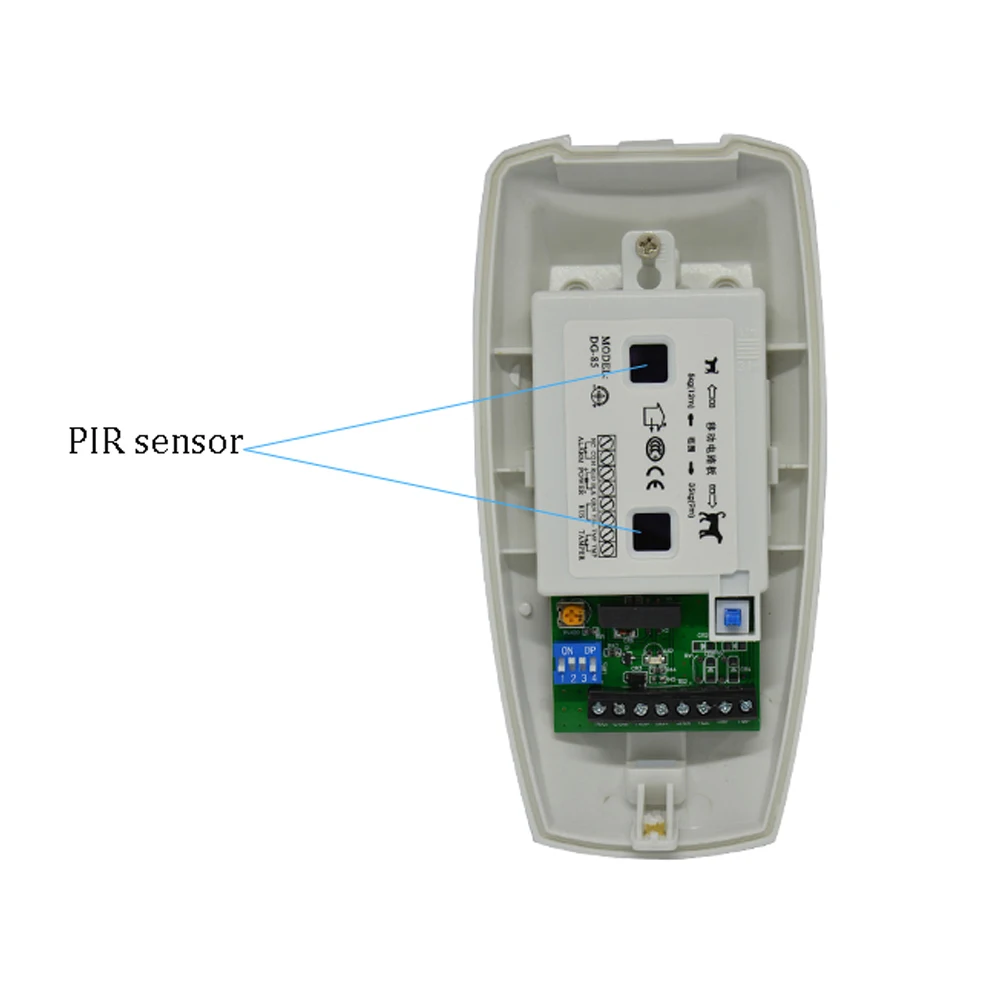

Dual optics (2 dual opposed element sensors)
Digital Dual Opposed Detection

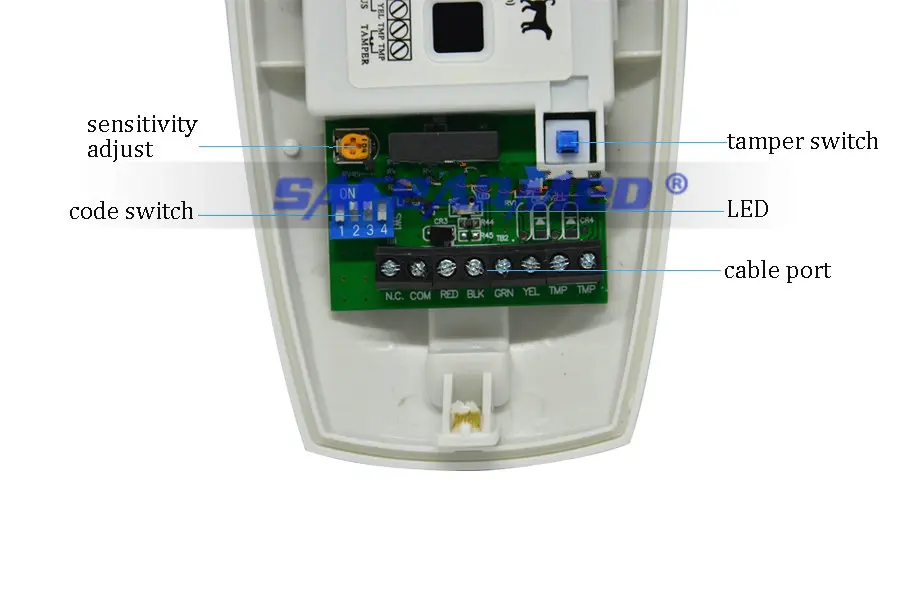

Multi-level sensitivity adjustment
Two operational modes (addressable for Digiplex and DigiplexNE or conventional relay operation)
Specifications:
Protection Level: IP45
Voltage input: 9-16V
11m (35ft) * 11m (35ft)
viewing angle: 90 degree
Color: white

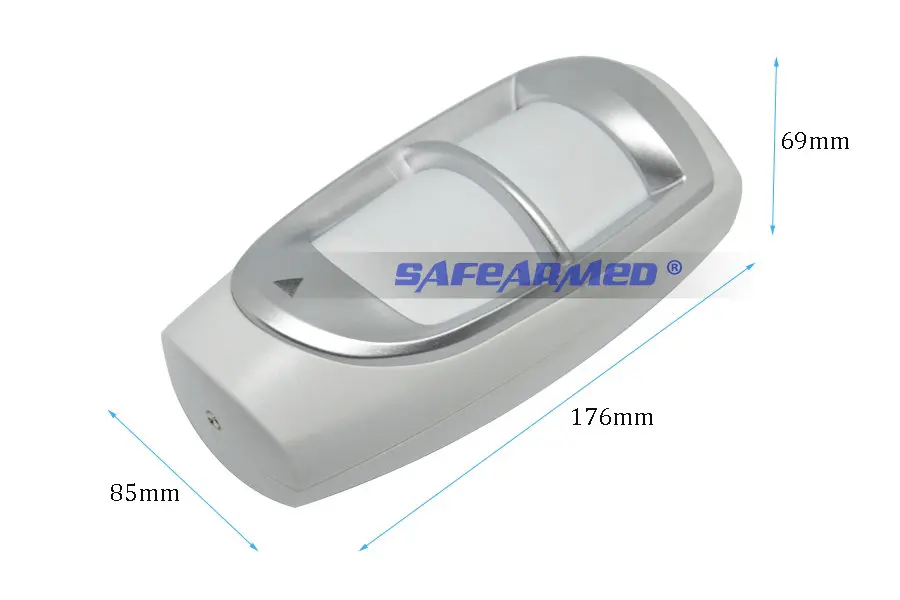

Dimensions: 170 * 85 * 55mm
Net weight: 310g
Package Includes:
1 * DG-85 PIR Detector

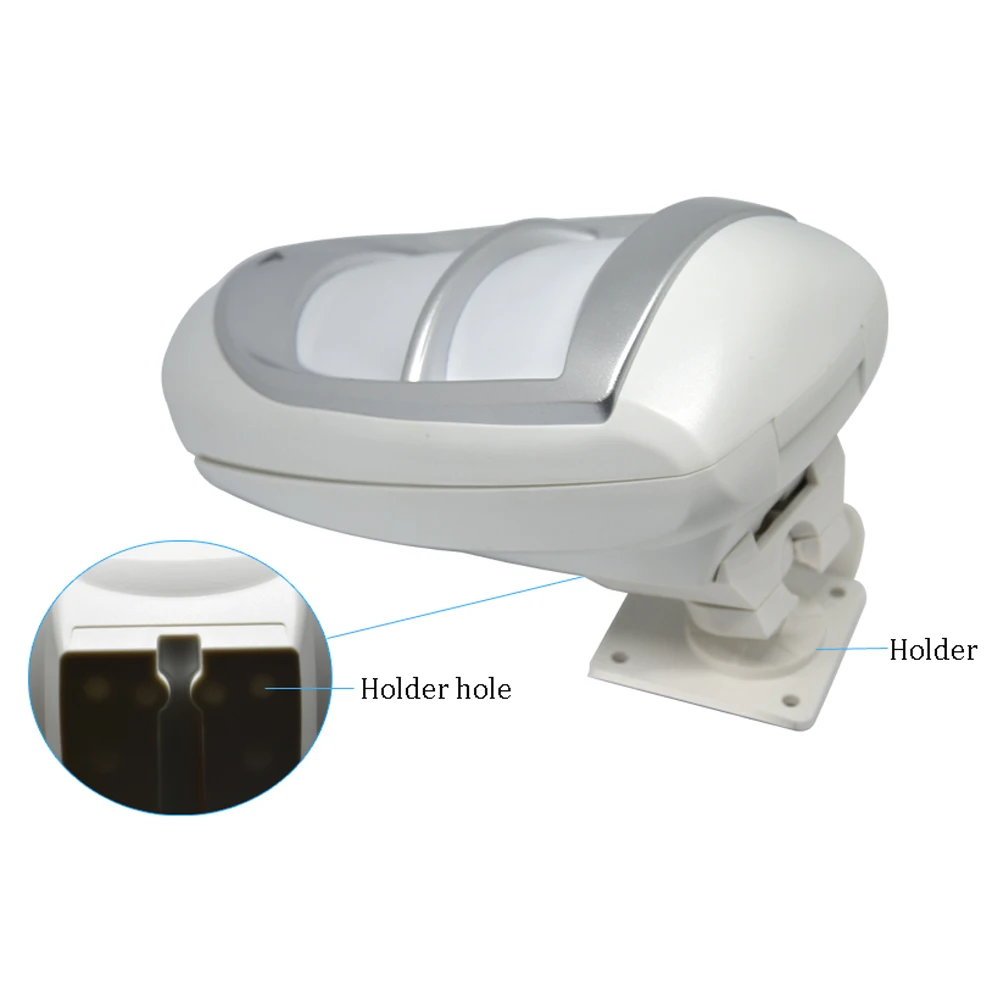

（Include Detector Bracket）

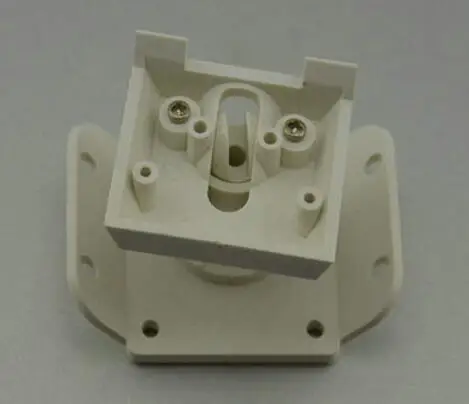

If you need to buy a bracket, you can buy it here:
