Description
- Installation Type: Wall Embedded
- Is Smart Device: No
- Features: Remote Control,WireLess
- Extension Cable Length: None
- Shape: Rectangular
- Model Number: EUSOCKET
- Rated Current: 15A
- Grounding: Non-Grounding
- Application: Residential / General-Purpose
- Origin: Mainland China
- Certification: CE
- RF frequency: 433MHz
- Working voltage: AC 85~265V 50-60hz
- Max current: 15A
- Max load: 3000W
- Remote range: 20-100m theoretical distance
- Socket size: 100*52*72 mm(3.94*2.05*2.83 in)
- Operate mode: Manual/Remote
- Encoding: EV1527 learning/2262 fixed
- Remote size: 90*40mm(*3.54*1.57 in)
- Remote battery: 1pcs 23A12V battery(include)
- Remote color: White
- Remote code: EV1527
- Remote feature: Has mount clip
- Remote feature2: Has retractable antenna
- Features: Rf 433mhz EU FR Socket Outlet Plug with wireless remote control
- Application scenario: Led Light Lamp Switch, Home Security Alarm System
- Application2: Family, Farm, Factory, Office, Supermarket,Corridor
- Application3: Car Sunroofs Control, Mando Garaje
- Application4: Bathroom Fixture,Kitchen Fixture,Family Intelligence System
- Application5: Caring for the elderly, children, women, pregnant women

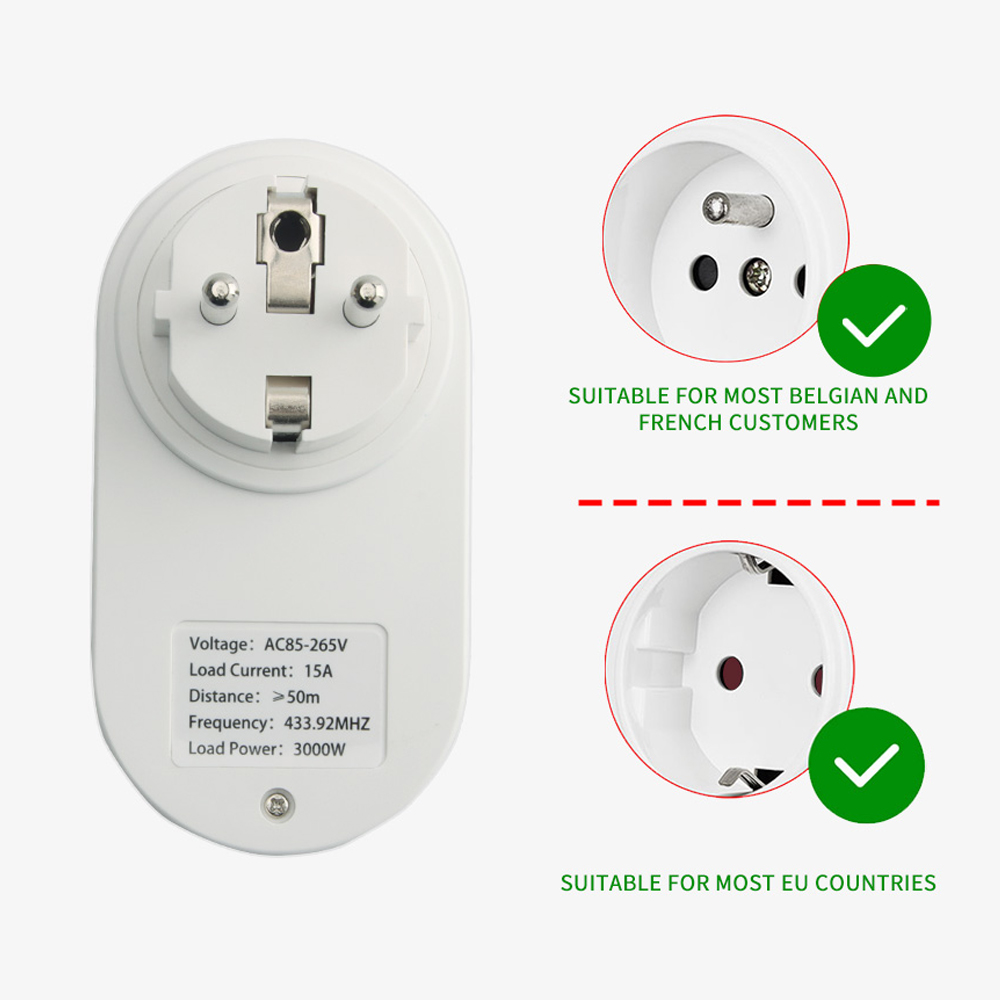

EU type can be used in many european countries,like France,Germany,Italy etc.
1.Rf wireless remote control.It works with 433mhz 1527learning code/2262 fixed code transmitters .You can use transmitter to control this plug.

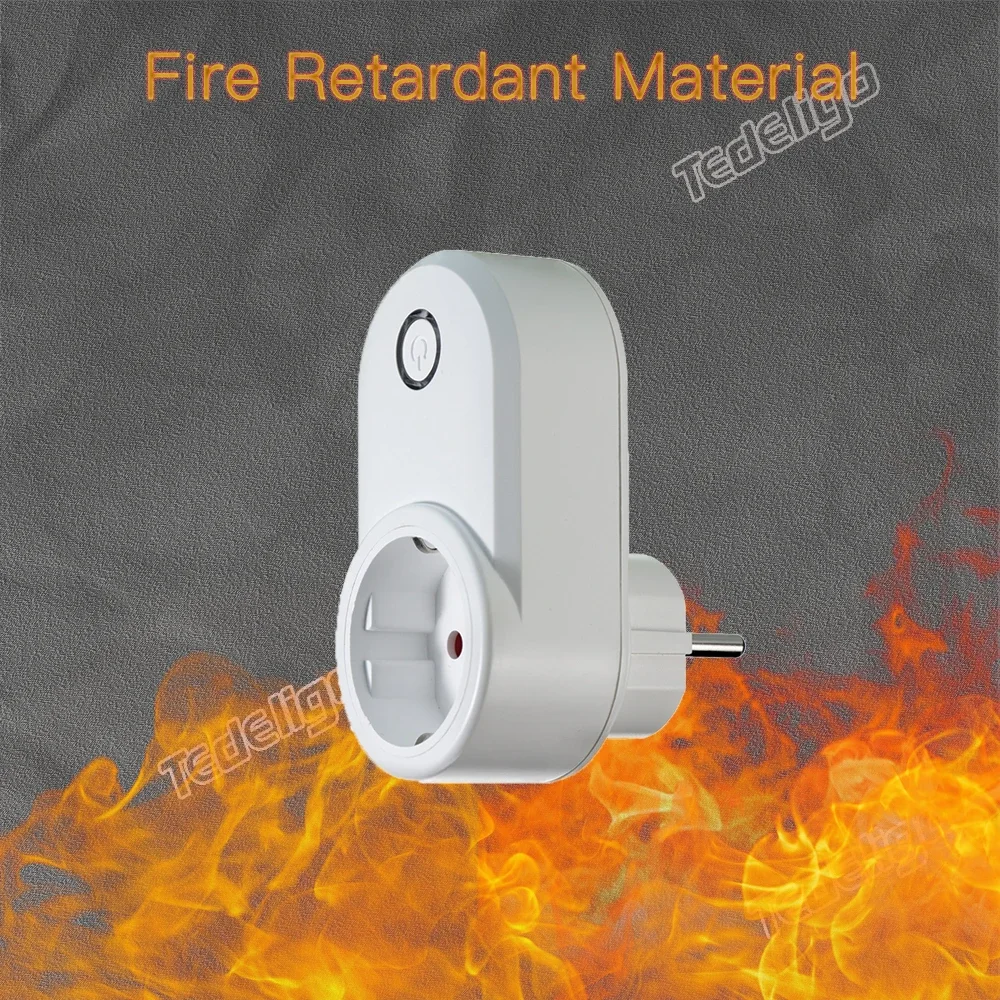

2.Fire resistance.High quality material,it can be used for many years and has good quality.
3.Family Share.Oneplugcan be controlled by many transmitters.
4.Manual control.Press learning button to on/off this plug.
Product Parameter:
Input power: AC 85~265V 50-60hz
Frequency: 433MHz
Max current: 15A
Max Load: 3000W
Remote storage: 10pcs
Certification: CCC,CE,RoHS
Encoding: EV1527 learning/2262 fixed
Operate mode: Manual/Remote
Plug Size: 100*52*72 mm(3.94*2.05*2.83 in)
Transmitter Battery: 1*23A12V(include)

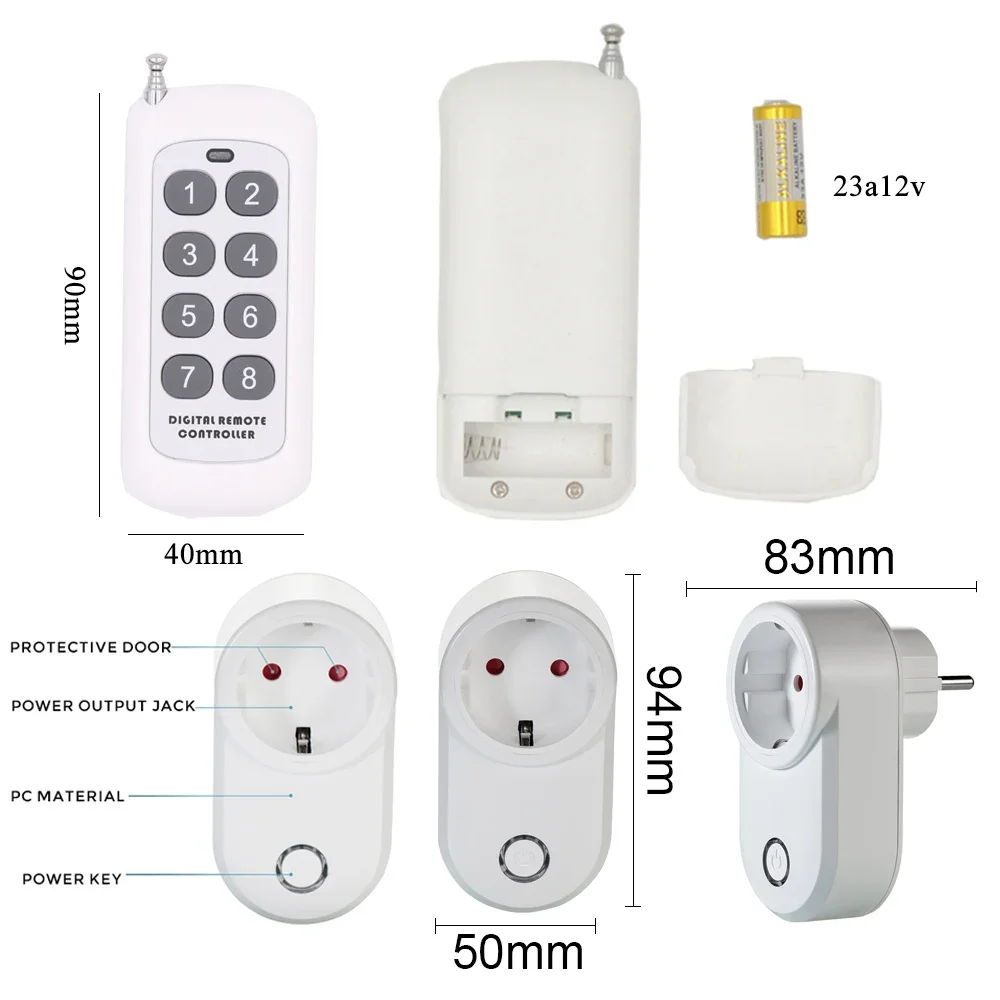

1.Protective door
2.Power output jack
3.PC material
4.Metal interface
5.Red indicate
Highlights:
1.15A 3000W Smart plug for many home appliances

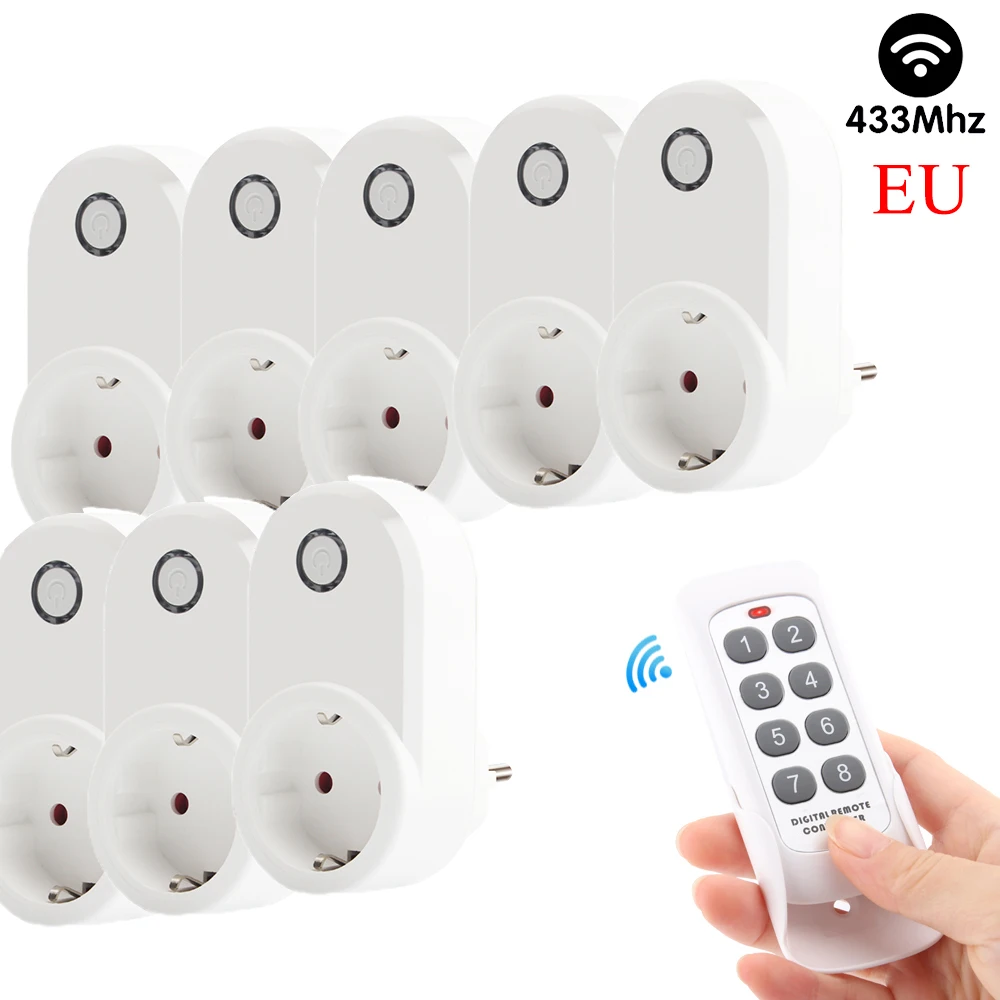

One remtoe controls eight plugs,convenience
2.RF wireless remote control,can pass through walls and has long remote range
3.Fire resistance
4.Family share.One remtoe can control manyplugs.One plug can be almost10pcsremotes controlled.

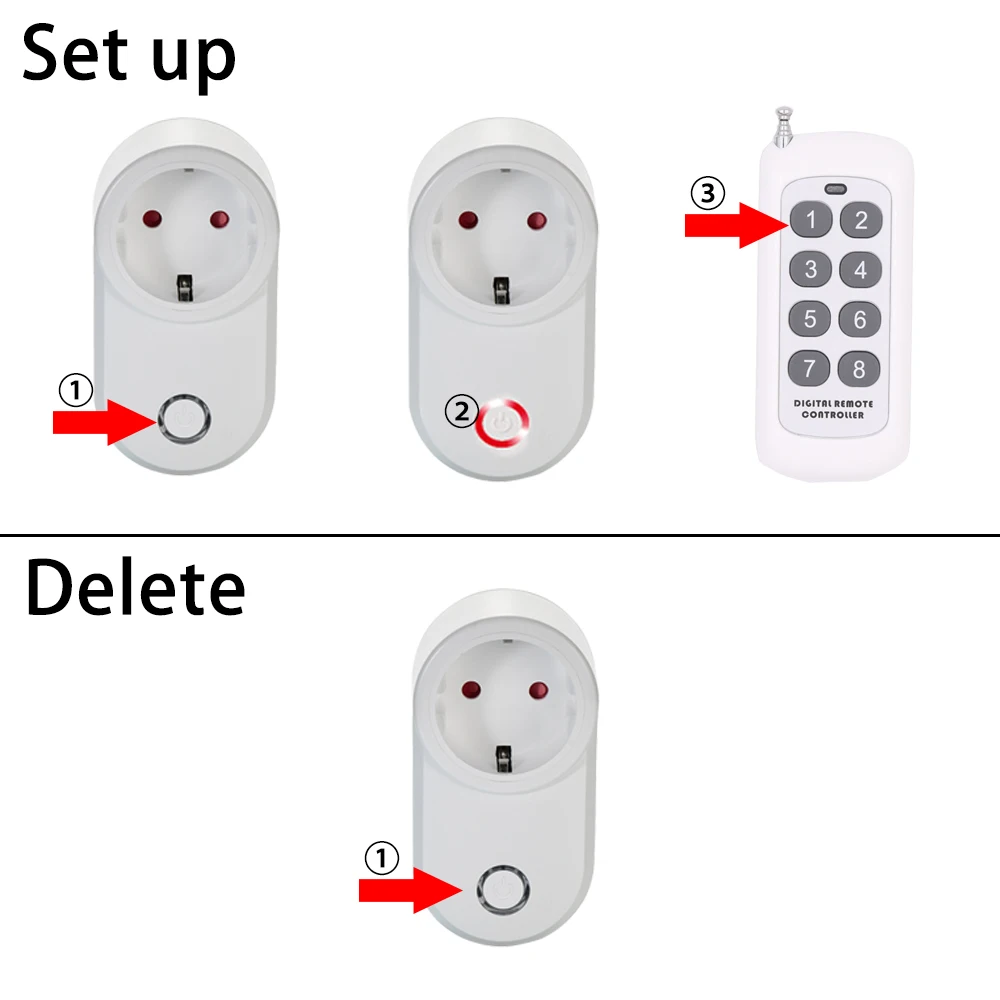

How to set up:
It has toggle mode and latched mode:
Toggle mode:
press A,plug work,press A again,plug stop
Latched mode:
press A,plug work,press B,plug stop
1.Press and hold learning button for about 2 seconds
2.1. The indicate will flashonce,release thelearningbutton
2.2. The indicate will flashtwice,release the learning button
3.1.Press any remote button,toggle mode succeed.
3.2.Press A button once,press B button once,latched mode succeed.
How to delete:
Press and hold learning button for about 8seconds(you will see indicate flash several times),succeed.
After delete data,all remtoes cannot control this plug
Product Size:
About shipping:
We usually ship the product out within 48 hours after you paid the order.If you want a fast shipping like DHL,FEDEX,UPS,please contact with us.
Questions and Answers:
1.Can one plug be controlled by multi transmitters?
Yes.Of course.And you need to set up them one by one.The max transmitters for one plug is 5pcs
2.Can i use my own transmitters to control this plug?
Please make sure the frequency is 433mhz and code is 1527 leanring/2262 fixed.We do not recommend you to use other remote controls
3.Is there an interference around when i use many plugs in my home?
Of course not.The plug will only work with the transmitters which have already set up with.
4.Do you have a wholesales price?
Yes.Please contact with us first.Thank you
Please contact with us if you have any questions.Thank you.
