Description
- Hign-concerned Chemical: None
- is_customized: Yes
- Output Current: @120VAC 5A; @230VAC 2.6A
- Model Number: IMI1600
- Output Power: 1600W
- Size: 365x230x40mm
- Output Type: Quad
- Weight: 3.9KG
- Brand Name: MARS ROCK
- Output Frequency: 50/60Hz(48~61Hz)
- Is Smart Device: YES
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Color: Black
- Power: 1600W
- Input voltage: 20-50VDC
- Output voltage: @120V(90~160VAC); @230V(190~270VAC)
- Rated output current: @120VAC 5A; @230VAC 2.6A
- Frequency: 50/60Hz(48~61Hz)
- Waterproof Rating: IP65
- Max current of AC bus cable: 20A
PRODUCT INTRODUCTION

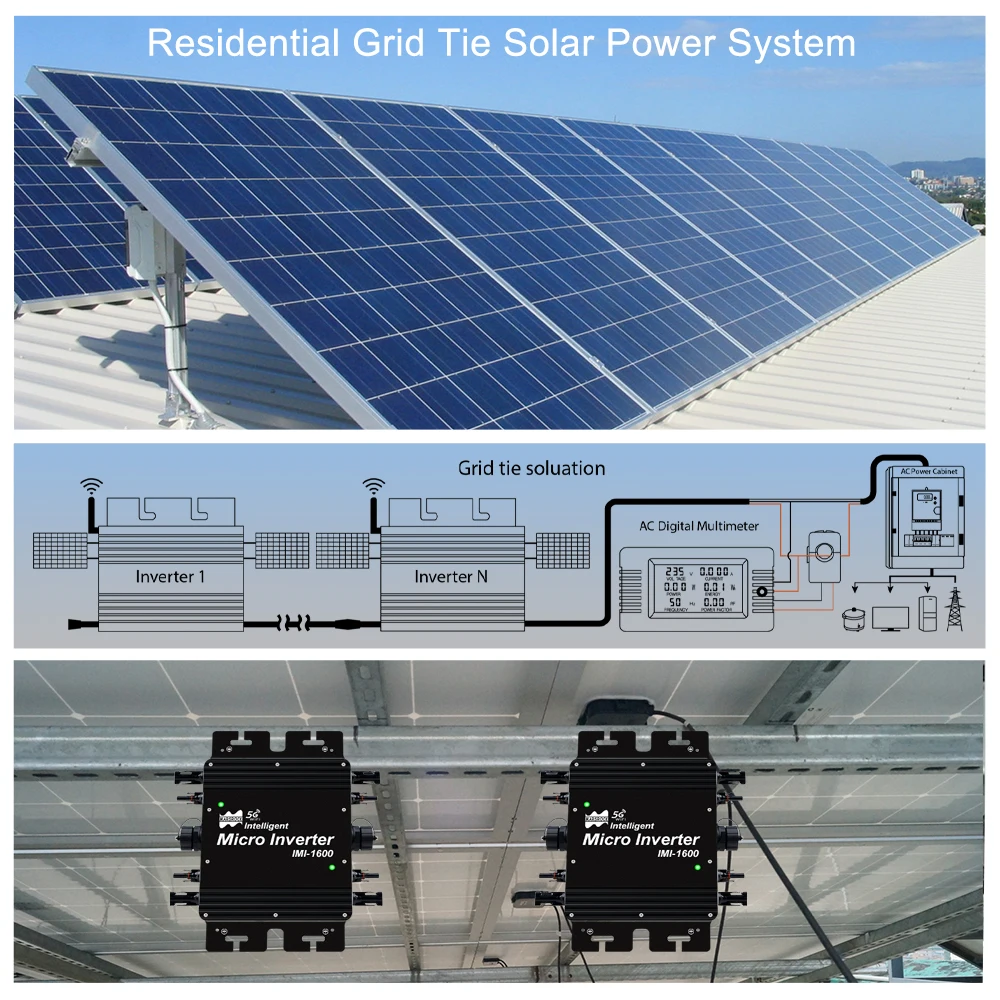

IMI series inverter Using IP65 waterproof streamline design which effectively prevent rainwater on the surface erosion, built-in high-performance maximum power point tracking MPPT function better able to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight AC electric power transmission using the reverse transmission technology, . The inverter output power can provide load priority use, extra electricity to the grid, efficient use of the inverter to the power emitted, electricity transmission rate of up to 99%.

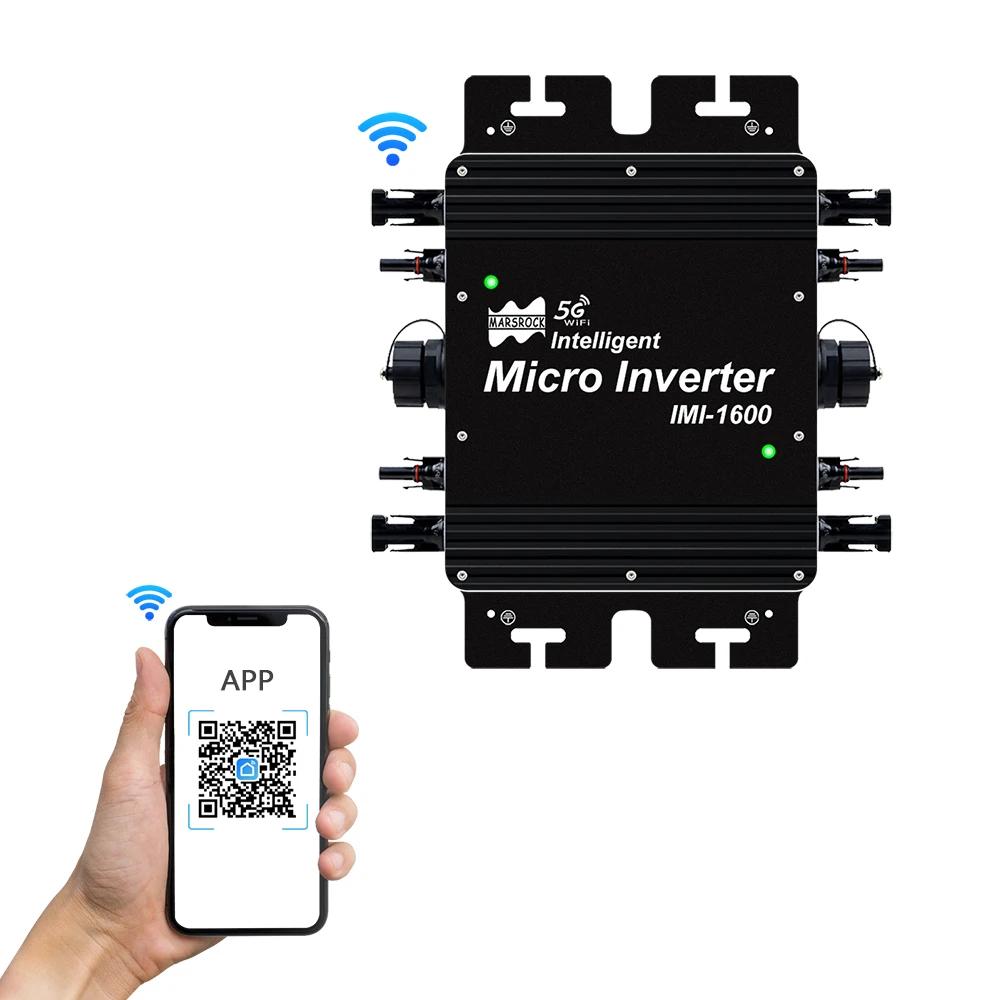

The convenient way to directly scan the QR code to connect to the network is a major feature of it, allowing non-professional users to monitor the power generation system data in real time through a smartphone.
PRODUCT FEATURES
1.IMI Series adopt scanning the QR code to connect with internet which is easy to be operated through Smart Phone APP or PC to monitor power system data.

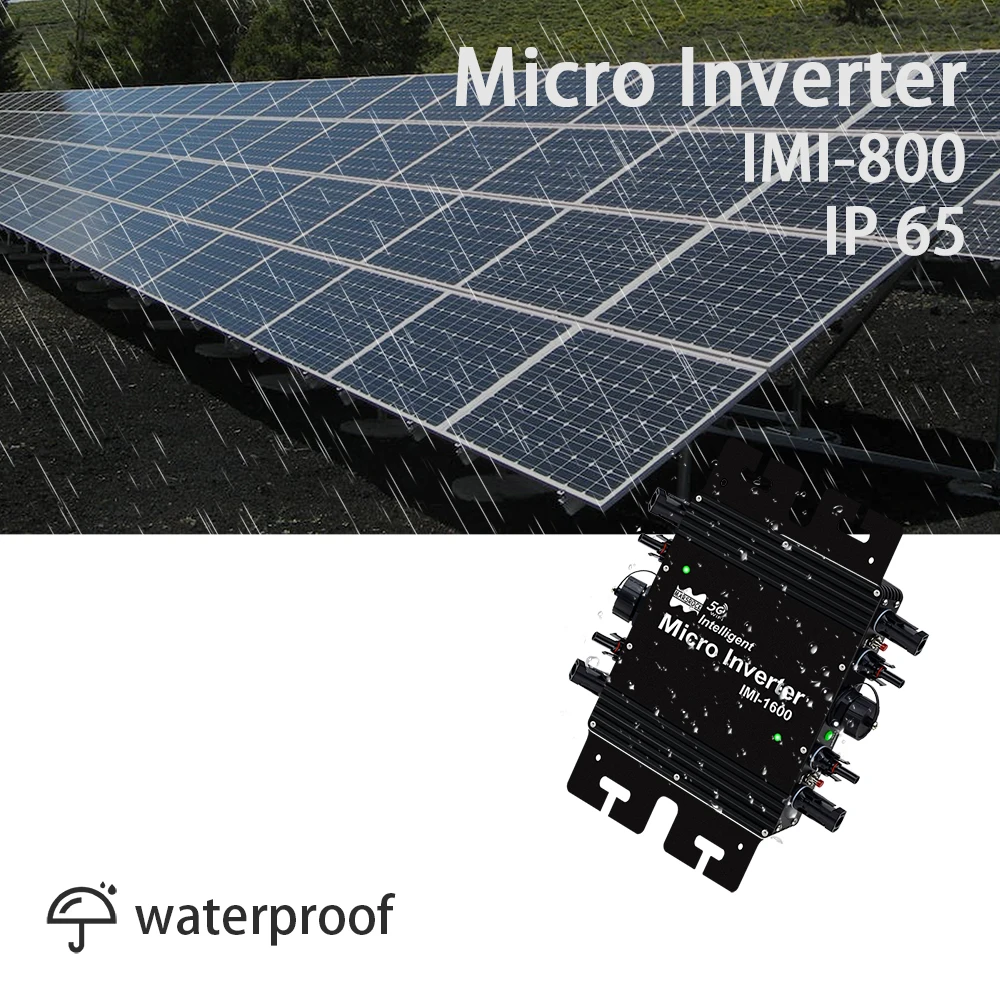

2.IMI inverter using IP65 waterproof streamline design, which can effectively prevent rainwater on surface erosion.
3.Built-in high performance maximum power point tracking function, can track changes in the solar luminosity and control different output power, effectively capture and collect sunlight and use of the inverter to the power emitted, electricity transmission rate of up to 99%.

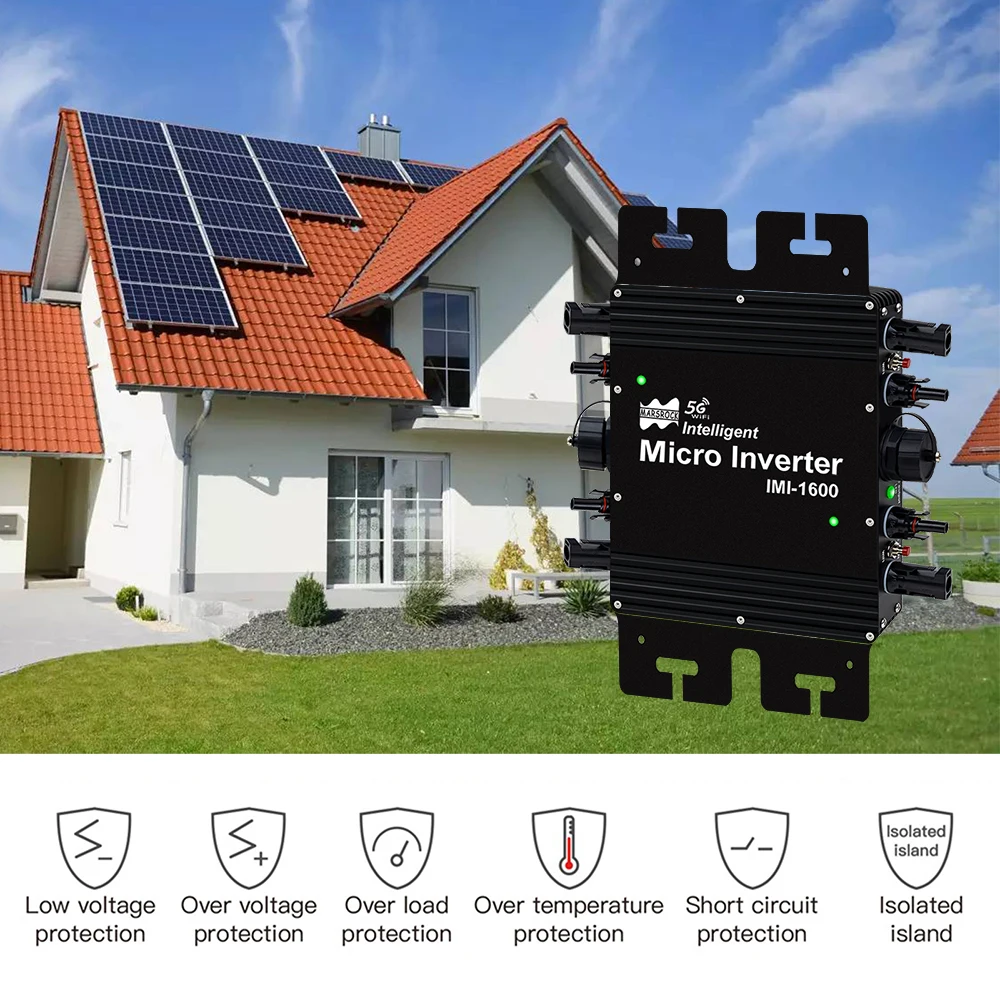

4.High precision phase detection;Over and under voltage protection; Over and under frequency protection; Islanding protection.

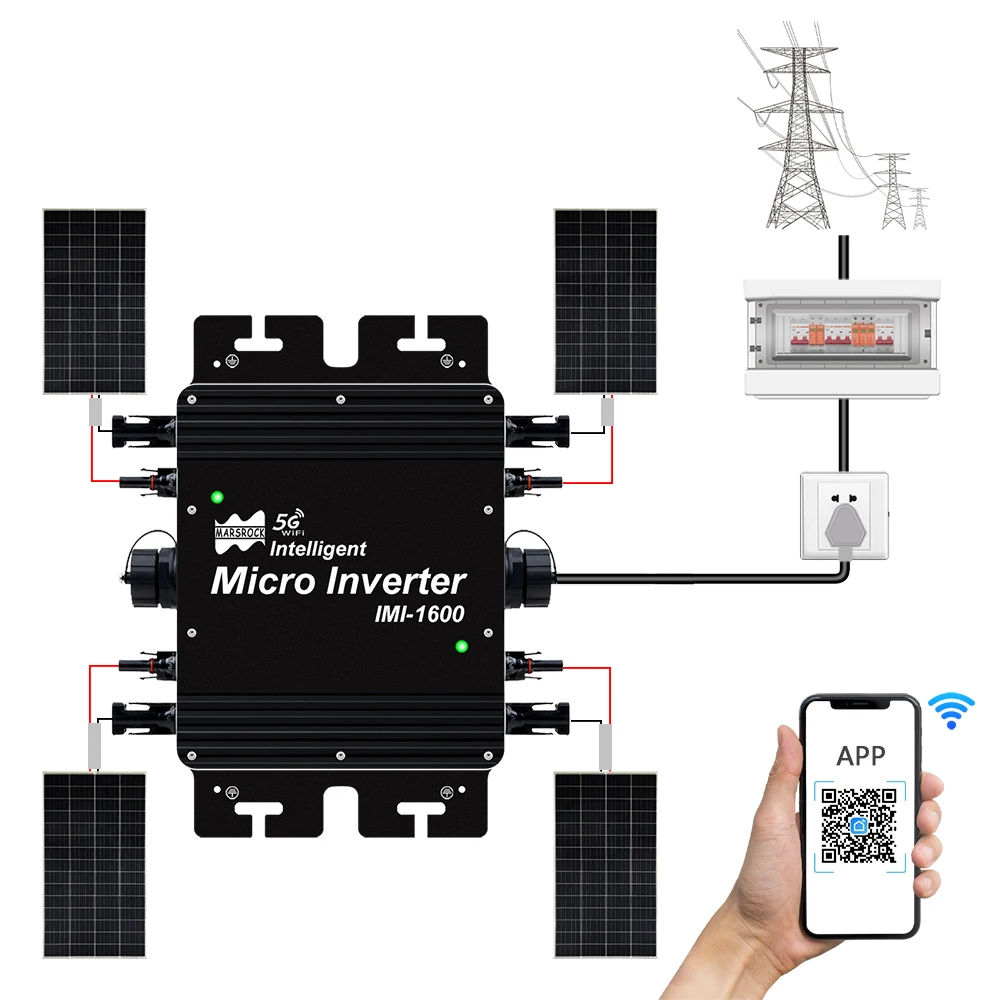

5.Flexible installation. The PV input power workable from 250-450W. DC input 20-50V design can suitable for 36Cells, 60 cells, 72 cells put into in series or in parallel.
PRODUCT PARAMETER
|
Model |
800W |
1600W |
|
Input Data |
||
|
Recommend PV |
250~400W*2 |
250~400W*4 |
|
Operation voltage |
20~50V(MPPT:22V~48V) |
20~50V(MPPT:22V~48V) |
|
Reccommend PV Voc |
33-50V |
33-50V |
|
Star/Max input voltage |
18V/52V |
18V/52V |
|
Max input current |
13A*2 |
7.5A*4 |
|
Output Data |
||
|
Max Output Power |
800W |
1600W |
|
Rated output current |
@120VAC 5A;@230VAC 2.6A |
@120VAC 5A;@230VAC 2.6A |
|
Rated voltage |
@120V(80~160VAC); @230V(180~270VAC) |
@120V(90~160VAC); @230V(190~270VAC) |
|
Max units per branch |
@120V: 5PCS;@230V:10PCS |
@120V: 2PCS;@230V:4PCS |
|
Rrequency |
50/60Hz(48~61Hz) |
50/60Hz(48~61Hz) |
|
Output Efficiency |
||
|
Static MPPT |
0.995 |
0.995 |
|
Power factor |
>99% |
>99% |
|
Max output |
0.95 |
0.95 |
|
Self consumption |
<1W |
<1W |
|
THD |
<5% |
<5% |
|
Exterior |
||
|

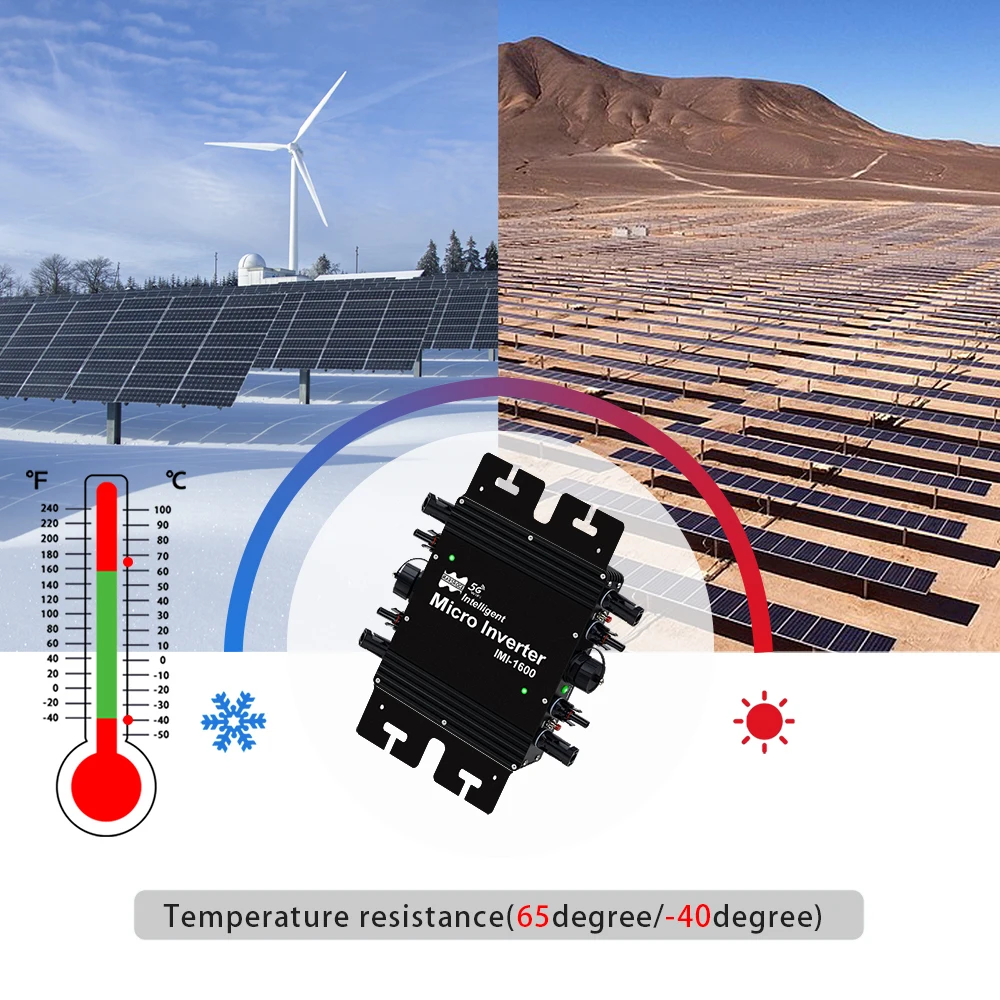

Ambient temperature |
– 40℃to + 85℃ |
– 40℃to + 85℃ |
|
Operating temperature |
– 40℃to + 65℃ |
– 40℃to + 65℃ |
|
Dimensions（L×W×H) |
230x200x40mm |
365x230x40mm |
|
Weight |
2.45kg |
3.5kg |
|
Waterproof Rating |
IP65 |
IP65 |
|
Max current of AC bus cable |
20A |
20A |
|
Cooling |
Self-cooling |
Self-cooling |
|
Feature |
||
|
Power transmission mode |
Reverse transfer, load priority |
Reverse transfer, load priority |
|
Communication |
WIFI(QR code scanning, automatic matching internet) |
WIFI(QR code scanning, automatic matching internet) |
|
Design |
High frequency transformer, Glvanically isolated |
High frequency transformer, Glvanically isolated |
|
Equipment ground is provided by the PE in the AC cable |
||
|
Protection |
||
|
Electromagnetic compatibility |
EN50081.part1EN50082.part1 |
EN50081.part1EN50082.part1 |
|
Grid disturbance |
EN61000-3-2 Safety EN62109 |
EN61000-3-2 Safety EN62109 |
|
Grid detection |
DIN VDE 1026 UL1741 |
DIN VDE 1026 UL1741 |
|
Certificate |
CE，RoHs, FCC |
CE，RoHs, FCC |

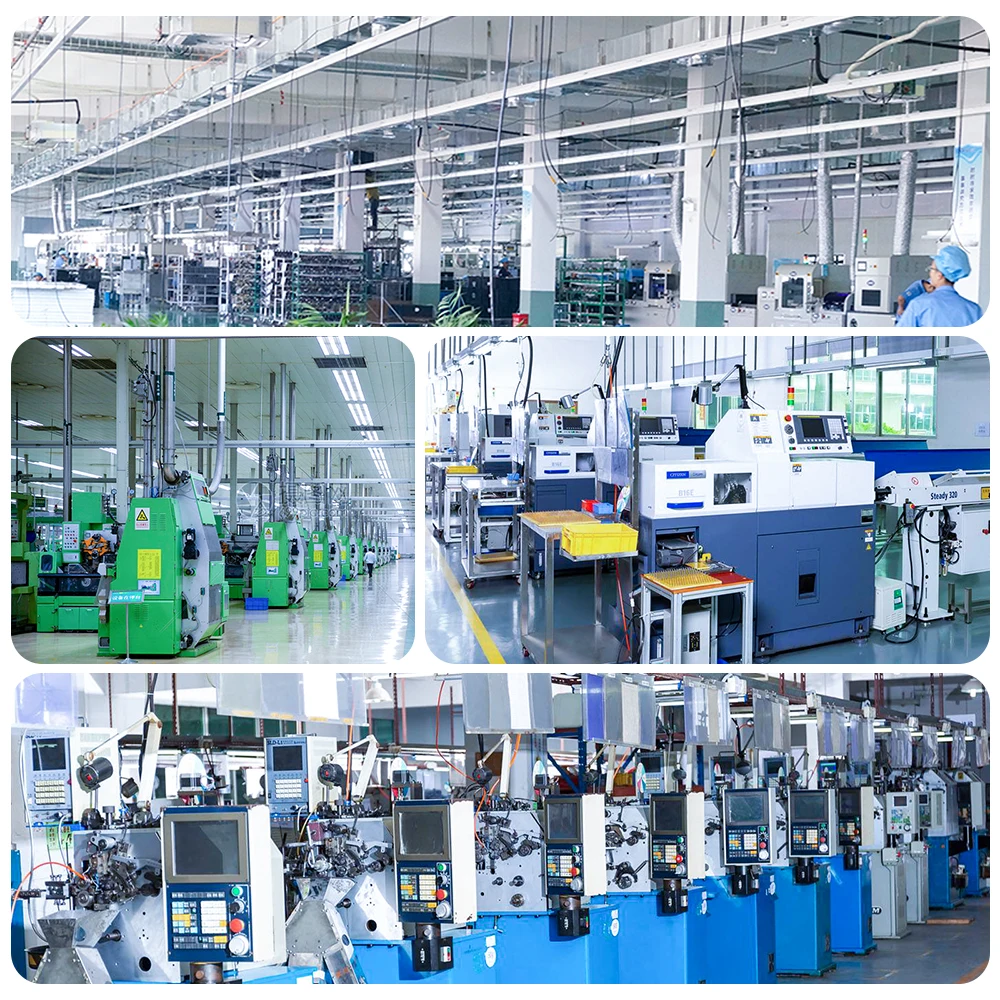

PRODUCE LINE
