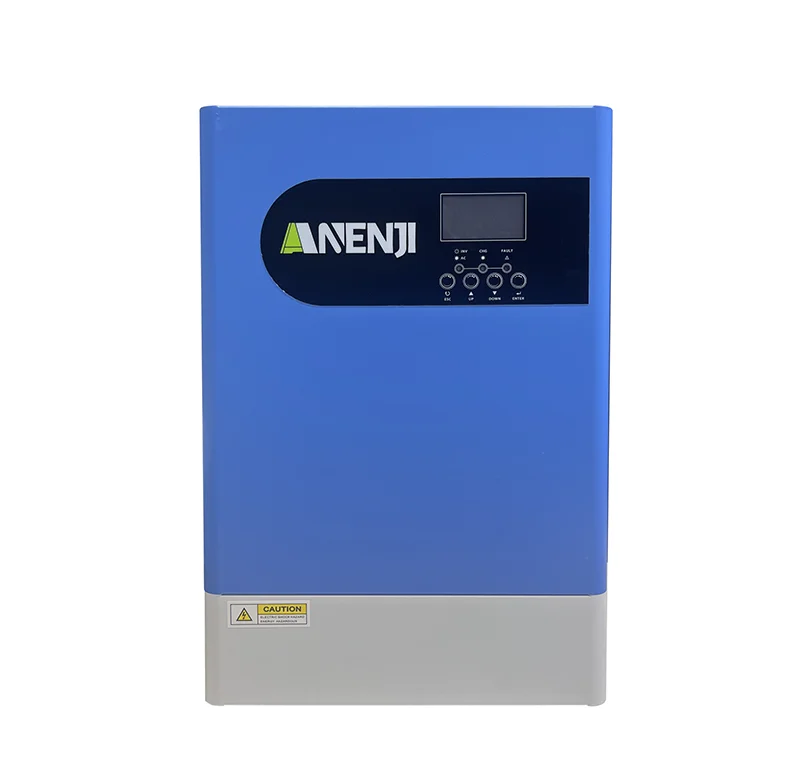

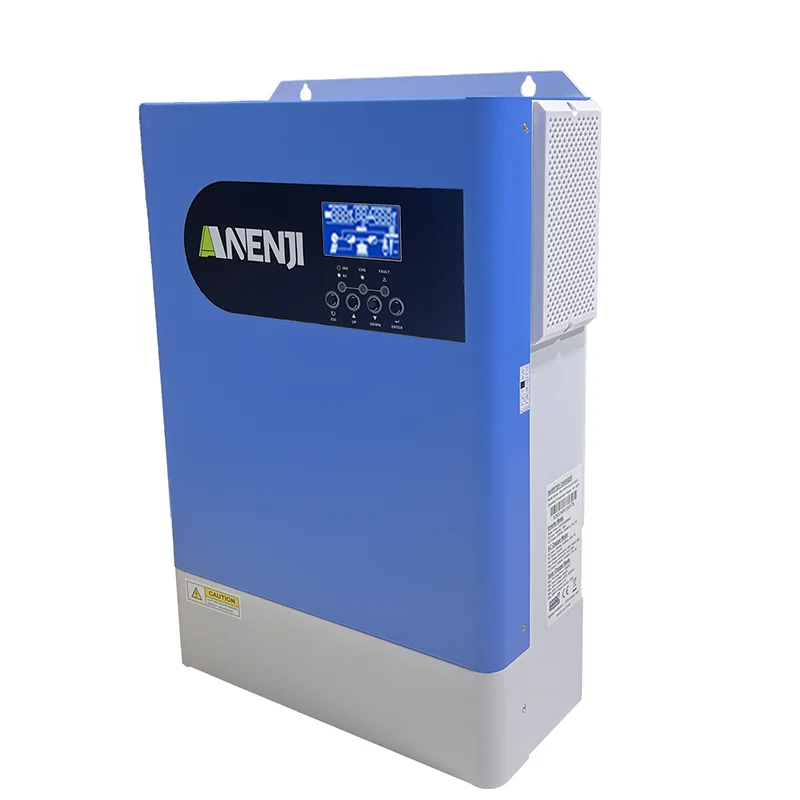

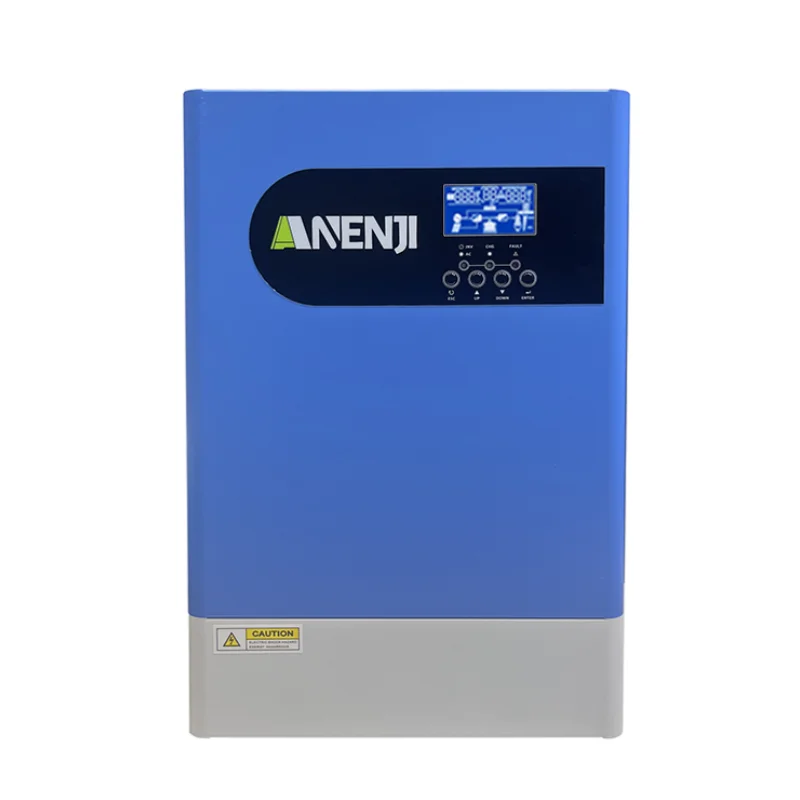

18.6KW Hybrid Solar Inverter 3 Phase Parallel 60 to 500VDC High PV Charger 380v Grid Tie MPPT Inverter With WIFI BMS
Original price was: ر.ع.637.66.ر.ع.539.55Current price is: ر.ع.539.55.
Hign-concerned Chemical: None is_customized: Yes Output Current: 120A Model Number: ANJ-HHP-II-18.6KP-WIFI Output Power: 1 – 200KW Size: 450*300*130mm Output Type: SINGLE Weight: 36kg Brand Name: ANENJI Output Frequency: 50/60HZ Is Smart Device: YES Origin: Mainland China Certification: CE,RoHS Rated Power: 6.2KW Parallel Capability: MAX 12units Input Nominal Voltage: 230VAC Acceptable Voltage Range: 170-280VAC(For personal Computer.90-280VAC(For Home App Vances Frequency: 50/60Hz (Auto sonsing) Nominal Voltage: 220/230VAC Surge Power: 12400VA Waveform: Pure sine wave Transfer Time: 10ms (For personal […]
Description
- Hign-concerned Chemical: None
- is_customized: Yes
- Output Current: 120A
- Model Number: ANJ-HHP-II-18.6KP-WIFI
- Output Power: 1 – 200KW
- Size: 450*300*130mm
- Output Type: SINGLE
- Weight: 36kg
- Brand Name: ANENJI
- Output Frequency: 50/60HZ
- Is Smart Device: YES
- Origin: Mainland China
- Certification: CE,RoHS
- Rated Power: 6.2KW
- Parallel Capability: MAX 12units
- Input Nominal Voltage: 230VAC
- Acceptable Voltage Range: 170-280VAC(For personal Computer.90-280VAC(For Home App Vances
- Frequency: 50/60Hz (Auto sonsing)
- Nominal Voltage: 220/230VAC
- Surge Power: 12400VA
- Waveform: Pure sine wave
- Transfer Time: 10ms (For personal Computed),20ms (For Home Appliances)
- Peak Efficiency PV to INV: 94%
- Peak Efficiency Battery to INV: 93%
- Overload Protection: 5s>=150% load,10s>=110%-150% load
- Crest Factor: 3:01
- Admissible Power Factor: 0.6-1 inductive capacitive

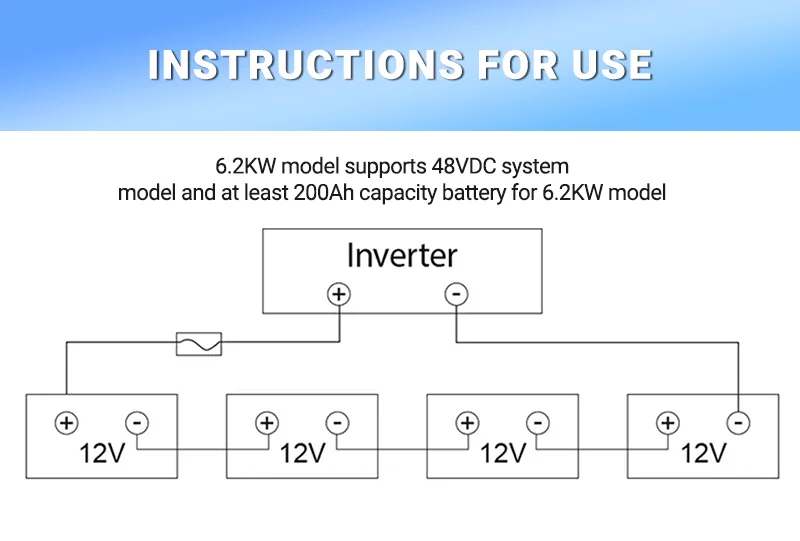

- Battery Voltage: 48VDC
- Floating Charge Voltage: 54VDC
- Over Charge Protection: 63VDC
- Charging Method: CC/CV
- Solar Charger: MPPT

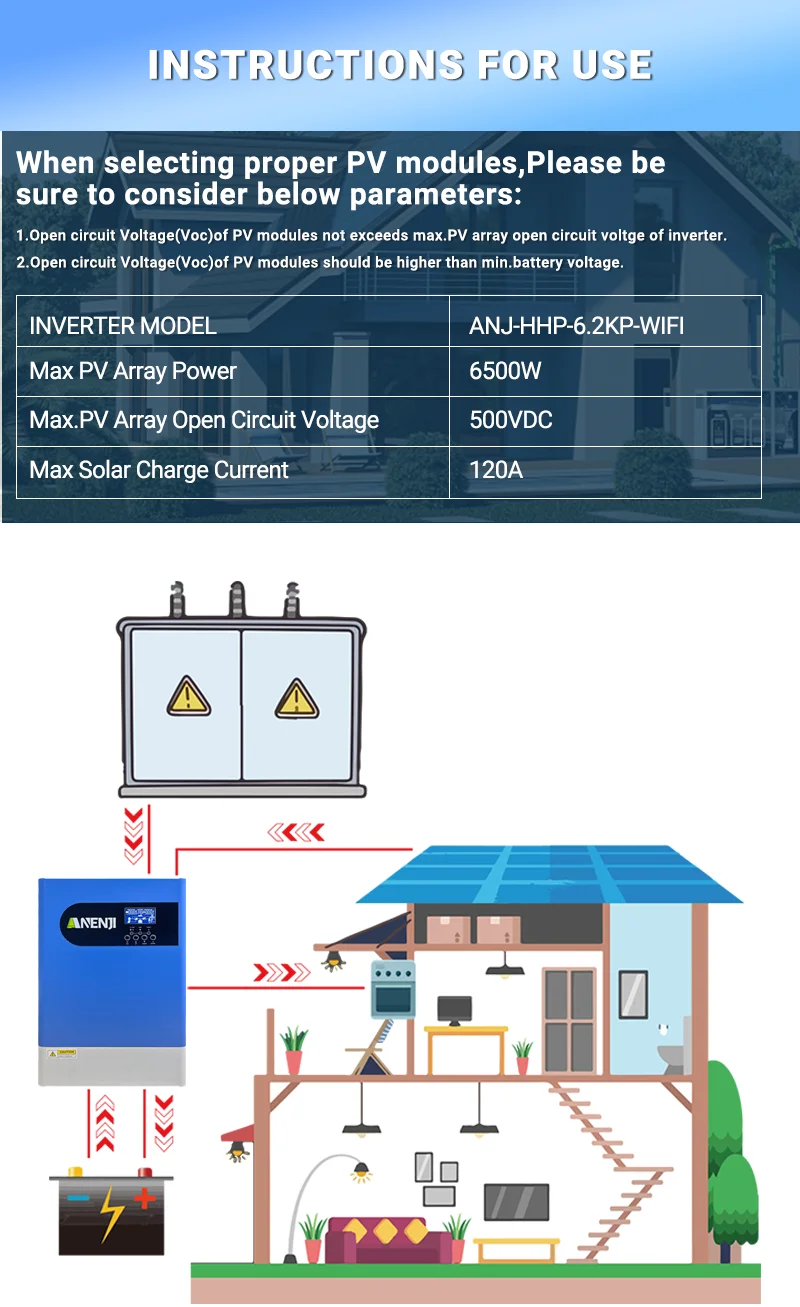

- Max. PV Array Power: 6500W
- Max. PV Array Open Circuit Voltage: 500VDC
- PV Array MPPT Voltage Range: 60VDC-500VDC
- Max. Solar Input Current: 27A
- Max. Solar Charge current: 120A
- Max. AC Charge Current: 80A
- Max. Charge Current: 120A
- Dimensions,DxWx H: 540*390*210mm
- Net Weight: 12KG
- CommunicatIon lnterface: RS232/RS485
- Operating Temperature Range: -10℃to 50℃
- Storage temperature: -15℃- 60℃
- Humidity: 5% to 95% Relative Humidity Non-condensing
- Support function: Parallel up to 12 pcs

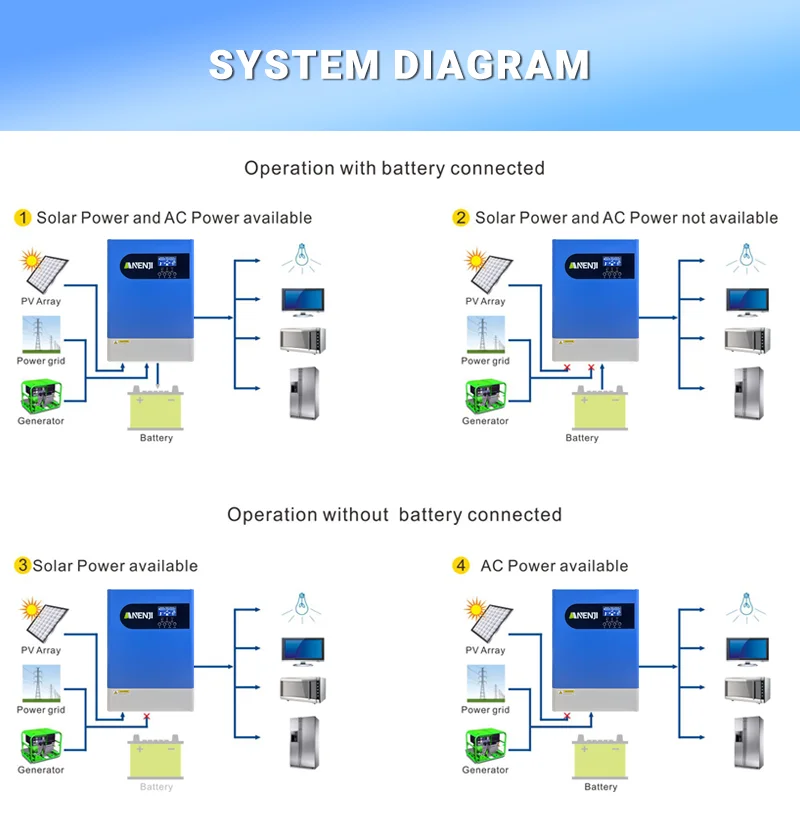

- Feature1: Support work without battery

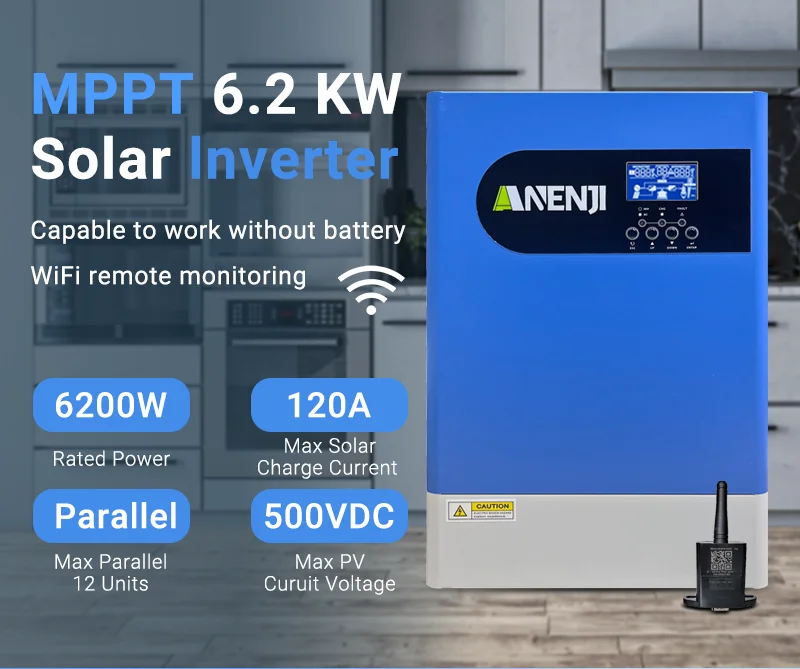

6.2KW 48V Parallel Hybrid Solar Inverter
(1) Compatible Work With Lifepo4 Battery

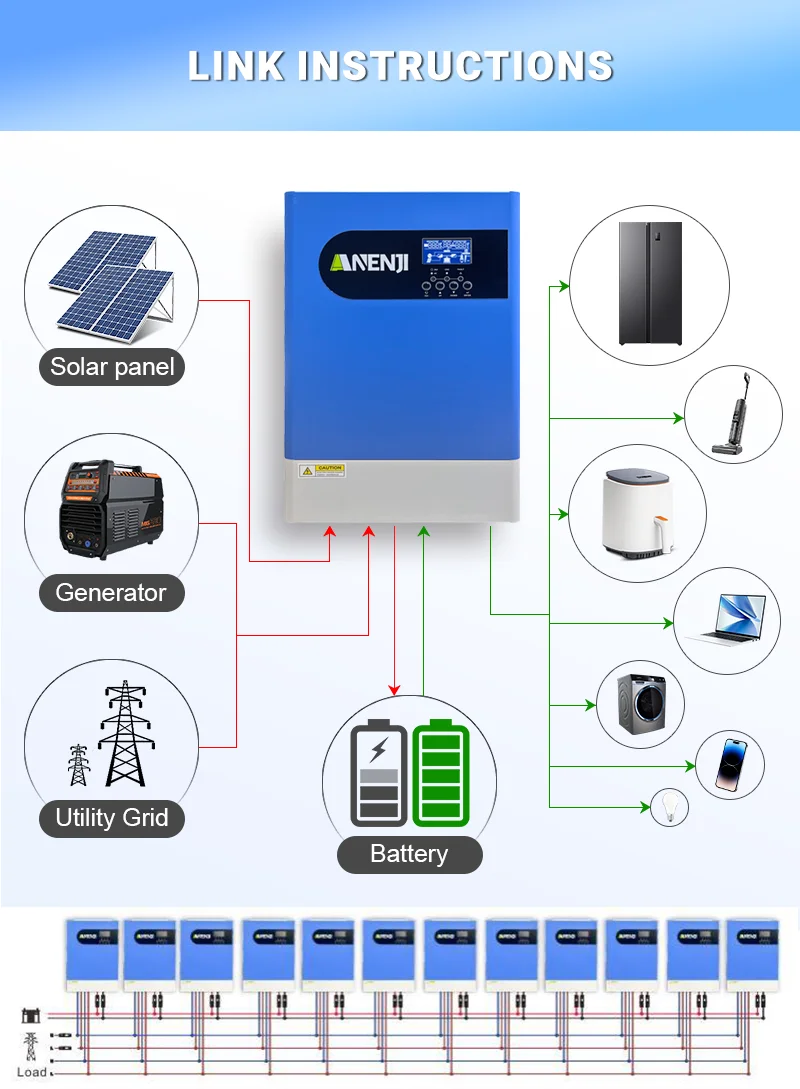

(2) Parallel Operation Up To 12 Units In 1phase Or 3phase
(3) Direct Plug WiFi Dongle Supported-No Additional Cables Required
(4) Pure Sine Wave
(5) PowerFactor 1.0
(6) PVInput 500VDC Max
(7) Built-in MPPT 120A
(8) Capable To Work Without Battery
(9) Detachable Dust CoverFor Harsh Environment
(10) WiFiRemote Monitoring Optional
(11) Support Multiple Output Priority:UTL,SOL,SBU,SUB
(12) EQ Function To Optimize Battery Performance And Extend LifeCycle
Package:
Inverter *3
Instructions*3
Parallel line*3
WiFi module*3
Additional information
| Color | ANJ-HHP-18.6KP-WIFI |
|---|---|
| Input Voltage | 48V |
| Output Voltage | 220-240V |
