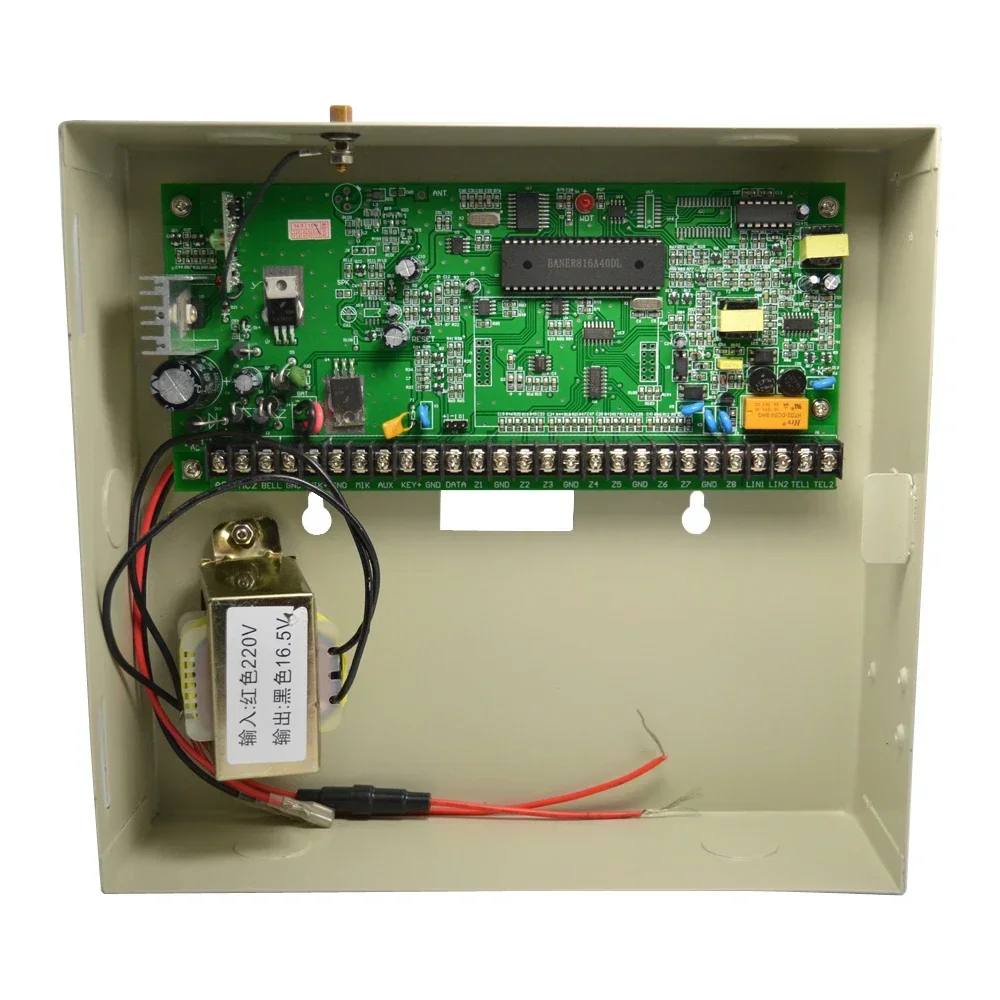

1Set Metal Box Security Home PSTN Alarm System 8/16 Wired 16 Wireless RF433 Zones Support Door Sensor PIR Detector Smoke Alarm

Factory sale Metal box Security Home PSTN alarm system 8/16 wired and 16 wireless zones Link to smoke detector PIR motion detect

Features
 High speed digital communication, compatible ADEMCO4+2, CID digital communication protocol；Send alarm signal to alarm center.
 With eight-way output module can be customized output: Linkage output; remote control output (mainly USED IN linked with the monitoring, control home appliances. Lamp, exactly see 4.35）
 Different programmable settings, such as alarm sounds, zone types, recording, monitoring, remote controlling, telephone number, phone line Check, and etc.

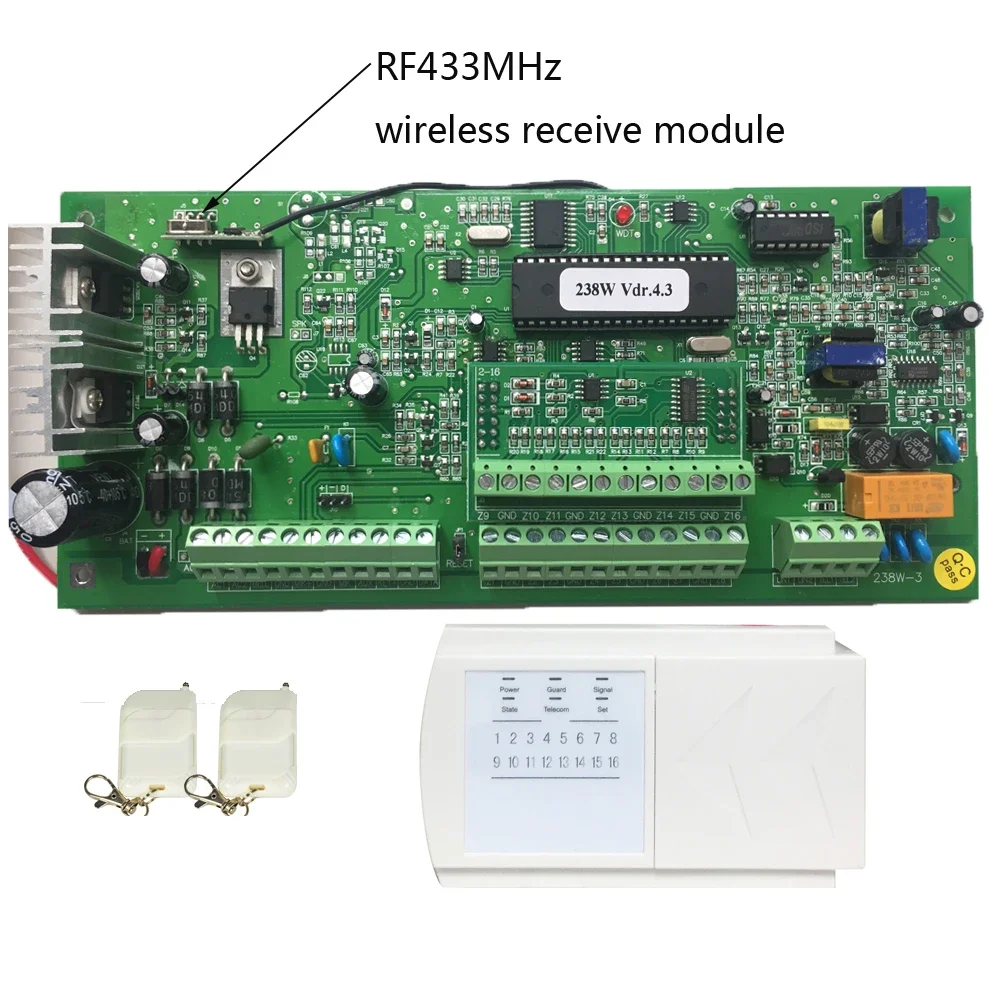

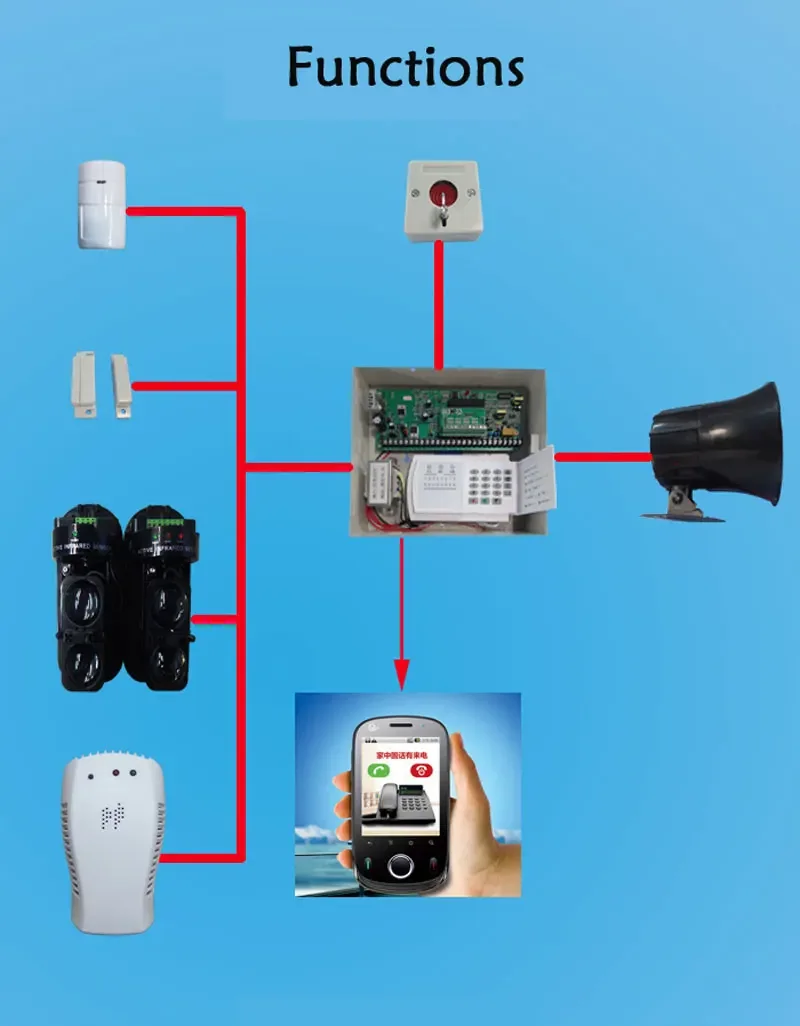

 Compatible with wired and wireless function
 1 group 6 bits primary passwords, 15 groups subsidiary setting passwords are available to improve security;
 6 groups of phone number and 3 group alarm center phone number could be set. When the alarm activated, it could repeat dialing the numbers.
 8 ARM modes: exit ARM, boundary ARM, single zone ARM, delay ARM, remote ARM, compel ARM , remote ARM and preset time ARM.
 6 DISARM modes: single zone DISARM, keypad password DISARM, long distance DISARM, time DISARM, remote setting DISARM, DISARM when connecting alarm.

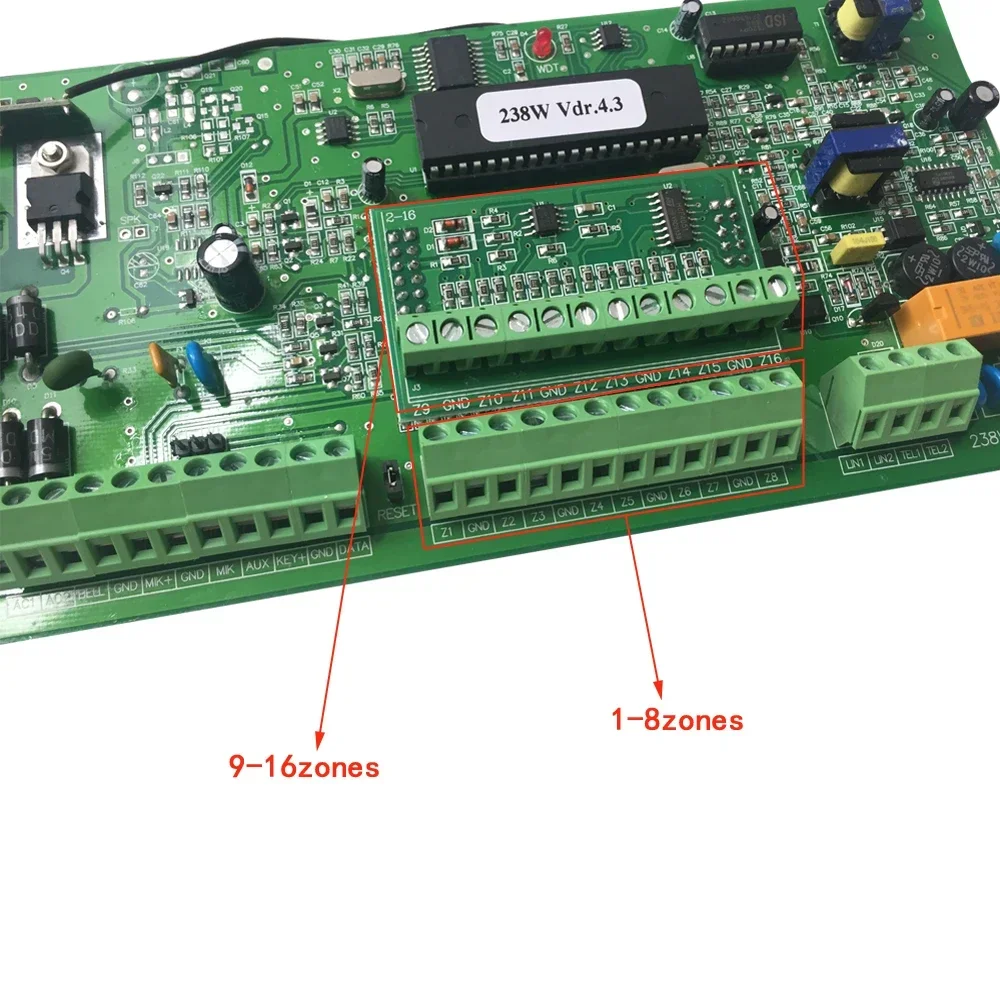

 8 zone modes: instant zone, delay zone, 24 hours zone, boundary zone , fire alarm zone, gas zone, check zone, and BY-PASS zone
 Remote control function, external monitor, monitoring from long-distance.
 Built-in voice module, 10~20seconds record, voice alarm function
 Set the alarm delay time and siren yelp time
 Search record of emergency
 Remote controller can be used to set alarm, DIS-ALARM, emergency alarm and other operation.

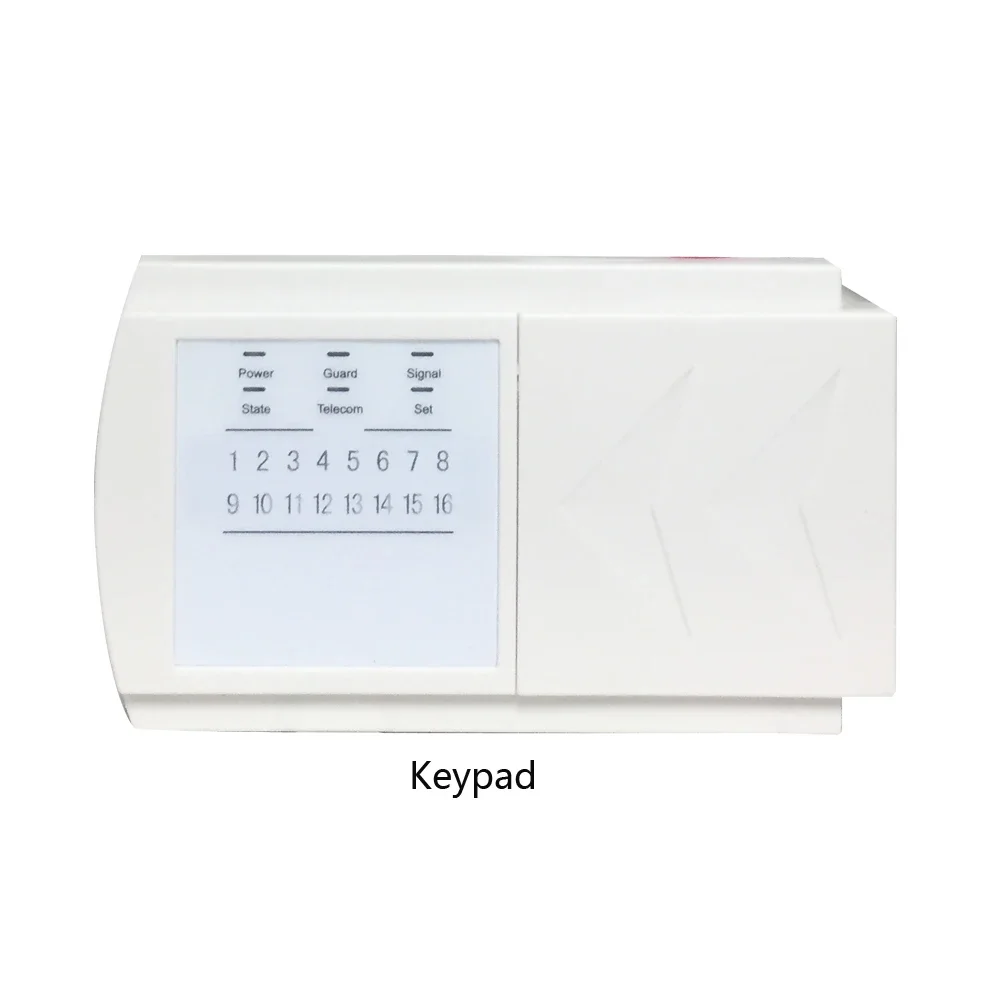

 Operate from keypad, easily and convenient.
 Phone line malfunction indication function: system will alarm when phone line is cut off or short.
 The alarm dialling is in priority
 Backup DC 12V 7AH sealed lead rechargeable battery support work when AC power cut off
 “Watch dog” function, to avoid system down.
 Remark: Pull out the jumper head in JP1 of the main panel after finishing program for the main panel, which can prevent other person operate the main panel and improve security.

Main specification

Power supply：                     AC220V+10%

Stand by consume current:           ≤100mA

Power:                             <1.5W

Alarm output current:                <650mA, 12V

Output voltage: 　　　　　　　　　　DC12V～15V

Wireless receiver frequency:          315MHZ

Working temperature:                -10 ～ 55°C

Working Humidity:                   40 ～ 70%

Weight:                            2.5 kgs

Metal box size                      255mm×235mm×70mm

Keypad size:                       159mm×138mm×33mm
