24.125GHz Wired Microwave Motion Sensor Radar Detector for Automatic Door Elevator Company Supermarket

Description

This is a universal microwave motion sensor. it’s widely used in Automatic doors,elevators in Public places like Supermarket, ATM, Airport etc. It’s made with Sophisticated Motion Tracking Feature

24.125GHz Microwave sensor Technology

Adjustable settings to optimize sensor for all automatic door applications

Adjustable sensor detection area by right-left, up-down direction

Specification

Technology: Microwave and microprocessor

Transmitter Frequency: 24.125Ghz

Transmitter radiated power: <20 dBm EIRP

Transmitter power density: <5mW/cm2

Maximum mounting height: 3M

Tilt angles: 0-90Degree Vertical and -30-30Degree Lateral

Detection Field(mounting height=2.2m): 4m(W)x2m(D)

Detetion mode: Motion

Minimum speed 5cm/s(Measured in the sensor axls)

Supply voltage: 12V-24V AC/DC+30%-10% (not include)

Mains Frequency: 50-60Hz

Power consumption: <2W(VA)

Output Replay: 42V AC-60V DC

Hold Time: 0.5s

Temperature Range:-20Degree- +55Degree

Degree of protection: Ip54

Color Black Silver

Weight 0.23kg

Length of cable 2m

Standard voltage: DC12V to 24V;

Material: ABS;

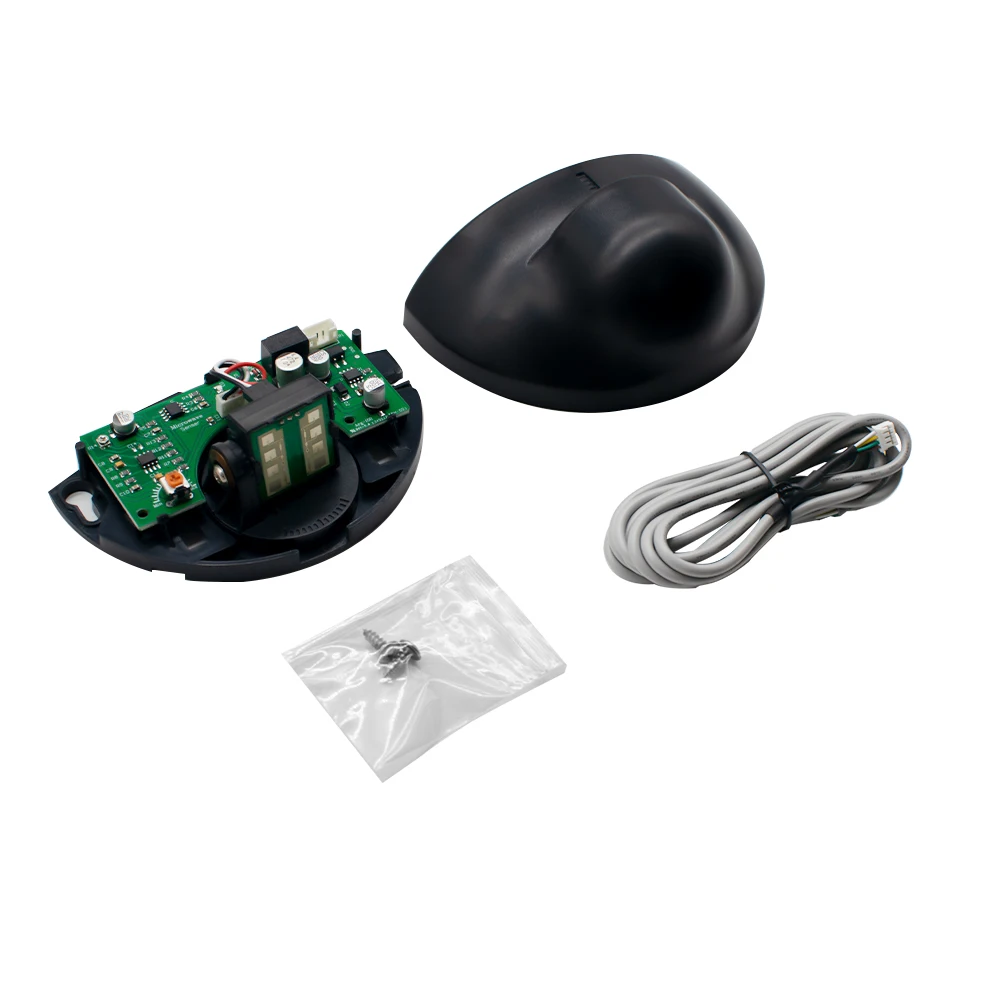

Package List:

1 * Microwave Sensor
1 * Connection Cable
1 * Positioning Jam
2 * Screws
1 * Instruction Manual
