Description
- Hign-concerned Chemical: None
- Brand Name: luxuglow
- Origin: Mainland China

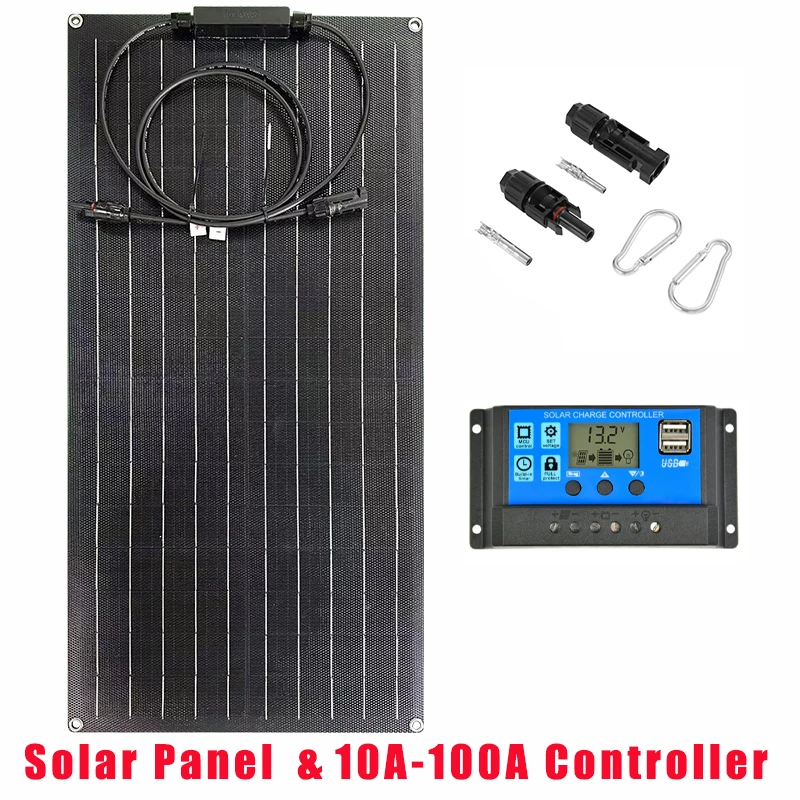

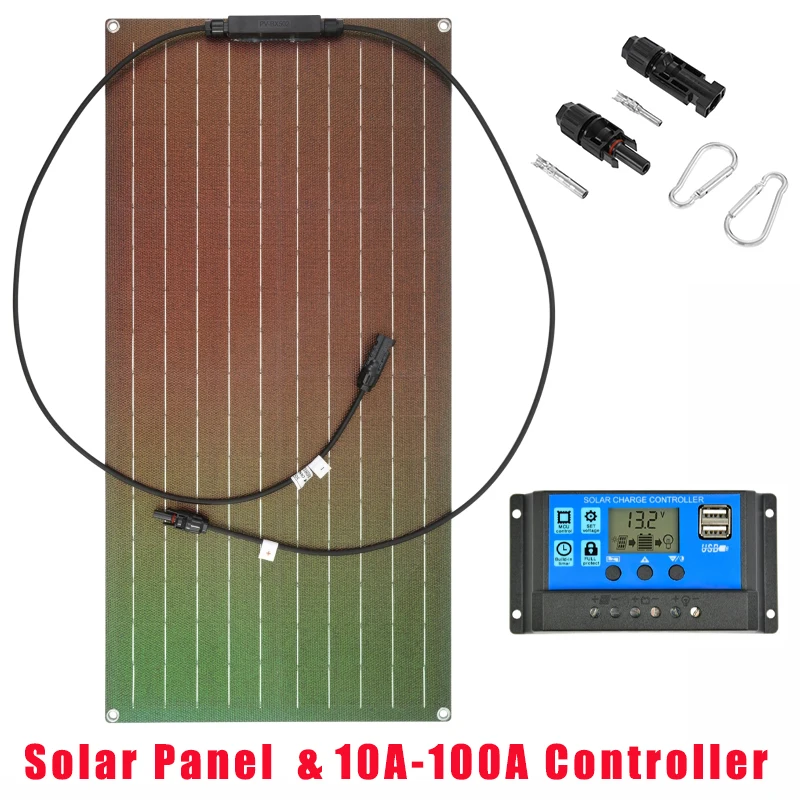

- Solar Panel Name: Solar Panel with Controller Set
- Solar Panel Material: ETFE + Aluminum + Monocrystalline Silicon
- Solar Panel Pmax: 45W
- Solar Panel VmP: 17.6V
- Solar Panel Voc: 20.8V
- Solar Panel ImP: 2.55A
- Solar Panel Isc: 2.7A
- Solar Panel Cell Conversion Efficiency: 22.5%
- Solar Panel Working Environment: -40℃~85℃
- Solar Panel Maximum System Voltage: 1000V
- Solar Panel Size: 690x340x2.5mm
- Solar Controller Name: Solar Controller
- Solar Controller Material: PVC
- Solar Controller Voltage: 12V/24V automatic identification
- Solar Controller Rated Charging Current: 10A/20A/30A/40A/50A/60A/100A
- Solar Controller Rated Discharge Current: 10A
- Solar Controller Photovoltaic Voltage: 12V system<23V/24V system<46V
- Solar Controller USB Output: 2 USB outputs, maximum 5V/2A
- Solar Controller Standby Current: <10mA
- Solar Controller Working Temperature: -35℃~+60℃
- Solar Controller Certification: CE RoHS
- Solar Controller Size: 133 * 70 * 35mm
- Rated Power: 100W
- Maximum Power: 300W
* The monocrystalline solar cell 158×158 used has high conversion efficiency, imported ETFE film, and EVA is encapsulated with a 25-year warranty for high transparency.

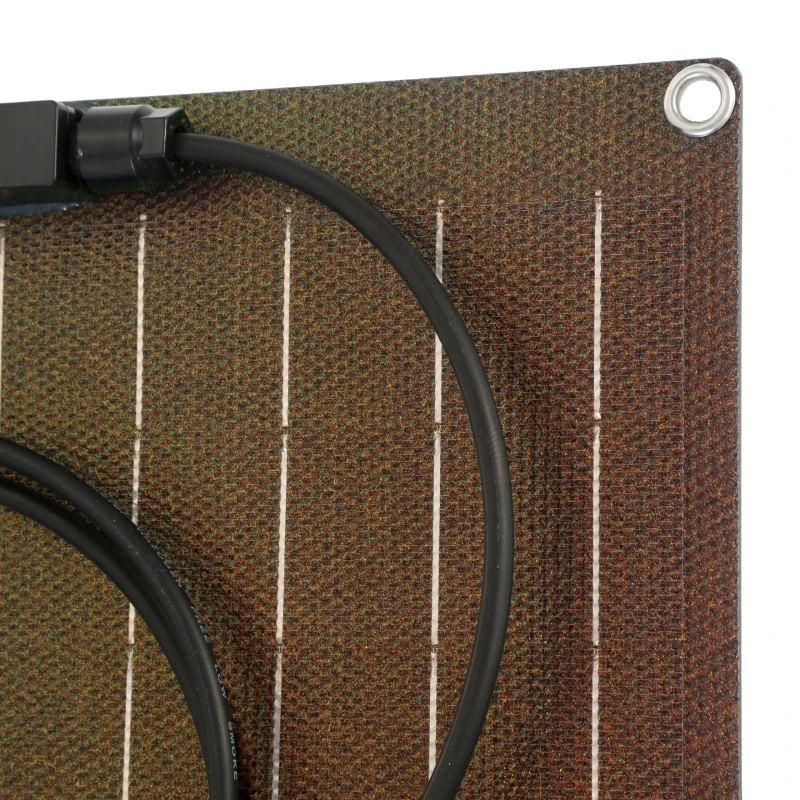

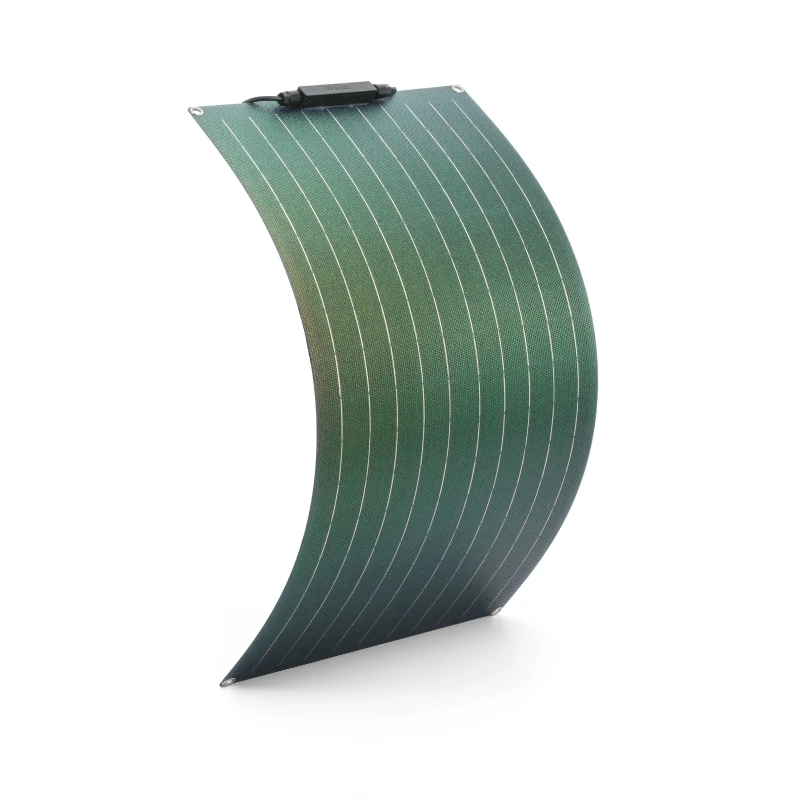

* The semi-flexible solar panel used is flexible and thin, with anti-penetration contour bending and customized quick installation.
* Power tolerance range (output power is within the positive and negative tolerance range of 5%)
* This product has excellent low-light performance. This power supply method is energy-saving and environmentally friendly, and is very suitable for outdoor work, travel or camping training.
* Able to withstand strong wind and snow loads The solar panel can withstand wind loads (1400 Pascal) and snow loads (2400 Pascal).

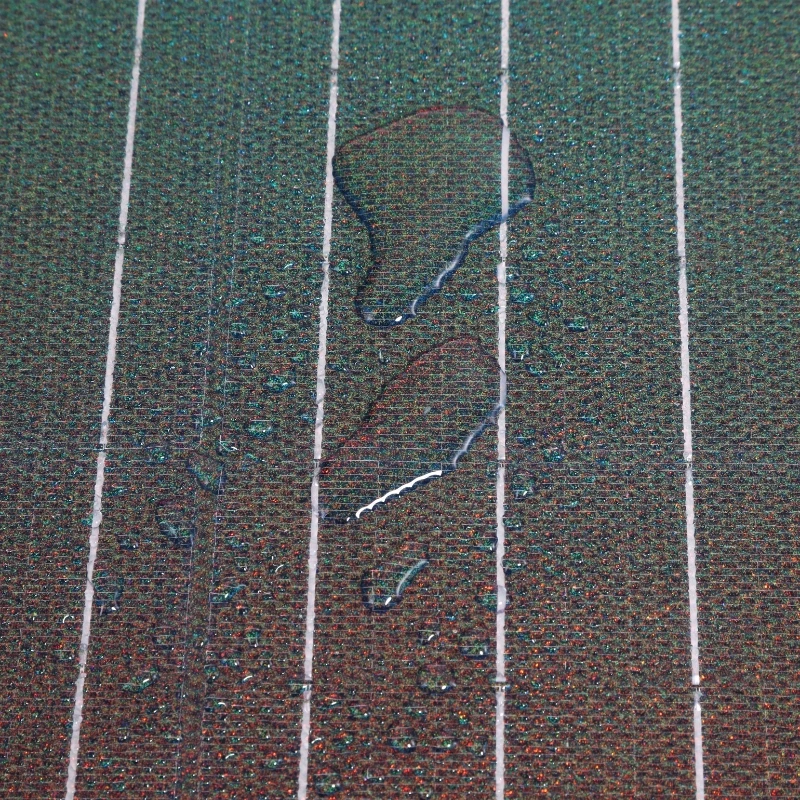

* Color EVA light-conversion film, breaking through the color optical coating transmittance of 99%, making the color of the photovoltaic panel no longer monotonous.
* And at the same time, it has the same photoelectric conversion efficiency as the transparent high-transmittance EVA encapsulation film.
Specification:

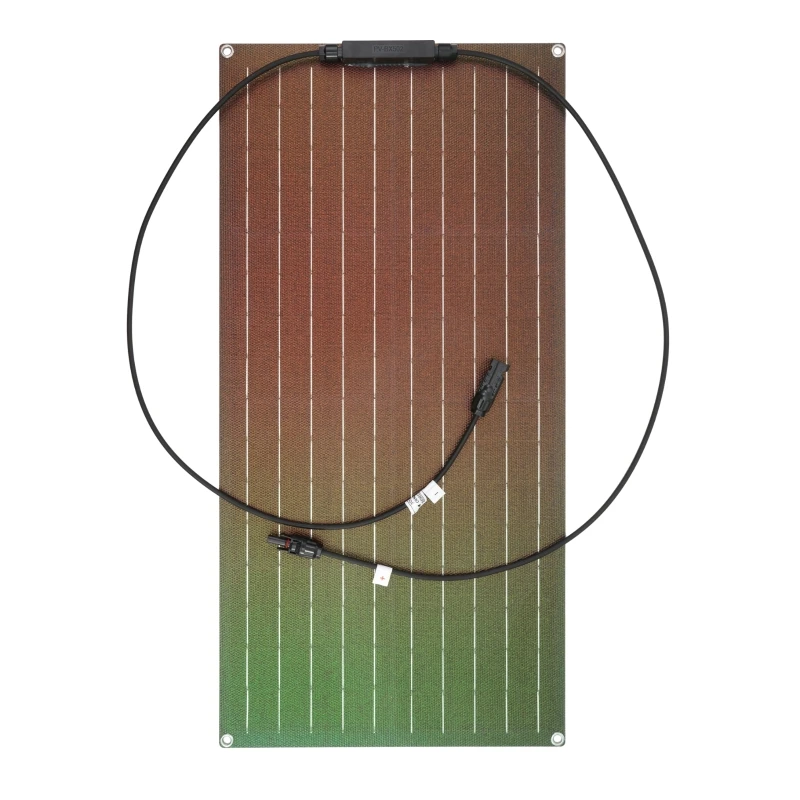

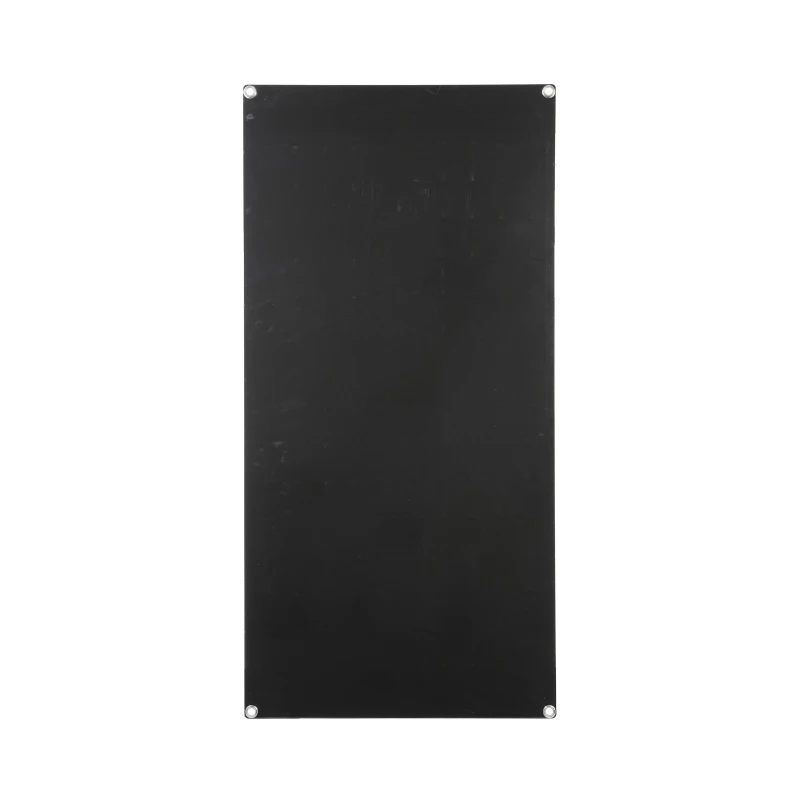

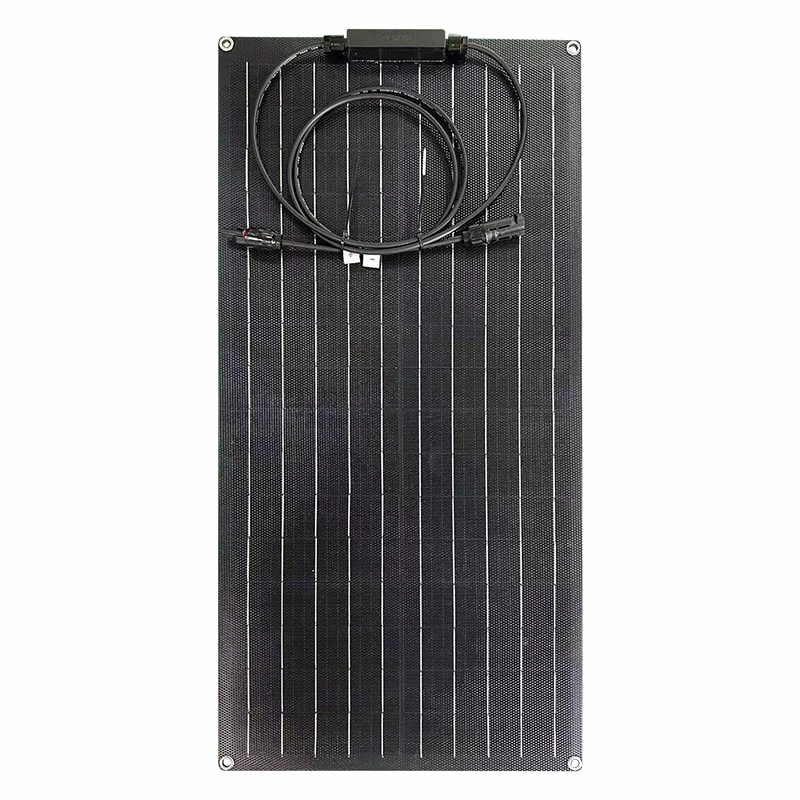

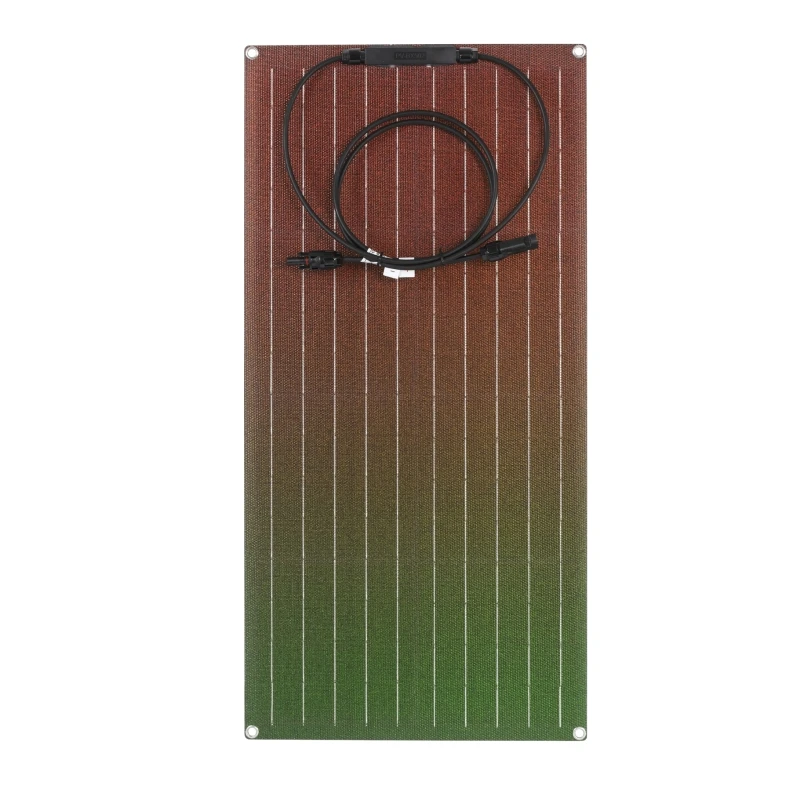

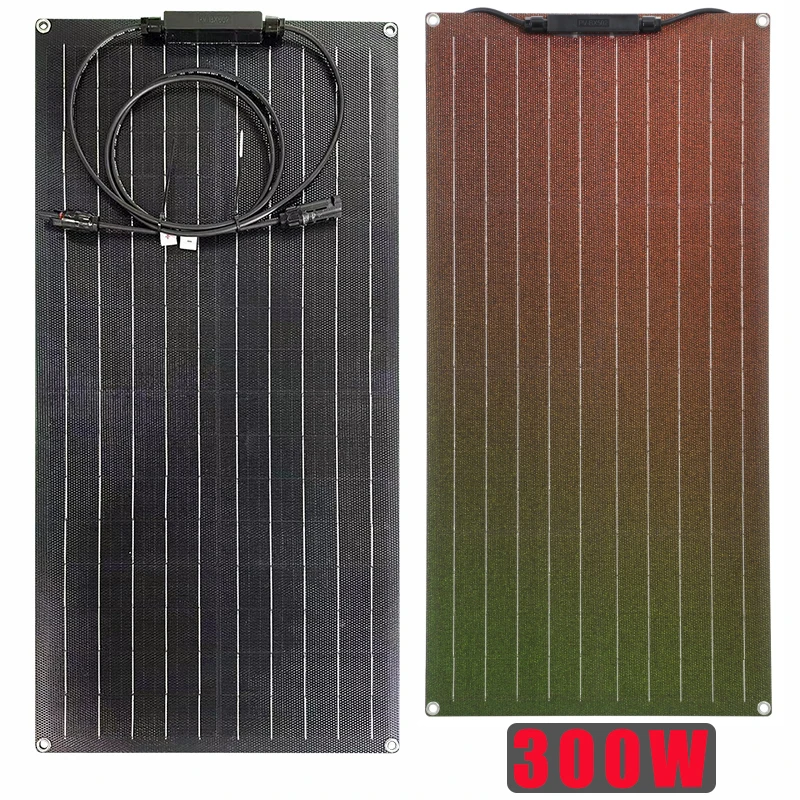

Name: Solar Panel
Material: ETFE + Aluminum + Monocrystalline Silicon
Pmax: 45W
Rated power: 100W
Maximum power:300W
VmP: 17.6V
Voc: 20.8V
ImP: 2.55A
Isc: 2.7A
Cell conversion efficiency: 22.5%
Solar panel working environment: -40℃~85℃
Maximum system voltage: 1000V

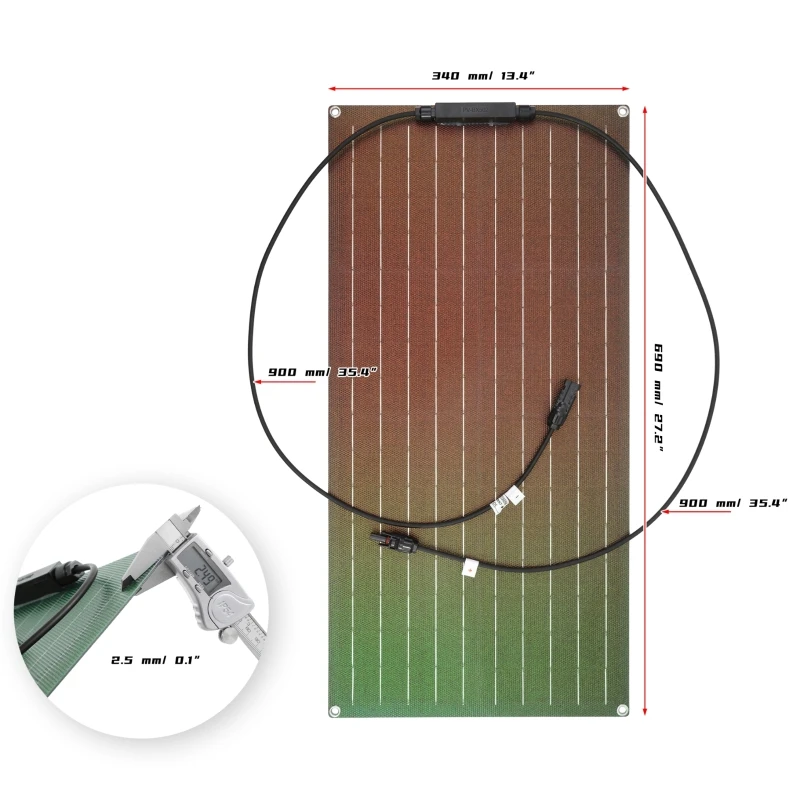

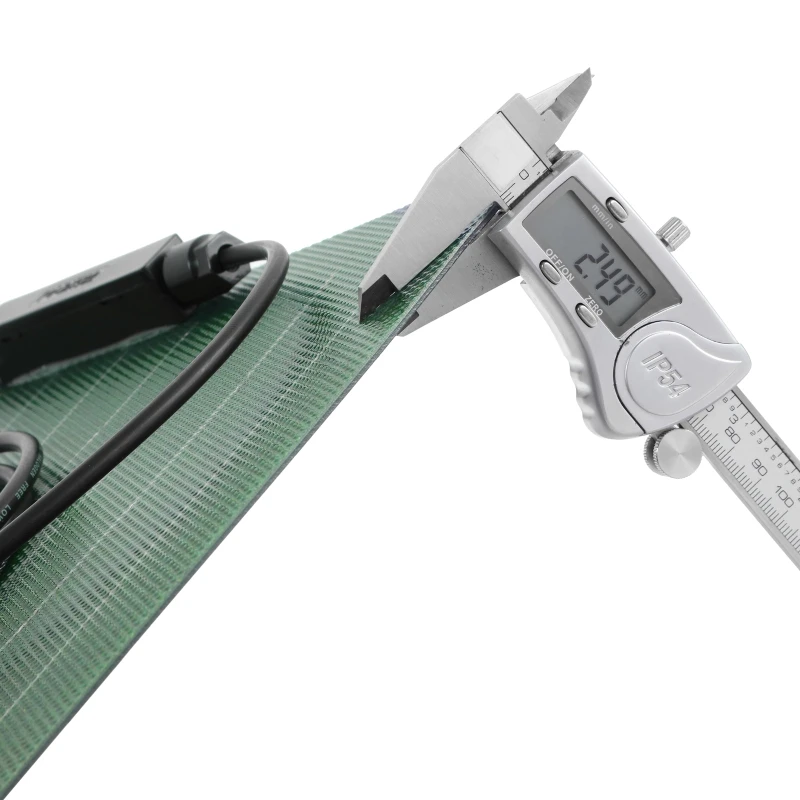

Size: 690x340x2.5mm/27.2" * 13.4" * 0.1"

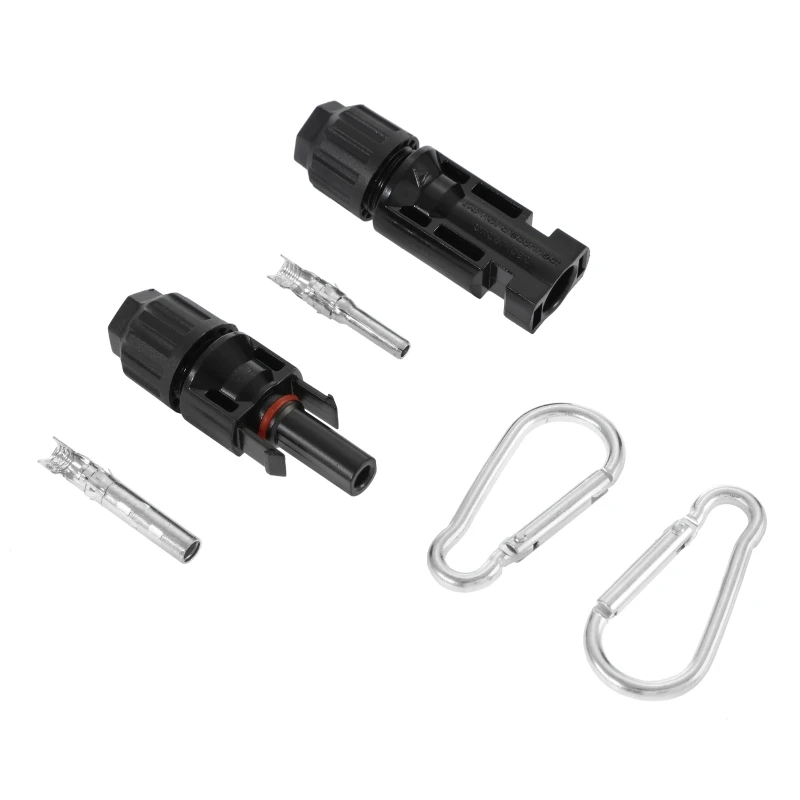

Packing included:
1 * Solar Panel

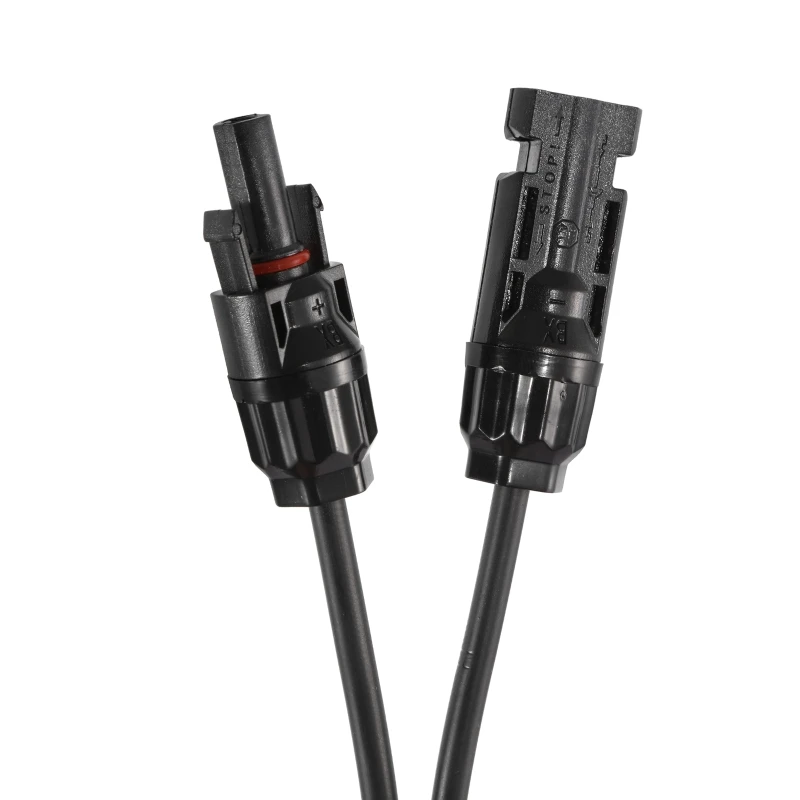

2 * Connectors

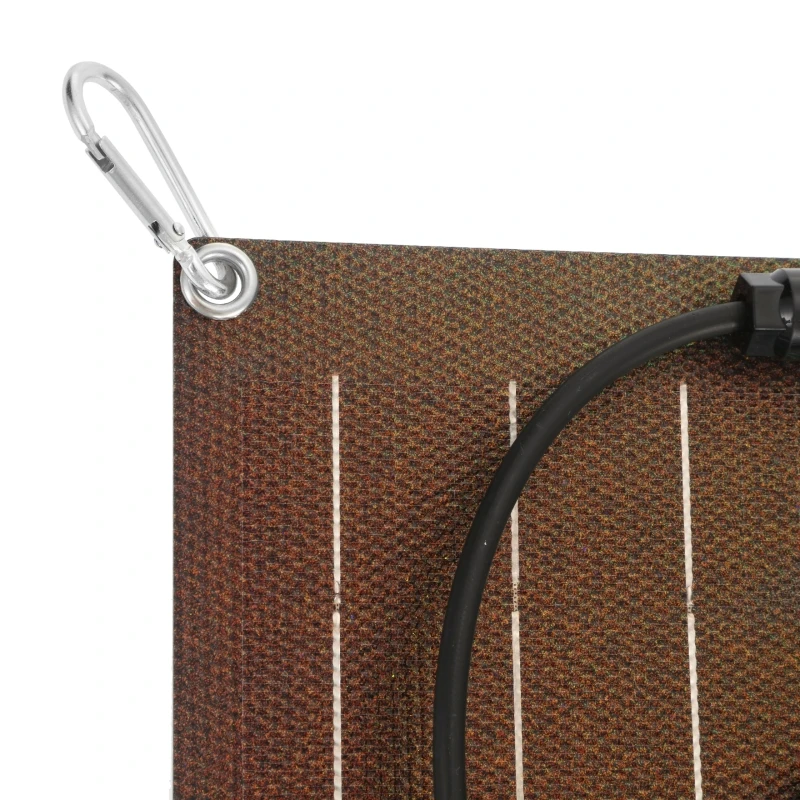

2 * Carabiners

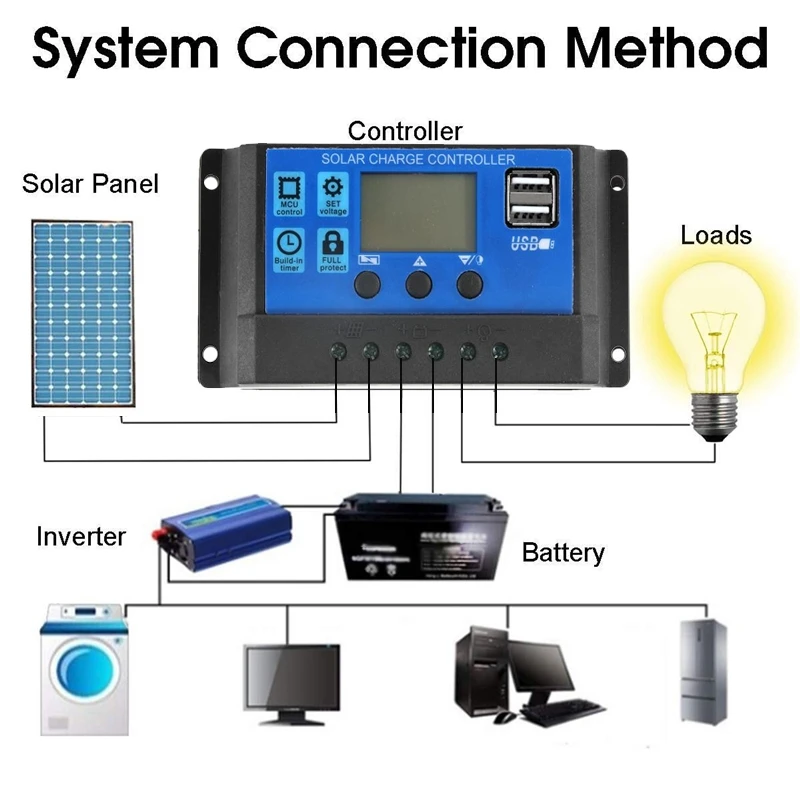

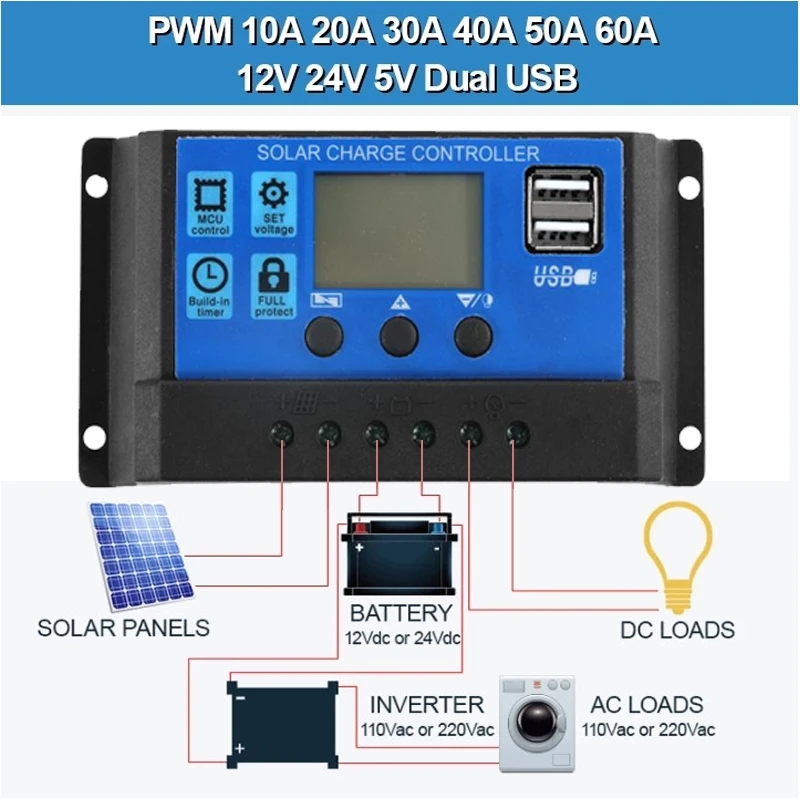

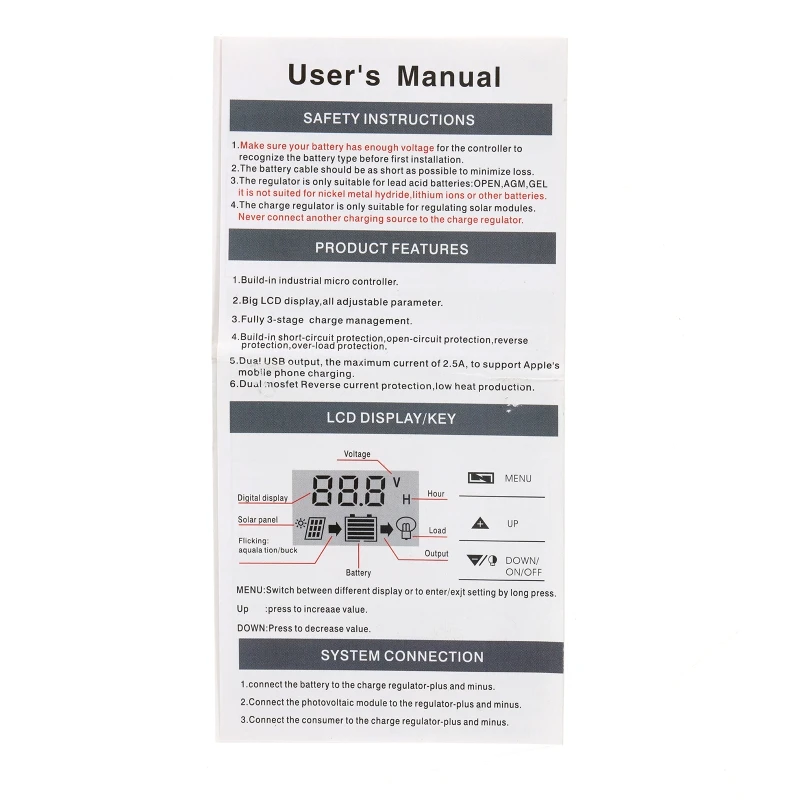

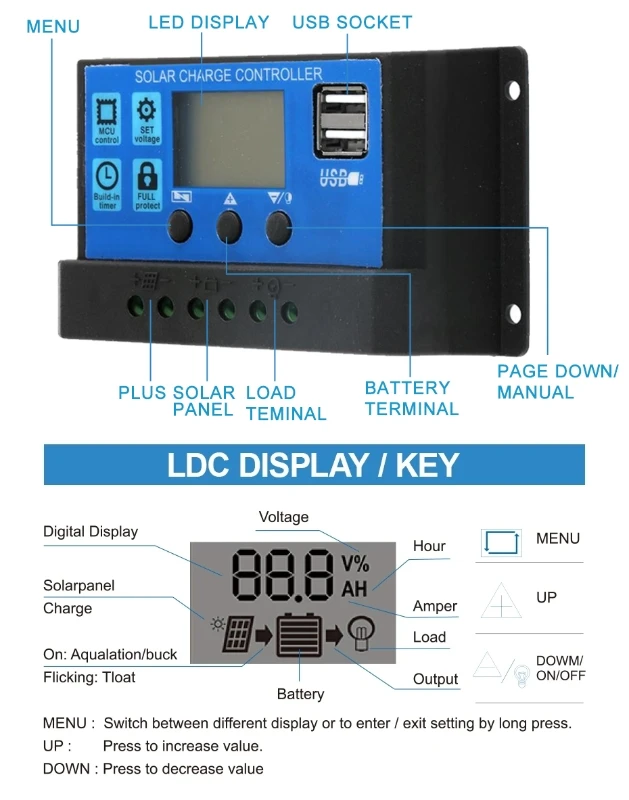

System connection:
1. Connect the battery to the charge regulator-plus and minus.
2. Connect the photovoltaic module to the regulator-plus and minus.
3. Connect the consumer to the charge regulator-plus and minus.
Features:
1. When using the solar controller to charge the battery, the controller will automatically check the voltage.
2. When transferring positive and negative charges to the controller, do not reverse.
3. Connect the solar panel to the solar controller.
Note: Strictly comply with solar panels and solar controllers. Otherwise, the solar controller may be damaged.
Specification:

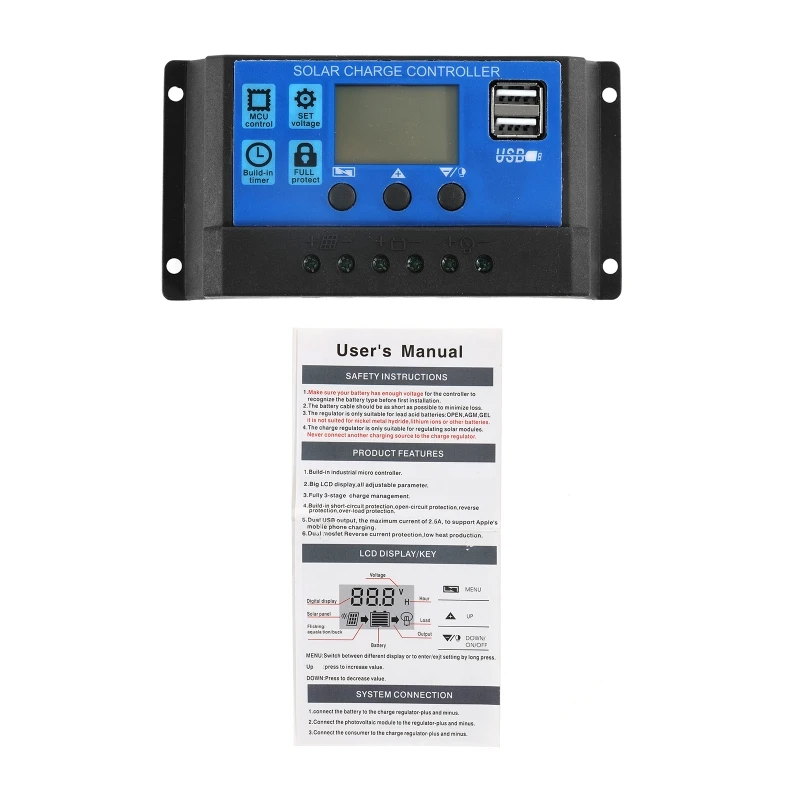

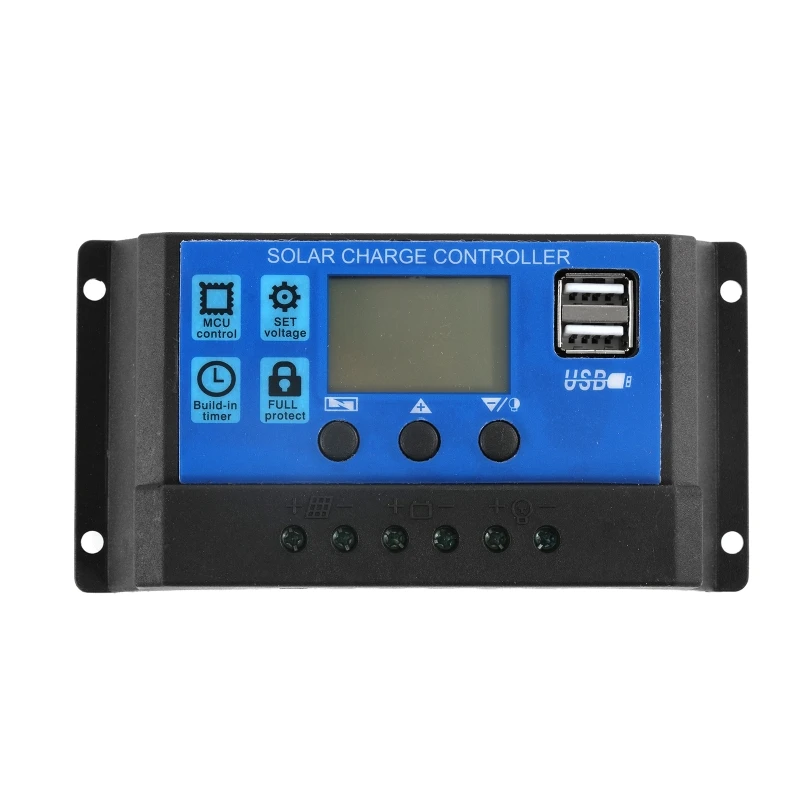

Name: Solar Controller
Material: PVC
Voltage: 12V/24V automatic identification
Rated charging current: 30A
Rated discharge current: 10A
The highest photovoltaic voltage: 12V system＜23V/24V system＜46V
USB output: 2 USB outputs, maximum 5V/2A
Standby current: <10mA
Working temperature: -35℃~+60℃
Certification: CE RoHS
Size: 133 * 70 * 35mm
Packing Included:
1 x Solar Controller
