40A 30A Epever MPPT Solar Charge Controller 12V/24V Battery Solar Regulator Max 100V PV Solar Charger Tracer4210AN Tracer3210AN
ر.ع.48.77 – ر.ع.57.54
Hign-concerned Chemical: None Is Smart Device: YES Application: Charger Controller,Solar System Controller,Voltage Controller,Lighting Controller,Solar Working Station,solar charg controller Model Number: Tracer-AN is_customized: Yes Brand Name: SolarEpic Maximum Current: 40A/30A Origin: Mainland China Certification: CE Max pv input voltage: 100V Battery: Sealed, Gel, Flooded,Li Voltage: 12V/24V EPEVER MPPT Solar Charge Controller,Tracer-AN Series 40A/30A,12V/24VDC AUTO Max 100V PV Input,with LCD display Battery : Sealed, Gel, Flooded,Li Features: 1. Advanced MPPT technology […]
Description
- Hign-concerned Chemical: None
- Is Smart Device: YES
- Application: Charger Controller,Solar System Controller,Voltage Controller,Lighting Controller,Solar Working Station,solar charg controller
- Model Number: Tracer-AN
- is_customized: Yes
- Brand Name: SolarEpic
- Maximum Current: 40A/30A
- Origin: Mainland China
- Certification: CE
- Max pv input voltage: 100V
- Battery: Sealed, Gel, Flooded,Li
- Voltage: 12V/24V

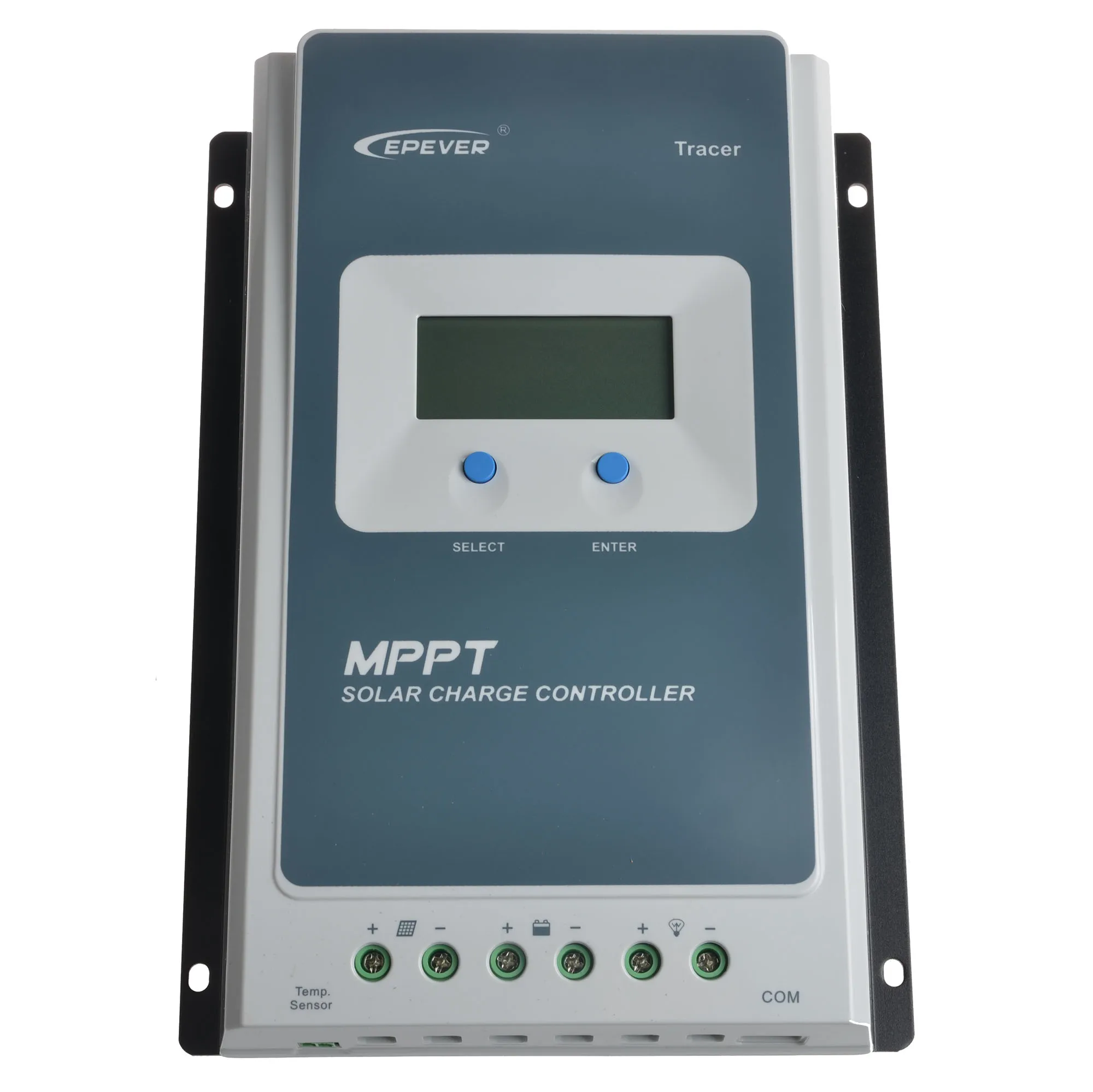

EPEVER MPPT Solar Charge Controller,Tracer-AN Series
40A/30A,12V/24VDC AUTO
Max 100V PV Input,with LCD display
Battery : Sealed, Gel, Flooded,Li
Features:
1. Advanced MPPT technology
2. High tracking efficiency no less than 99.5%
3. Peak conversion efficiency of 98%
5. Ultra-fast tracking speed
6. Accurately recognizing and tracking of multiple power point
7. Multi-function LCD displays system information intuitively
8. User programmable for battery types, load control etc.
9. 3-Stage charge with PWM output
10. Common positive grounding design

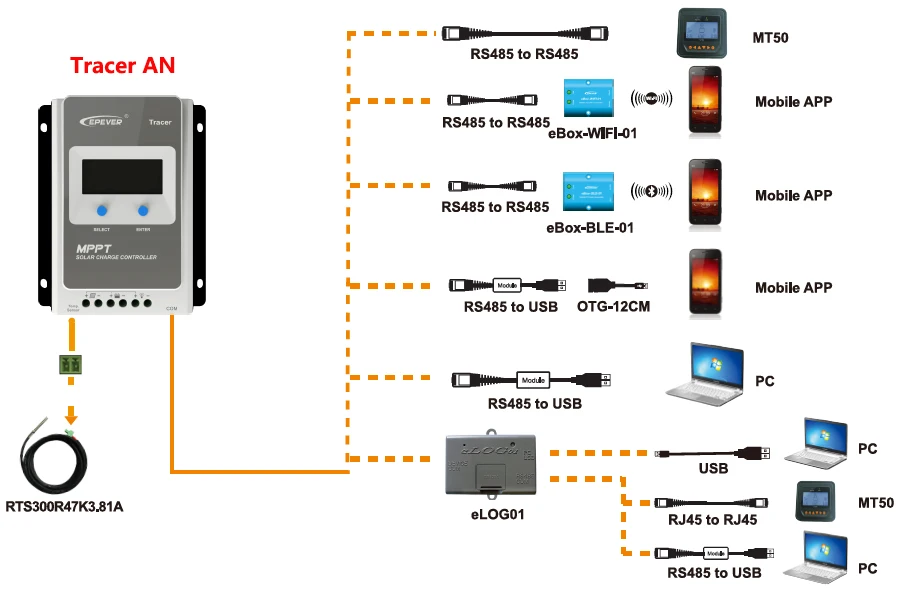

11. RS485 port with industrial standard MODBUS open architecture
12. Fully programmable function via PC software or remote meter
Electronic protections:
1. PV reverse polarity protection
2. PV short circuit protection
3. PV over current alarm protection
4. Battery overcharge protection
5. Battery over discharge protection
6. Battery reverse polarity protection
7. Load short circuit protection
8. Load overload protection
9. Overheating protection
Paraneter:
|
Model |
Tracer1210A |
Tracer2210A |
Tracer3210A |
Tracer4210A |
|
Nominal system voltage |
12/24V auto work |
|||
|
Rated battery current |
10A |
20A |
30A |
40A |
|
Rated load current |
10A |
20A |
30A |
40A |
|
Max. PV open circuit voltage |
100V |
|||
|
Max. battery voltage |
32V |
|||
|
Max. PV input power |
130W (12V) |
260W (12V) |
390W (12V) |
520W (12V) |
|
260W (24V) |
520W (24V) |
780W (24V) |
1040W (24V) |
|
|
Equalize charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V |
|||
|
Boost charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V |
|||
|
Float charging voltage |
Gel /Sealed /Flooded: 13.8V |
|||
|
Low voltage reconnect voltage |
Gel /Sealed /Flooded: 12.6V |
|||
|
Low voltage disconnect voltage |
Gel /Sealed /Flooded: 11.1V |
|||
|
Self-consumption |
≤20mA(12V) ≤16mA(24V) |
|||
|
Grounding |
Common positive |
|||
|
Temp. compensation |
-3mV/°c/2V |
|||
|
Communication Port |
RS485 / RJ45 interface |
|||
|
Working temperature |
-25°c~+45°c |
|||
|
Storage temperature |
-35°c~+80°c |
|||
|
Humidity |
≤95% N.C. |
|||
|
Enclosure |
IP30 |
|||
|
Overall dimension |
172x139x44mm |
172x139x44mm |
228x164x55mm |
252x180x63mm |
|
Terminal |
4mm2 |
10mm2 |
10mm2 |
10mm2 |
|
Net weight |
0.6kg |
1.1kg |
1.2kg |
1.9kg |
Additional information
| Color | Silver |
|---|---|
| Current | 30A, 40A |
| Rated Voltage | 100V PV |
