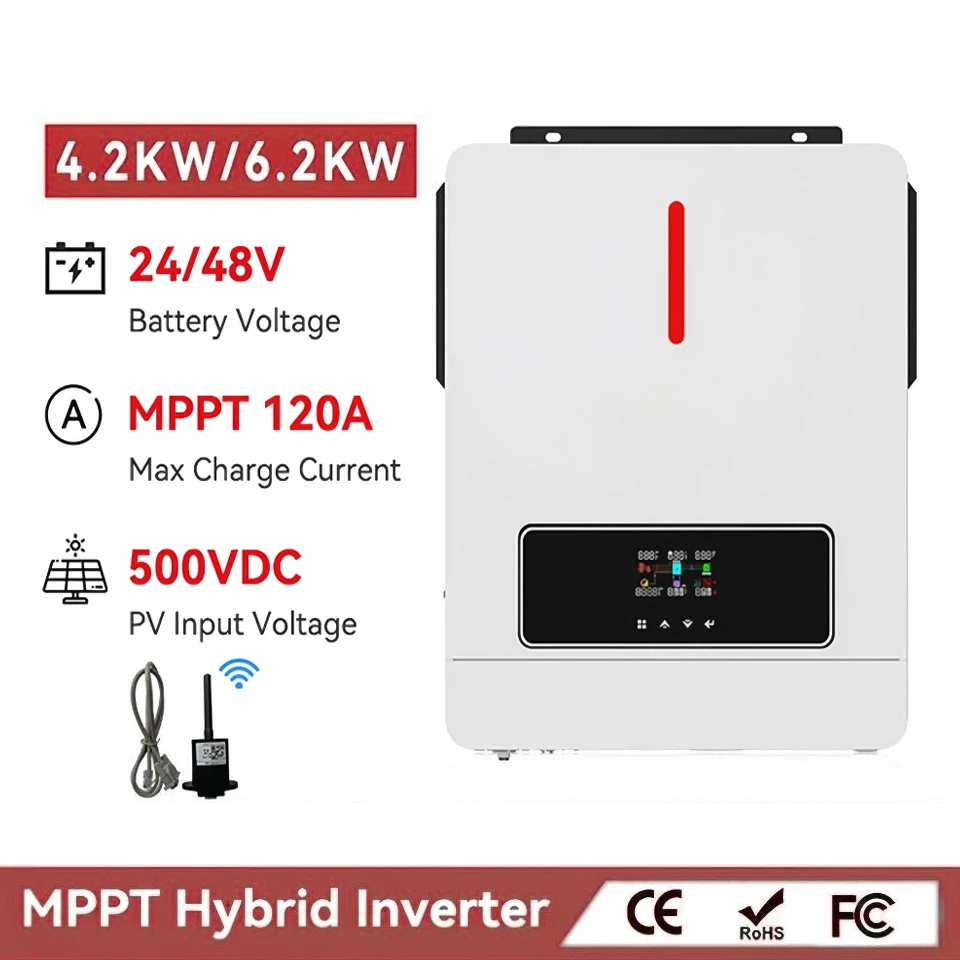

4200W 6200W Solar Hybrid Inverter 24V 48V 230Vac Off-grid Solar Inverter With 120A MPPT Charging Controller Max PV 500V

Description

Feature

1.Pure Sine Wave Solar Inverter

2.Max 120A MPPT Solar Charger

3.Max 500VDC PV Input

4.2 Loads Output To Guarantee your important equipment always running

5.High PV input voltage range(60~450VDC)

6.Output power factor 1.0

7.Real Hybrid Solar inverter for 24V/48V system

8.Wifi Module for easily connection

9.Efficiency work with or without battery

10.Bundled monitoring & setting software11.Supports 50hz or 60hz (program adjustable)

12.Able to use ac grid or generator power

13.Built-in anti-dusk kit for harsh environment

14.Optional DC output for DC fan, LED bulb,router and so on

What is 2AC out function?

when there is no Main/AC IN/GRID INPUT ,and the battery lower than the setted voltage .

the main AC out will cut off automatically, the battery or pv only offer power for the second AC out To Guarantee your important equipment always running

DO NOT CONNECT THE SECOND OUTPUT TO THE GRID,IT WILL DAMANGE YOUR INVERTER

Note:

This is a wide voltage Hybrid Solar inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 90V for the inverter to work normally, if with external battery 60V is working.

Other notes:

1. The battery cannot be connected while the inverter is running.

2. Our inverter is a high-frequency inverter, and we need to consider the inductive load. If there is an inductive load, the power of the inductive load must be multiplied by more than 3 times.

(For example: for a water pump with a motor, its power is 1000W, then the inverter specification must be an inverter above 3KW, because when equipment with a motor has difficulty starting and running, its instantaneous current will be very large. There are also some electromagnetic heating equipment. The instantaneous induced electromotive force of the coil is very large, and the induced current is very large, so it needs to be considered)

Question & Answer

Q:Whats the Rated output power ?

A:4.2KW model 4200W，6.2KW model 6200W.

Q:Whats the max charge currency for battery ?

A:120A

Q:Whats the MAX DC PV Input?

A:Its 500VDC

Q:How many AC output ports?

A:2 loads ouput

Q:How many volts of external battery use ?

A:4.2kW model 24V, 6.2kW model 48V

Q:What BMS protocols are supported?

A:PACE and PYLON

Q:Can it support parallel or series connection?

A:No it can not support .

Q:Whats the warranty?

A:1 Year

Q:If it has Wifi Model ?

A:Yes
