Description
- Hign-concerned Chemical: None
- is_customized: Yes
- Model Number: Pow-HVM Series
- Output Power: 1 – 200KW
- Output Type: SINGLE
- Brand Name: PowMr
- Output Frequency: 50Hz
- Is Smart Device: YES
- Origin: Mainland China
- Certification: CE
- Nominal Output Voltage: 220/230/240 VAC
- Nominal DC Input Voltage: 24Vdc/48Vdc
- Output Voltage Waveform: Pure Sine Wave
- Item 1: 3KW Solar Power Inverter
- Item 2: 6.5KW Hybrid Inverter
- Item 3: 4.5KW Solar Inverter
- Item 4: 6.2KW Grid-Tie Inverter
- Item 5: 4.2KW Grid-Tie Inverter
6.2KW 4.2KW Hybrid Inverter With 120A MPPT Solar Charge Controller DC 24V 48V To 230V Pure Sine Wave On-Grid Inversor EU Stock
6200W 48V and 4200W 24V 120A MPPT Solar Charge On-Grid/Off-Grid Inverter
Product Features
1.Pure sine wave inverter
2. Configurable input voltage range for home appliances and personal computers via LCD setting
3. Configurable battery charging current based on applications via LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible with mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function

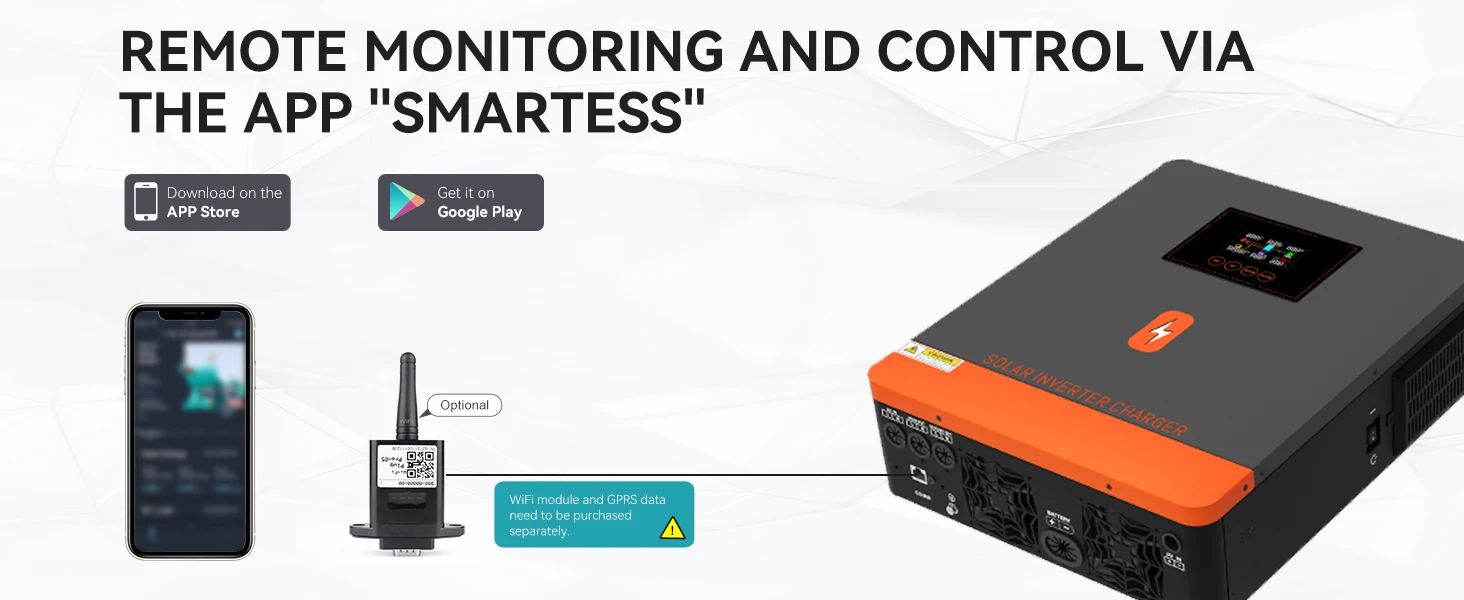

10.WIFI/GPRS(Option)
11.Can connect to lithium batteries
Product Specification
|
INVERTER MODEL |
4.2KW |
6.2KW |
|
Output Voltage Waveform |
Pure Sine Wave |
|
|
Output Frequency |
50Hz |
|
|
Peak Efficiency |
93% |
|
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
|
Two Load Output Power |
||
|
Full Load |
4200W |
6200W |
|
Maximum Main Load |
4200W |
6200W |
|
Maximum Second Load(battery model) |
1400W |
2066W |
|
Main Load Cut off Voltage |
26VDC |
52VDC |
|
Main Load Return Voltage |
27VDC |
54VDC |
|
MPPT Solar Charging Mode |
||
|
Max. PV Array Power |
6200W |
6500W |
|
Nominal PV Voltage |
240Vdc |
360Vdc |
|
PV Array MPPT Voltage Range |
60-450Vdc |
90-500Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
|
Max Charging Current |
120Amp |
|
|
Grid-Tie Operation |
||
|
Nominal Output Voltage |
220/230/240 VAC |
|
|
Feed-in Grid Voltage Range |
195~253VAC |
|
|
Nominal Output Current |
18.2A |
26.9A |
|
Power Factor Range |
>0.99 |
|
|
Maximum Conversion Efficiency |
97% |
|
|
General Specifications |
||
|
Safety Certification |
CE |
|
|
Operating Temperature Range |
-10°C to 50°C |
|
|
Storage temperature |
-15°C~ 60℃ |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
