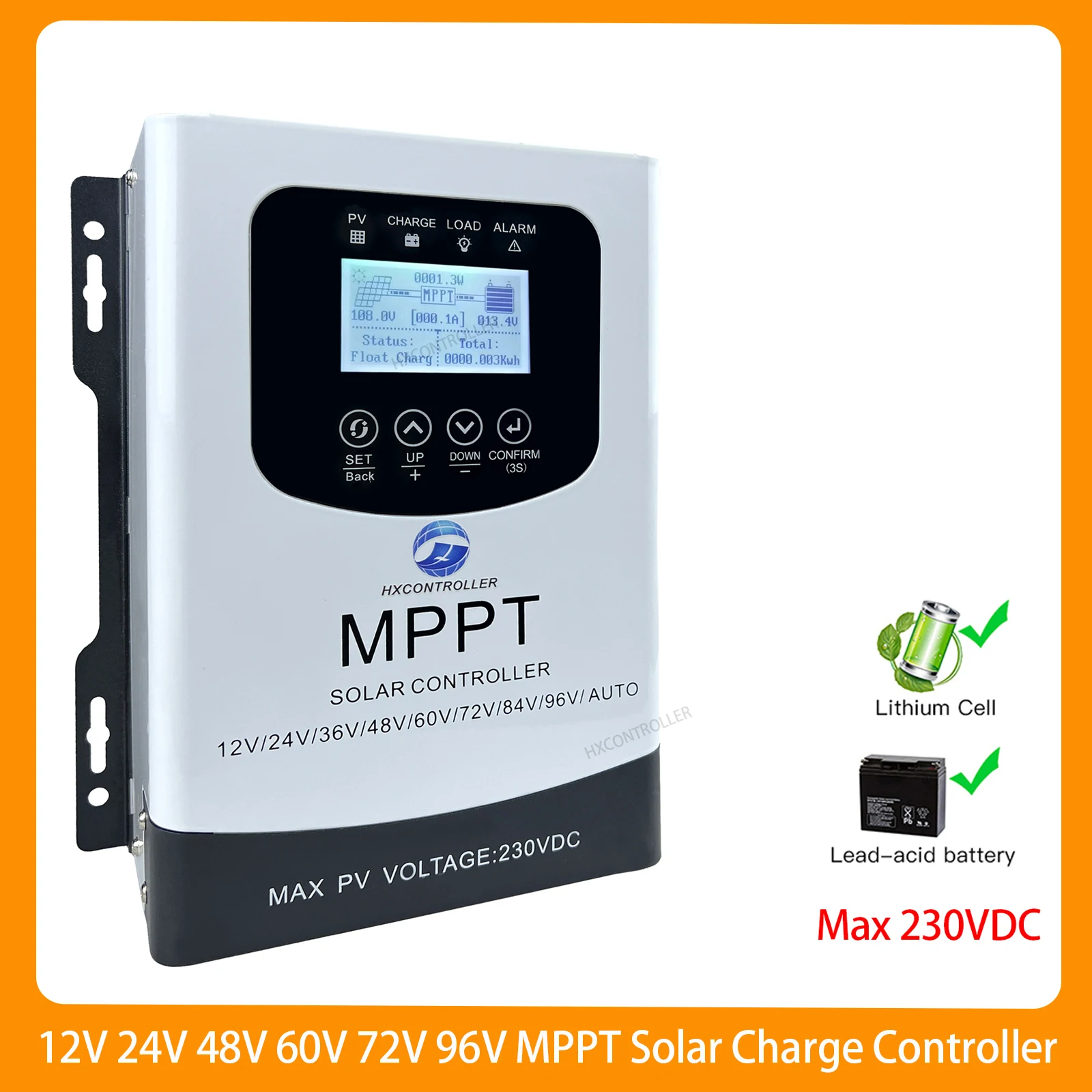

60A -100A MPPT 230VDC Solar Charge Controller Solar Panel Regulator Support RS485 Monitor For 12V 24V 48V 60V72V 96V Bazil Stock
ر.ع.81.84 – ر.ع.112.01
Hign-concerned Chemical: None Is Smart Device: YES Application: Charger Controller,Voltage Controller,Solar System Controller Model Number: 60A -100A MPPT 230VDC Solar Charge Controller is_customized: Yes Brand Name: HXCONTROLLER Maximum Current: 100 Origin: Mainland China Certification: CE Rated charging current: 30A/40A/50A/60A/80A Charging mode: MPPT automatic maximum power tracking overall efficiency: 96.5%~99% Good news for EU Brazil Mexico buyer: our controller ship from poland Mexico and Brazil you can get […]
Description
- Hign-concerned Chemical: None
- Is Smart Device: YES
- Application: Charger Controller,Voltage Controller,Solar System Controller
- Model Number: 60A -100A MPPT 230VDC Solar Charge Controller
- is_customized: Yes
- Brand Name: HXCONTROLLER
- Maximum Current: 100
- Origin: Mainland China
- Certification: CE
- Rated charging current: 30A/40A/50A/60A/80A
- Charging mode: MPPT automatic maximum power tracking
- overall efficiency: 96.5%~99%
Good news for EU Brazil Mexico buyer: our controller ship from poland Mexico and Brazil you can get parcel quickly.
Delivery time:
5days delivery:Poland
7 days delivery: Germany, Czech Republic, Spain(5days), France, Italy, Netherlands, Portugal, Austria, Belgium, Denmark, Lithuania, Hungary
other country delivery time:7-10days.
Brazil Delivery time: 5-10days
Mexico Delivery time: 5-10days
This is a powerful and high-quality solar charger. You can charge various types of batteries and automatically identify the battery voltage. Simple operation, suitable for individuals, families, agriculture and animal husbandry.
Features：
1. Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.
2. The LCD is designed to dynamically display the operation data and working status of the equipment.
3. Compatible with Seal, GEL, Flooded, LifePO4 battery charging
4. Dual USB 5V charging ports
5. 12V/24V/36V/48V/60V/72V/84V/96V automatic identification
6. Over-voltage protection
7. Over-current protection
8. Over temperature protection
9. Controller parameters display
10. With backlight display
Parameter Table
|
MPPT model |
30A |
40A |
50A |
60A |
80A |
100A |
|
|
Rated charging current |
30A |
40A |
50A |
60A |
80A |
100A |
|
|
Maximum PV Input Power |
12v system |
36ow |
480w |
600w |
720w |
960W |
1200w |
|
24v system |
720w |
960w |
1200w |
1400w |
1920W |
2400w |
|
|
36v system |
1080w |
1440w |
1800w |
2160w |
2880W |
3600w |
|
|
48V system |
1440w |
1920w |
2400w |
2880w |
3840W |
4800w |
|
|
6ov system |
1800w |
2400w |
3000w |
3600w |
4800W |
6000w |
|
|
72v system |
2160w |
2880w |
3600w |
7320w |
5760W |
7200w |
|
|
84v system |
2520w |
3360w |
4200w |
5040w |
6720W |
8400w |
|
|
96v system |
2880w |
3840w |
4800w |
5760w |
9600w |
9600w |
|
|
Charging mode |
MPPT automatic maximum power tracking |
||||||
|
charging mode |
MPPT tracks maximum power, fast charging, |
||||||
|
Battery type |
Lead acid battery |
(12V / 24v / 36v / 48v / 96v automatic identification) |
|||||
|
Gel Battery |
12v / 2av/ 36v ] 48v / 6ov / 72v / 84v / 96v adjustable |
||||||
|
Lithium iron |
Unit voltage 3.2 * number of strings (2-45 adjustable) |
||||||
|
Ternary lithium |
Unit voltage 3.7 * number of strings (2-45 adjustable) |
||||||
|
User defined |
Equalizing charge, floating charge, |
||||||
|
with lithium activation function |
with photovoltaic input, there is charging voltage (activate lithium battery), |
||||||
|
Photovoltaic minimumvoltage start |
The photovoltaic voltage is greater than |
||||||
|
PV maximum open circuit input voltage |
0-230V |
0-230V |
|||||
|
Photovoltaic charging current adjustable |
0-30A |
0-40A |
0-50A |
0-60A |
0-80A |
0-100A |
|
|
Dc current output (street lamp function) |
Dc continuous output 25A |
continuous output 60A |
Dc continuous output 100A |
||||
|
temperature compensation |
Automatically compensate the charging voltage and current |
||||||
|
LCD touch button |
LCD display: (generating capacity / photovoltaic voltage / battery voltage / charging |
||||||
|
Setting: (battery type, charging current, charging voltage and discharge voltage,return to factory), |
|||||||
|
485 communication |
8-pin RS485 communication interface (operation status and |
||||||
|
Working environment temperature |
～-10℃一+45℃ |
||||||
|
Static power consumption |
2w |
||||||
|
overall efficiency |
96.5%~99% |
||||||
|
Temperature protection |
85℃ |
||||||
|
Temperature rise protection |
Reduce power output above 8o ℃ |
||||||
|
Protection function |
Photovoltaic array short-circuit,over-voltage，over-current reverse connection |
||||||
|
humidity |
o~90% RH (no condensation) |
||||||
|
Mechanical protection level |
P21 |
||||||
|
Altitude |
0~3000m |
||||||
|
size |
202mm*215mm*100mm |
218mm*265mm*100mm |
|||||
|
Net / gross weight |
1.95KG |
2.6KG |
|||||
|
Package size |
265mm*224mm*120mm |
315mm*240mm*120mm |
|||||
Parameter setting steps
Image of Product
Additional information
| Current | 100A 230VDC, 60A 230VDC, 80A 230VDC |
|---|---|
| Rated Voltage | 12V to 96V |
