Anern 10.2KW/6.2KW MPPT Hybrid Solar Inverter 48V Build-in MPPT 160A 230VAC Solar Charge Controller Dual PV Input Solar Inverter

Attention: This is an off grid inverte

Low power inverters of 3.2KW and below need to be connected to batteries for use

EU Stock Anern 10.2KW/6.2KW MPPT Hybrid Solar Inverter 48V Build-in MPPT 160A 230VAC Solar Charge Controller Dual PV Input Solar Inverter

Feature:

◆ Pure Sine Wave Solar Hybrid Inverter;

◆ Be able to run without battery;

◆ One-key restoring to factory default settings;

◆ PV automatically activates lithium batteries;

◆ Bulit-in 160A MPPT solar controller(for 10.2KW), 140A(for 8.2KW);"

◆ Max 7500W & 10800W solar input power respectively;

◆ Wide PV input voltage range (90-450VDC);

◆ Built-in anti-dusk kit for harsh environment.

◆ Smart battery charge design to maximize battery lifespan

◆ Dual PV Input & AC output;

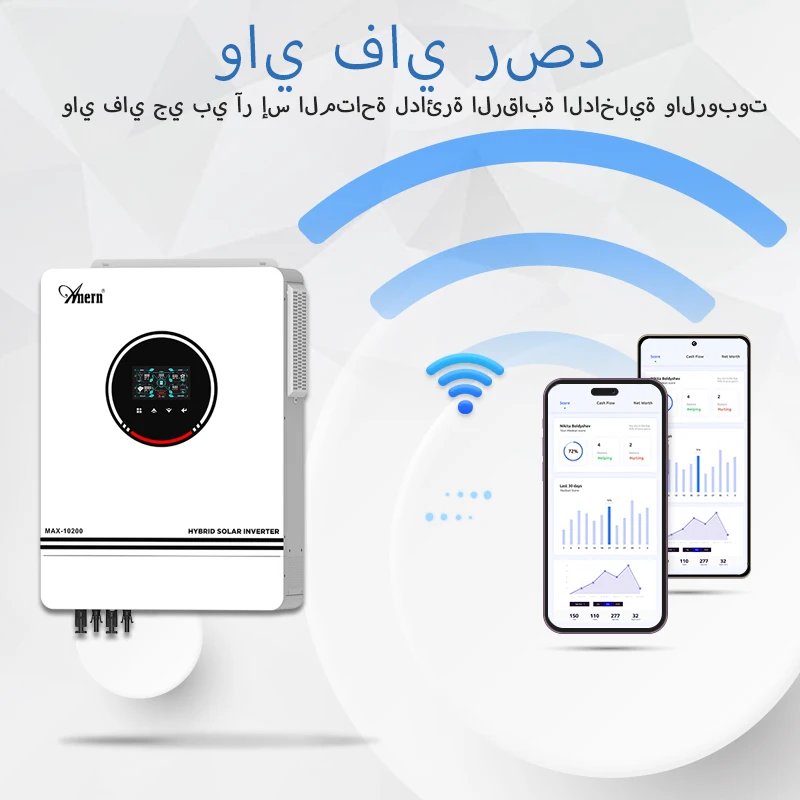

◆ WIFI available for IOS and Android systems.

◆ Connect able battery type: Lead-acid/Lithium iron phosphate(LiFePO4)/colloid/lithium battery

10200W:Dual PV Input(Dual MPPT),Dual AC Output(Only MAX 10200W models dual MPPT)

 【10.2kw Solar Inverter 48VDC】: 10200W Off Grid Solar Inverter 48Vdc to 230Vac Inverter with 160A MPPT Solar Charging and Discharge Controller. Maximum PV input power: 10200w; PV operating voltage range: 90Vdc-450Vdc; Max.PV Array Open Circuit Flotation: 500Vdc; Maximum PV charging current: 130Amp;Rated output current:44.3Amp;

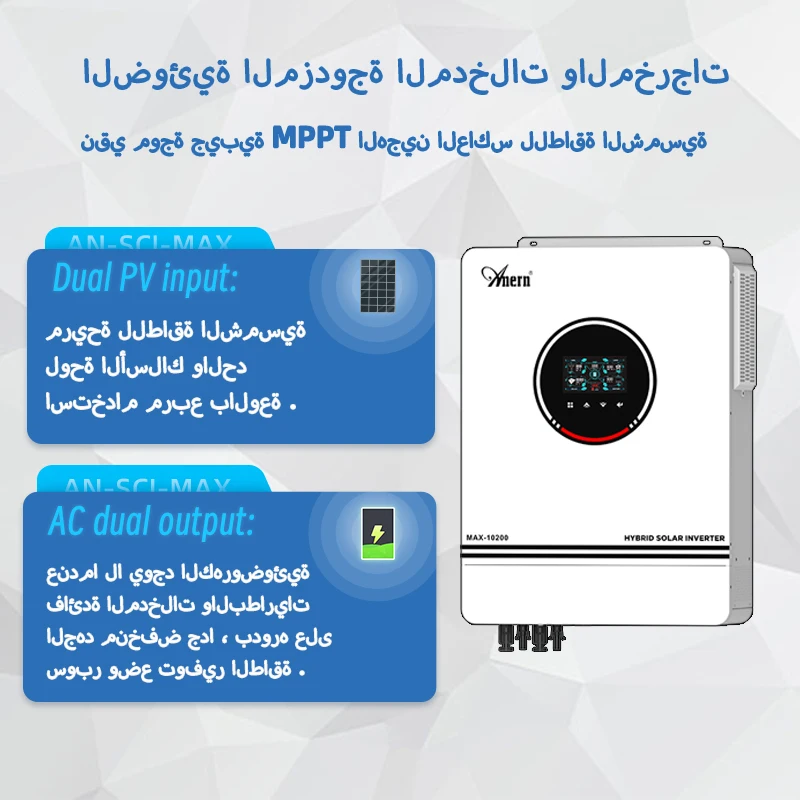

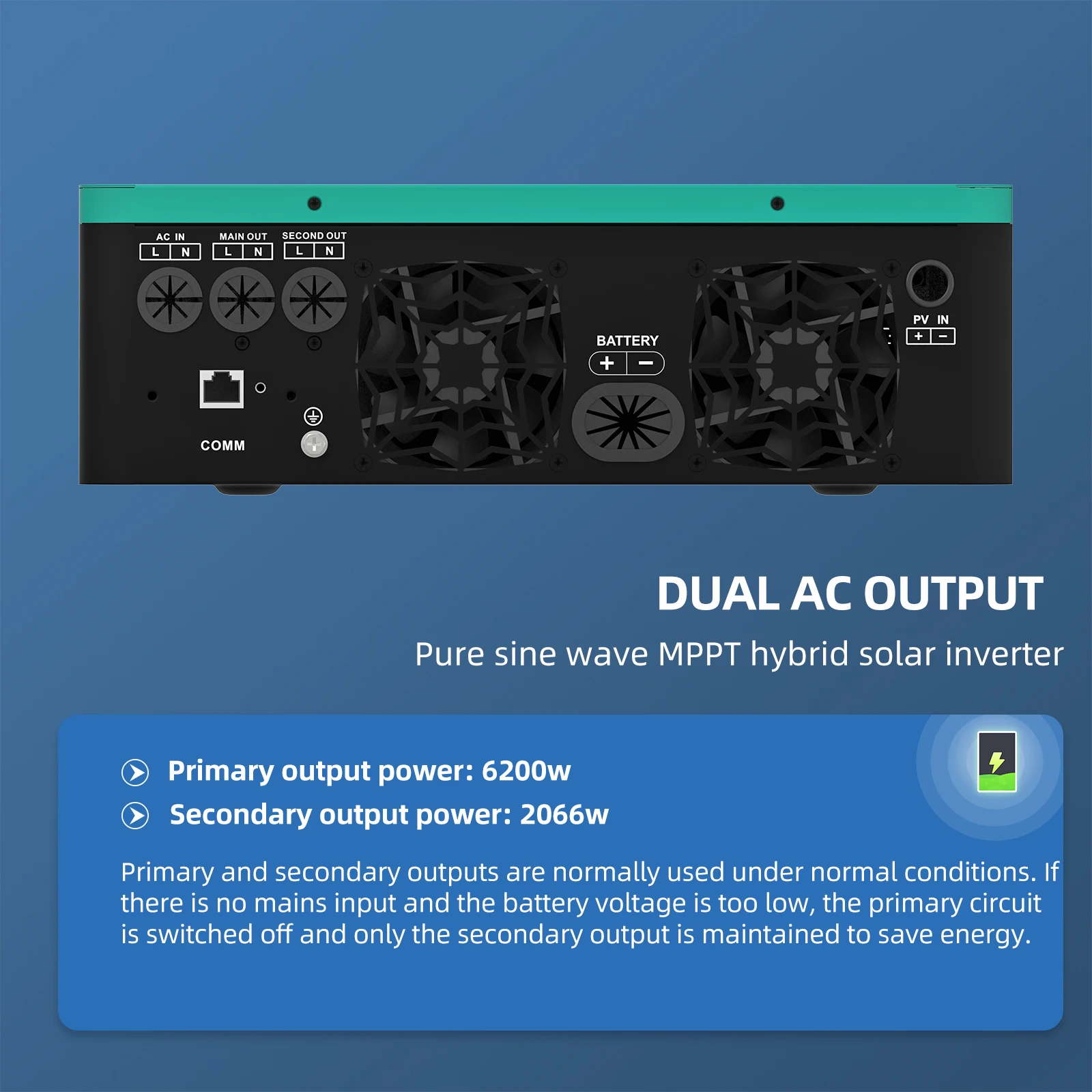

【Dual PV input,Dual AC output】: The MAX 10.2kw dual input has two independent MPPTs, two circuits with a total of 36A, which are able to connect solar panels with higher power; If there is no PV and mains supply and the battery voltage is too low, the primary circuit will shut down and only the secondary output will be maintained, similar to the Super Power Saving mode.

【Multiple charging and output mode】: 3 charging modes are optional: only solar, solar and utility, solar priority; Output modes: solar priority, power priority, SBU mode. The solar inverter offers multiple charging and output modes to meet the different application requirements of users.

【Compatible with multiple battery types】:can be combined with different types of battery, such as AGM,GEL, FLD, SLD, LI, USER. The right battery for the inverter can maximise charging efficiency, provide charging speed and extend the life of the battery.

【Attention】 1. the starting power of the inductive load shall be at least three times the rated power. Excessive power on can damage the inverter.

2.Connect the circuits correctly and install circuit breakers for each circuit.

3.Power on order: First turn on the battery, start the inverter, and then turn on the circuit breakers for photovoltaic, mains, and load.Switch off in reverse order
