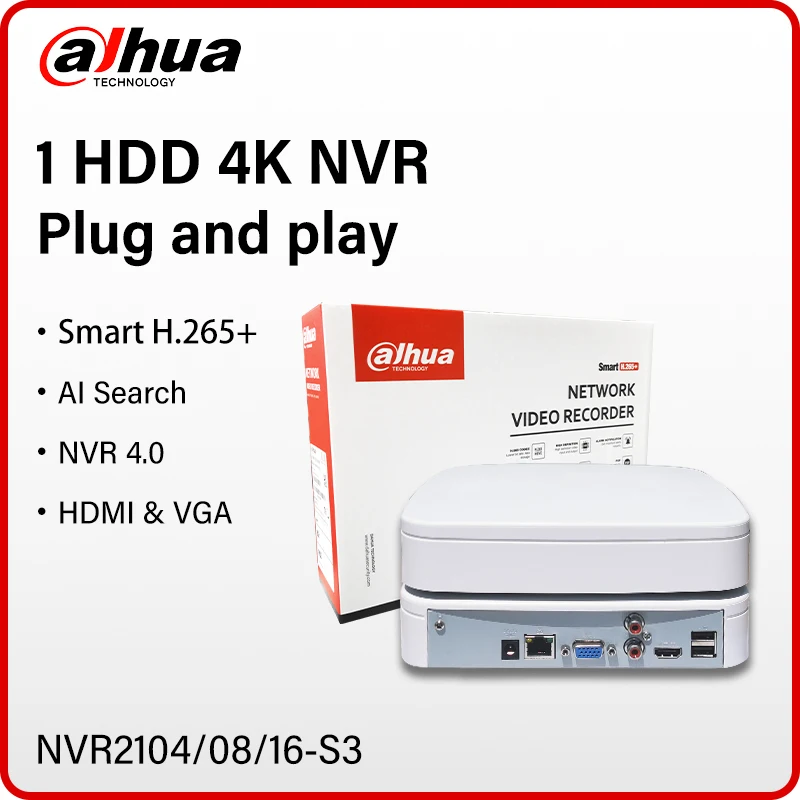

Dahua 4/8 Channels Mini NVR 12MP Network Video Recorder Camera Security System Smart H.265 With VGA HDMI NVR2104-S3 NVR2108-S3
Hign-concerned Chemical: None POE: None e-Cloud(P2P): YES Two-way Audio: YES Alarm Action: Local Alarm Backup Type: Hard Drive,Recorder Supported Operating Systems: Microsoft Windows XP,Microsoft Windows 7,Mac OS Supported Mobile Systems: iPhone OS,Android IP Mode: Dynamic IP address,Static IP address Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,DNS Communication Interface: None Network Interface: RJ45 10/100M Hard Drive Size: 3.5” Hard drive Interface Type: SATA Audio Output: 1CH RCA Video Output: 1VGA + 1HDMI-Compatible Video Standard: NTSC,PAL Audio Input: 1 […]
Description
- Hign-concerned Chemical: None
- POE: None
- e-Cloud(P2P): YES
- Two-way Audio: YES
- Alarm Action: Local Alarm
- Backup Type: Hard Drive,Recorder
- Supported Operating Systems: Microsoft Windows XP,Microsoft Windows 7,Mac OS
- Supported Mobile Systems: iPhone OS,Android
- IP Mode: Dynamic IP address,Static IP address
- Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,DNS
- Communication Interface: None
- Network Interface: RJ45 10/100M
- Hard Drive Size: 3.5”
- Hard drive Interface Type: SATA
- Audio Output: 1CH RCA
- Video Output: 1VGA + 1HDMI-Compatible
- Video Standard: NTSC,PAL
- Audio Input: 1 RCA
- Video Input Interface: HDMI-compatible
- Compression Format: H.265,H.264
- Technology: Network
- Model Number: NVR2104-S3 NVR2108-S3
- Brand Name: Dahua
- Origin: Mainland China
- Certification: CE,FCC
- Smart home platform: None
Series Overview
Dahua Lite series NVR is easy to install, cost effective and compatible with a wide variety of third-party devices, providing a great solution for small and medium surveillance systems. It is ideal for home safety, supermarkets, warehouses, educational institutions, and financial institutions.
Functions
Perimeter Protection by Camera
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
SMD Plus by Camera
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
AI Search
With AI search, operators can search for videos by the attributes of targets and event types, which helps them to quickly and efficiently investigate where and when targets appeared and events took place.
NVR2104-S3
4 Channel Smart 1U 1HDD Network Video Recorder
> Smart H.265+/H.265/Smart H.264+/H.264 decoding format
> Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding
> AI by camera: perimeter protection,and SMD Plus
> Connected to the third-party network cameras









System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web; Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Camera |
Perimeter protection; SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance of AI by Camera (Number of Channels) |
4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Camera |
4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Channel |
4 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Bandwidth |
Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Decoding Capability |
1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
1 × VGA, 1 × HDMI (simultaneous) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display |
1, 4 views |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Camera Access |
Onvif |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
Smart H.265; H.265; Smart H.264; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
PCM; G711A; G711U; G726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
Android; iOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF (profile T/S/G); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome; IE 9 or later; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-channel Playback |
Up to 4 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
Manual record; alarm record; motion detection record; schedule record |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Method |
Local HDD and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method |
USB device |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Function |
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection; privacy masking; video loss; PIR alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Alarm |
Perimeter protection; SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Recording; snapshot; buzzer; log; preset; email; tour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDD Interface |
1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
2 rear USB 2.0 ports |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC, 1.5 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Total output of NVR is ≤ 10 W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.42 kg (0.93 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.03 kg (2.27 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.13" × 1.80") (W × L × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
96 mm × 364 mm × 261 mm (3.78" × 14.33" × 10.28") (W × L × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–93% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Rack or desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-3-2; EN61000-3-3; EN50130-4 |
FAQ
About the Order
After you place an order, usually we will ship it within 24 hours.
if the stock is not enough or the order address problem we will contact you in time, please pay attention to ALiexpress message.
About Warranty
After delivery, if there is any quality problem within 7 days, free replacement or refund.
3 months of free maintenance, the freight is borne by both parties
Free maintenance within 1 year (if you need to replace the parts, the buyer bears the cost of the parts), and the shipping cost is borne by the buyer.
How to add IPC with POE function to NVR?
POE cameras could be added into NVR which supports POE function with both Manual mode and Plug-and-Play mode. When applying the Plug-and-Play mode, please kindly make sure the password of the camera is the same with the NVR.
Dahua camera supports plug and play, if you forget the password, you can restore the factory settings.
How do I update the device’s firmware?
Log in to your account in the DMSS app, go to the preview page then click the gear icon in the top right corner, then go to the Device Info page. Now, select the Cloud Upgrade option to check for new firmware. If new firmware is available, you’ll be able to start the update.
Package hasn’t been updated with tracking information for many days?
We promise that all packages will arrive within 60 days, and if they don’t, we are willing to give a full refund.
For large parcels, it takes more shipping time and longer time for customs inspection. If there is no updated tracking information for more than a week, it is normal and may be caused by the following situations: 1. Parcel is queuing up for flights, 2. Arrived at customs and waiting for you to clear, 3. Waiting for local logistics provider to pick up.
About shipping
Usually we will ship according to your choice of logistics, in case of standard logistics, delivery is usually within 7-25 days in EU. International express (DHL/FEDEX/UPS/EMS) delivery within 3-15 days. Delivery may be delayed in case of customs inspection and parcels that need to be cleared.
If your parcel is not updated for more than 10 days, please contact us..
How to Solve IP Camera No Link Issue on PoE NVR
IP cameras could be added into PoE NVR with both Manual mode and Plug- and- Play mode. When applying the Plug- and- Play mode, please kindly make sure it is Dahua brand camera, and the password of the camera is the same as the NVR. For “No Link” issue, please enter NVR. Menu – Camera – IP Camera, click Status icon of camera to check the error message first.
What Can We do If NVR Cannot View via Chrome?
You can view the NVR through the mobile app and Dahua’s official tool, the.
If you want to use Chrome browser to view, download Plug-In first, install it and restart the browser, then you can view via Chrome.
What if the camera can only be used on a LAN??
1.Usually this is because the camera is only connected to the LAN and not to the Internet. Please check your router internet is normal, then reset the webcam and turn on DHCP for the camera.
2.If the problem is still not solved, it may be IP error, please try to change your router IP to 192.168.1.1 to reconnect.
NVR cannot add a third-party camera
Make sure your IPc must support ONVIF protocol
About VAT and Customs duty
VAT of 20%-24% is required in EU, the displayed price has included VAT.
The EU may add extra duty for orders over 150 euros, which is decided by the customs.
(VAT and customs duty are two different taxes, and customs duty is only levied on orders over €150.)
We suggest you contact ALiexpress customer service or customs to know the tariff before purchase.
When the parcel arrives at customs, please contact the logistics provider or the customs office to clear customs and pay taxes.
If you need an invoice or assistance with customs clearance, please contact us..
If you do not want to pay the customs duty, please do not place an order!!!!
How to reset the camera?
Most Dahua camcorders have a reset button, usually located next to the SD card slot or on the motherboard, which can restore the camcorder to factory settings by long-pressing it for 10s under power-on condition.
You can match the Dahua configuration tool to detect the camera status.
If you still can’t connect after reset, it may be an IP problem, please change your network IP to 192.168.1.1.
Can the camera be used in my country?
This is the Dahua 100% original international version of the camcorder and can be used in all countries.
Support upgrade and Dahua official APP.
How can I view the video recorded in SD card?
login into your account, go to preview page then click “View history record”, and then select the recorded video you want to view in calendar page.
Cameras can’t record all day?
Please check if the recording function is turned on during motion detection, and then check the recording schedule to see if it is 7x24H..
