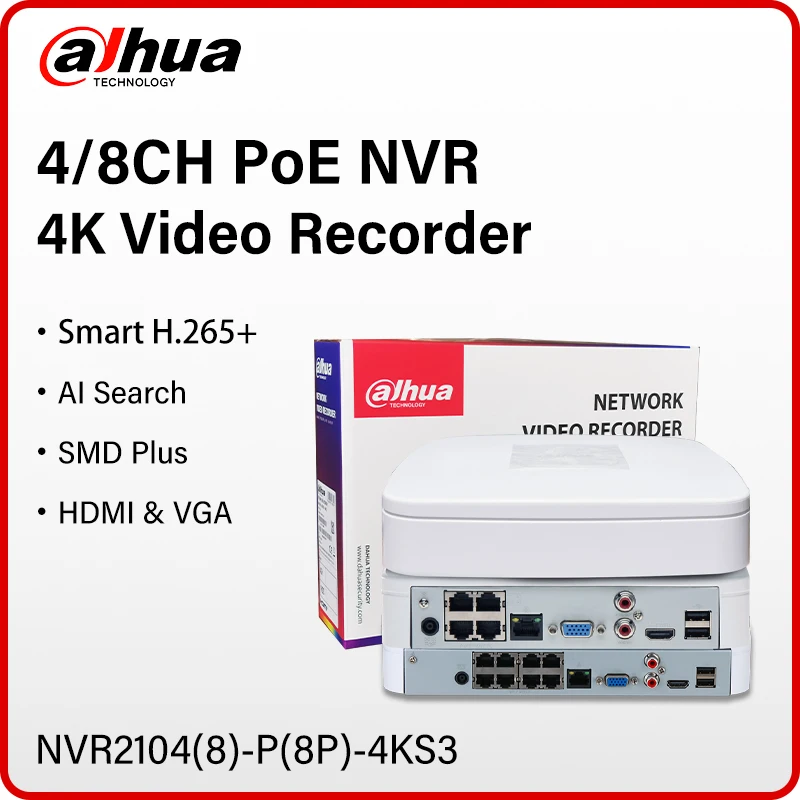

Dahua 4CH 8CH PoE NVR 4K Smart Video Recorder Support 4MP 8MP 12MP IP Camera Multi-Language H.265 NVR2104-P-4KS3 NVR2108-8P-4KS3
Hign-concerned Chemical: None POE: 8 Port e-Cloud(P2P): YES Two-way Audio: YES Alarm Action: Local Alarm Backup Type: Hard Drive,Recorder Supported Operating Systems: Microsoft Windows 7,Mac OS Supported Mobile Systems: iPhone OS,Android IP Mode: Dynamic IP address,Static IP address Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,DNS Communication Interface: None Hard Drive Size: 3.5” Hard drive Interface Type: SATA Audio Output: 1CH RCA Video Output: 1VGA + 1HDMI-Compatible Video Standard: NTSC,PAL Audio Input: 1 HDMI-Compatible Video Input Interface: HDMI-compatible […]
Description
- Hign-concerned Chemical: None
- POE: 8 Port
- e-Cloud(P2P): YES
- Two-way Audio: YES
- Alarm Action: Local Alarm
- Backup Type: Hard Drive,Recorder
- Supported Operating Systems: Microsoft Windows 7,Mac OS
- Supported Mobile Systems: iPhone OS,Android
- IP Mode: Dynamic IP address,Static IP address
- Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,DNS
- Communication Interface: None
- Hard Drive Size: 3.5”
- Hard drive Interface Type: SATA
- Audio Output: 1CH RCA
- Video Output: 1VGA + 1HDMI-Compatible
- Video Standard: NTSC,PAL
- Audio Input: 1 HDMI-Compatible
- Video Input Interface: HDMI-compatible
- Compression Format: H.265,H.264
- Technology: Network
- Model Number: NVR2104-P-4KS3 NVR2108-8P-4KS3
- Brand Name: Dahua
- Origin: Mainland China
- Certification: CE,FCC
Series Overview
The NVR2000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. This NVR is both costeffective and easy-to-install, making it ideal for a wide range of applications such as villas, shops and other small and medium-sized scenes.
Functions

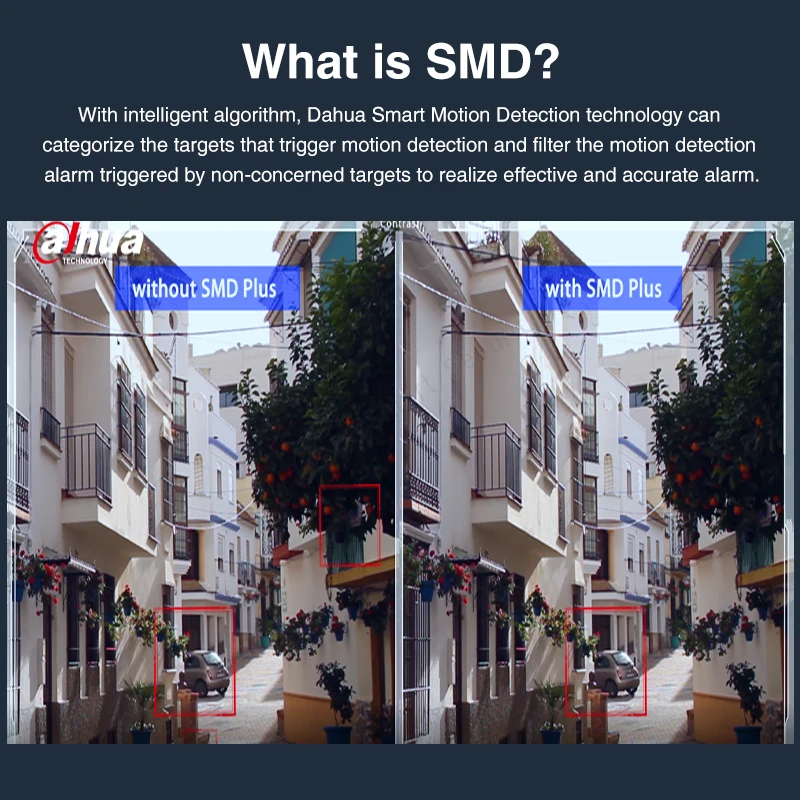

SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and ilter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Perimeter Protection by Camera
Automatically ilters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy
NVR2104-P-4KS3
4CH Smart 1U 4PoE 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 6 × 1080p@30 fps.
> Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD.
> AI by Camera supports perimeter protection and SMD.
> Supports one-click arming and disarming.
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web, Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Recorder |
SMD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Camera |
Perimeter protection; SMD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance of AI by Camera (Number of Channels) |
All channels (4 targets/s) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder |
4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Camera |
All channels (8 targets/s) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Channel |
4 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Bandwidth |
80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Decoding Capability |
AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display |
1/4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Camera Access |
ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711u; PCM; G726; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome; IE; Safari; Edge; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-channel Playback |
Up to 4 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
General, motion detection; intelligent; alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method |
USB device and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Mode |
Instant playback; general playback; event playback; tag playback; smart playback |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection; camera external alarm; PIR alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Alarm |
Perimeter protection; SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Recording; snapshot; buzzer; log; preset; email; tour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
NA (2 channels are optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
NA (1-channel 12 V 1 A output is optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Disk Interface |
1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
2 (2 rear USB 2.0 ports) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 (10/100 Mbps Ethernet port, RJ-45) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Port |
4 ports, 10/100 Mbps, IEEE 802.3 af/at |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
53 V DC, 1.22 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Total output of NVR is <10 W (without HDD) Total output power of PoE is 36 W, the maximum output power of a single port is 25.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.48 kg (1.06 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.42 kg (3.13 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
204.6 mm × 206.4 mm × 45.6 mm(8.06" × 8.12" × 1.80") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
364.0 mm × 96.0 mm × 261.0 mm(14.33" × 3.78" × 10.28")(W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–93% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
FAQ
About VAT and Customs duty
VAT of 20%-24% is required in EU, the displayed price has included VAT.
The EU may add extra duty for orders over 150 euros, which is decided by the customs.
(VAT and customs duty are two different taxes, and customs duty is only levied on orders over €150.)
We suggest you contact ALiexpress customer service or customs to know the tariff before purchase.
When the parcel arrives at customs, please contact the logistics provider or the customs office to clear customs and pay taxes.
If you need an invoice or assistance with customs clearance, please contact us..
If you do not want to pay the customs duty, please do not place an order!!!!
How to reset the camera?
Most Dahua camcorders have a reset button, usually located next to the SD card slot or on the motherboard, which can restore the camcorder to factory settings by long-pressing it for 10s under power-on condition.
You can match the Dahua configuration tool to detect the camera status.
If you still can’t connect after reset, it may be an IP problem, please change your network IP to 192.168.1.1.
Can the camera be used in my country?
This is the Dahua 100% original international version of the camcorder and can be used in all countries.
Support upgrade and Dahua official APP.
How can I view the video recorded in SD card?
login into your account, go to preview page then click “View history record”, and then select the recorded video you want to view in calendar page.
Cameras can’t record all day?
Please check if the recording function is turned on during motion detection, and then check the recording schedule to see if it is 7x24H..
About shipping
Usually we will ship according to your choice of logistics, in case of standard logistics, delivery is usually within 7-25 days in EU. International express (DHL/FEDEX/UPS/EMS) delivery within 3-15 days. Delivery may be delayed in case of customs inspection and parcels that need to be cleared.
If your parcel is not updated for more than 10 days, please contact us..
How to Solve IP Camera No Link Issue on PoE NVR
IP cameras could be added into PoE NVR with both Manual mode and Plug- and- Play mode. When applying the Plug- and- Play mode, please kindly make sure it is Dahua brand camera, and the password of the camera is the same as the NVR. For “No Link” issue, please enter NVR. Menu – Camera – IP Camera, click Status icon of camera to check the error message first.
What Can We do If NVR Cannot View via Chrome?
You can view the NVR through the mobile app and Dahua’s official tool, the.
If you want to use Chrome browser to view, download Plug-In first, install it and restart the browser, then you can view via Chrome.
What if the camera can only be used on a LAN??
1.Usually this is because the camera is only connected to the LAN and not to the Internet. Please check your router internet is normal, then reset the webcam and turn on DHCP for the camera.
2.If the problem is still not solved, it may be IP error, please try to change your router IP to 192.168.1.1 to reconnect.
NVR cannot add a third-party camera
Make sure your IPc must support ONVIF protocol
About the Order
After you place an order, usually we will ship it within 24 hours.
if the stock is not enough or the order address problem we will contact you in time, please pay attention to ALiexpress message.
About Warranty
After delivery, if there is any quality problem within 7 days, free replacement or refund.
3 months of free maintenance, the freight is borne by both parties
Free maintenance within 1 year (if you need to replace the parts, the buyer bears the cost of the parts), and the shipping cost is borne by the buyer.
How to add IPC with POE function to NVR?
POE cameras could be added into NVR which supports POE function with both Manual mode and Plug-and-Play mode. When applying the Plug-and-Play mode, please kindly make sure the password of the camera is the same with the NVR.
Dahua camera supports plug and play, if you forget the password, you can restore the factory settings.
How do I update the device’s firmware?
Log in to your account in the DMSS app, go to the preview page then click the gear icon in the top right corner, then go to the Device Info page. Now, select the Cloud Upgrade option to check for new firmware. If new firmware is available, you’ll be able to start the update.
Package hasn’t been updated with tracking information for many days?
We promise that all packages will arrive within 60 days, and if they don’t, we are willing to give a full refund.
For large parcels, it takes more shipping time and longer time for customs inspection. If there is no updated tracking information for more than a week, it is normal and may be caused by the following situations: 1. Parcel is queuing up for flights, 2. Arrived at customs and waiting for you to clear, 3. Waiting for local logistics provider to pick up.
