Name: Dahua 4K WizMind S Smart Ai Camera 8MP Face Detection Camera Support AcuPick EPTZ People Counting DeepLight Mic HDW5842TM-ASE S3
SKU: 1005008698465523
Availability: InStock

Description

Hign-concerned Chemical: None
Zoom type: None
Zoom: None
Lens Quantity: Single lens
AI Functions: Face Detection
Color Night Vision: No
Operating Temperature: -40°-60°
IP Rating: IP67
App name: other
Power Mode: Mains Electricity
Rechargeable Battery: None
Scene: Indoor and outdoor
Movement Range(Tilt): 0°-360°
Movement Range(Pan): 0°-360°
Megapixels: 8MP
TF Card: None
Power Supply: With POE
Internal Storage: 1
Installation: Normal,Wall Mounted
is_customized: No
Audio Output: 1CH RCA
Minimum Illumination(Lux): 0.0004
Video Compression Format: MJPEG,H.264,H.265
IR Distance(m): 50m
Power Supply(V): DC12V
Supported Mobile Systems: Android,IOS
Sensor: CMOS
Model Number: IPC-HDW5842TM-ASE
Supported Operating Systems: Windows 7,Mac OS,Windows 8,Windows 10
Lens (mm): 2.8mm
Connectivity: IP/Network Wired
High Definition: 8.0 Megapixels
Style: Turret Camera
Brand Name: Dahua
Origin: Mainland China
Special Features: Waterproof / Weatherproof
Certification: CE,FCC
Alarm Type: telefon Alarm,Local Alarm
Smart home platform: other
Optical Zoom: None

Series Overview
Driven by deep learning algorithms, Dahua WizMind S Series network camera offers a variety of intelligent functions that greatly improve the accuracy of audio and video analysis. It supports video metadata, smart sound detection, face detection, perimeter protection, people counting and more. The camera also adopts advanced image processing AI ISP technology and has the Deeplight night vision effect. The camera is dustproof, waterproof and vandal-proof, and is certified as IP67 and IK10 (the type of protection varies depending on the model).

Functions

AI-ISP
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.

Self-Learning
Empowered by deep learning technology, the device recognizes different types of targets and their statuses through learning and analyzing target features to detect targets and filter out false alarms.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

AcuPick
This industry-leading search technology effectively utilizes both frontend and back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision.

People Counting
With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs reports to meet your requirements.

Video Metadata
With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera’s defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

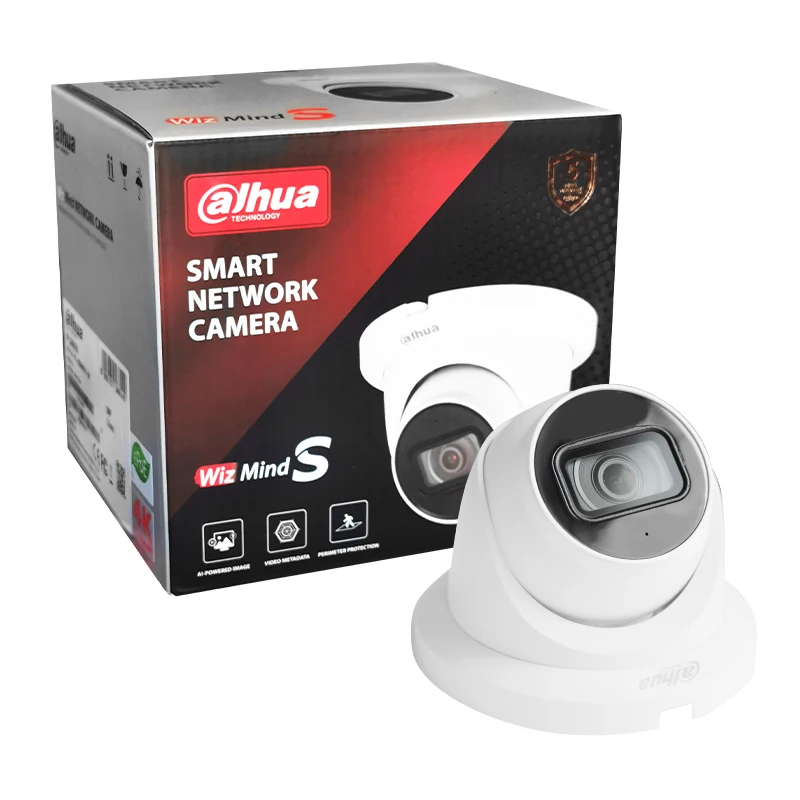

IPC-HDW5842TM-ASE

8MP IR Fixed-focal Eyeball WizMind Network Camera

* The parameters and datasheets below can only be applied to 5842-ASE-S3 series.

> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 8 MP (3840×2160) @25/30fps.

> Built-in IR LED, and the max. illumination distance is 50 m.

> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.

> 12 VDC/PoE power supply; ePoE.

> IP67 protection.

> SMD 3.0.

Excellent Image Effect

Realized through an array of image-enhancing technologies that meet complex challenges of security scenarios.

AI-Powered Image

AI-Powered Image is endowed with AI technology that significantly improve the clarity of the whole image in various environments, especially under low light condition, backlight, or during night time.

Low Illumination

With AI-Powered Image, image quality at night is improved mainly in two aspects:

• The overall brightness of the video footage at night is more balanced, providing clear and visible image of the target in low light condition.

• Key targets (e.g. human and vehicle) can be focused intelligently using deep learning algorithm to remove noise and restore details.

WDR

Due to different installation positions and light changes, a strong contrast between brightness and darkness might occur (e.g. backlight). With WDR on, the IPC WizMind S series can flexibly adjust overexposure and underexposure and even make moving objects clear and visible.

Time-Division Exposure technology* provides high quality snapshots of targets that can be used in the Video Metadata function.

Time-Division Exposure

Long Exposure
The face is clear but the vehicle is overexposed.

Short Exposure
The vehicle is clear but the face is underexposed.

Time-Division Exposure
Both vehicle and target – that are moving in different speed and are under different original exposure – are clear and visible in the dark.

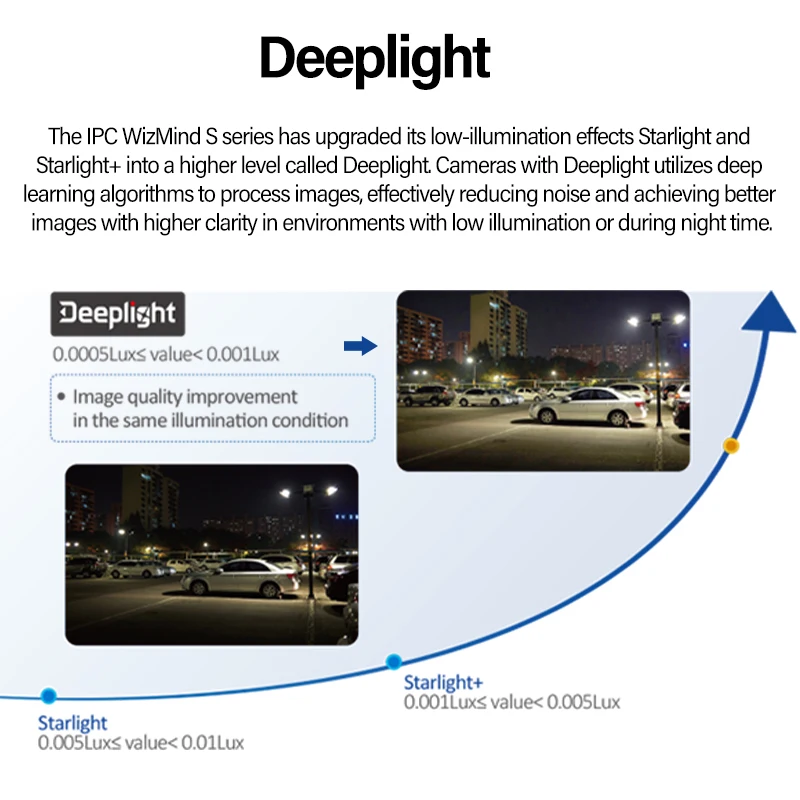

Deeplight

The IPC WizMind S series has upgraded its low-illumination effects Starlight and Starlight+ into a higher level called Deeplight. Cameras with Deeplight utilizes deep learning algorithms to process images, effectively reducing noise and achieving better images with higher clarity in environments with low illumination or during night time.

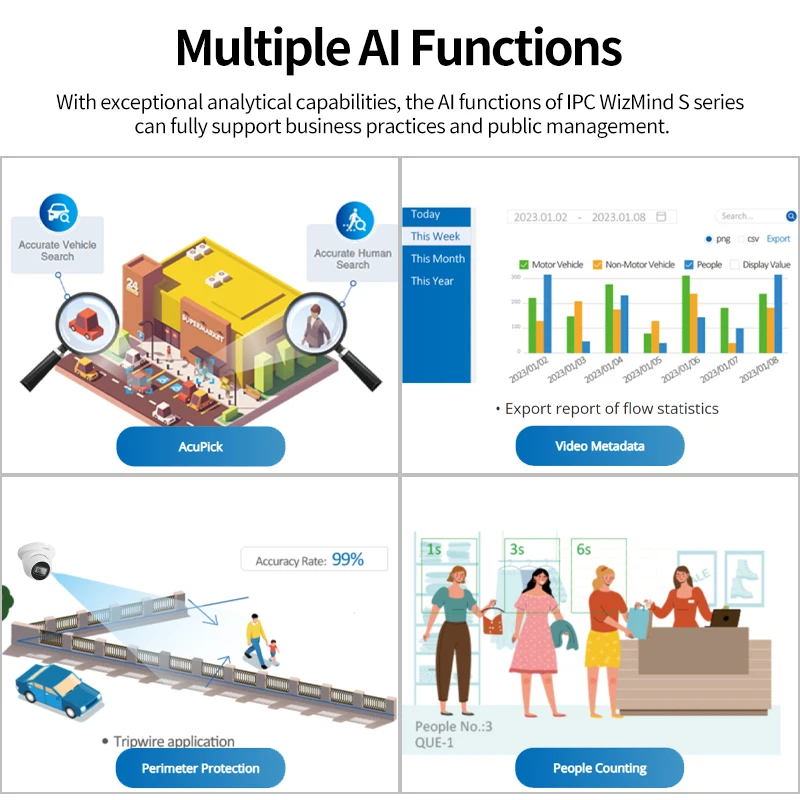

Multiple AI Functions

With exceptional analytical capabilities, the AI functions of IPC WizMind S series can fully support business practices and public management.

AcuPick

Dahua effectively utilizes both front-end and back-end intelligence to realize AcuPick, a true video search engine that can quickly locate the information you need. We can easily find a lost individual, locate a specific vehicle with just one click.

Application Scenarios

· Shopping mall:

With AcuPick, locate relevant video information to immediately find the specific person, e.g., a lost child.

· Parking lot:

With AcuPick, quickly extract culprits, identify and locate videos of targets that can be used as evidence.

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0008 [email protected] (Color, 30 IRE)
0.0004 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 50 m (164.04 ft) (IR)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (IR LED)

Lens

Focal Length

2.8mm; 3.6mm; 6mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 111°; V: 59°; D: 131°
3.6 mm: H: 87°; V: 47°; D: 102°
6 mm: H: 55°; V: 30°; D: 64°

Close Focus Distance

2.8 mm: 1.8 m
3.6 mm: 2.6 m
6 mm: 4.4 m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

85.4 m (280.18 ft)

34.2 m

(112.20 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)

3.6 mm

106.0 m (347.77 ft)

42.4 m

(131.11 ft)

21.2 m

(69.55 ft)

10.6 m

(34.78 ft)

6 mm

164.8 m (540.68 ft)

65.9 m

(216.21 ft)

33.0 m

(108.27 ft)

16.5 m

(54.13 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

EPTZ

Yes

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functons support the classifcaton and accurate detecton of vehicle, animal and human); loitering detecton, people gathering, parking detecton. Supports long- distance mode. Supports self-learning, it filters out false alarms.

Smart Object Detection

Smart abandoned object; smart missing object

SMD

SMD 3.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal,and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Yes

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Smart Sound Detection

Yes

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Stream Capability

4 streams

Resolution

3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2560 × 1440; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–16384 kbps
H.265: 12 kbps–13568 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

LDC

Yes (only 2.8mm/3.6mm supports)

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register

Interoperability

ONVIF (Profile S/Profile G/Profile T/Profile M); CGI;

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 1 TB); NAS

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5mA 3V–5V DC

Alarm Output

1 channel out: wet contact, 300mA 12V DC

Power

Power Supply

12 VDC/PoE (802.3af)/ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 4.1 W (12 VDC); 5.2 W (PoE);
Max. (H.265+ WDR+ Intelligence on+IR on): 6.8 W (12 VDC); 8.8 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Inner core: Metal
Cover: Metal
Decoration ring: Plastic
Quick install mounting plate: Metal

Product Dimensions

99.1 mm × Φ121.9 mm (3.90" × Φ4.80")

Net Weight

500 g (1.10 lb)

Gross Weight

770 g (1.70 lb)

Additional information

Sensor Size	8MP, 8MP Add PFA130-E, 8MP Add PFB205W-E
Focus	2.8mm
