Dahua 8MP Panoramic Camera 180° Wide Angle Splicing CCTV Smart Light 4K Full Color Two-way Talk EPTZ TiOC PFW3849S-A180-AS-PV

Name: Dahua 8MP Panoramic Camera 180° Wide Angle Splicing CCTV Smart Light 4K Full Color Two-way Talk EPTZ TiOC PFW3849S-A180-AS-PV
SKU: 1005008404027504
Availability: InStock

Hign-concerned Chemical: None Zoom type: None Zoom: None Lens Quantity: Dual lens AI Functions: Vehicle Detection Color Night Vision: YES Operating Temperature: -40 °C to +60 °C IP Rating: IP67 App name: other Power Mode: Mains Electricity Scene: Indoor and outdoor Movement Range(Tilt): 0°-360° Movement Range(Pan): 0°-360° Megapixels: 8MP TF Card: None Power Supply: With POE Internal Storage: 512 Installation: Normal,Wall Mounted Color: WHITE,black is_customized: No Audio Output: Two Way Audio Minimum Illumination(Lux): 0.0005 Viewing Angle : 180° […]

Sensor Size

8MP Black

8MP White

Focus

2.8mm

Clear

SKU: 1005008404027504

Category: Smart Cameras (Indoor), Smart Security Systems

Description

Hign-concerned Chemical: None
Zoom type: None
Zoom: None
Lens Quantity: Dual lens
AI Functions: Vehicle Detection
Color Night Vision: YES
Operating Temperature: -40 °C to +60 °C
IP Rating: IP67
App name: other
Power Mode: Mains Electricity
Scene: Indoor and outdoor
Movement Range(Tilt): 0°-360°
Movement Range(Pan): 0°-360°
Megapixels: 8MP
TF Card: None
Power Supply: With POE
Internal Storage: 512
Installation: Normal,Wall Mounted
Color: WHITE,black
is_customized: No
Audio Output: Two Way Audio
Minimum Illumination(Lux): 0.0005
Viewing Angle : 180°
Video Compression Format: H.264,H.265
IR Distance(m): 25m
Dimensions (L x W x D)(mm): 183.1 mm x 99.0 mm x 78.0 mm
Power Supply(V): DC12V
Power Consumption(W): 3.4 W
Supported Mobile Systems: Android,IOS
Sensor: CMOS
Model Number: PFW3849S-A180-AS-PV
Supported Operating Systems: Mac OS,Windows 8,Windows 10
Lens (mm): 2.8mm
Connectivity: IP/Network Wired
High Definition: 8.0 Megapixels
Style: Bullet Camera
Brand Name: Dahua
Origin: Mainland China
Certification: CE,FCC
Alarm Type: telefon Alarm,Local Alarm
Smart home platform: other
Special Features: Waterproof / Weatherproof
Shell Material: Metal

Series Overview
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.

Functions

SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

EPTZ
With advanced target detection and tracking algorithms, Dahua EPTZ technology can simultaneously zoom in and track multiple humans and vehicles that trigger alarms. It provides rich details and a panoramic view at the same time.

Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.

One-tap Disarming
Dahua One-tap Disarming function, which is convenient and easy for operation, is the switch for event linkage. Customers can close and recover event linkage through mobile App, which meets multi-scenarios needs.

Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

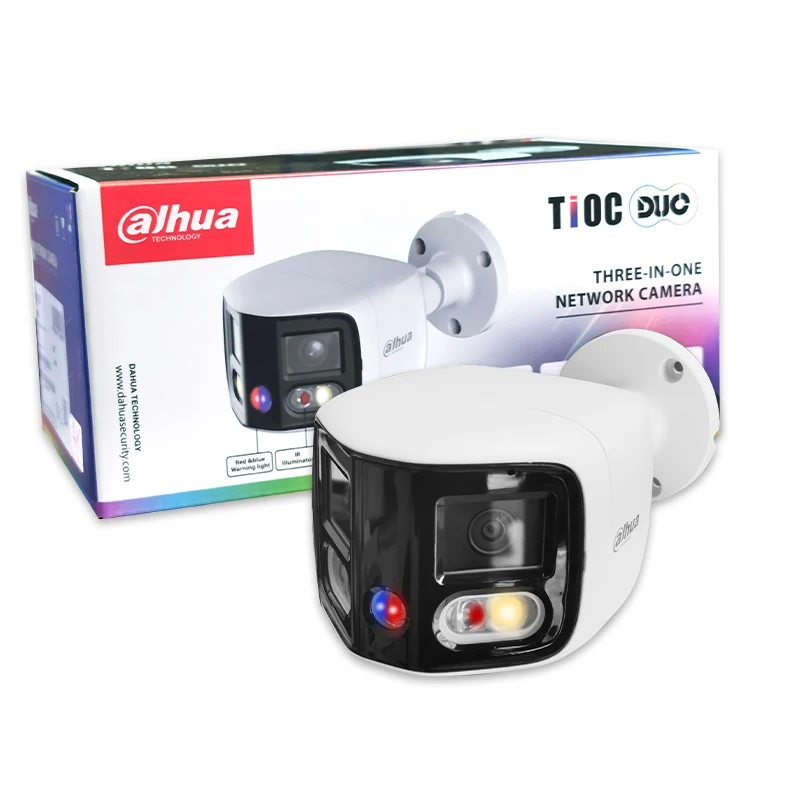

IPC-PFW3849S-A180-AS-PV

2x4MP TiOC Duo Splicing Fixed-focal Bullet WizSense Network Camera

> Outputs 180° wide angle splicing image.
> Outputs max. 8 MP (4096 × 1860)@20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 4.0.
> One-tap arming/disarming through alarm input.

Camera

Image Sensor

Dual 1/2.7" CMOS

Max. Resolution

4096 (H) × 1860 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 [email protected] (Color, 30 IRE)

0.0005 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 25 m (82.02 ft) (IR LED)

Up to 20 m (65.62 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–77°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Field of View

Horizontal: 180°; Vertical: 86°

Max. Aperture

F1.4

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

50.6 m (166.01 ft)

20.2 m

(66.27 ft)

10.1 m

(33.14 ft)

5.1 m

(16.73 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

EPTZ

Enlarge and track the targets of intelligent alarms

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+;

Smart H.264+

AI Coding

AI H.265;

AI H.264

Video Frame Rate

Main stream: 4096 × 1860@(1–20 fps )

Sub stream: 1200 × 530@(1–20 fps)

Third stream: 1920 × 860@(1–20 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 6 kbps –16384 kbps

H.265: 6 kbps –16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Privacy Masking

4 areas

Defog

Yes

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE 8 and later
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3 V–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC (±30%); PoE (802.3af)

Power Consumption

Basic: 3.4 W (12 VDC); 3.8 W (PoE)

Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 9 W (12 VDC); 10.3 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

183.1 mm × 99.0 mm × 78.0 mm (7.20" × 3.90" × 3.07") (L × W × H)

Net Weight

695 g (1.53 lb)

Gross Weight

870 g (1.92 lb)

FAQ

About the Order

After you place an order, usually we will ship it within 24 hours.

if the stock is not enough or the order address problem we will contact you in time, please pay attention to ALiexpress message.

About Warranty

After delivery, if there is any quality problem within 7 days, free replacement or refund.

3 months of free maintenance, the freight is borne by both parties

Free maintenance within 1 year (if you need to replace the parts, the buyer bears the cost of the parts), and the shipping cost is borne by the buyer.

How to add IPC with POE function to NVR?

POE cameras could be added into NVR which supports POE function with both Manual mode and Plug-and-Play mode. When applying the Plug-and-Play mode, please kindly make sure the password of the camera is the same with the NVR.

Dahua camera supports plug and play, if you forget the password, you can restore the factory settings.

How do I update the device’s firmware?

Log in to your account in the DMSS app, go to the preview page then click the gear icon in the top right corner, then go to the Device Info page. Now, select the Cloud Upgrade option to check for new firmware. If new firmware is available, you’ll be able to start the update.

Package hasn’t been updated with tracking information for many days?

We promise that all packages will arrive within 60 days, and if they don’t, we are willing to give a full refund.

For large parcels, it takes more shipping time and longer time for customs inspection. If there is no updated tracking information for more than a week, it is normal and may be caused by the following situations: 1. Parcel is queuing up for flights, 2. Arrived at customs and waiting for you to clear, 3. Waiting for local logistics provider to pick up.

About shipping

Usually we will ship according to your choice of logistics, in case of standard logistics, delivery is usually within 7-25 days in EU. International express (DHL/FEDEX/UPS/EMS) delivery within 3-15 days. Delivery may be delayed in case of customs inspection and parcels that need to be cleared.

If your parcel is not updated for more than 10 days, please contact us..

How to Solve IP Camera No Link Issue on PoE NVR

IP cameras could be added into PoE NVR with both Manual mode and Plug- and- Play mode. When applying the Plug- and- Play mode, please kindly make sure it is Dahua brand camera, and the password of the camera is the same as the NVR. For “No Link” issue, please enter NVR. Menu – Camera – IP Camera, click Status icon of camera to check the error message first.

What Can We do If NVR Cannot View via Chrome?

You can view the NVR through the mobile app and Dahua’s official tool, the.

If you want to use Chrome browser to view, download Plug-In first, install it and restart the browser, then you can view via Chrome.

What if the camera can only be used on a LAN??

1.Usually this is because the camera is only connected to the LAN and not to the Internet. Please check your router internet is normal, then reset the webcam and turn on DHCP for the camera.

2.If the problem is still not solved, it may be IP error, please try to change your router IP to 192.168.1.1 to reconnect.

NVR cannot add a third-party camera

Make sure your IPc must support ONVIF protocol

About VAT and Customs duty

VAT of 20%-24% is required in EU, the displayed price has included VAT.

The EU may add extra duty for orders over 150 euros, which is decided by the customs.

(VAT and customs duty are two different taxes, and customs duty is only levied on orders over €150.)

We suggest you contact ALiexpress customer service or customs to know the tariff before purchase.

When the parcel arrives at customs, please contact the logistics provider or the customs office to clear customs and pay taxes.

If you need an invoice or assistance with customs clearance, please contact us..

If you do not want to pay the customs duty, please do not place an order!!!!

How to reset the camera?

Most Dahua camcorders have a reset button, usually located next to the SD card slot or on the motherboard, which can restore the camcorder to factory settings by long-pressing it for 10s under power-on condition.

You can match the Dahua configuration tool to detect the camera status.

If you still can’t connect after reset, it may be an IP problem, please change your network IP to 192.168.1.1.

Can the camera be used in my country?

This is the Dahua 100% original international version of the camcorder and can be used in all countries.

Support upgrade and Dahua official APP.

How can I view the video recorded in SD card?

login into your account, go to preview page then click “View history record”, and then select the recorded video you want to view in calendar page.

Cameras can’t record all day?

Please check if the recording function is turned on during motion detection, and then check the recording schedule to see if it is 7x24H..
