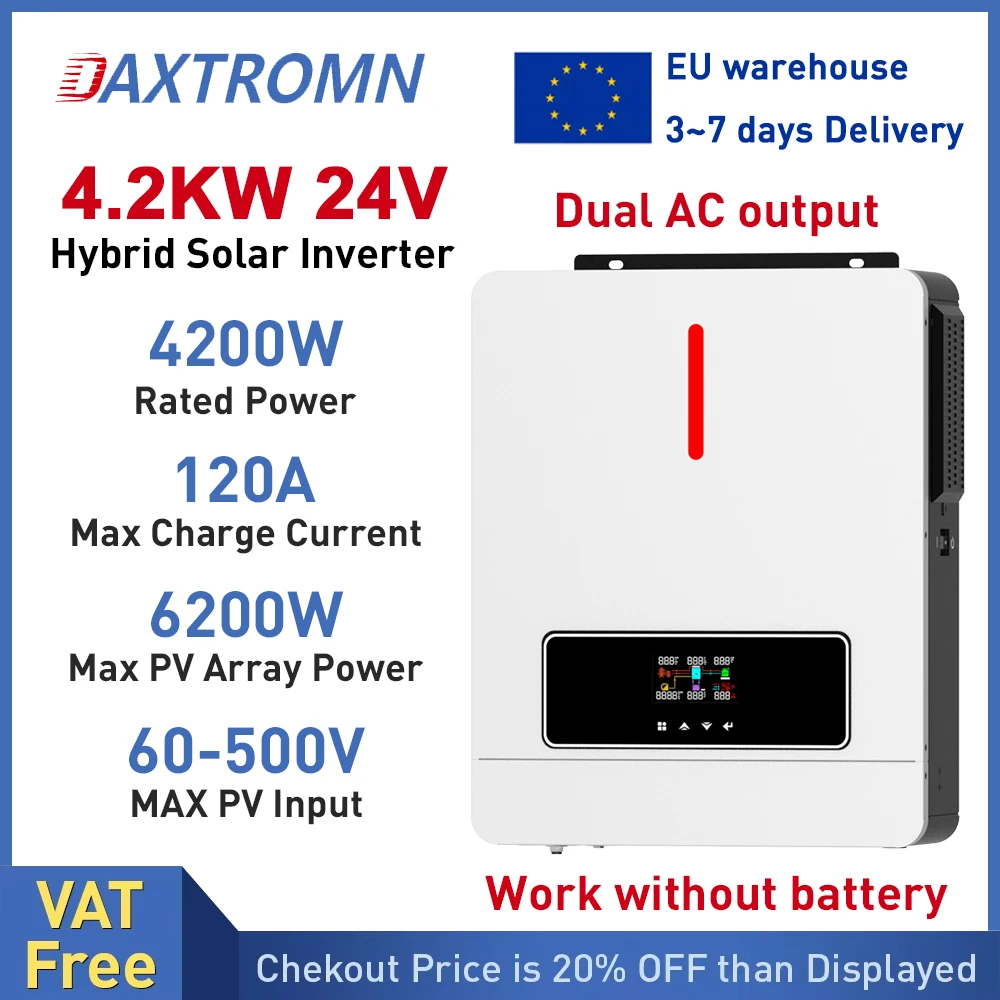

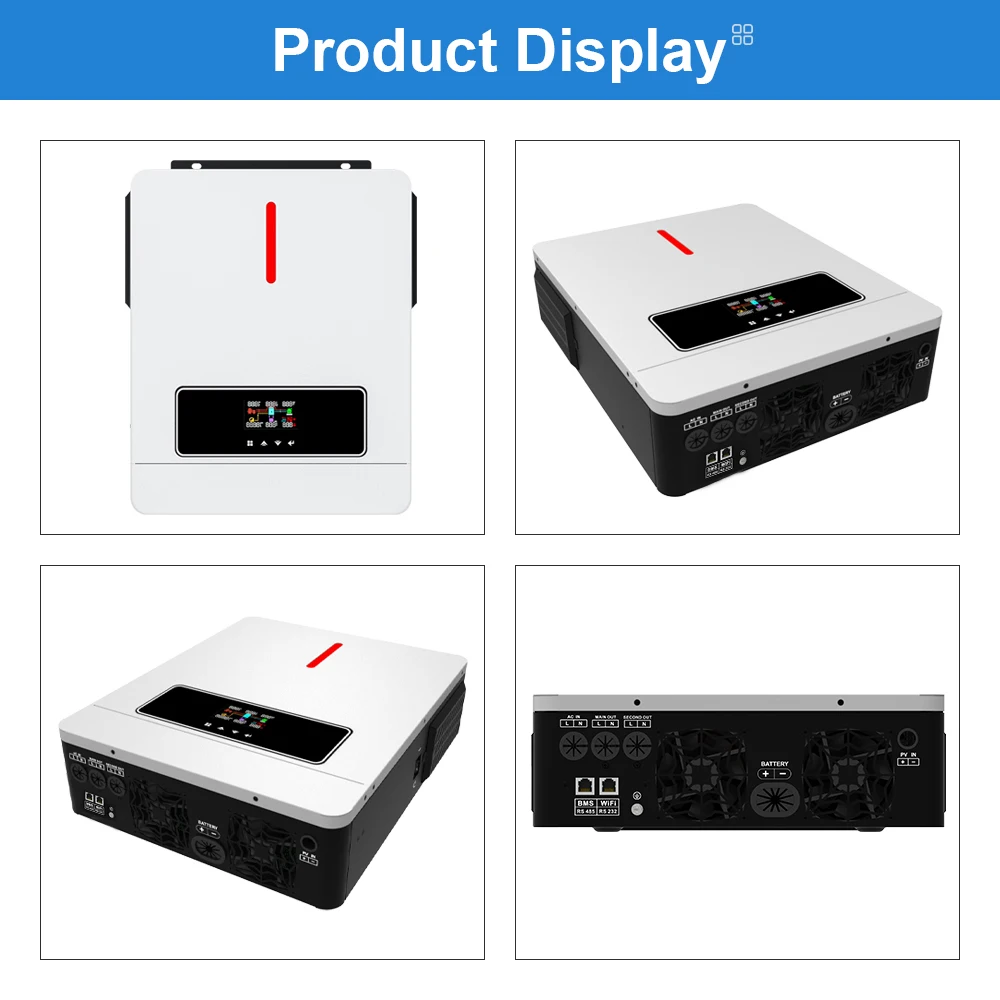

DAXTROMN Mppt 4.2KW Hybrid Solar Inverter 24VDC Batteryless working PV input 90-450V Grid Tie Hybrid Solar Inverter dual output
DAXTROMN Mppt 4.2KW Hybrid Solar Inverter 24VDC Batteryless working PV input 90-450V Grid Tie Hybrid Solar Inverter dual output - Image 2

DAXTROMN Mppt 4.2KW Hybrid Solar Inverter 24VDC Batteryless working PV input 90-450V Grid Tie Hybrid Solar Inverter dual output

Original price was: ر.ع.185.47.Current price is: ر.ع.167.84.

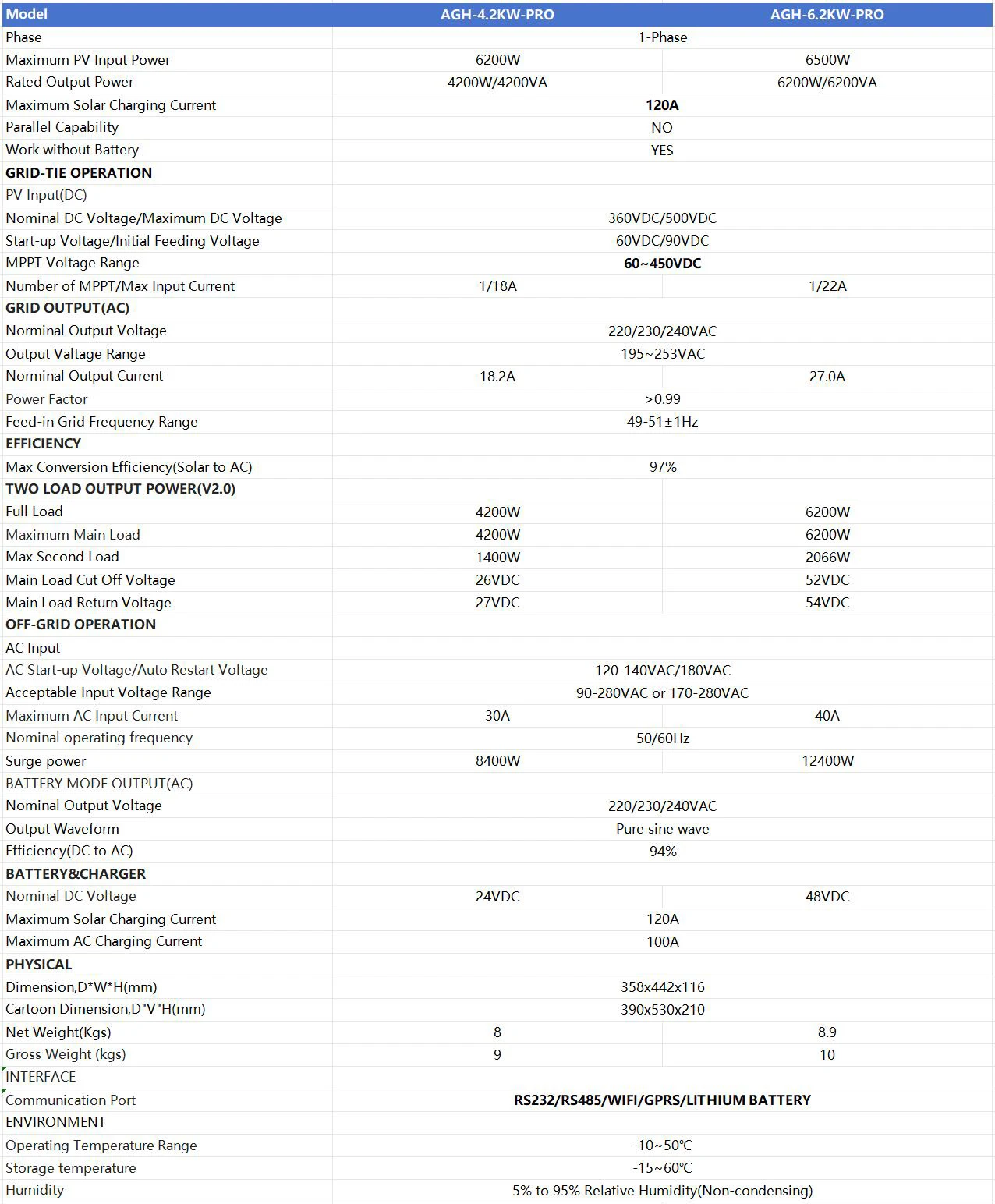

Hign-concerned Chemical: None Output Current: 18.2A Model Number: AGH-4.2KW-PRO Output Power: 1 – 200KW Size: 50*42*18 Output Type: DUAL Weight: 9KGS Brand Name: daxtromn Output Frequency: 50/60HZ Is Smart Device: YES Origin: Mainland China Certification: CE Phase: 1-Phase Maximum PV Input Power: 6200W Rated Output Power: 4200W/4200VA Nominal DC Voltage/Maximum DC Voltage: 360VDC/500VDC Start-up Voltage/Initial Feeding Voltage: 90VDC/120VDC MPPT Voltage Range: 60~450VDC Number of MPPT/Max Input Current: 1/18A Norminal Output Voltage: 220/230/240VAC Output Valtage Range: 195.5~253VAC […]

SKU: 1005006233441707
Category: ,

Description

  • Hign-concerned Chemical: None
  • Output Current: 18.2A
  • Model Number: AGH-4.2KW-PRO
  • Output Power: 1 – 200KW

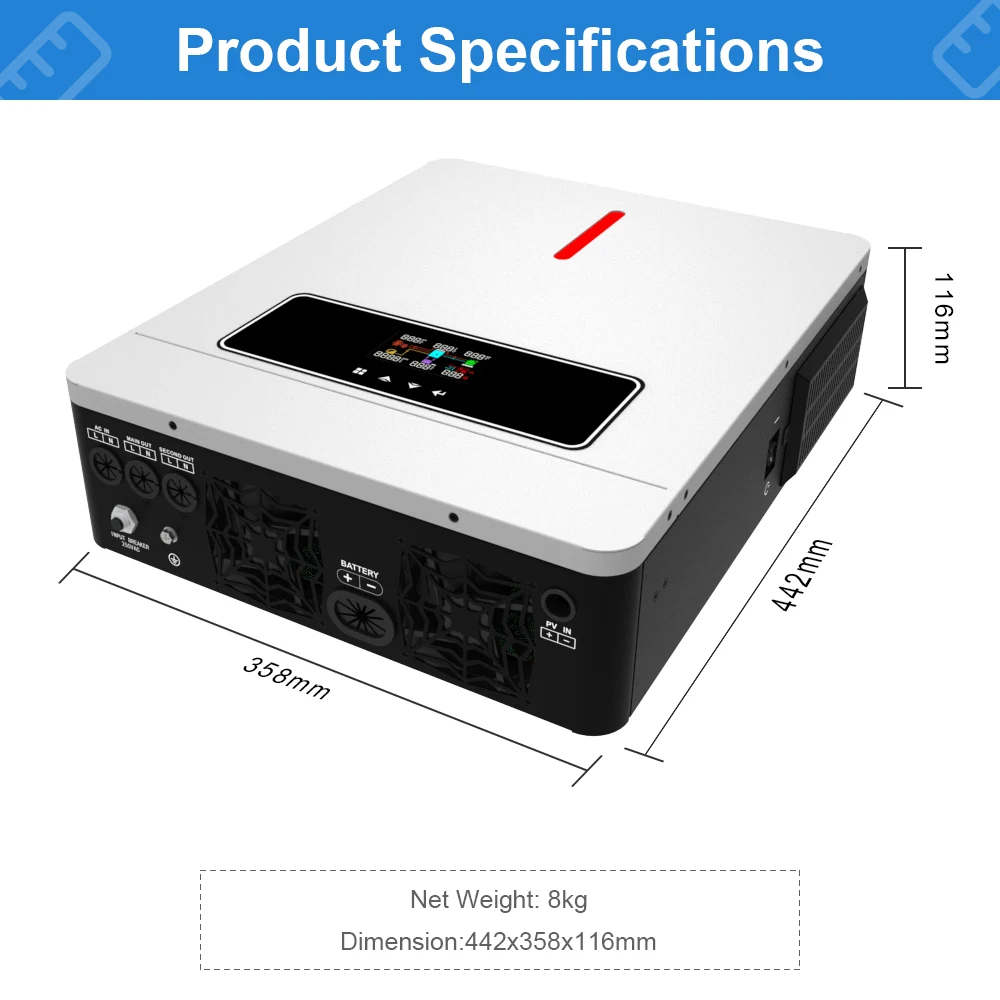

  • Size: 50*42*18
  • Output Type: DUAL
  • Weight: 9KGS
  • Brand Name: daxtromn
  • Output Frequency: 50/60HZ
  • Is Smart Device: YES
  • Origin: Mainland China
  • Certification: CE
  • Phase: 1-Phase
  • Maximum PV Input Power: 6200W
  • Rated Output Power: 4200W/4200VA
  • Nominal DC Voltage/Maximum DC Voltage: 360VDC/500VDC
  • Start-up Voltage/Initial Feeding Voltage: 90VDC/120VDC
  • MPPT Voltage Range: 60~450VDC
  • Number of MPPT/Max Input Current: 1/18A
  • Norminal Output Voltage: 220/230/240VAC
  • Output Valtage Range: 195.5~253VAC
  • Norminal Output: 18.2A
  • Max Conversion Efficiency(Solar to AC): 97%
  • Maximum Solar Charging Current: 120A
  • Maximum AC Charging Current: 100A
  • Communication: WIFI Included
  • Type 1: Pure sine wave inverter
  • Type 2: mppt hybrid solar inverter
  • Type 3: 24v inverter hybrid solar
  • Type 4: Off-grid inverter
  • Type 5: 4.2kw inverter solar

DAXTROMN Mppt 4.2KW Hybrid Solar Inverter 24VDC Batteryless working PV input 90-450V Grid Tie Hybrid Solar Inverter dual outputAfter the Ukrainian friend paid, the package was sent from the EU warehouse, the tracking number was updated within 2-3 working days, and it was delivered in 7-10 days.

Feature

(1) Pure sine wave.

(2) Output power factor 1.0.

(3) Built-in MPPT 120A solar charger.

(4) Photovoltaic input voltage 60-500VDC.

(5) Can work without battery.

(6) Optional WiFi remote monitoring.

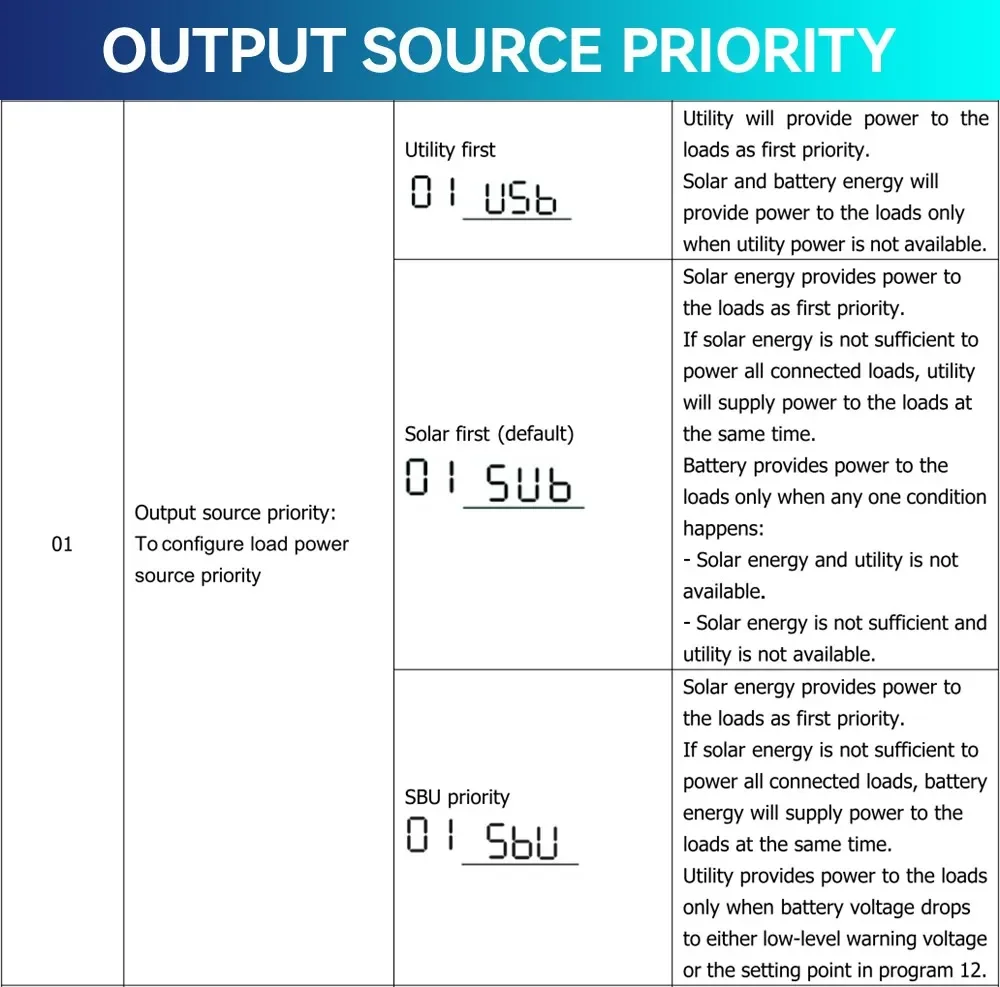

(7) Support multiple output priorities: USB, SUB, SBU.

(8) Removable dust cover, suitable for harsh environments.

(9) One-key factory reset.

(10) Support PACE PYLON communication protocol BMS.

(11) Can connect lithium iron phosphate battery through RS485 interface.

(12) Lithium battery activation function, can be activated by mains or photovoltaic system.

(13) 2 load outputs.

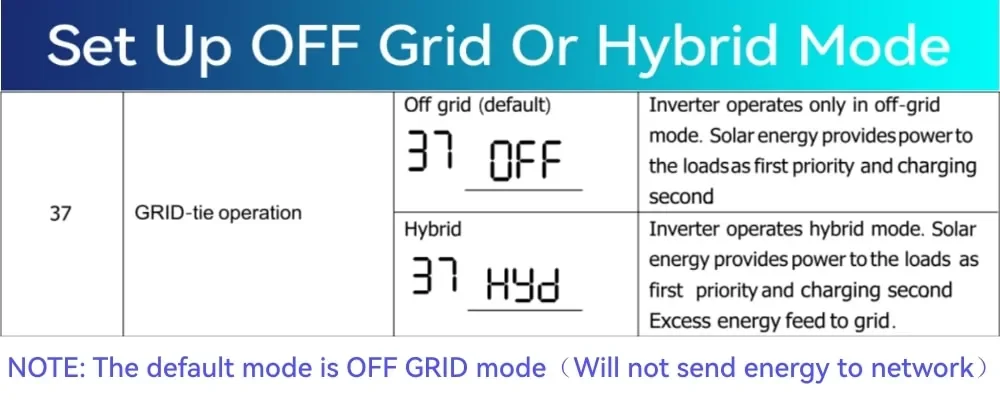

(14) Can be connected to the grid.

(15) Built-in RS232 (WIFI) / RS485 (BMS) port, you can configure the BMS battery charging protocol through RS485 to extend the battery life.

What is 2AC out function?

when there is no Main/AC IN/GRID INPUT ,and the battery lower than the setted voltage .
the main AC out will cut off automatically, the battery or pv only offer power for the second AC out To Guarantee your important equipment always running

DO NOT CONNECT THE SECOND OUTPUT TO THE GRID,IT WILL DAMANGE YOUR INVERTER

What is the BMS model?

Difference between BMS and without BMS:

If the battery has BMS, after plugging in the BMS, the inverter and the battery will communicate and automatically adjust the charging voltage cut-off voltage and other parameters, and various parameters will be adjusted at any time according to the condition of the battery, which will be a higher level for the life of the battery and the safety of use.

The inverter and battery need to have BMS functions at the same time to communicate with each other.

Question & Answer

Q:Whats the Rated output power ?
A:Its 4200W for Model:AGH-4.2KW-PRO

Q:Whats the max charge currency for battery ?

A:Its 120A

Q:Whats the MAX DC PV Input?

A:Its 500VDC

Q:How many AC output ports?

A:2 loads ouput

Q:How many volts of external battery use ?

A:24V for Model :AGH-4.2KW-PRO

Q:What BMS protocols are supported?

A:PACE and PYLON

Q:Can it support parallel or series connection?

A:No it can not support .

Q:Whats the warranty?

A:1 Year

Q:If it has Wifi Model ?

A:Yes

Q: I am a distributor, can we have long-term cooperation?

A: Yes, large projects and wholesale needs can enjoy personalized pricing.

Q: Why can’t I buy inverters from your store?

A: Normally, we cannot provide accurate logistics prices for your country. If you have any needs, please feel free to contact us.

Note:

This is a wide voltage Hybrid Solar inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 90V for the inverter to work normally, if with external battery 60V is working.

Additional information

Color

4.2KW 24V With WIFI
Output Voltage

220-240V
