Description
- Hign-concerned Chemical: None
- is_customized: Yes
- Output Current: 100A
- Model Number: ECO
- Output Power: 1 – 200KW
- Size: 423*334*110mm
- Output Type: DUAL
- Weight: 10kg
- Brand Name: ECGSOLAX
- Output Frequency: 50/60Hz
- Is Smart Device: YES
- Origin: Mainland China
- Certification: CE,RoHS
- Rated Power: 4200W/6200W
- Surge Power: 8400VA/12400VA
- Ouput Voltage: 230VAC

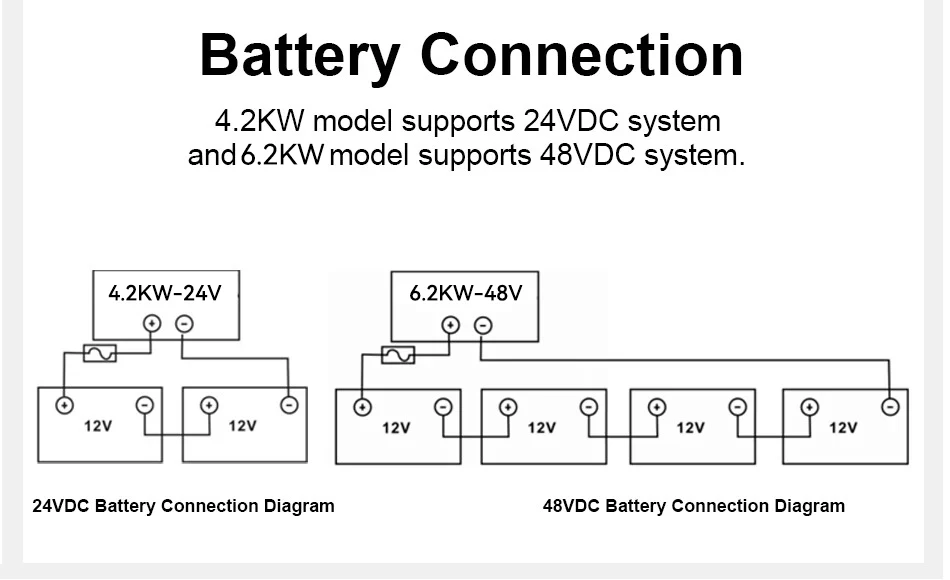

- Battery Voltage: 24V/48V
- Maximum Solar Charging Current: 120A
- Maximum AC Charging Current: 100A
- Transfer Time: 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
- Grid type: Off-grid inverter
- Wave form: Pure sine wave
- MPPT Range @ Operating Voltage: 90 ~ 450 VDC
- Maxmium PV Array Open Circuit Voltage: 500VDC
- Maxmium Efficiency: 98%
- Communication Interface: WIFI

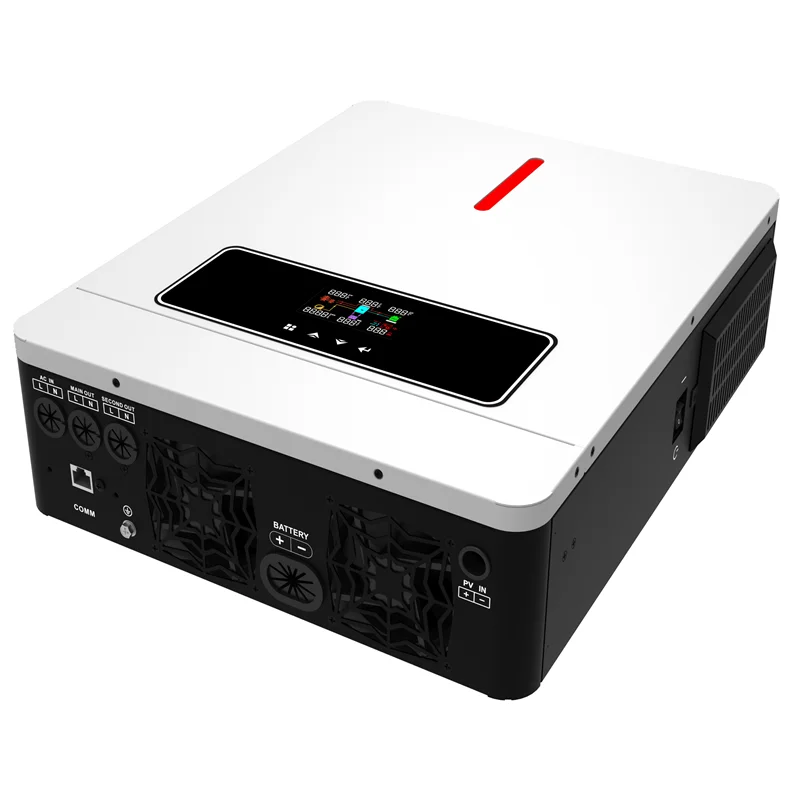

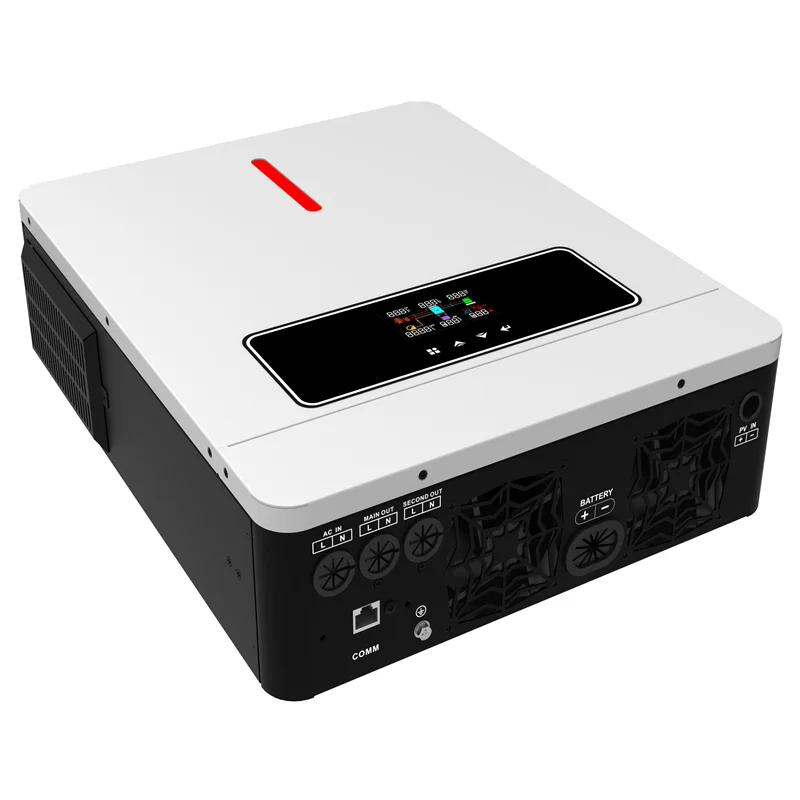

ECGSOLAX 4200W 6200W Solar Hybrid Inverter Charger 24V 48V Battery Pure Sine Wave 220VAC 120A MPPT Solar Charge Controller LCD
Introduction:
it is an off-grid hybrid inverter that works without batteries. This inverter is a high frequency inverter,Lead-acid batteries, gel batteries, and lithium batteries can be used.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
-
Pure sine wave solar inverter(on/off Grid)
-
WIFI&GPRS available for IOS and Android
-

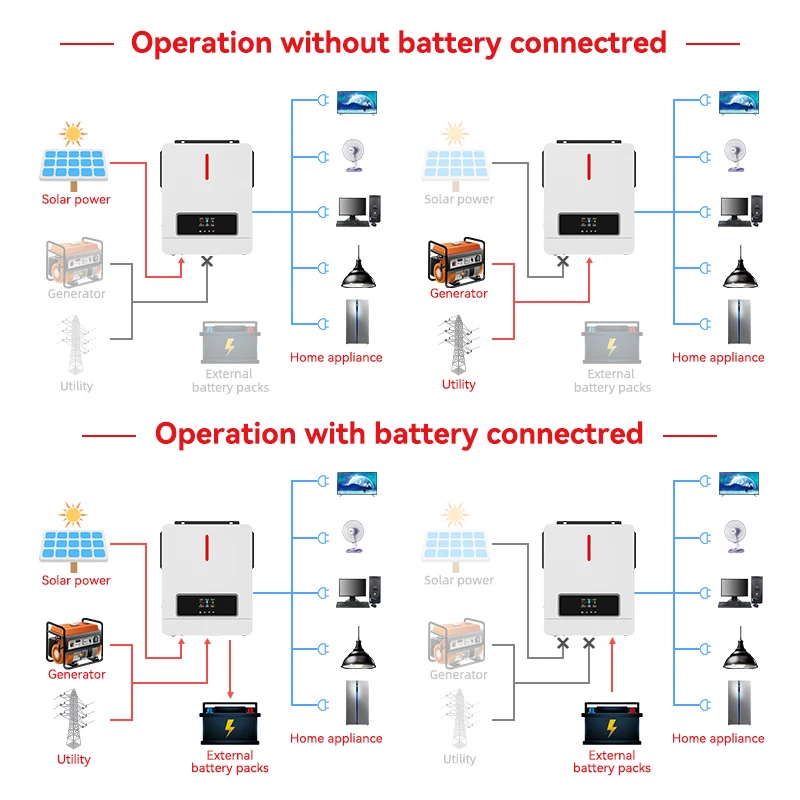

Inverter running without battery
-
One-key restoration to factory settings
-
Built-in lithium battery automatic activation
-
Built-in 120A(for 4.2KW/6.2KW)
-
MPPT:max 6200W(for 4.2KW),max 6500W(for 6.2KW)
-
High PV input voltage range(60~450VDC)
-
Built-in anti-dusk kit for harsh enviroment
-
Smart battery charge design to optimize battery life
-
Dual output
Package Including：
-
1PC Solar Inverter Charger
-
1PC User Manual (English)

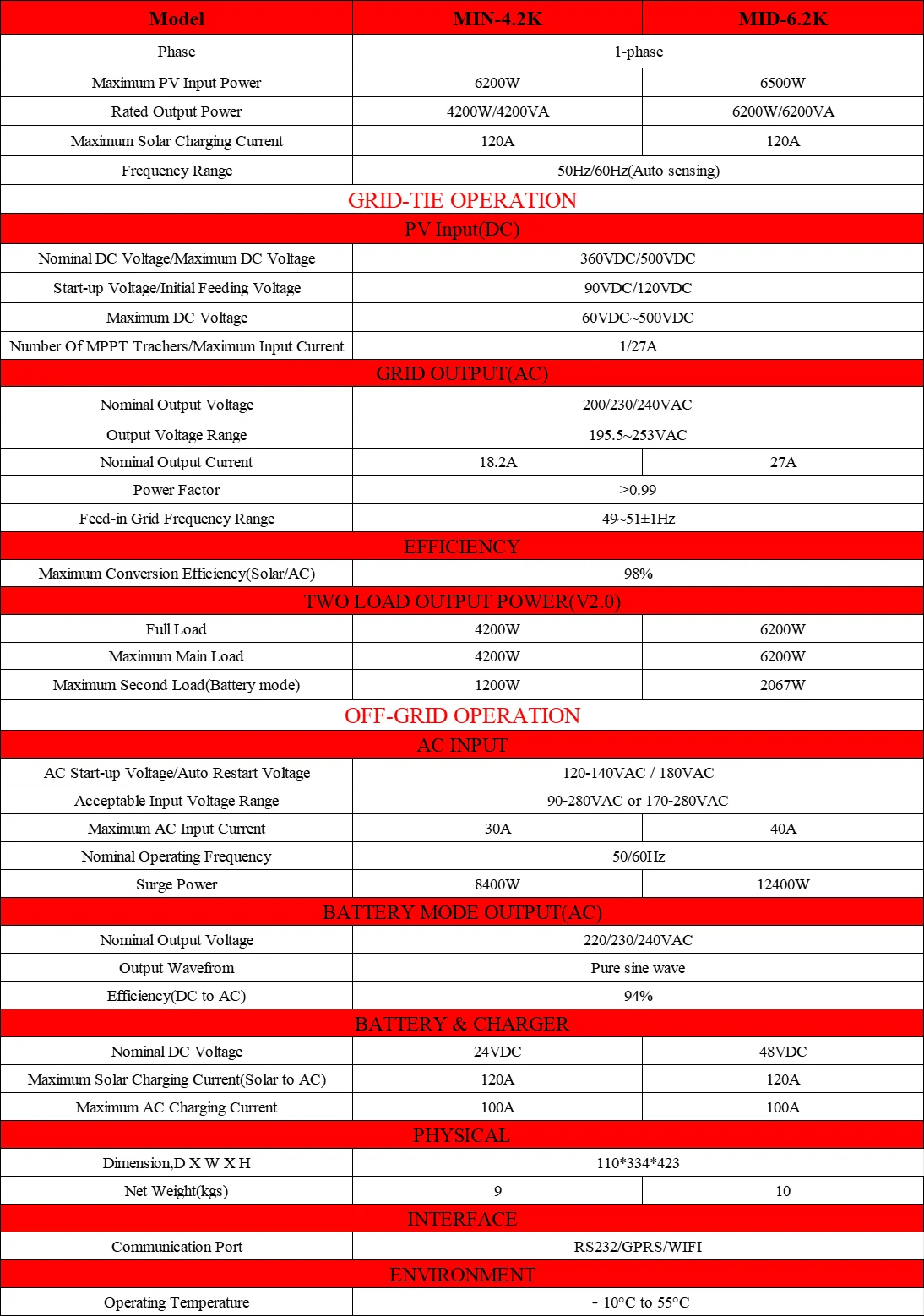

Specification:
