ECGSOLAX 60A MPPT Solar Charge Controller 12V 24V 36V 48V Auto Solar Panel Regulator LCD Display For Lead Acid Lithium Battery

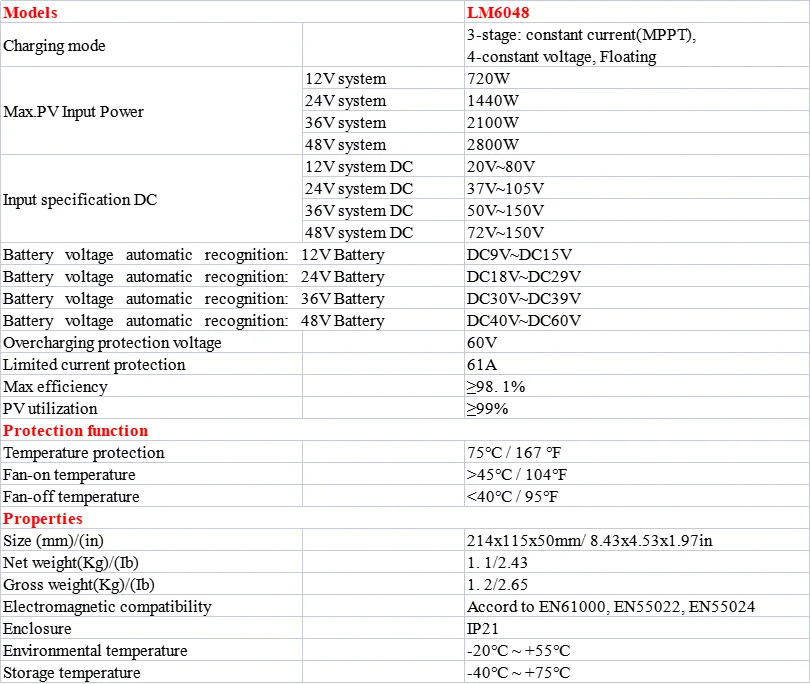

Hign-concerned Chemical: None Is Smart Device: No Application: Solar System Controller Model Number: MPPT Solar Charge Controller Brand Name: ECGSOLAX Maximum Current: MPPT 60A Origin: Mainland China Certification: CE Battery System Voltage: 12V 24V 36V 48V Enclosure: IP21 Max.PV Input Power: 720W/12V 1440W/24V 2100W/36V 2800W/36V PV utilization: ≥99% Max efficiency: ≥98. 1% Feature A: mppt regulador carga solar Feature B: controlador de carga de solar Feature C: Solar Controller Feature E: mppt […]
Description
- Hign-concerned Chemical: None
- Is Smart Device: No
- Application: Solar System Controller
- Model Number: MPPT Solar Charge Controller
- Brand Name: ECGSOLAX
- Maximum Current: MPPT 60A
- Origin: Mainland China
- Certification: CE
- Battery System Voltage: 12V 24V 36V 48V
- Enclosure: IP21
- Max.PV Input Power: 720W/12V 1440W/24V 2100W/36V 2800W/36V
- PV utilization: ≥99%
- Max efficiency: ≥98. 1%
- Feature A: mppt regulador carga solar
- Feature B: controlador de carga de solar
- Feature C: Solar Controller
- Feature E: mppt 60a
- Feature F: controlador de carga mppt
- Max Solar Input Voltage: 150VDC
- Feature D: MPPT Solar Conrtroller,controlador de carga solar mppt

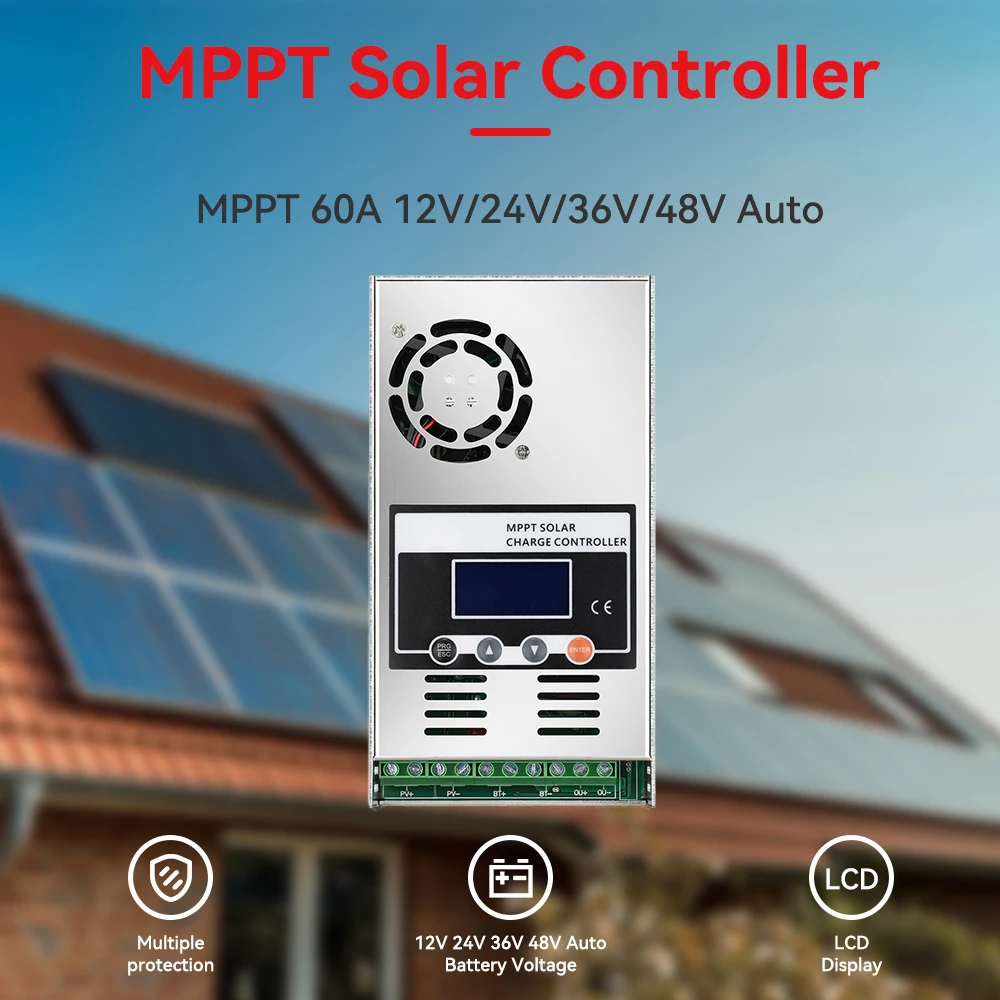

MPPT Solar Charge Controller 60A 12V 24V 36V 48V Auto Solar Panel Regulator LCD Display For Lead Acid Lithium Battery
Introduction
MPPT series solar charge controller is based on an advanced maximum power point tracking (MPPT) technology developed, dedicated to the solar system ,the charge controller conversion efficiency up to 97%.

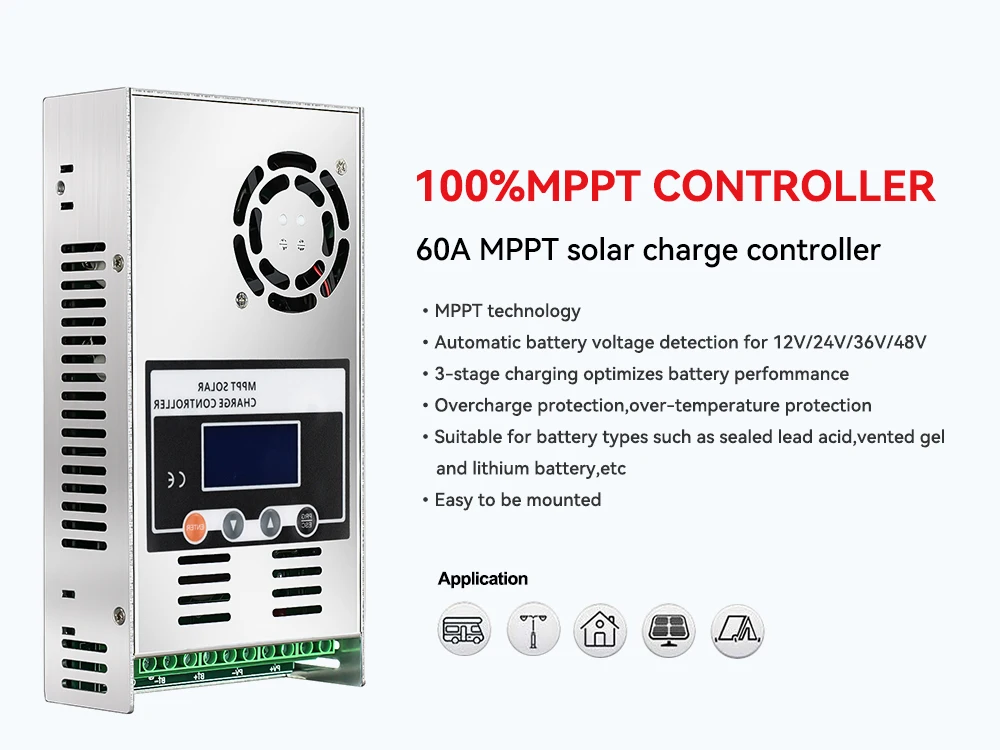

Features
1. MPPT 60A solar charge controller
2. 100% MPPT technology

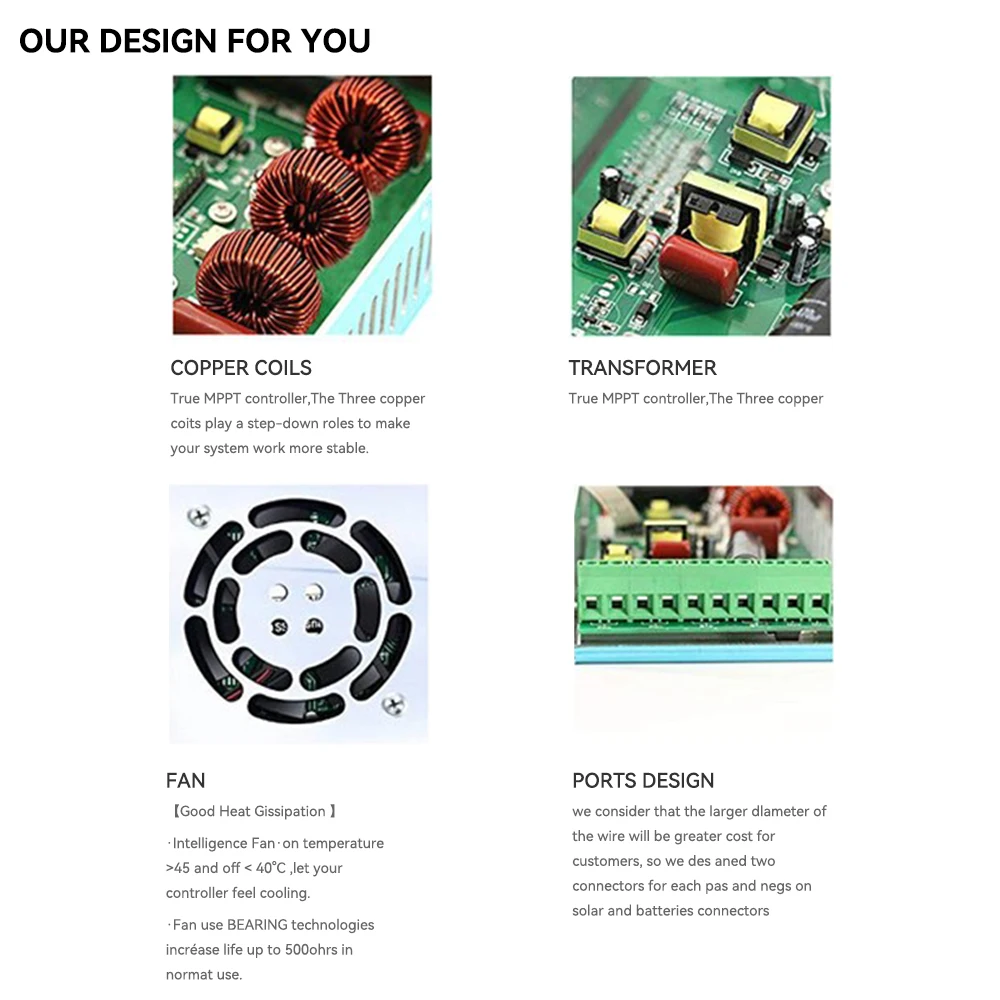

3. Built-in DSP controller with high performance
4. Automatic switch for 12V/24V/36V/48V battery bank
5. stage charging optimizes battery performance
6. Overcharge protection, input PV polarity reverse protection .output limited current
protection ,over-temperature protection
7. Trouble shooting promotion function
8. Suitable for battery types such as sealed lead acid ,vented gel and lithium battery .
9. Easy to be mounted.
Notes:

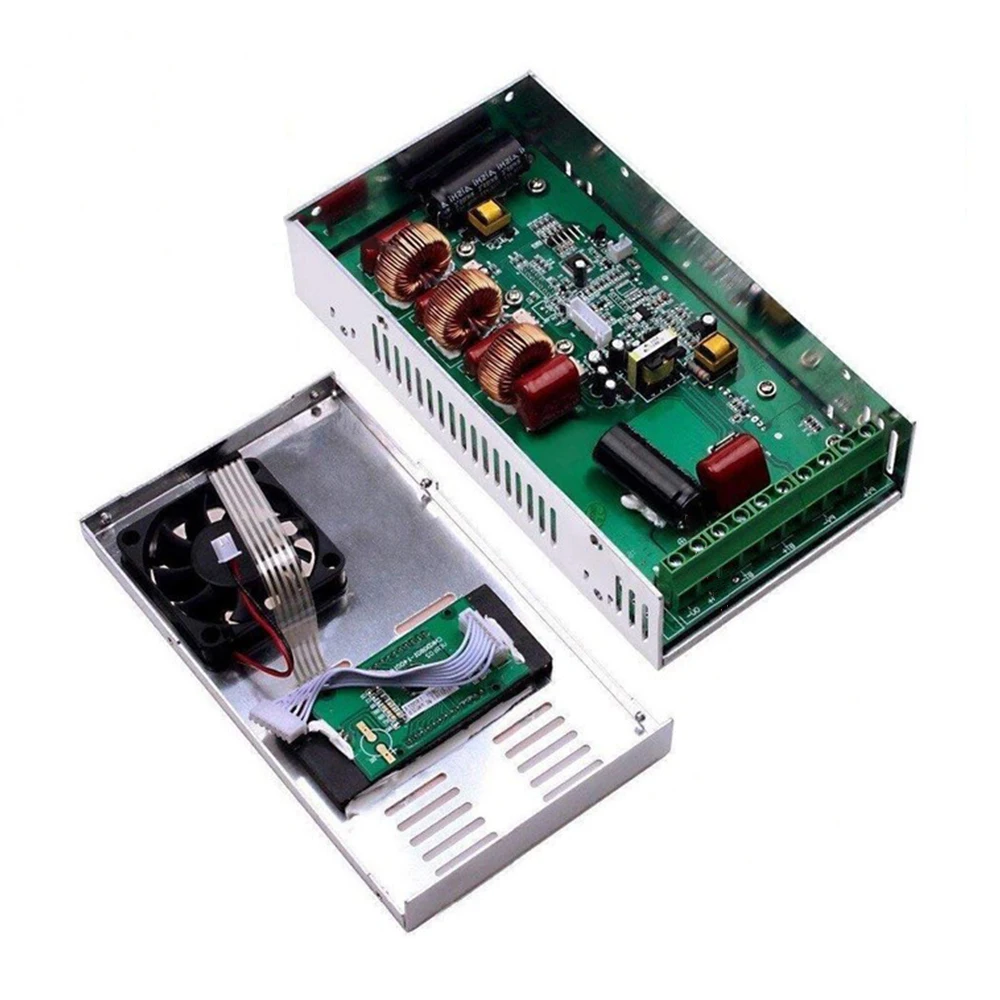

Please use our screws only since it damaged the internal PCB if using other screws. Please yes proper torque to push the screws into casing since it may damaged the internal PCB by strong torque
Packing List
MPPT Solar Charge Controller*1
Corner connections*4
Screws for controller casing*4
English manual*1
Additional information
Current | MPPT 60A |
---|
