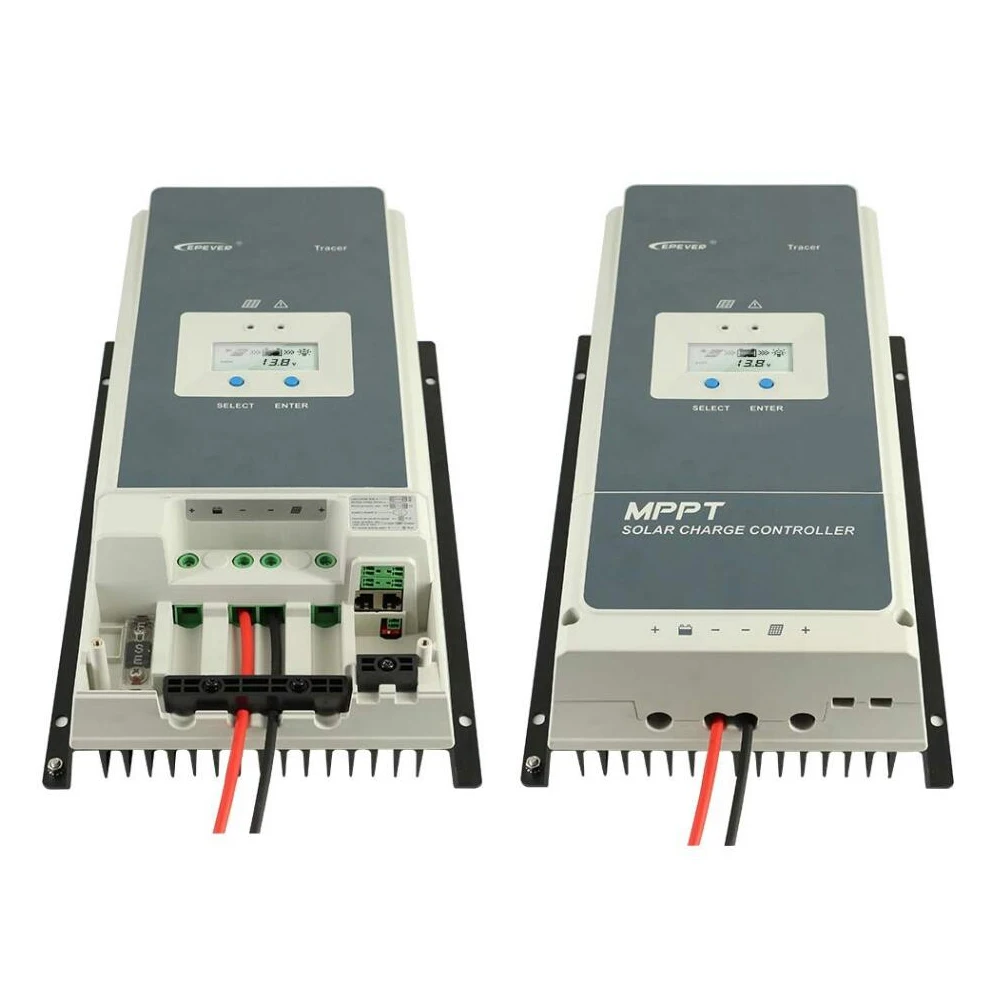

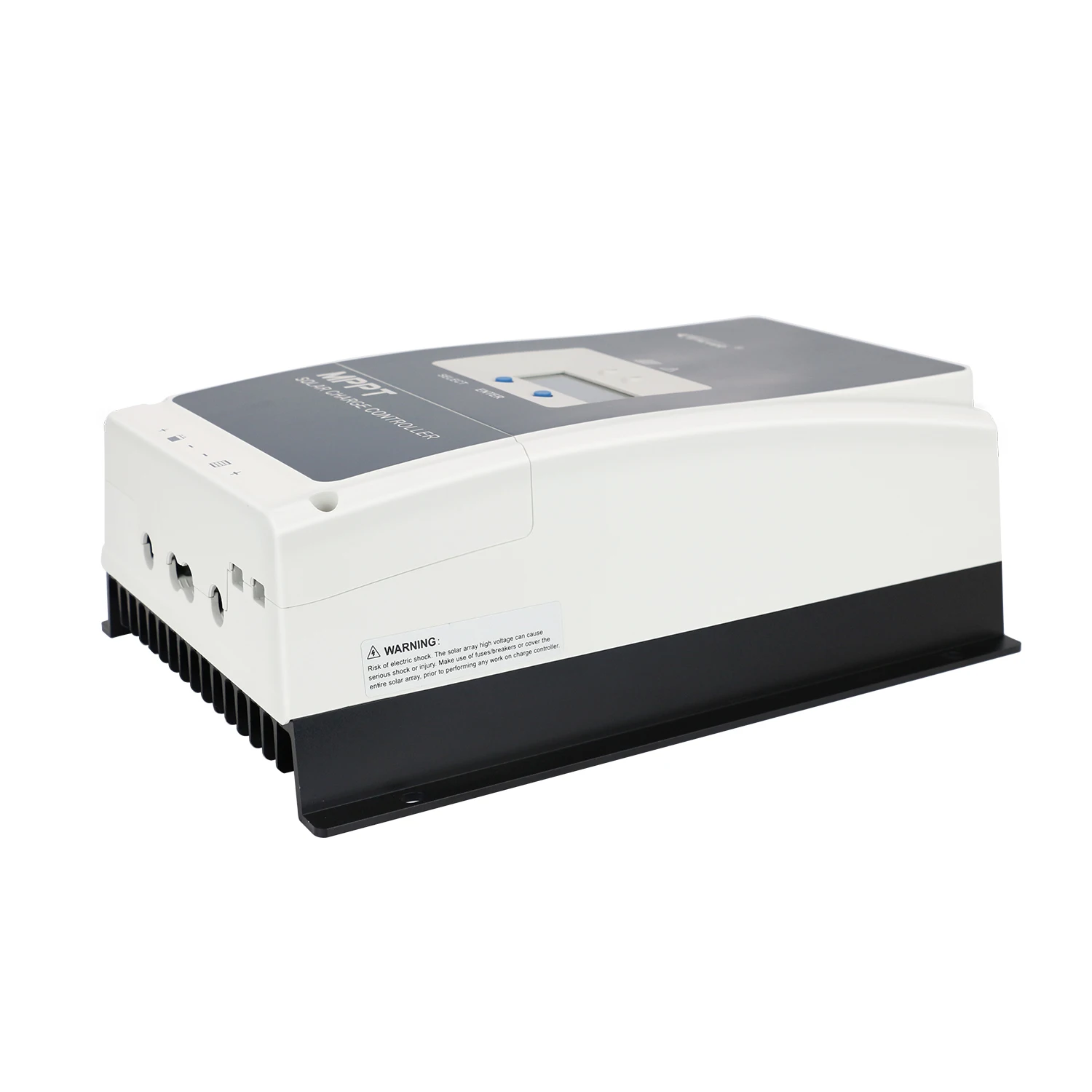

EPEVER MPPT 50A 60A 80A 100A Solar Charge Controller 12V 24V 36V 48V Auto Battery Regulator Max PV 150V 200V Tracer AN Series

Description

EPEVER MPPT 50A 60A 80A 100A Solar Charge Controller 12V 24V 36V 48V Auto Battery Regulator Max PV 150V 200V Tracer AN Series

Introduction:

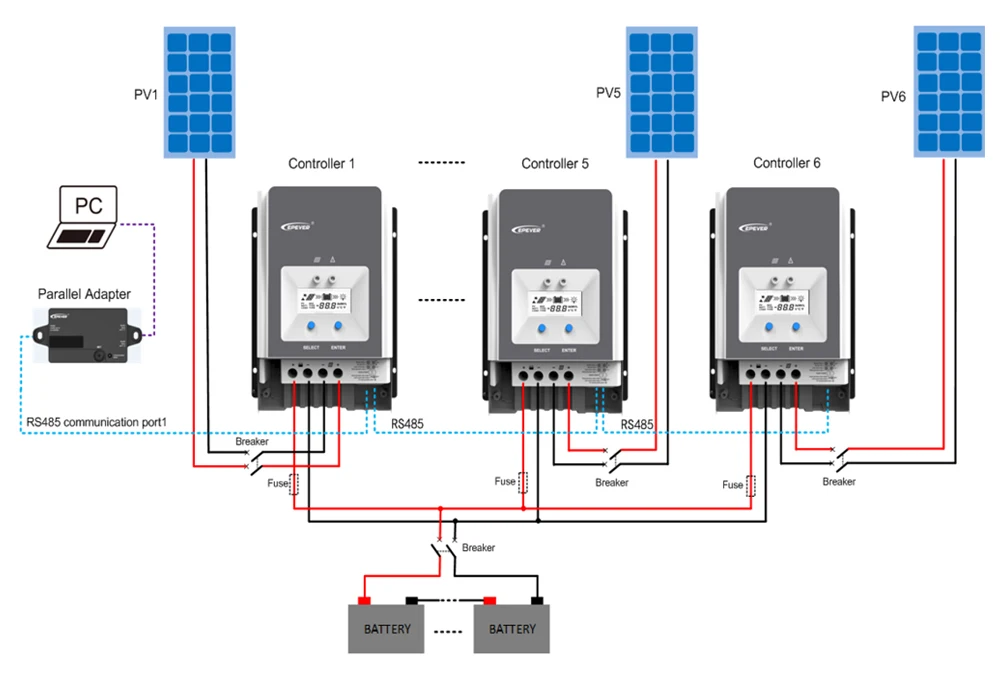

Tracer-AN (50A-100A) series is the largest charge controller series in EPEVER’s product range and can take up to 5KW solar panel. For even more power, the user can use PAL-ADP-50N to connect max. 6 units of a controller in paralllel for up to 30KW system. The multiple dry contact signals are designed for a diversified application.

Features:

• Comply with IEC62109-1 and EN61000-6-1/3 standard certification

• High quality and low failure rate components of ST or IR to ensure the service life

• High tracking efficiency of MPPT no less than 99.5%.

• Maximum DC/DC transfer efficiency is as high as 98.6%; full load efficiency is up to 98 %

• Accurate recognizing and tracking technology of multi-peaks maximum power point

• Wider MPP running voltage to increase the PV modules’ utilization ratio

• Support the lead-acid and lithium batteries

• Programmable temperature compensation feature for batteries.

• Real-time energy statistics function

• High temperature charging automatic power reduction function

• 100% charging and discharging in the working environment temperature range

• Up to 6 controllers connection in parallel to expand the system

• Load dry contact to control the external load switch

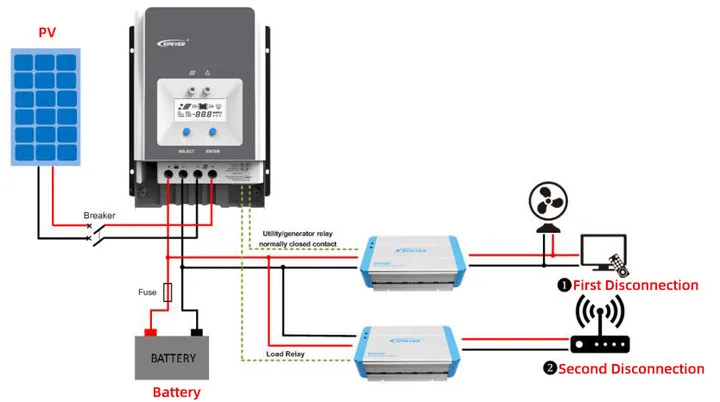

• To set the first and the second disconnection voltage of load by the software

• Auto-control of utility and generator dry contact design to compose a hybrid power system easily

• Remote temperature and voltage sensor design to collect more accurate battery temperature/terminal voltage and eliminate the battery cables’ voltage drop

• Isolated RS485 communication ports (Modbus protocol)

• 5V/200mA RS485 communication ports with short circuit protection

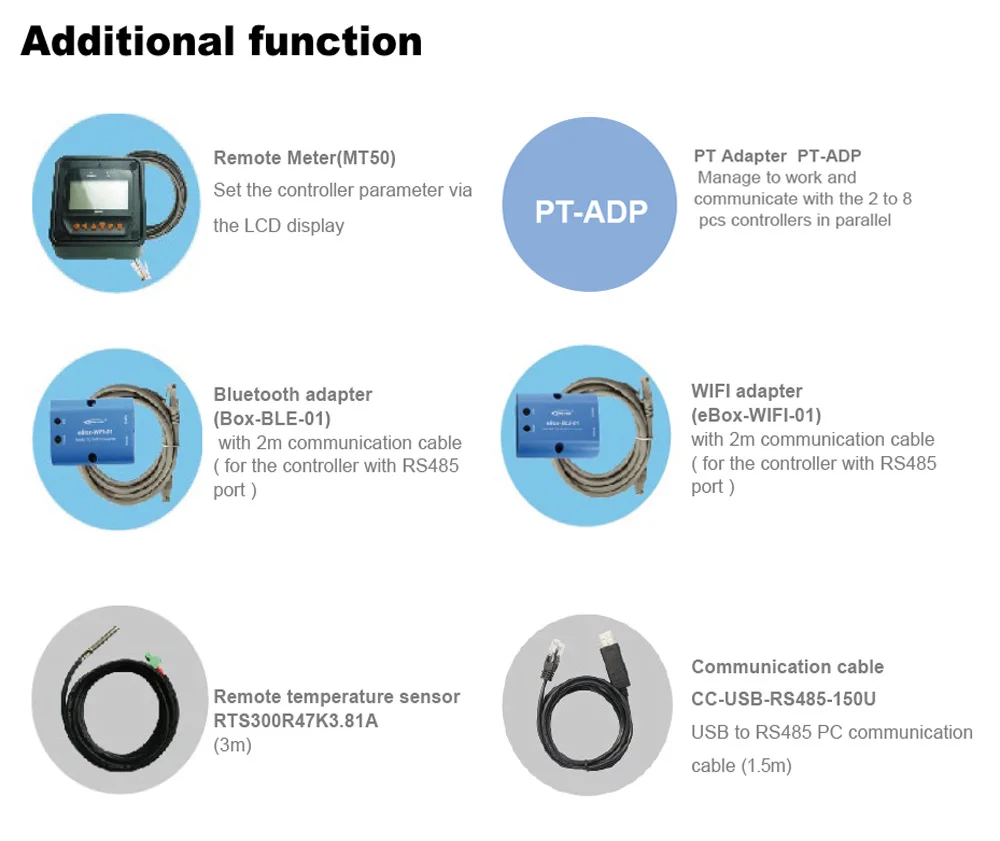

• Support remote monitoring and parameters setting via the APP or PC software

Package Including：

• 1PC MPPT Solar Controllers

• 1PC User Manual (English)

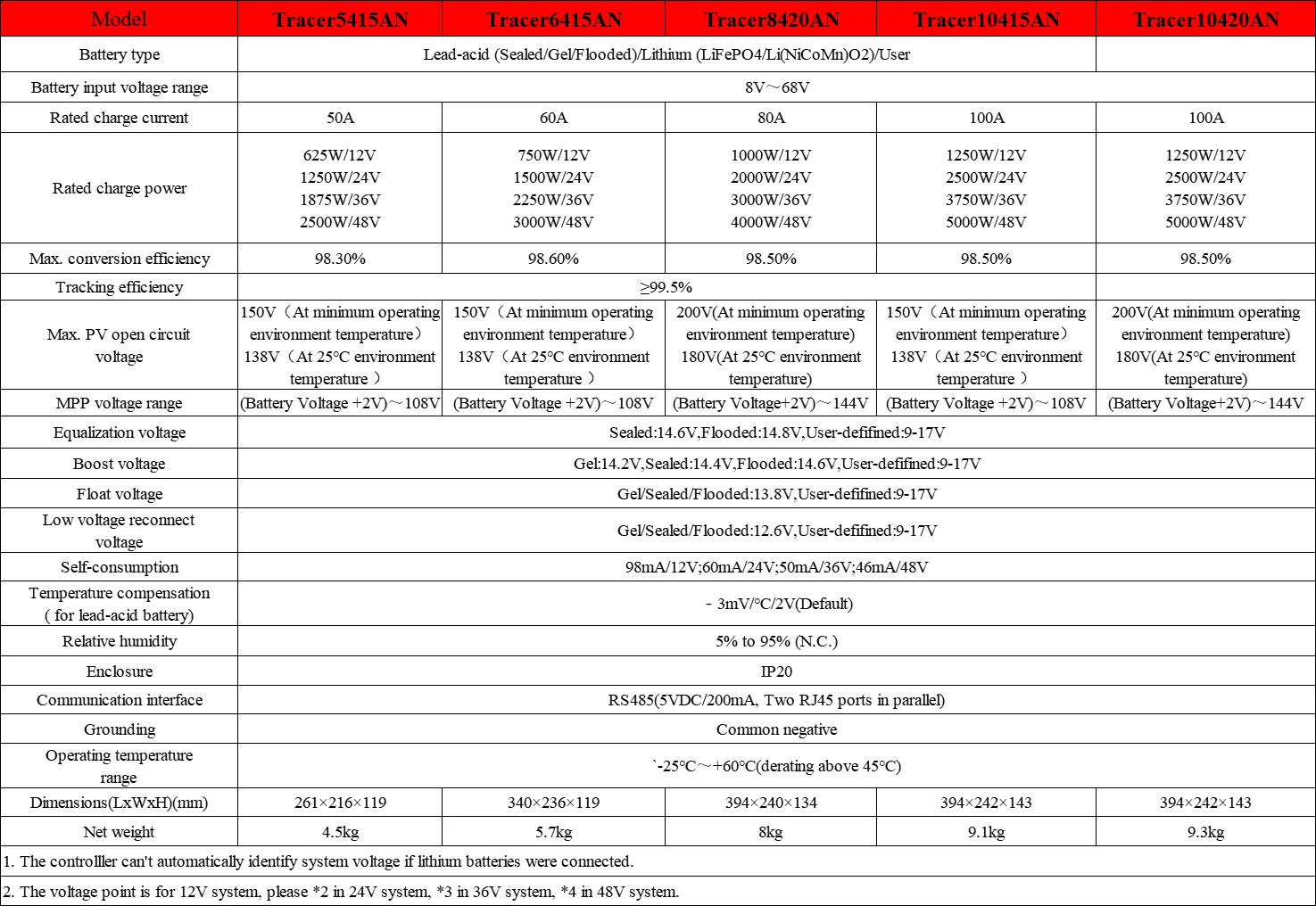

Specification:
