Description
- Zone Number: 8 wired zone +32 wireless zone + 88 wired bus zone
- Output Number: 12V
- Model Number: FC-7668Pro
- Kit Configuration: Door/Window Sensor
- Size: 25X19X3CM
- Connection Type: WireLess
- Arming Type: APP
- Video Interface: No
- Display: Yes
- Password Keyboard: Yes
- Brand Name: smarsecur
- Origin: Mainland China
- Smart home platform: other
- Alarm Type: The Alarm,sms,PSTN,GPRS,Apps Control
- Power (W): 15V 2A
- Certification: CE,FCC,RoHS
- color:: Grey
- network support:: TCP/IP GSM And PSTN 3 network in 1
- Frequency:: 433Mhz
- Model number: FC-7668pro
- Protocol:: SIA2013 and CID Protocol
- Network:: TCP/IP RJ 45 Ethernet Port
- Max current of battery:: 350Am
- App name:: ST-panel
- Zone:: 8 wired zone +32 wireless zone + 88 wired bus zone
- Power:: (please note that backup battery is not included)
Focus FC-7668Pro TCP IP Security GSM Alarm 96 Wired Smart Home Smart System PCB ONLY
Pacakge Included:
FC-7668pro plastic case Control Panel main board
Accessories: Antenna 1 pc, EOL Resistors 1 bag
FC-7668pro is a intelligent alarm control system which integrated with burglar proof, fireproof, gas leak proof. it is compatible with wired and wireless alarm mode. it use advanced coding techniques of BUS zone and multi-bit random code hopping techniques in security and reliability. to avoid false alarm and interference effectively. adopt SMS, GSM, high-speed Contact ID alarm transmission mode. this system is widely used in residence community, villa, shops, offices.
The inside PCB board structure
Camera Binding
8. Two SIM cards can be inserted, and the priority SIM card can be set.
7. Timing arm and disarm: 4 groups of timing arm and disarm time, you can assign any one or several partitions to be effective.
6. Support mobile APP remote control and alarm information push
5. Support 4 voice phones to send voice and text messages

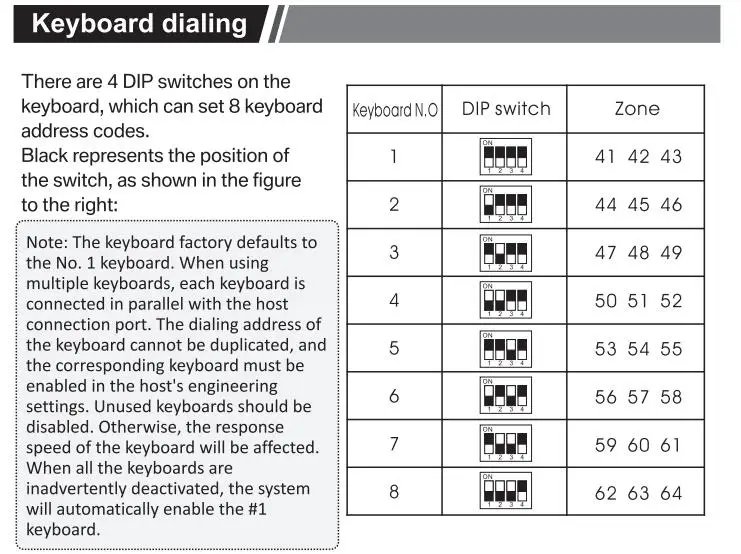

3. Support 8 remote controls, 4 two-way wireless siren, 8 keyboards, 32 appliance switches.
1. Can be divided into 4 independent areas, with 32 wireless zones, 8 wired zones, 56 expansion zones can be expanded by bus port (including 24 keyboard expansion zones and 32 bus zones), 32 single-bus zones, total support 128 zones.
