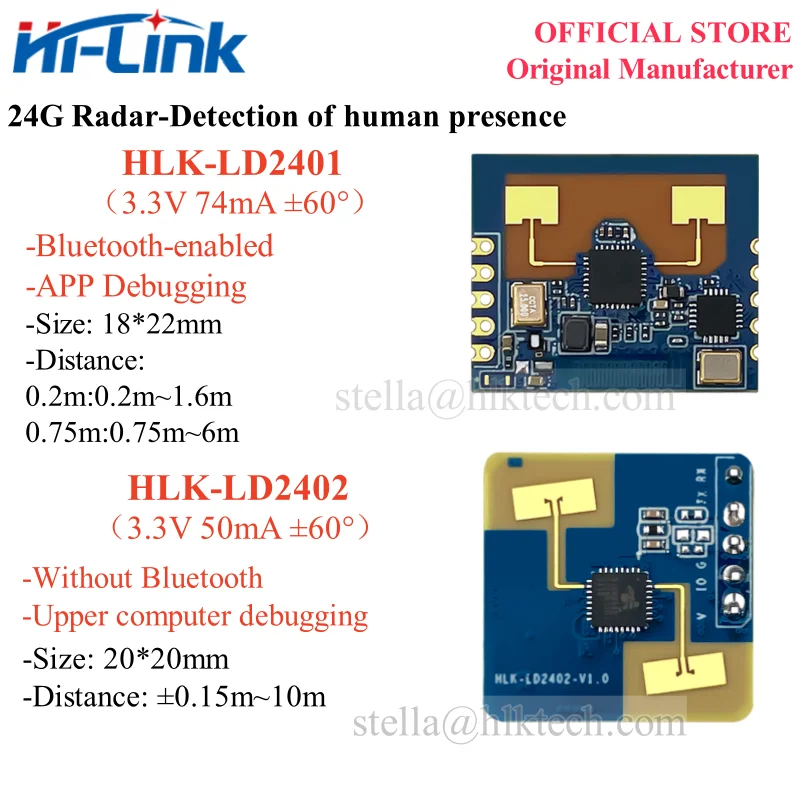

HLK-LD2401 HLK-LD2402 24G Human Body Motion Sensor MM Wave presence Radar Module 10m Intelligent Sensor Switch BLE Bluetooth

Description

Welcome to HI-LINK Official Store!

We are a professional manufacturer of IOT modules with 15 years of experience, specializing in AC DC/DC DC power module/ WiFi module/ Human presence radar module. We also support APP customization.

Advantages:

1. Hi-link is a high-tech enterprise, we are integrate R&D, production, and sales services.

2. 3000 square meters of production area

3. We have regular stock, shipping in 1-3days after order;

4. Support OEM/ODM;

5. Multiple shipping ways for your choosing.

Click here: Hi-Link 24G series radar sensor

Product Detailed Parameters:

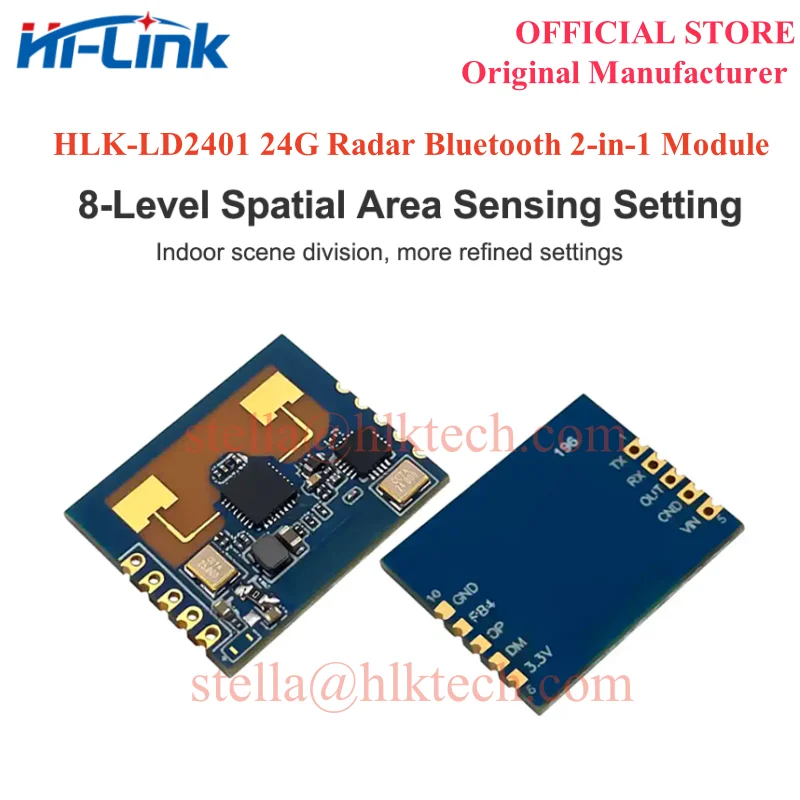

HLK-LD2401 is a high sensitivity 24GHz human presence sensing module developed by Hi-Link. Its working principle is to use FMCW FM Continuous Wave to detect human targets in the set space, combined with radar signal processing, accurate human body sensing algorithm, to realize high sensitivity human presence state sensing, which can recognize the human body in motion and in a stationary state, and can calculate the distance of the target and other auxiliary information.

This product is mainly used in indoor scenes, sensing whether there is a moving or slightly moving human body in the area, and outputting detection results in real time. The farthest sensing distance is up to 6 meters, and the distance resolution of 0.75m or 0.2m can be configured. Provide visual configuration tools, can easily configure the sensing distance range, different zones of sensing sensitivity and unmanned delay time, etc., to adapt to different specific application requirements.

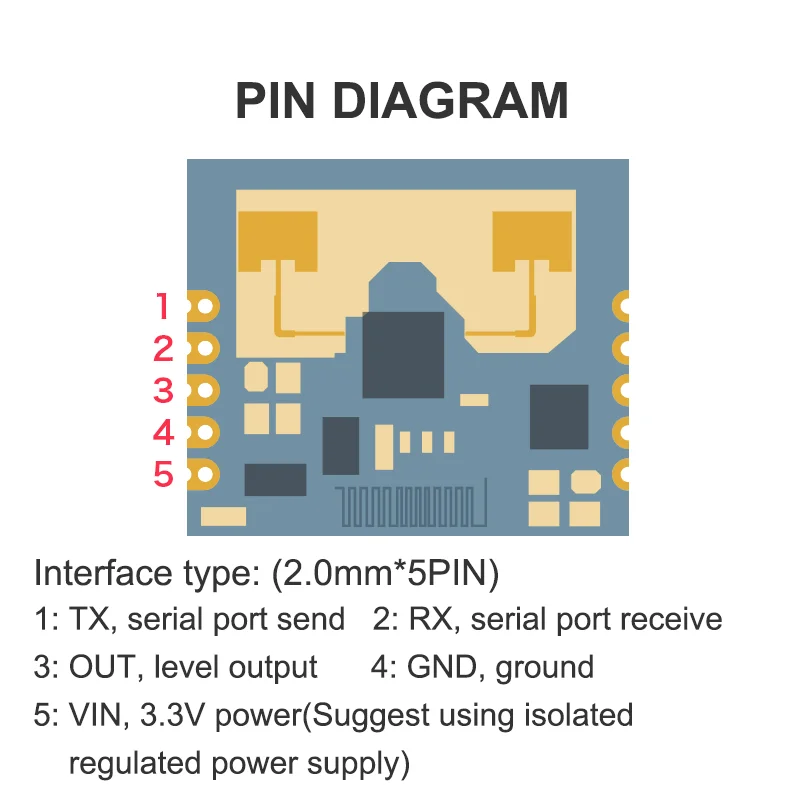

Support GPIO and UART output, plug and play, can be flexibly applied to different intelligent scenes and terminal products

• Maximum sensing distance is up to 6 meters


• Configurable distance resolution (0.2m or 0.75m per distance door, maximum 8 distance doors)


• Large detection angle, coverage up to ± 60 degrees


• Accurate identification within the zone, support for sensing range division, shielding interference outside the zone


• Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes


• Visualization debugging and configuration tools


• Supports various installation methods such as ceiling-mounted, wall-mounted, etc.


• 24GHz ISM band, can be certified by FCC and CE spectrum regulations.


• Ultimate Cost-Effective Choice

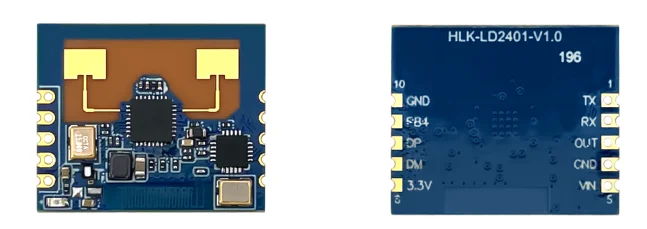

• Supports multiple packages, pin and chip packages available

HLK-LD2401 Program Advantages

HLK-LD2401 human body sensing module adopts 24GHz millimeter wave radar sensor technology, and other programs compared to the human body sensing application has obvious advantages:

1. In addition to sensitive to the movement of human body sensing, for the traditional program can not recognize the static, micro-motion, sitting and lying human body can also be sensitive to sense;

2. Good environmental adaptability, sensing effect is not affected by temperature, brightness, humidity and light fluctuations in the surrounding environment;

3. Good shell penetrability, can be hidden in the shell inside the work, without the need to open holes in the surface of the product, improving the aesthetics of the product;

4. Flexible configuration of the farthest sensing distance and the sensitivity on each distance door, to achieve flexible and fine personalized configuration;

5. With Bluetooth function, you can directly use APP to debug the radar parameters without connecting the serial port.

Top 4 reasons to choose the HLK-LD2401

• Super low unit price


• Algorithm upgrade more sensitive

• Ultra-long sensing distance

• Strong environmental adaptability

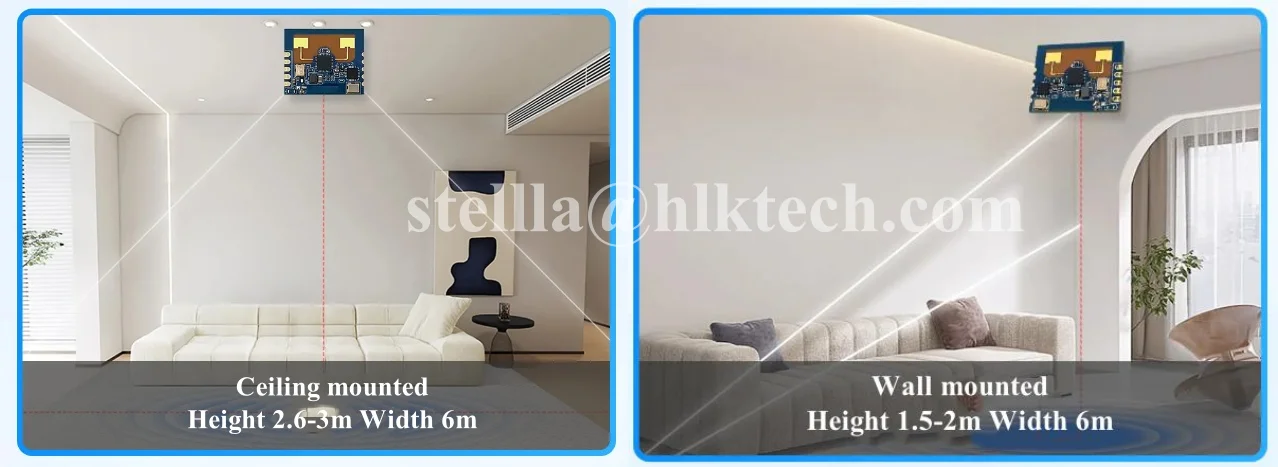

Flexible installation

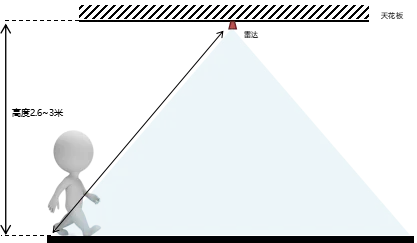

Wall/ceiling mounting

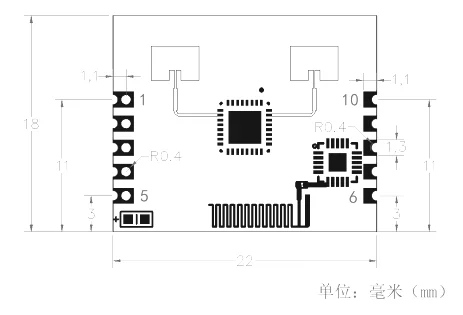

Mechanical Dimensions
