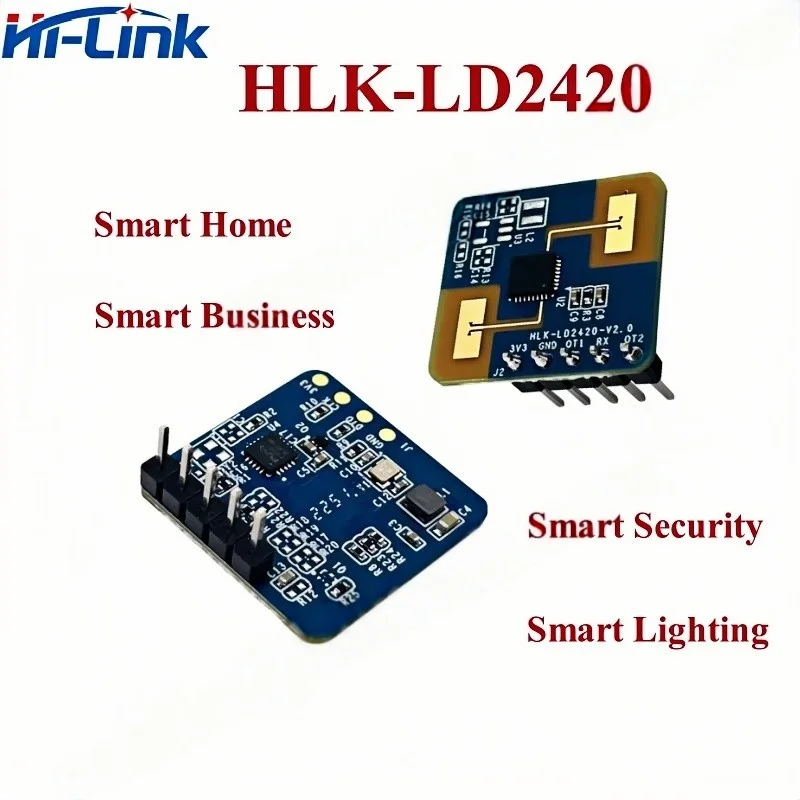

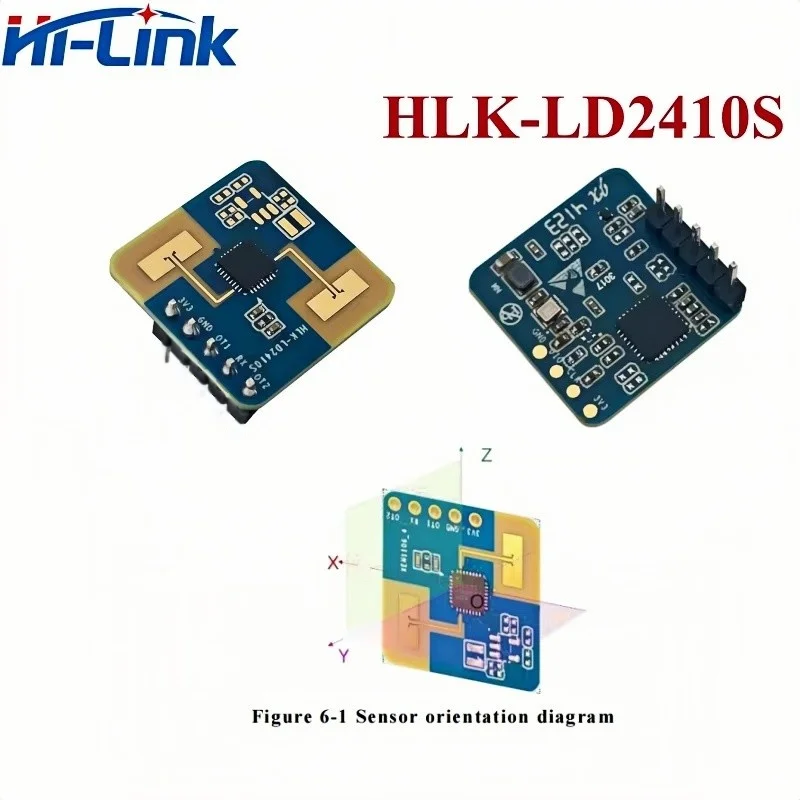

HLK-LD2402 LD2401 LD2410B LD2450 LD2410C LD2412 LD2410S LD2420 LD2461 Hilink 24Ghz Smart Human Presence Radar Module intelligent
Hign-concerned Chemical: None Communication method: other Camera Equipped: No Model Number: HLK-LD2410B LD2410C LD2412 LD2410S LD2420 LD2450 LD2451 Compatibility: All Compatible Brand Name: FUCHU Origin: Mainland China State of Assembly: Ready-to-Go Specification: Eu plug Certification: CE,FCC,RoHS Working frequency band: 24GHz~24.25GHz Working voltage: 5V Ambient temperature: -40 ~ 85℃ Modulation: FMCW Warranty: 2 years Shenzhen Hi-Link Electronic Co., Ltd. We are the Original Factory Please take the test board when you […]
Description
- Hign-concerned Chemical: None
- Communication method: other
- Camera Equipped: No
- Model Number: HLK-LD2410B LD2410C LD2412 LD2410S LD2420 LD2450 LD2451
- Compatibility: All Compatible
- Brand Name: FUCHU
- Origin: Mainland China
- State of Assembly: Ready-to-Go
- Specification: Eu plug
- Certification: CE,FCC,RoHS
- Working frequency band: 24GHz~24.25GHz
- Working voltage: 5V
- Ambient temperature: -40 ~ 85℃
- Modulation: FMCW
- Warranty: 2 years
Shenzhen Hi-Link Electronic Co., Ltd.
We are the Original Factory
Please take the test board when you first time to purchase the sample, which can help you to test the sensor module more convenient.
If you need samples, please place order here, we will ship to you soon.
If you need more quantity, welcome to contact us directly, we will provide you best price and best shipping method to you.

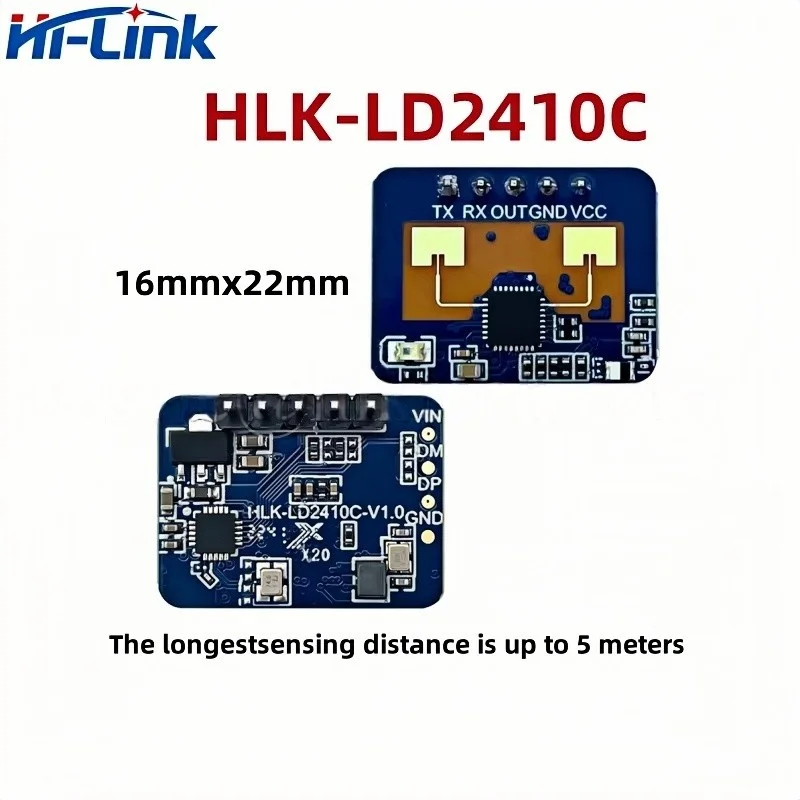

HLK-LD2410B/LD2410C is a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics. Its working principle is to use FMCW frequency-modulated continuous wave to detect human targets in the set space. Combined with radar signal processing and accurate human body sensing algorithms, it realizes high-sensitivity human presence status sensing, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs.
Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and
terminal products.
Product features and benefits
Features
-
Plug and play, easy assembly
-
The longest sensing distance is up to 5 meters
-
Large detection angle, coverage up to ±60 degrees
-
Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval
-
Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes
-
Visual debugging and configuration tools
-
Small and simple, the minimum size is only 7mmx35mm
-

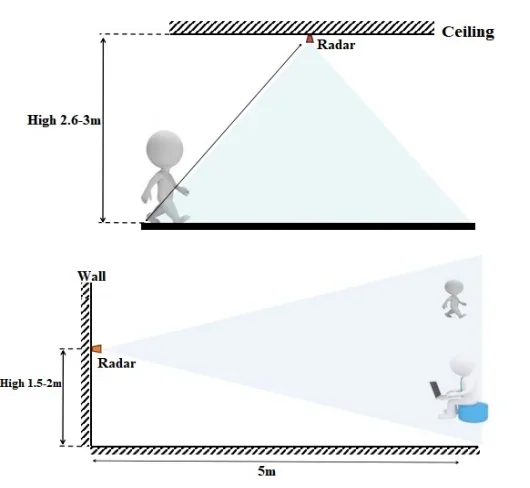

Supports various installation methods such as ceiling hanging and wall hanging
-
24GHz ISM band, can be certified by FCC and CE spectrum regulations
-
The ultimate cost-effective choice
Solution advantage
The LD2410B human body sensing module adopts 24GHz millimeter wave radar sensor technology. Compared with other solutions, it has obvious advantages in human body sensing applications:
-
In addition to being sensitive to moving human bodies, it can also sensitively sense static, micro-moving, sitting and lying human bodies that cannot be identified by traditional solutions;
-
It has good environmental adaptability, and the sensing effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations;
-
It has good shell penetration and can be hidden in the shell to work without opening holes on the surface of the product, which improves the aesthetics of the product;
-
It can flexibly configure the farthest sensing distance and the sensitivity on each distance door to achieve flexible and fine personalized configuration;
-
With the Bluetooth function, you can directly use the APP to debug the radar parameters without catching the serial port.
Application scenarios
The LD2410B human body sensing module can detect and identify the human body in motion, fretting, standing, sitting and lying down. It supports multi-level parameter adjustment and can be widely used in various AIoT scenarios. The common types are as follows:
-
Human body sensor light control
It senses whether there is someone in the space, and automatically controls lights, such as lighting equipment in public places, various sensor lights, bulb lights, etc.
-
Human body induction wake-up of advertising screen and other equipment
Automatically turn on when people come, and automatically sleep when no one comes to save power, information delivery is more accurate and efficient.
-
Life safety protection
UV lamp work protection, to prevent the UV lamp from being turned on when there are people around and causing personal injury;
Automatic detection and alarm of dangerous places to prevent people from entering specific high-risk spaces, such as high-risk places entered by personnel from coal mine blasting.
-
Smart home appliances
When there is no one in the room for a long time, the TV, air conditioner and other electrical appliances are automatically turned off, saving energy and safety.
-
Intelligent security
Detection and identification of people intruding, staying, etc. within the specified range.
We are a professional manufacturer of IOT modules with 15 years of experience, specializing in AC DC/DC DC power module/ WiFi module/ Human presence radar module. We also support APP customization.
Advantages:
1. Hi-link is a high-tech enterprise, we are integrate R&D, production, and sales services.
2. 3000 square meters of production area
3. We have regular stock, shipping in 1-3days after order;
4. Support OEM/ODM;
5. Multiple shipping ways for your choosing.
Additional information
Bundle | HLK-LD2401, HLK-LD2402, HLK-LD2410B, HLK-LD2410C, HLK-LD2410S, HLK-LD2412, HLK-LD2450, HLK-LD2461 |
---|---|
Color | Single module, Test kit |
