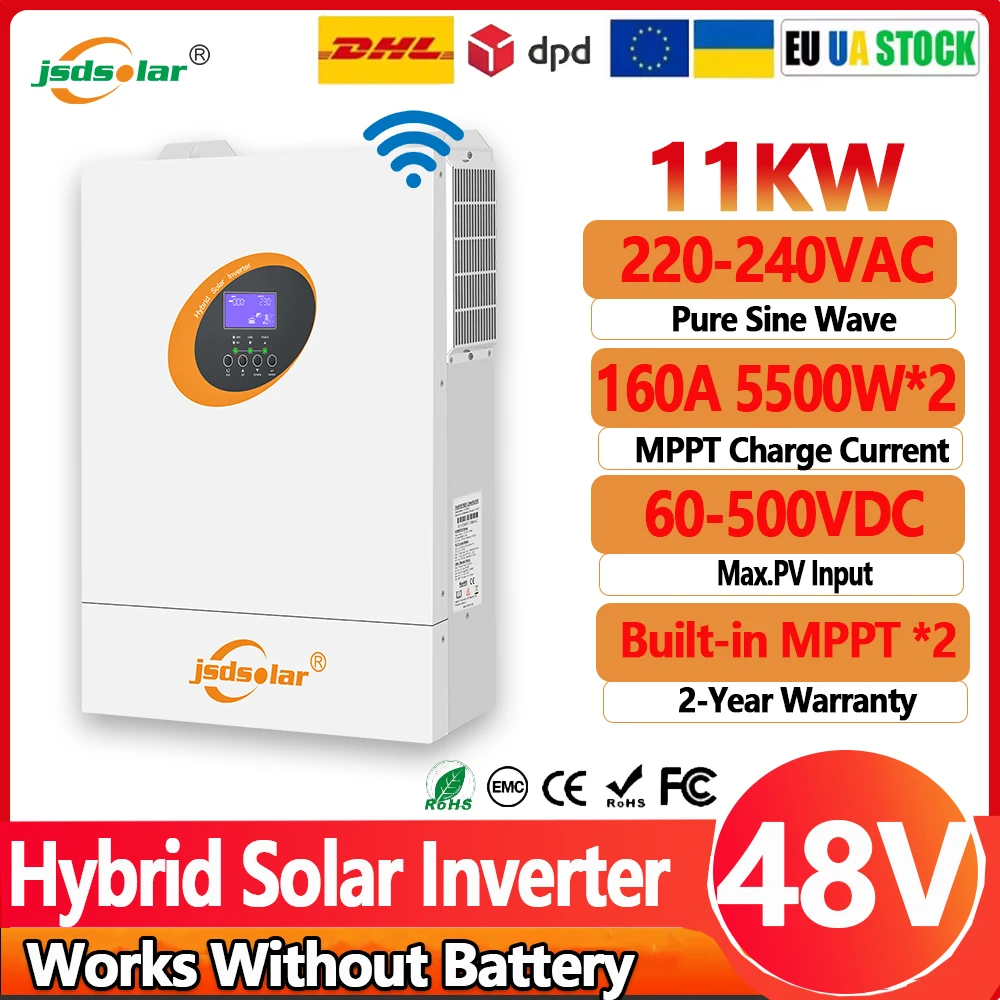

Jsdsolar 11KW Hybrid Solar Inverter 48V 230VAC Pure Sine Wave Solar Inverter 160A MPPT 500VDC Solar Charge Controller With WiFi
Jsdsolar 11KW Hybrid Solar Inverter 48V 230VAC Pure Sine Wave Solar Inverter 160A MPPT 500VDC Solar Charge Controller With WiFi - Image 2
Jsdsolar 11KW Hybrid Solar Inverter 48V 230VAC Pure Sine Wave Solar Inverter 160A MPPT 500VDC Solar Charge Controller With WiFi - Image 3
Jsdsolar 11KW Hybrid Solar Inverter 48V 230VAC Pure Sine Wave Solar Inverter 160A MPPT 500VDC Solar Charge Controller With WiFi - Image 4
Jsdsolar 11KW Hybrid Solar Inverter 48V 230VAC Pure Sine Wave Solar Inverter 160A MPPT 500VDC Solar Charge Controller With WiFi - Image 5
Jsdsolar 11KW Hybrid Solar Inverter 48V 230VAC Pure Sine Wave Solar Inverter 160A MPPT 500VDC Solar Charge Controller With WiFi - Image 6

Jsdsolar 11KW Hybrid Solar Inverter 48V 230VAC Pure Sine Wave Solar Inverter 160A MPPT 500VDC Solar Charge Controller With WiFi

Original price was: ر.ع.394.61.Current price is: ر.ع.347.48.

Hign-concerned Chemical: None is_customized: Yes Output Voltage (V): 220V Application: HOME Specification: Normal Model Number: J11000H Brand Name: jsdsolar Origin: Mainland China Certification: CE,FCC,RoHS Rated input voltage: 220/230/240VAC Input voltage range: 90-280VAC Frequency: 50Hz/ 60Hz MPPT Tracking Efficiency: >99% Max. Battery Inverter Efficiency: 92.7% Rated Battery Voltage: 48VDC Battery type: Lithium / Lead -acid / User-define Maximum Charge current: 160A Maximum PV open circuit voltage: 500VDC MPPT voltage range: 60-500VDC Max. PV Array Power: 5000W*2 […]

SKU: 1005009103988486
Category: ,

Description

  • Hign-concerned Chemical: None
  • is_customized: Yes
  • Output Voltage (V): 220V
  • Application: HOME
  • Specification: Normal
  • Model Number: J11000H
  • Brand Name: jsdsolar
  • Origin: Mainland China
  • Certification: CE,FCC,RoHS
  • Rated input voltage: 220/230/240VAC
  • Input voltage range: 90-280VAC
  • Frequency: 50Hz/ 60Hz
  • MPPT Tracking Efficiency: >99%
  • Max. Battery Inverter Efficiency: 92.7%
  • Rated Battery Voltage: 48VDC
  • Battery type: Lithium / Lead -acid / User-define
  • Maximum Charge current: 160A
  • Maximum PV open circuit voltage: 500VDC
  • MPPT voltage range: 60-500VDC
  • Max. PV Array Power: 5000W*2
  • Max. Solarinput Current: 18A*2
  • Battery Communication: RS485
  • Lithium Battery Activation: YES (By PV or Utility)
  • External Modules (Optional): Wifi
  • Operating temperature range: -10°C ~ 50°C
  • Storage temperature range: -15°C ~ 60°C
  • Humidity range: 20% to 95% (No Condensing)
  • Cooling Method: Intelligent Fan
  • Parallel Capability: NO
  • Communication Interface: RS232/RS485/DRYCONTACT
  • Feature: Solar panel for solar inverter
  • Feature 2: Solar inverter
  • Feature 3: Hybrid solar inverter
  • Feature 4: Solar generator
  • Feature 5: hybrid inverter
Jsdsolar 11KW Hybrid Solar Inverter 48V 230VAC Pure Sine Wave Solar Inverter 160A MPPT 500DC Solar Charge Controller With WiFi Off Grid

【For EU Buyers】

All products are in stock in Europe and will be shipped immediately after the order is placed, with fast delivery within 3-5 days.



【Saving VAT】

1: When ordering, you can choose China as the shipping destination. We will send it from the European warehouse. If the amount exceeds 150 euros, VAT will not be added on the payment page.

2: The price includes the product, freight and Customs clearance fee, so there is no need to pay additional taxes.

Mainly Advantage：

Two PV Input，Superb Performance Meet Your Multiple Requirements.
NOTE:

1.Support works without battery
2.Support Grid Feedback on grid+off grid (need work grout battery)
3.with Dual MPPT Solar Charge Controller

This is a wide voltage Hybrid inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 150V for the inverter to work normally, if with external battery 120V is working



Package include

•The unit x 1
•User manual x 1
WIFIX1（Optional）

INVERTER MODEL

J11000H

Parallel Capability：

No

Line Mode Specifications

Nominal Input Voltage：

230Vac

Max AC Input Voltage：

280Vac

Efficiency(Line Mode)：

>95%( Rated R load,battery full charged)

Transfer Time：

10ms typical(UPS);20ms typical(Appliances)

Inverter Mode Specifications

Rated Output Power：

11KW

Output Voltage Waveform：

Pure Sine Wave

Output Voltage Regulation：

230Vac±5%

Output Frequency：

50/60Hz

Peak Efficiency：

95%

Overload Protection：

5s@＞=140% load; 10s@110%~140% load

Nominal DC Input Voltage：

48VDC

Floating Charge Voltage：

63VDC

No Load Power Consumption：

60W

Charge Mode Specifications

AC Charging Current (Max)：

120A

Max. PV Array Power：

5500W*2

PV Array MPPT Voltage Range：

60Vdc~500Vdc

Max. PV Array Open Circuit Voltage：

500Vdc

Grid-Tie Operation

Nominal Output Voltage：

220/230/240VAC

Feed-in Grid Voltage Range：

195-253VAC

Feed-in Grid Frequency Range：

49-51±1Hz/59-63±1Hz

Nominal Output Current：

36A

Maximum Conversion Efficiency(DC/AC)：

97%

Battery and Communication

Battery Type：

LiFePO4/ Lithium/ Lead-acid/ User-define

Embedded Interfaces：

RS485/ CAN/ USB/ Dry contact

External Modules：

WIFI

Main Load Cut Off Voltage：

-10～60℃

Cooling Method：

Intelligent Fan

Gross Weight/Size：

17.5KG/54*41.5*12.2 cm
1.Pure Sine Wave Max 11000W Output
2.Max 140/160A MPPT Solar Charger
3.Max 500VDC PV Input
4.High PV input voltage range(60~500VDC)
5.Output power factor 1.0 6.Real Hybrid Grid Solar inverter for 48V system
7.Wifi Module for easily connection
8.Efficiency work with or without battery
9.Bundled monitoring& setting software10.Supports 50hz or 60hz (program adjustable)
11.Able to use ac grid or generator power
12.Timer setting for AC charging & output now available
13.Built-in anti-dusk kit for harsh environment
14.Optional DC output for DC fan, router and so on
15.Dual Load Output（V2.0）
16.Two PV Input. (If need two side in Parallel, please make sure same number solar Panels in Series each side)
17.Dual MPPT
