Description
- Hign-concerned Chemical: None
- is_customized: Yes
- Work Time (h): 24H
- Solar Power (W): 11KW/5.5KW/4KW
- Load Power (W): 11000W/5500W/4000W
- Output Voltage (V): 24V/48V
- Application: HOME
- Specification: Normal
- Model Number: 4KW 5.5KW11KW Hybrid Solar Power Inverter
- Brand Name: jsdsolar
- Origin: Mainland China
- Certification: CE,FCC,RoHS,UL

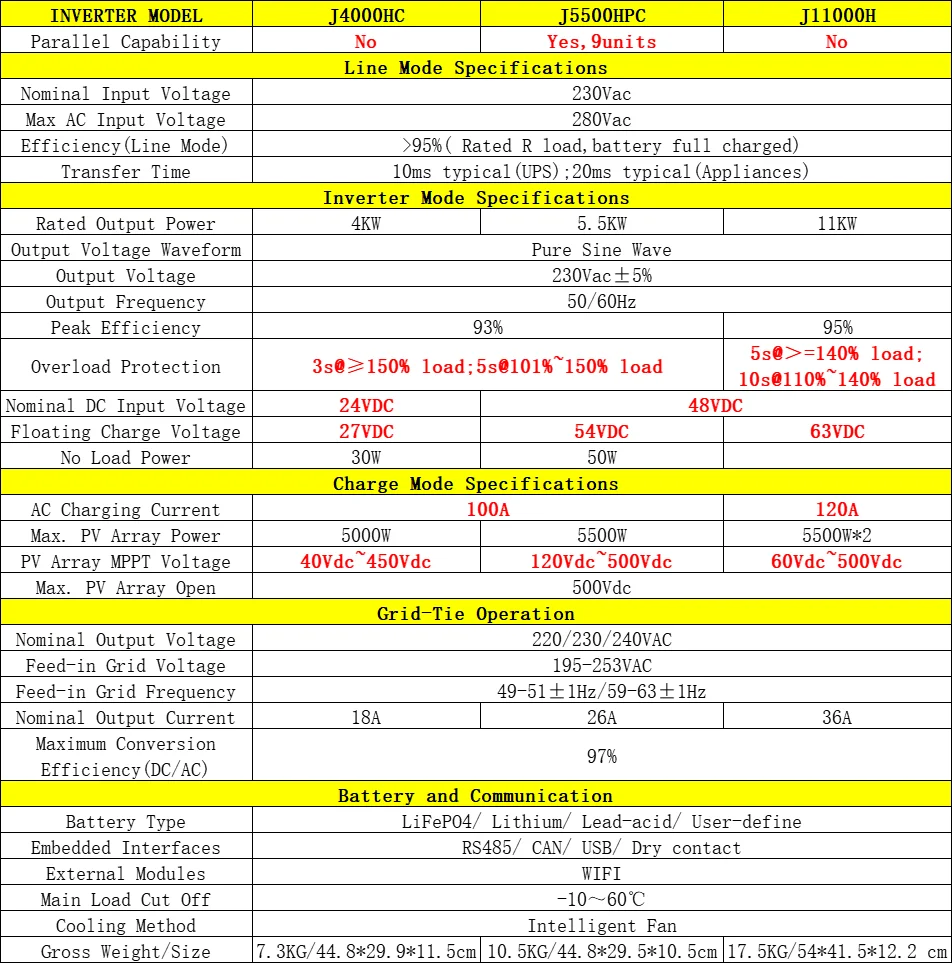

- Output Power: 4000W/5500KW/1100KW
- Rated input voltage: 220/230VAC
- Input voltage range: 90-280VAC
- MPPT Tracking Efficiency: >99%
- Max. Battery Inverter Efficiency: 92.7%
- Rated Battery Voltage: 24VDC/48VDC
- Battery type: Lithium / Lead -acid / User-define
- Maximum Charge current: 100A/120A

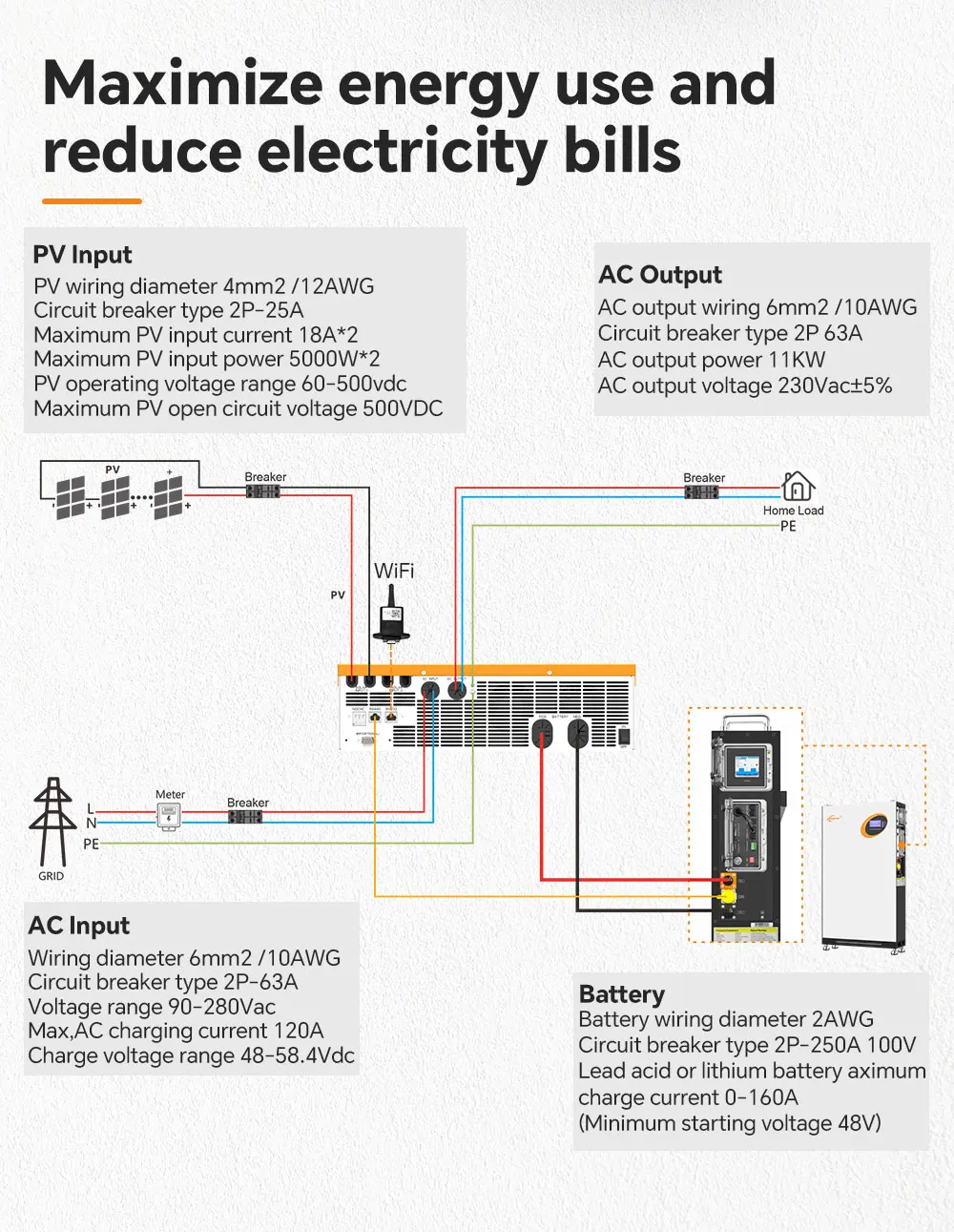

- Maximum PV open circuit voltage: 500VDC
- MPPT voltage range: 40-450Vdc
- Rated Maximum PV Input Power: 5000W
- PV Maximum Input Current: 18A/18A*2

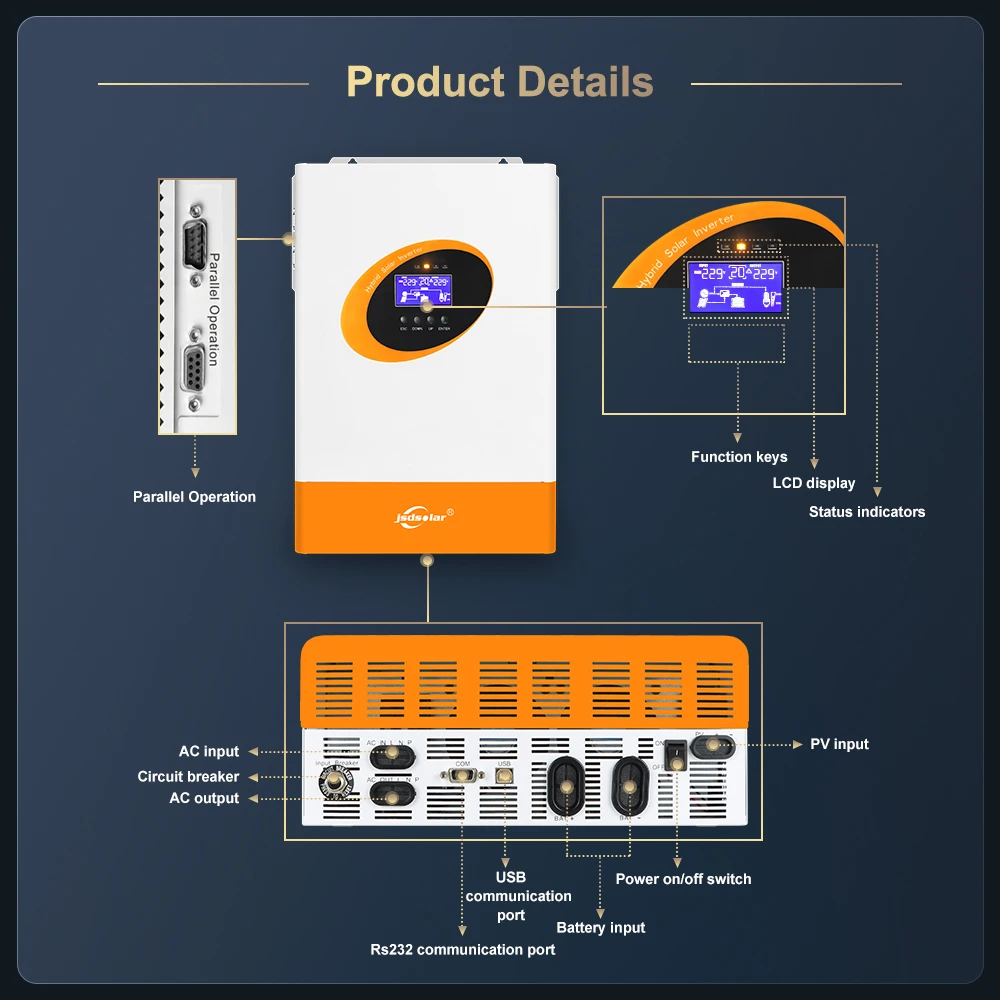

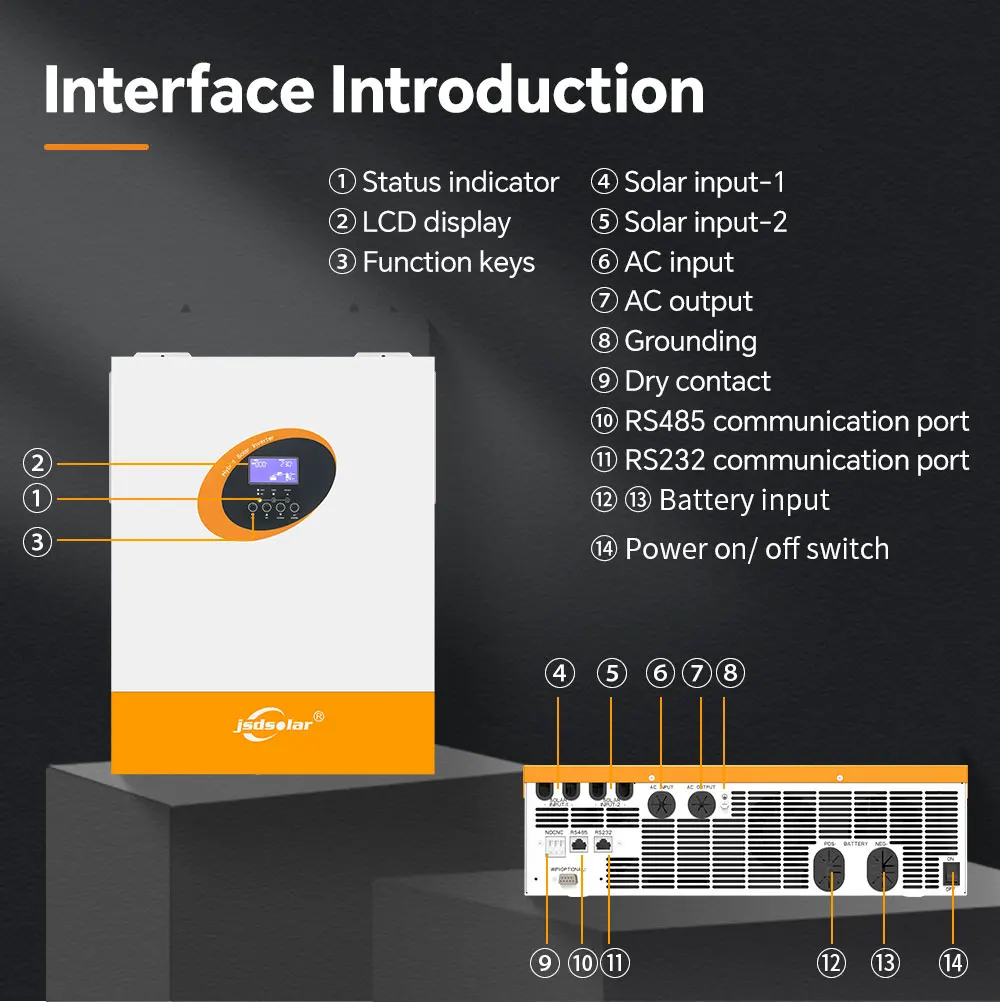

- Embedded Interfaces: RS485 / CAN / USB / Dry contact
- External Modules (Optional): Wifi
- Operating temperature range: -10°C ~ 50°C
- Storage temperature range: -15°C ~ 60°C
- Humidity range: 20% to 95% (No Condensing)
- Cooling Method: Intelligent Fan
- Feature: Solar panel for solar inverter
- Feature 2: Solar inverter
- Feature 3: Hybrid solar inverter
- Feature 4: Solar generator
- Feature 5: hybrid inverter

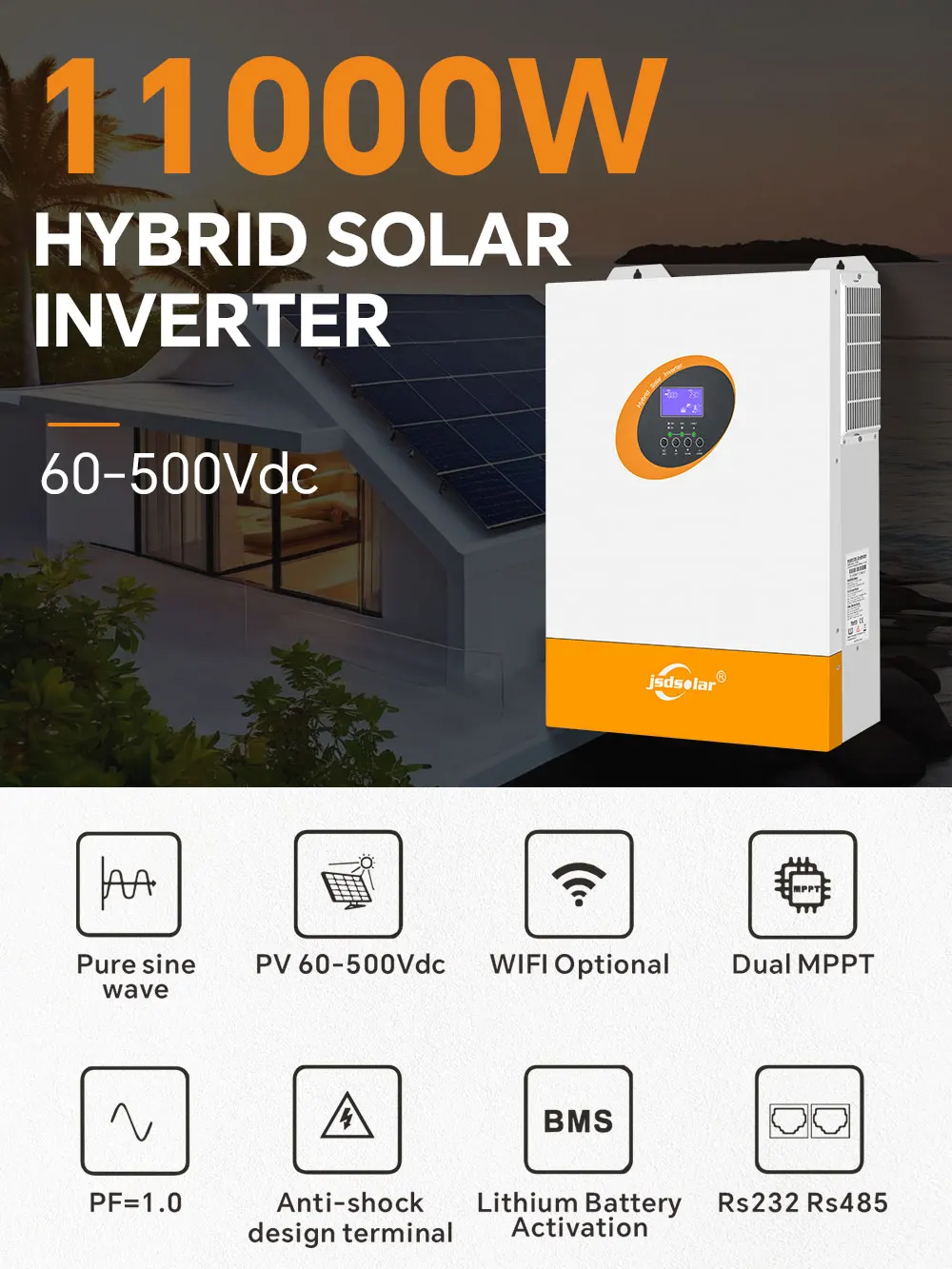

New Arrival jsdsolar 4KW 5.5KW Hybrid Solar Inverter 48V 24V to 230VAC Off Grid Pure Sine Wave Support LiFePo4 Battery 100A MPPT Solar Charge Wifi CAN RS485

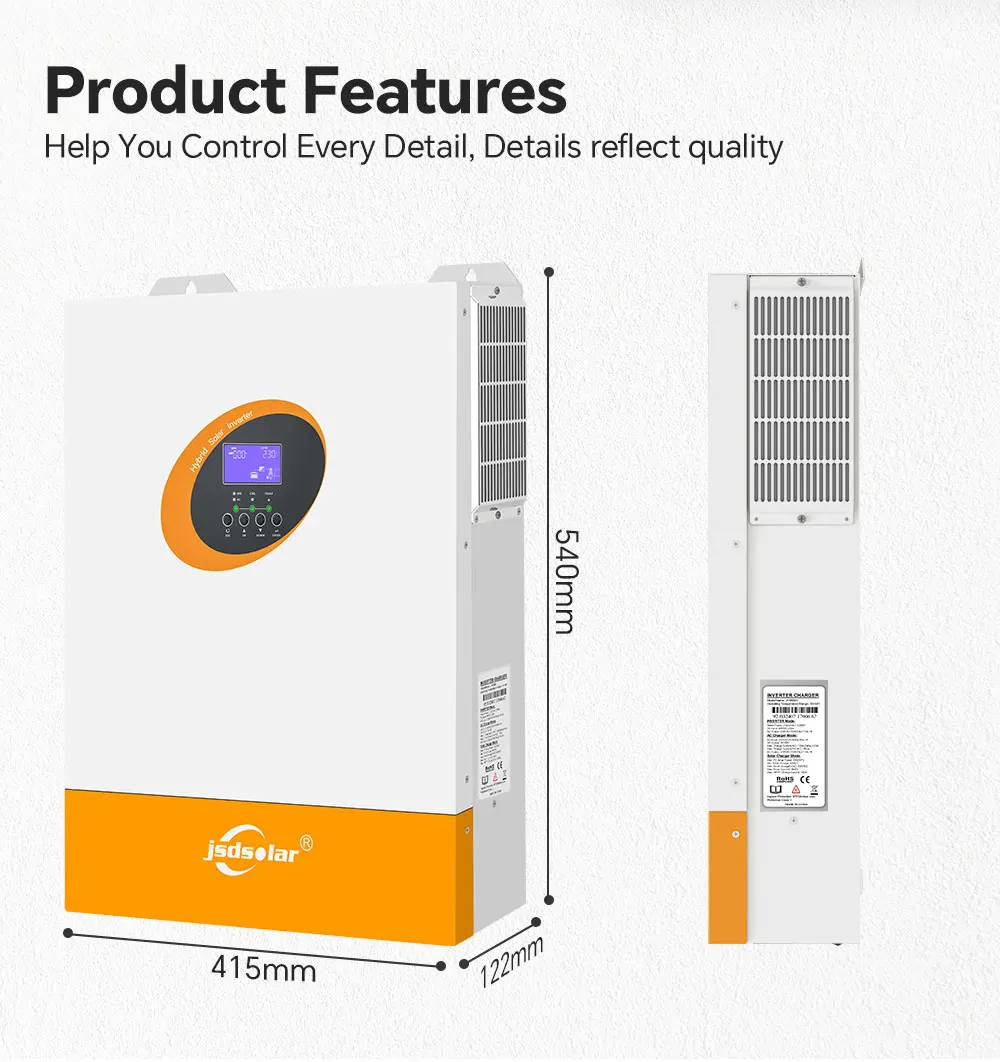

Product Features
1.Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting

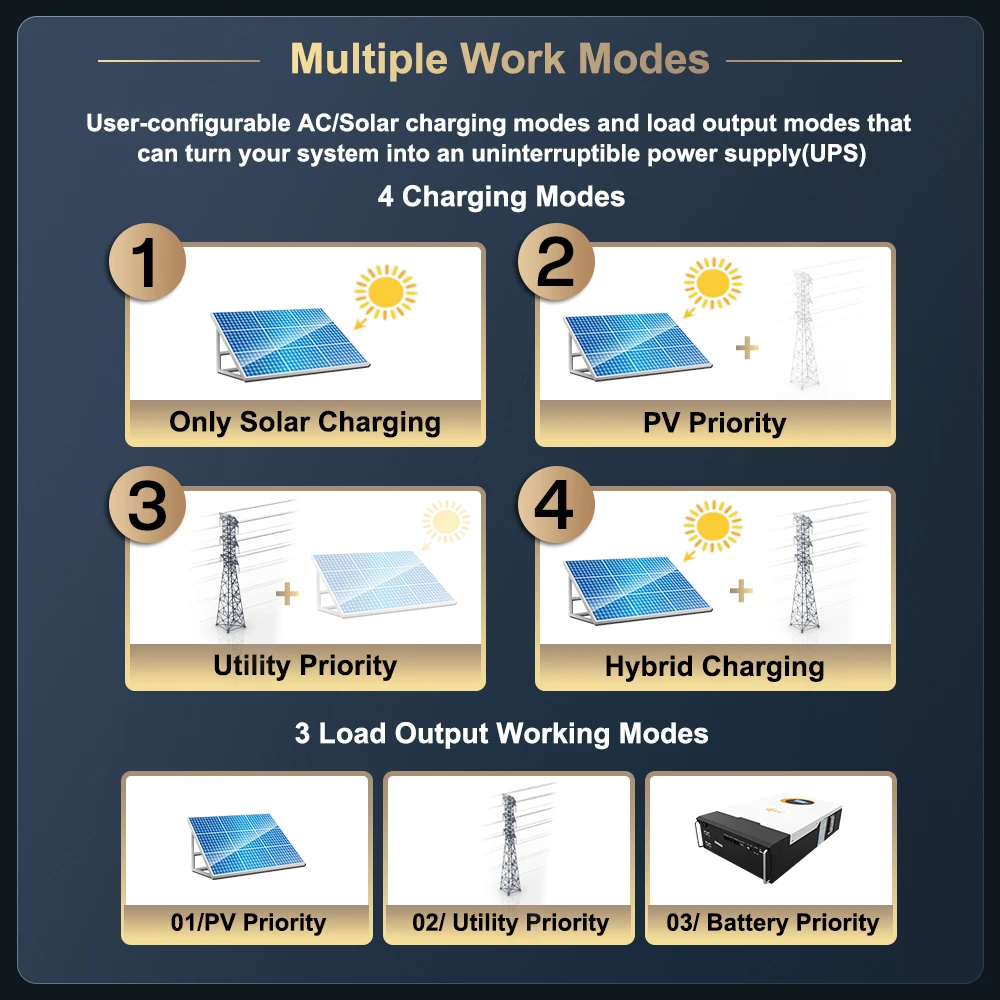

4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible to mains voltage or generator power
6.Auto restart while AC is recovering

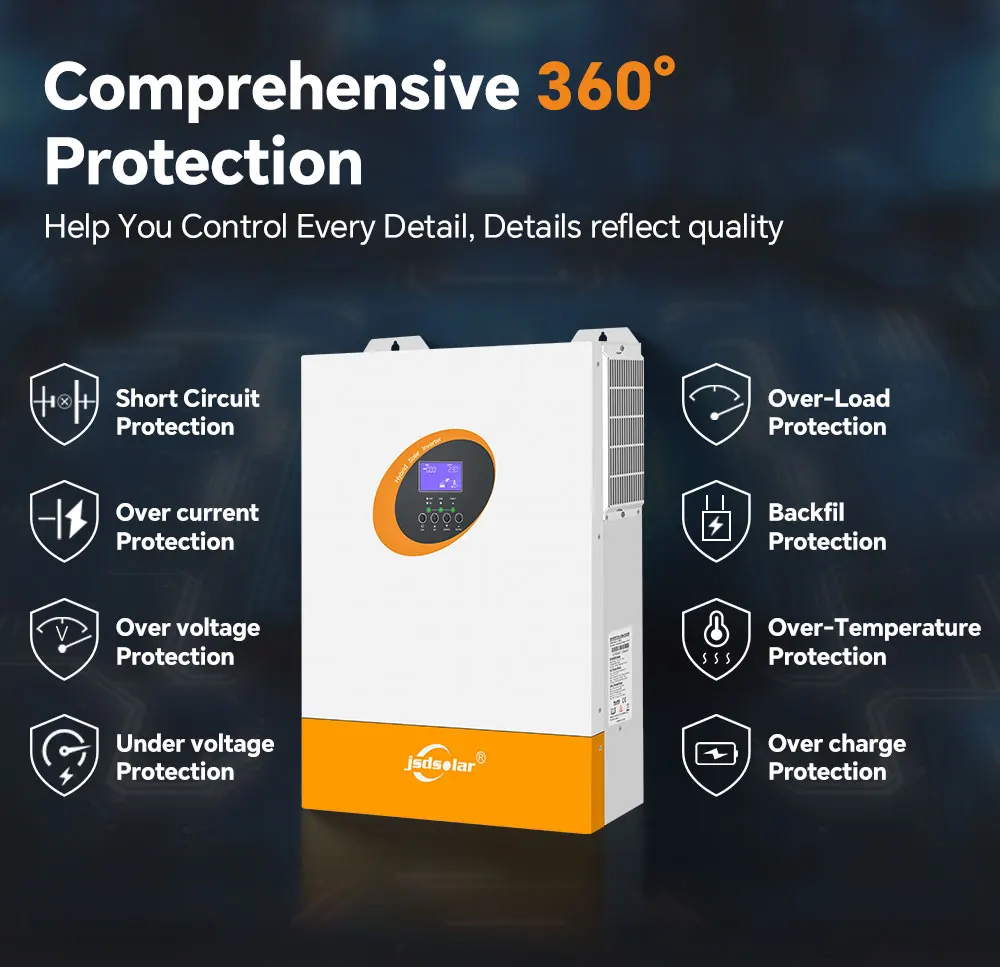

7.Overload/Over temperature/short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function
