Meian Dual-beam Infrared Sensor, 100M Wired Barrier Detector, Infrared Beam Detector, 8 Frequency Conversion, Digital Display
Original price was: ر.ع.14.13.ر.ع.12.13Current price is: ر.ع.12.13.
Hign-concerned Chemical: None Distance: 100m Model Number: AX-100 Brand Name: MEIAN Origin: Mainland China Certification: CE Smart home platform: other Name: 2 Beam Infrared Detector Warning distance: outdoor 100m, indoor 300m Detection method: 2 beams simultaneously interrupted detection type Light source: Infrared digital pulse type Shading time: 50-240ms (stepless adjustable) Power supply voltage: DC12V-24V Alarm signal threshold: ≤0.5V Dismantling alarm: Support Condensation and frost countermeasures: Heating housing (optional) Current consumption: ≤100mA(a pair) […]
20 in stock
Description
- Hign-concerned Chemical: None
- Distance: 100m
- Model Number: AX-100
- Brand Name: MEIAN
- Origin: Mainland China
- Certification: CE
- Smart home platform: other
- Name: 2 Beam Infrared Detector
- Warning distance: outdoor 100m, indoor 300m
- Detection method: 2 beams simultaneously interrupted detection type
- Light source: Infrared digital pulse type
- Shading time: 50-240ms (stepless adjustable)
- Power supply voltage: DC12V-24V
- Alarm signal threshold: ≤0.5V
- Dismantling alarm: Support
- Condensation and frost countermeasures: Heating housing (optional)
- Current consumption: ≤100mA(a pair)
- Working Temperature: -25℃~+55℃
- Working humidity: 5%-95%RH (relative humidity)
- Optical axis adjustment angle (horizontal): 180°(±90°)
- Optical axis adjustment angle (vertical): 20°(±10°)
- Application: Community Wall, Farm Fence, Villa Fence, etc.
Meian Wired Dual-beam Infrared Sensor
Working Principle:
The light emitted by the transmitter directly enters the receiver. When the detected object passes between the transmitter and the receiver to block both beams of light, the detector then sends an alarm signal to the host. Suitable for perimeter defense and alarm systems for fences, yards, farms, etc.
Product Features:
1.Dual-beam Infrared Sensor: Adopts aspherical coated optical lenses and professional DSP chip, strong anti-interference, high levels of anti-RFI / EMI capability.
2.Digital Fuzzy Artificial Intelligence Recognition: Intelligent power emission.
3.Intelligent 8 Frequency Conversion: Anti-interference and anti-false alarms.
4.Digital Display: Shows the bus address, signal strength and operating frequency in real time.
5.Adjustable Optical Axis Angle: 90°left/right, 10°up/down for easy installation.
6.Intelligent Heating Function (optional): The receiver and transmitter have built-in iron-aluminum alloy, which can be connected to a 5V heater (optional). When the ambient temperature is lower than 5℃, the HEAT terminal will output a 5.5V voltage to the heater Power supply can effectively prevent light blocking caused by haze and low temperature.
7.Tamper Function: This product has a tamper switch, which can trigger an alarm when the outer cover is loose under working conditions.
Note: This link only includes infrared detector, wires and host need to be
purchased separately.

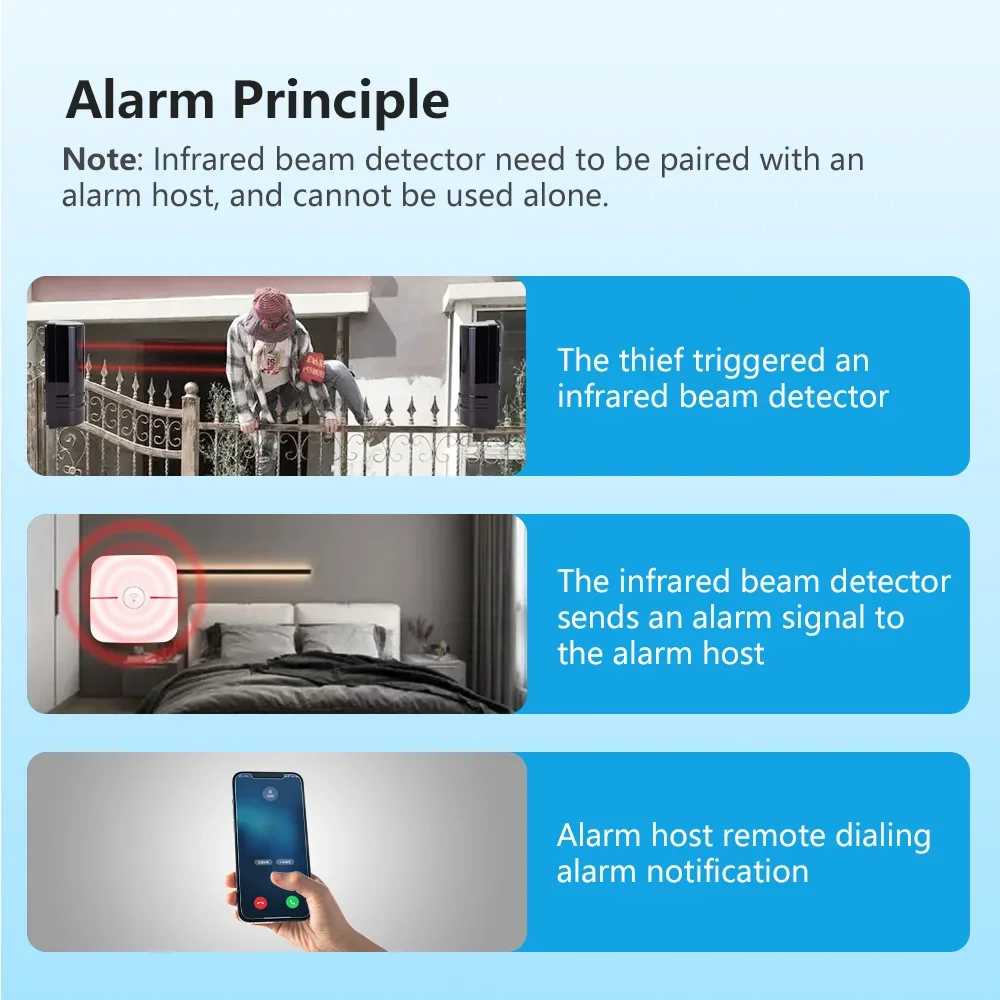

Alarm Principle
The intruder blocks two infrared beams and triggers an alarm
Aspheric Coated Optical Lenses
Improves the infrared emission focusing ability and guarantees the quality of infrared long-distance transmission

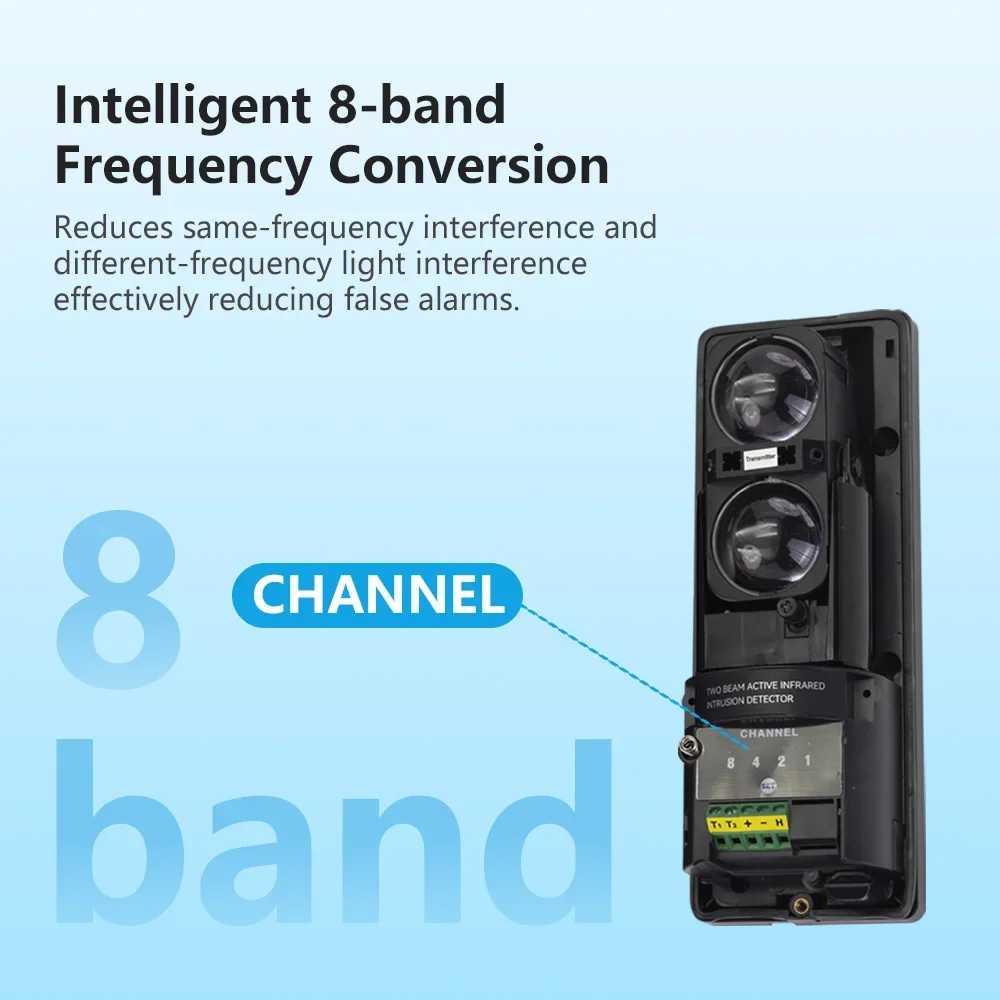

8 Frequency Conversion
Set different frequency bands for each pair of Infrared Detector to reduce interference
Digital Display
Dual digital tube display of the bus address, signal strength and operating frequency, easy to install and maintain

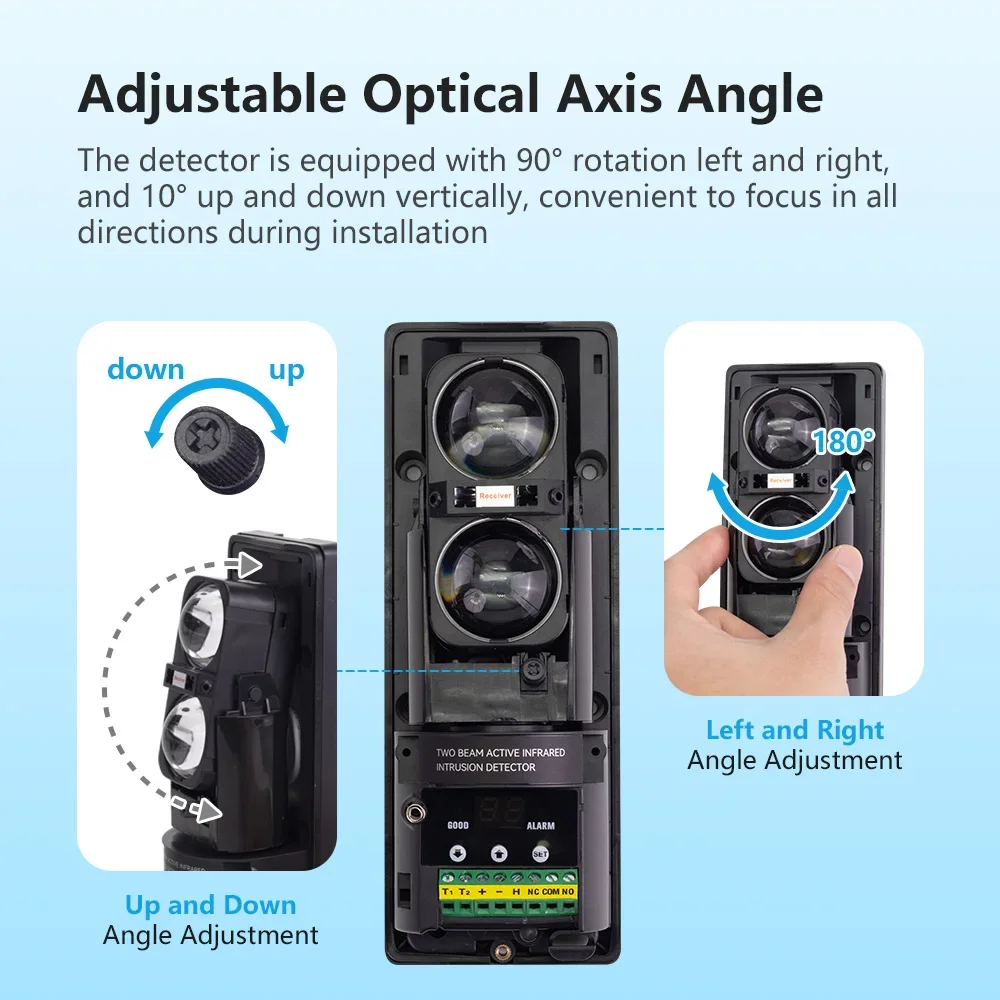

Adjustable Optical Axis Angle
Horizontal: 180°(±90°), Vertical): 20°(±10°), convenient to focus in all directions during installation

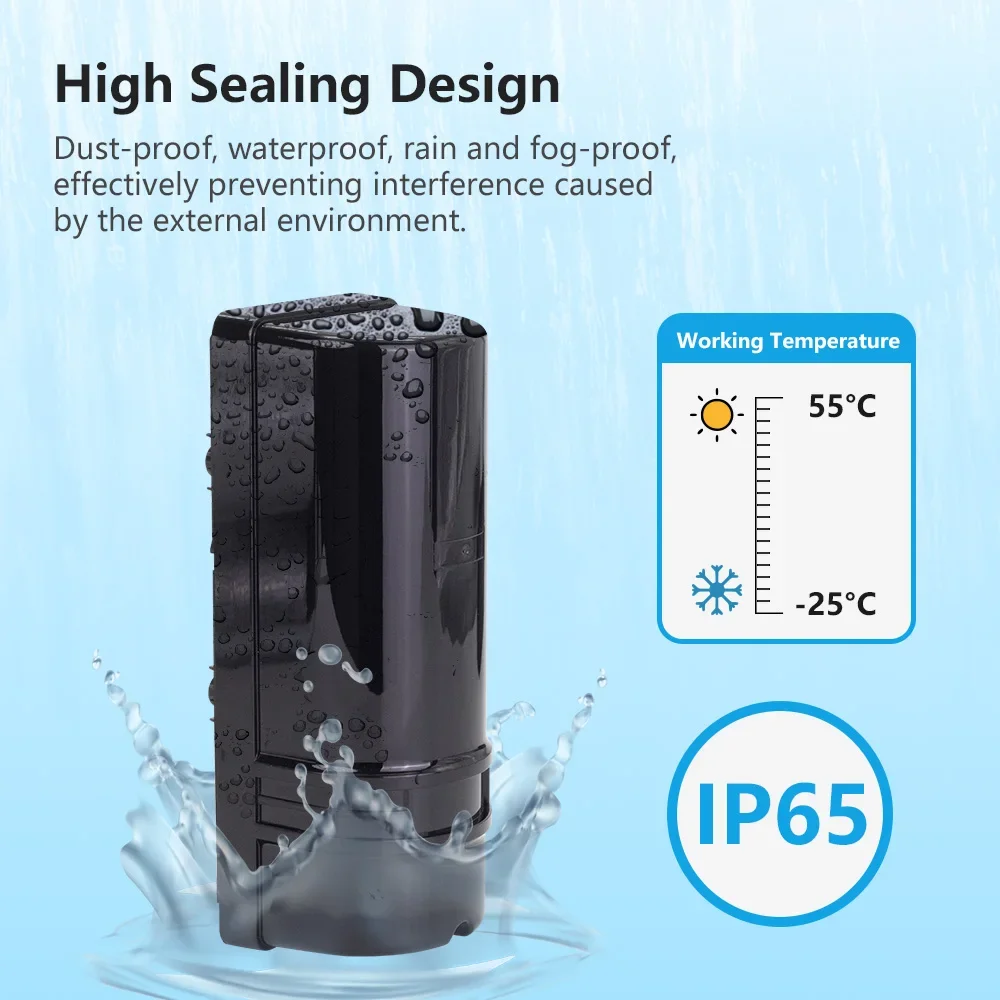

High Sealing Design
Dust-proof, waterproof, rain and fog-proof, effectively preventing interference caused by the external environment
Pet-proof, Not Easy to False Alarm
Only when two infrared beams are blocked simultaneously will an alarm be triggered, and small animals will not trigger an alarm when only one beam of light is blocked
Product Circuit Wiring Diagram
Product Details

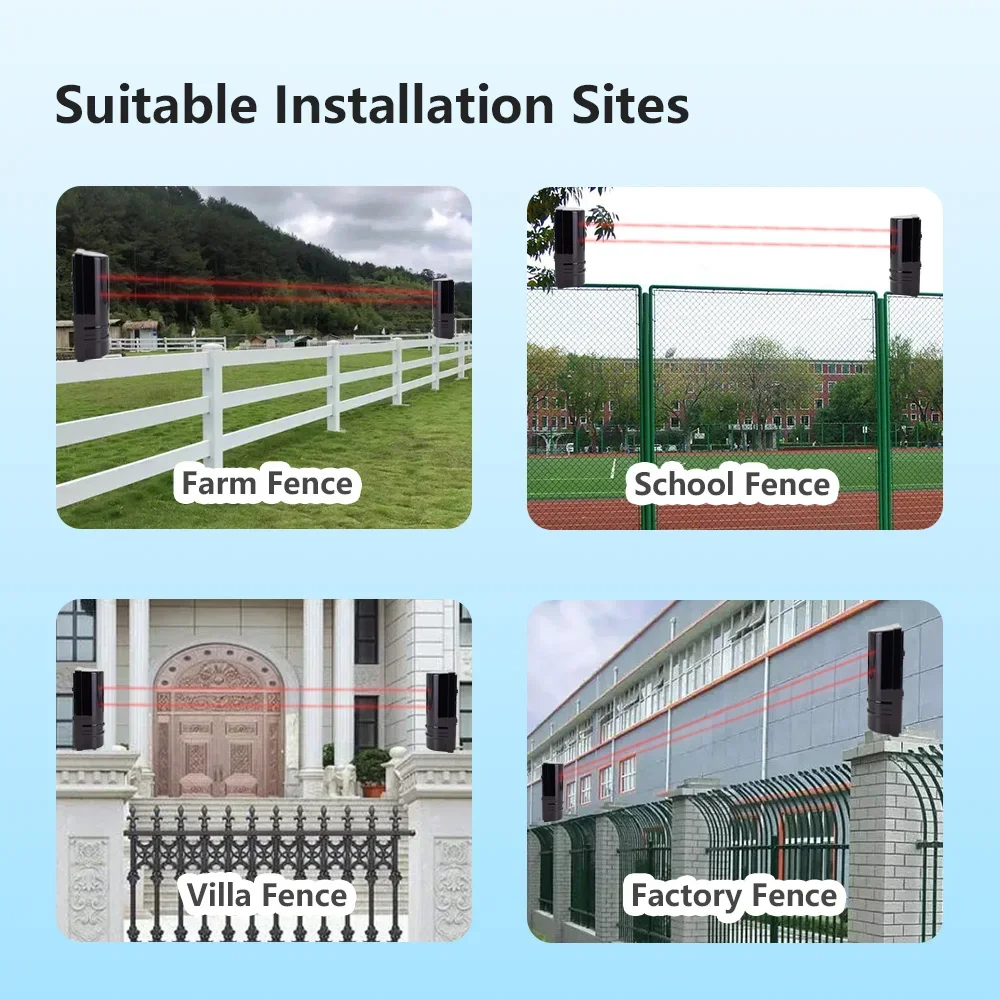

Wide Range of Applications
Suitable for Community Wall, Farm Fence, Villa Fence, Balcony Defense, School Fence, Warehouse Fence, Orchard Fence, Factory Fence, etc.
Product Parameters
Note: This link only includes infrared detector, wires and host need to be purchased separately.
