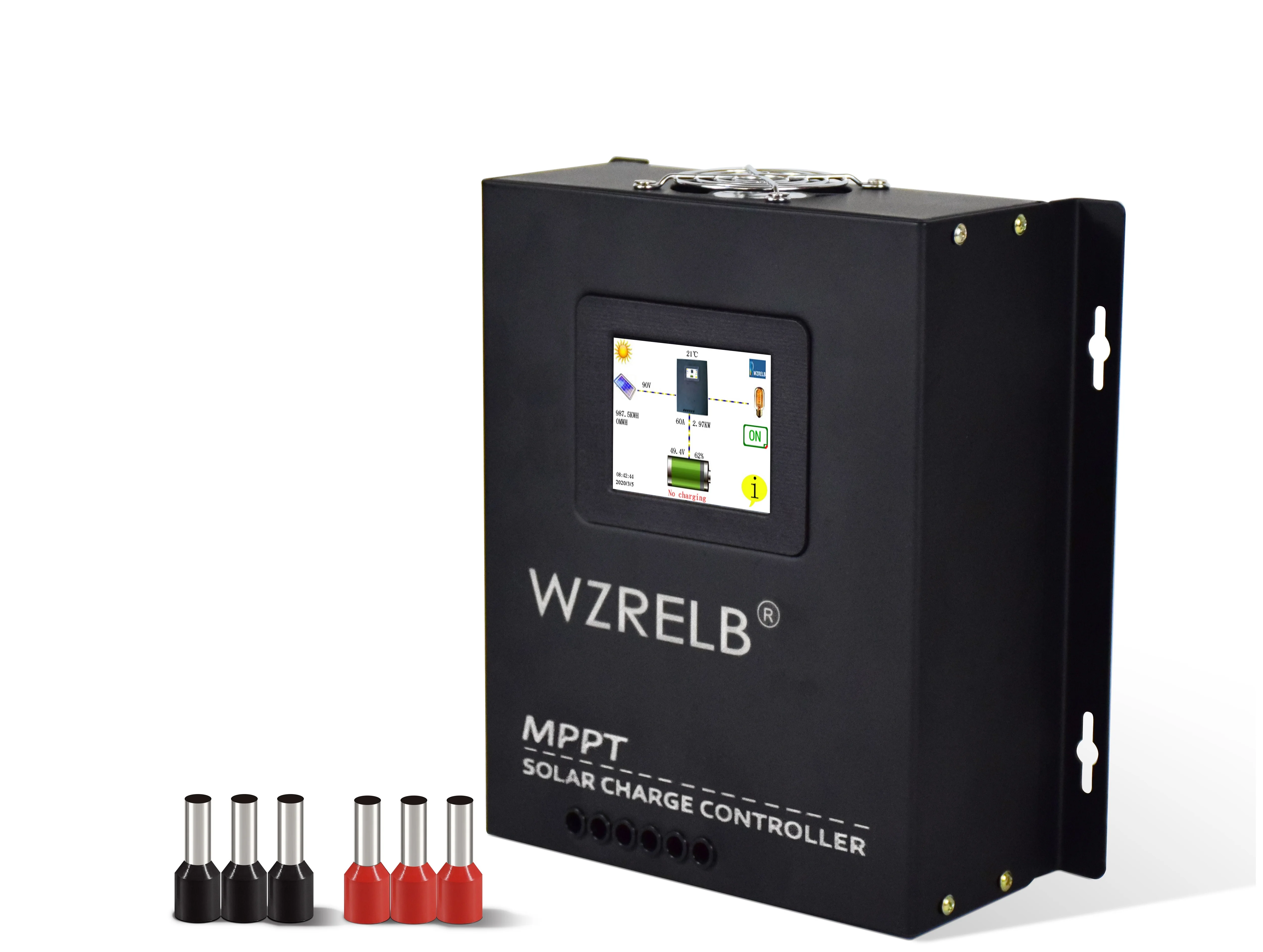

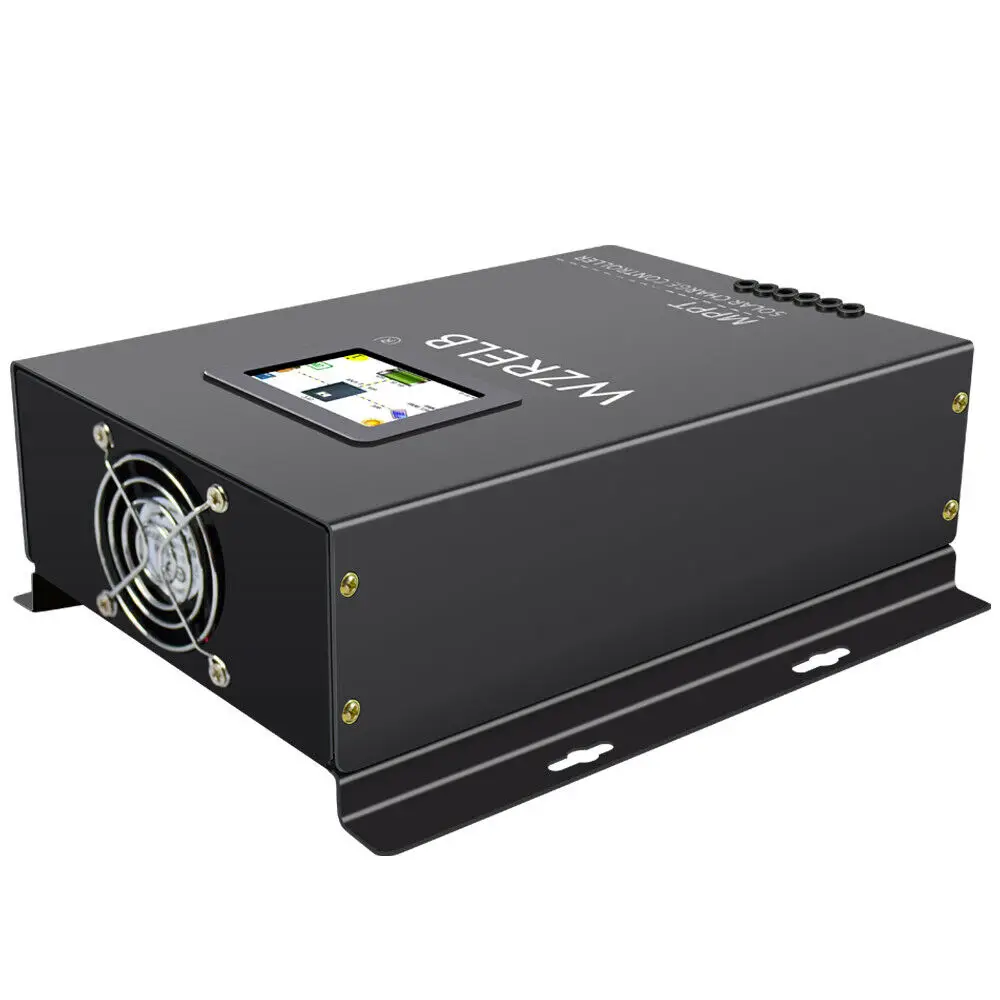

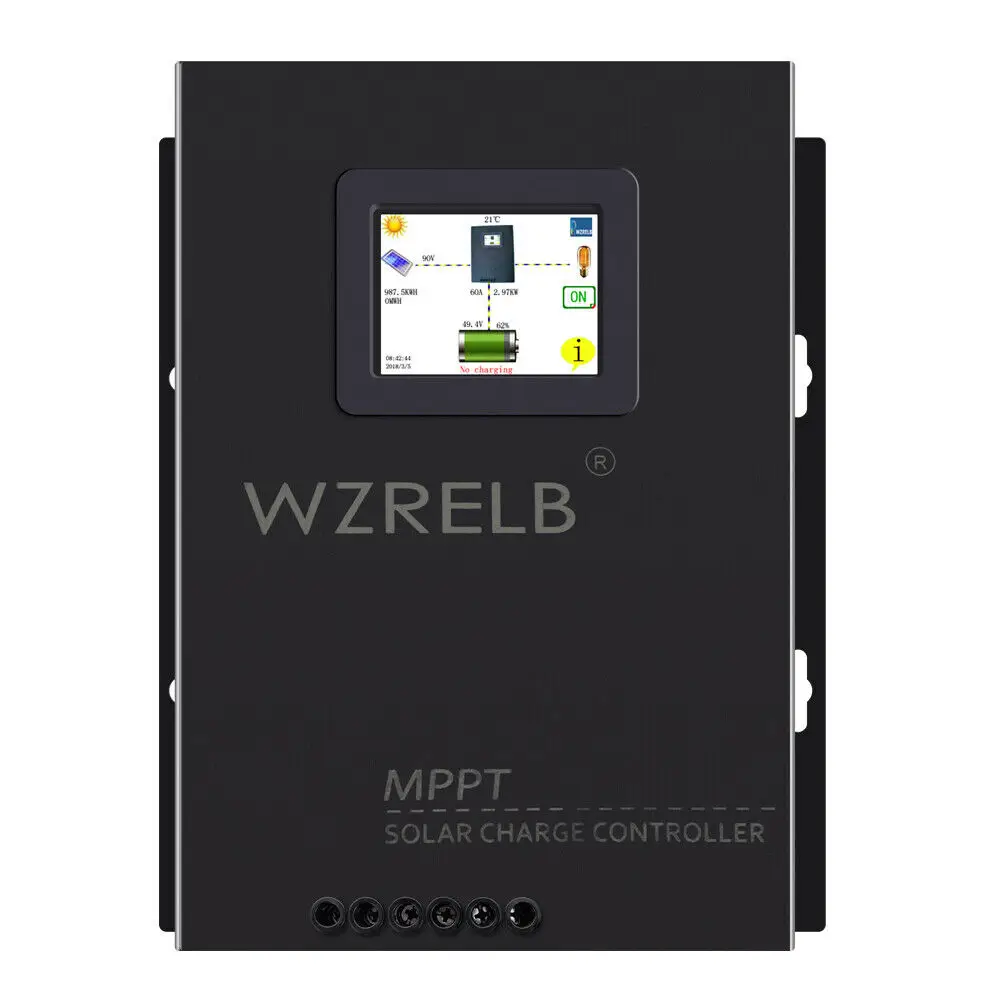

MPPT 40A 60A 80A Solar Charge Controller 12V 24V 24V 48V or 18v 36v LCD Full Touch-Screen Off Grid Power Supply Home Appliance
ر.ع.107.67 – ر.ع.169.10
Hign-concerned Chemical: None Is Smart Device: No Application: Charger Controller,Solar System Controller Model Number: MPPT is_customized: Yes Maximum Current: 40A 60A 80A Origin: Mainland China Certification: CE voltage: 12V/24V/48V or 18V 36V Product Description Model TYC-40IR TYC-60IR TYC-80IR Rated voltage 12V/24V/48V or 18V/36V Rated current 40A 60A 80A Maximum protection current 42A 62A 82A Battery voltage identification range 12V(DC9-DC15V)/24V(DC18-DC30V)/48V(DC36-DC60V) 18 MPPT Operating voltage range […]
Description
- Hign-concerned Chemical: None
- Is Smart Device: No
- Application: Charger Controller,Solar System Controller
- Model Number: MPPT
- is_customized: Yes
- Maximum Current: 40A 60A 80A
- Origin: Mainland China
- Certification: CE
- voltage: 12V/24V/48V or 18V 36V
|
Model |
TYC-40IR |
TYC-60IR |
TYC-80IR |
||||
|
Rated voltage |
12V/24V/48V or 18V/36V |
||||||
|
Rated current |
40A |
60A |
80A |
||||
|
Maximum protection current |
42A |
62A |
82A |
||||
|
Battery voltage identification range |
12V(DC9-DC15V)/24V(DC18-DC30V)/48V(DC36-DC60V) 18 |
||||||
|
MPPT Operating voltage range |
12V(DC18V~DC150V)/24V(DC34V~DC150V)/48V(DC65V~150V) |
||||||
|
Stabilized voltage precision |
≤±1.5% |
||||||
|
Maximum PV input power |
40A |
60A |
80A |
||||
|
12V |
480W |
720W |
960W |
||||
|
24V |
960W |
1440W |
1920W |
||||
|
48V |
1920W |
2880W |
3840W |
||||
|
18V |
720W |
1080W |
1440W |
||||
|
36V |
1440W |
2160W |
2880W |
||||
|
PV input low voltage protection point |
12V:DC16V/24V:DC30V/48V:DC60V or 18V:DC22.5V/36:DC45V |
||||||
|
PV input low pressure recovery point |
12V:DC18V/24V:DC34V/48V:DC65V |
||||||
|
Limit in put voltage |
DC170V |
||||||
|
PV input overvoltage protection point |
DC175V |
||||||
|
PV input overvoltage recoverypoint |
DC170V |
||||||
|
charging method |
3 stage :constant currenet(MPPT),equalizing charge,float charge |
||||||
|
System type |
36V 30-60AAutomatic identify |
||||||
|
Machine efficiency |
96.5 %;99 % |
||||||
|
PV module utilization |
99.97% |
||||||
|
Float voltage(canbecustomized) |
12V(13.75V)/24V(27.5V)/48V(55V) or 18V(19.9V)/36V (39.9V) |
||||||
|
Equalizing charge voltage(canbe customized) |
12V(14.2V)/24V(28.4V)/48V(56.8V)96V |
||||||
|
Recommended PV modu levoltage |
Minimum solar panel voltage: 3V higher than the voltage of full-charged battery (e.g. voltage of fully-charged 12V battery 14.6V+3V=17.6V) |
||||||
|
Protective function |
PV array short circuit, overvoltage, overcurrent |
||||||
|
Temperature compensation |
-3mV°C/2V |
||||||
|
Storage temperature |
-40℃~+70℃ |
||||||
|
Working temperature |
-10℃~+45℃ |
||||||
|
Humidity |
0~90%RH (Not condensation) |
||||||
|
Altitude |
0~3000m |
||||||
|
Security Level |
CE,PSE,FCC,EMC |
||||||
|
Mechanical protection class |
IP21 |
||||||
|
Optional battery type |
IP21 |
||||||
|
Product Size |
20*17*7cm |
24*20*8cm |
29*24.5*10cm |
||||
|
Weight |
2.46kgs |
3.45kgs |
4.85kgs |
||||
Packing:

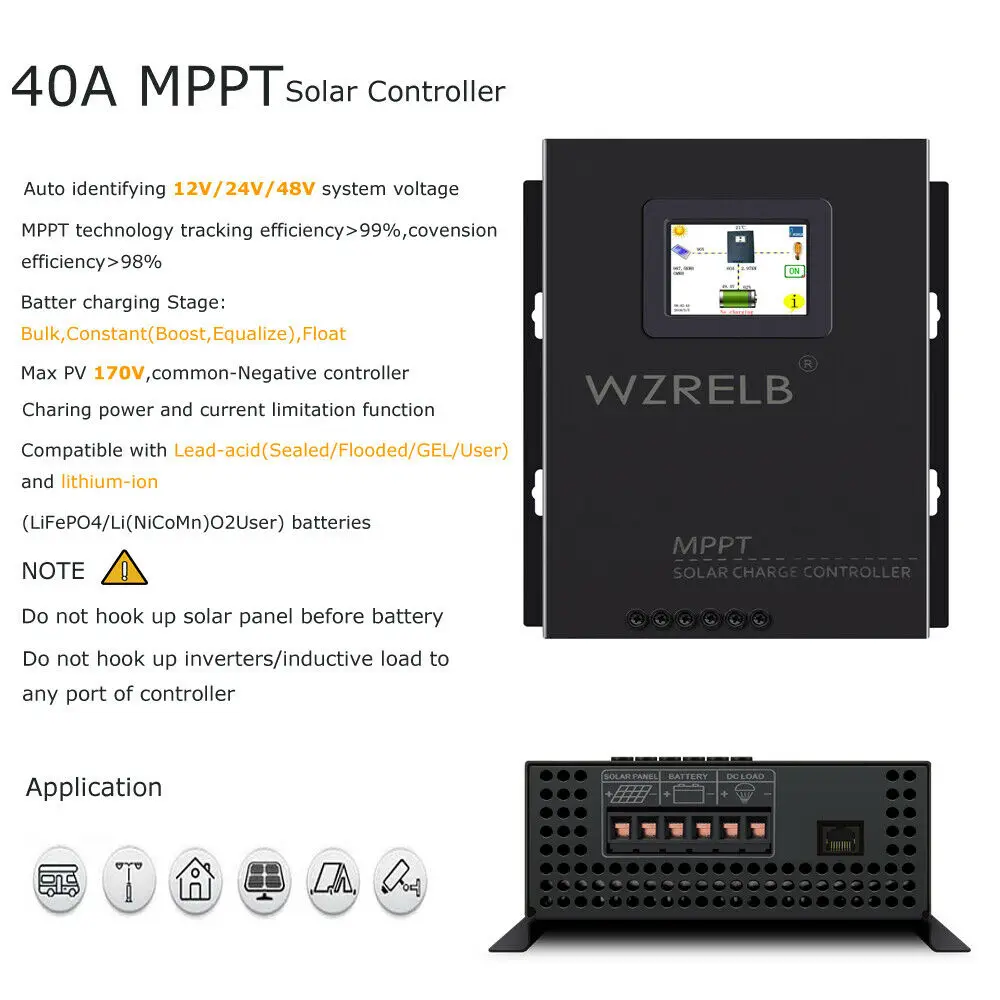

Features:
Negative Ground, Max 170V PV input
Display daily generation and cumulative power generation
Support 4 charging options: Sealed, Gel, Flooded and User-defined
The tracking rate of maximum power is ≥99% and the maximum conversion rate is >98%
The
components are premium brand, the theoretical design life span is
>10 years, and the high temperature resistance is >105℃
components are premium brand, the theoretical design life span is
>10 years, and the high temperature resistance is >105℃

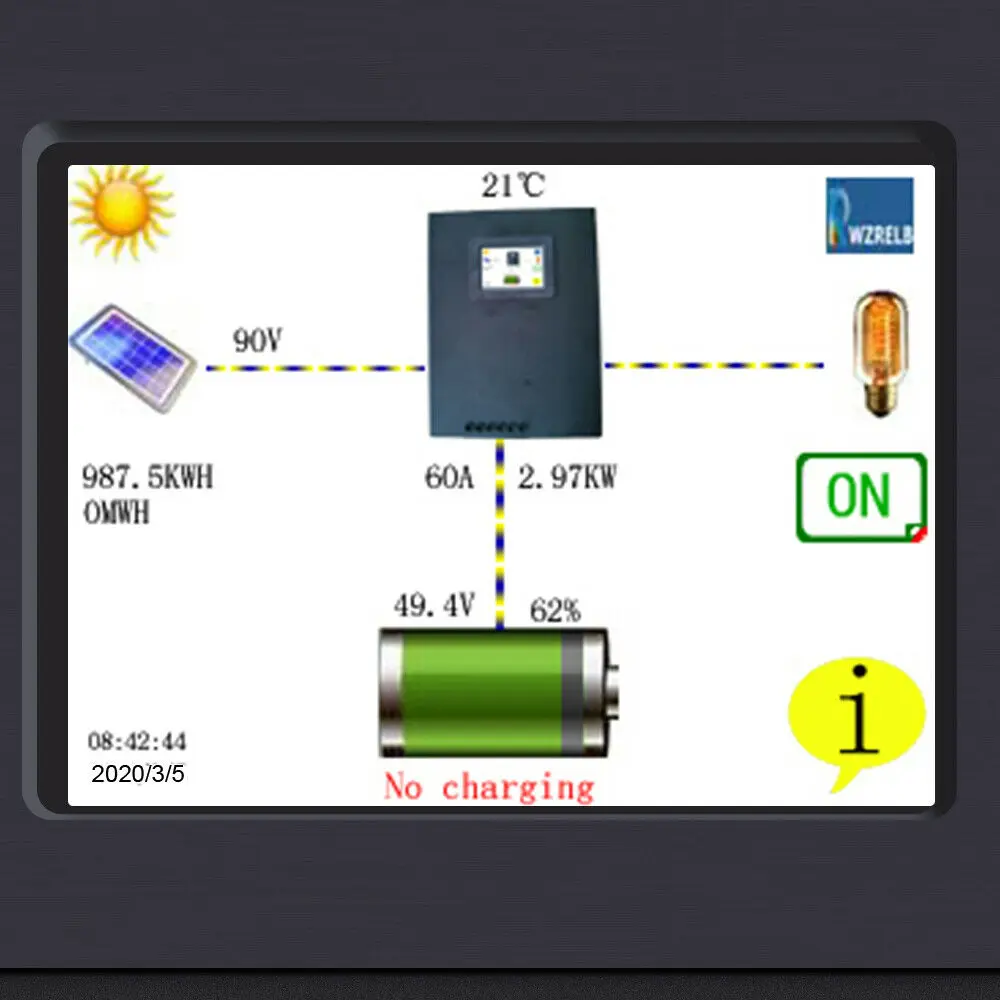

1、Display real-time power generation and current.
2、Display the daily power generation curve and current curve.
3、Chinese and English, multi-function LCD screen and operation menu.
4、Display fault records, to facilitate customer troubleshooting in a timely manner
5、Support lead-acid batteries, colloidal batteries and lithium batteries.
6、Intelligent maximum power point tracking technology increases efficiency 25%~30%.
7、Battery temperature sensor (BTS) automatically provides temperature compensation.
8、Perfect protection function.
9、 The latest MPPT algorithm is used to track the maximum power point of
solar power generation in real time. The charging efficiency is over
98.5 % and the tracking accuracy is over 99.73 %.
solar power generation in real time. The charging efficiency is over
98.5 % and the tracking accuracy is over 99.73 %.
10、Ultra-fast tracking speed, tracking 1 times per second.ct Description
The most payment method is accepted.
Delivery details
We ship items free to America, Canada, United Kingdom, Australia, Europe, Asia.
The shipment is by Fedex, DHL or China EMS Service with time 3~7 working days.
All items will be shipped within 1~3 business days upon receipt of payment (except Saturday and Sunday and statutory holiday in China).
Please Note:● Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
It is normally collected by the delivering freight (shipping) company or when you pick the item up – do not confuse them for additional
shipping charges and the shipping company will give you a receipt from the custom office.
● You can check it with your country’s customs office to determine what these additional costs will be prior to bidding/buying.
RETURN
We understand that not every purchase is a good one for every customer.
Please note that we only accept returns within 30 days after delivery.
If the item is defective/DOA (Dead on Arrival) we must be notified within 2 days of arrival, the instruction for return will be given according to
your quesitions.
Please note: All returned items must be in brand new condition with all original accessories in the original box. If anything is missing or damaged,
we reserve the right and refuse the return or charge additional restocking fees.
WARRANTY
Warranty: 365 days
Technical support and service are provided for the inverter the whole life.
FEEDBACK
Note: Do not hesitate to contact us anytime before and after the purchases, we are committed to your 100% customer satisfaction.
I am here and ready to assist you with any question or concerns you might have before or after the purchase.
If you have the problem with the item, please contact us first BEOFRE you open return request or file a dispute or leave the netural or negative feedback.
My goal is to make sure you are happy and having the pleasant shopping with us.
Yueqing Reliable Electric Is a leading company in the development, manufacturing and marketing of advanced power inverter and systems for mobile power
markets and PV industry since 2009.
The company’s power inverters convert and control raw electrical power from any renewable or back up ower source into high quality pure sine wave power.
Our product range from off grid high frequency pure sine wave inverter (150W to 8000W) and grid tie inverter (200W to 2000W). Most of them are hot products
in the market such as.
1.High frequency pure sine wave inverter up to 8000w with stable performance,with LED and LCD display;
2. High advanced LCD display 2000w grid tie inverter with 45-90vdc input., build-in dump load for small grid PV system
3. the highly compact designed micro inverter for 0.82kgs with power line carrier-current communication, it can built up a megawatt solar power station.
Our pure sine wave inverters meet the needs of a wide range of application such as for vehicle , marine, train or any mobile power station. .
The special DC volt 36V, 72V ,96V, 110VDC ect can be selected for special application.
The pure sine wave inverter products are certified to EMC testing in Australia and CE FCC, RoHS, approved.
Recently, we have the warehouse in US, AU, UK to make the shipping faster.
Reliable Electric is identified as one of the most famous trademarks in China for pure sine wave inverter for its relaible power inverter, reasonable price and
responsible service.
Reliable electric is committed to improving the environment and the renewable energy industry and continues to develop more efficient and cost-effective solutions to
bring more green electricity to our lives.
Please contact us through the Messages. Any questions will be replied within 24 hours except the weekend and statuary holiday in Chinese Beijing Time. If you
contact us by other methods, there will be some delay for answer.
Should you have any question, contact us free.
Additional information
| Current | 40A, 60A, 80A |
|---|---|
| Rated Voltage | 12V 24V 48V, 18V 36V |
| Controller Type | Build-in Off Grid |
