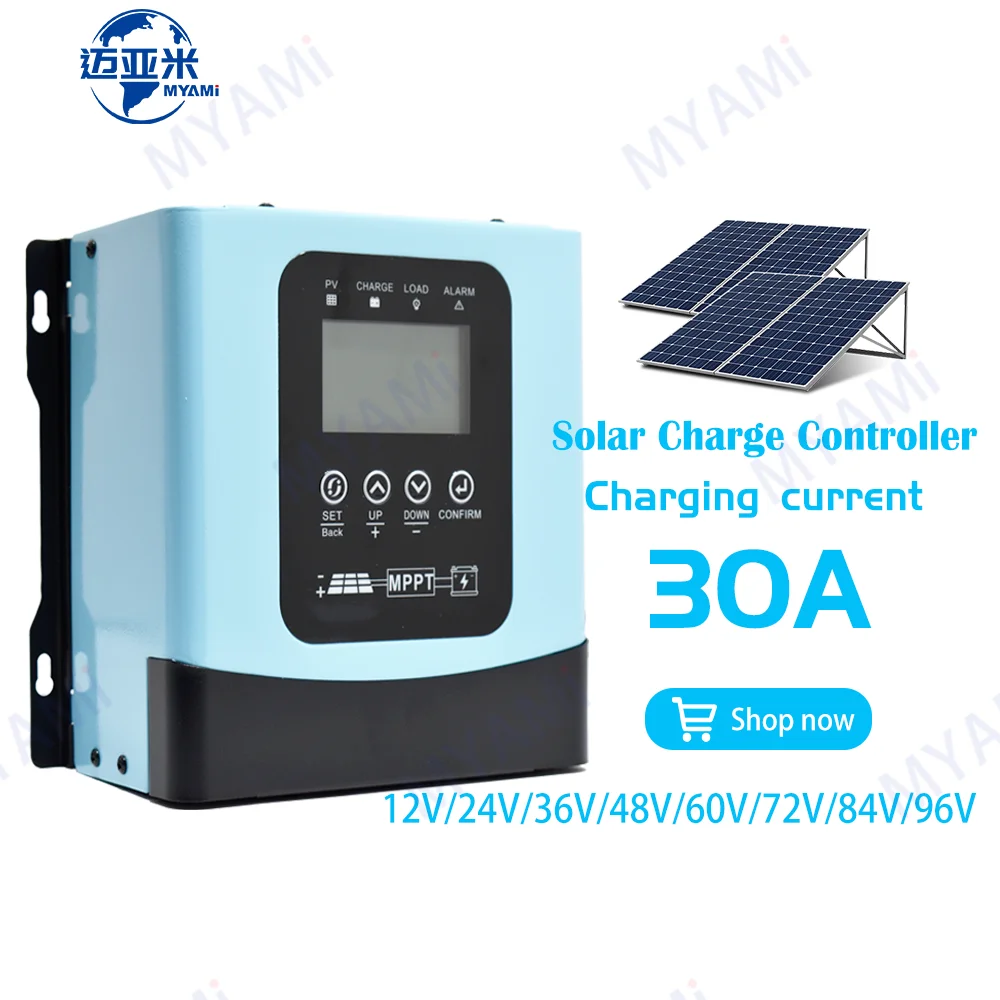

MYAMi 12V 24V 36V 48V 60V 72V 84V 96V 30A Off-grid RS485 Mppt Solar Charge Controller For Solar System

Description

Basic Functions

●Innovative maximum power point tracking technology can significantly improve the energy utilization efficiency of solar energy systems, with a conversion efficiency of up to 97%;

●Quickly scan the entire area- V-curve, efficient tracking of maximum power point;

●Three types of lead-acid and lithium battery series charging programs are available: sealed, colloidal, and open type;

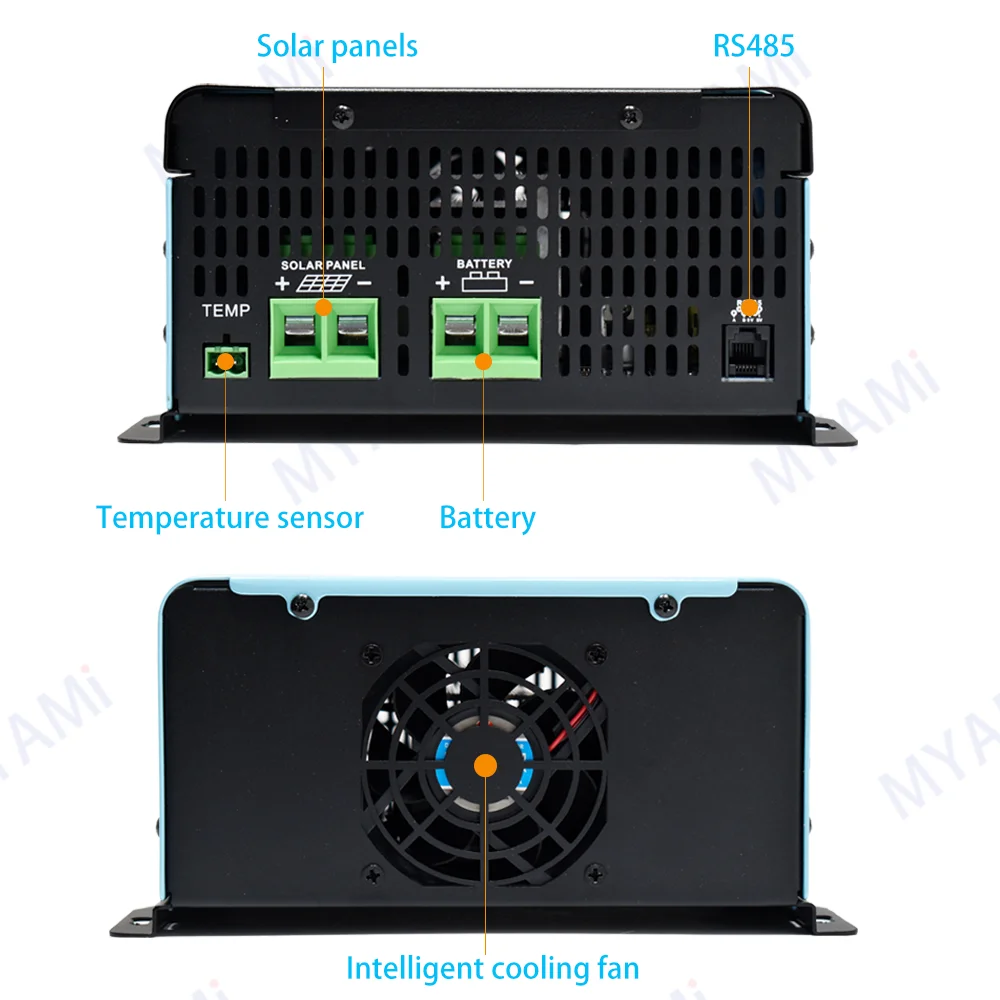

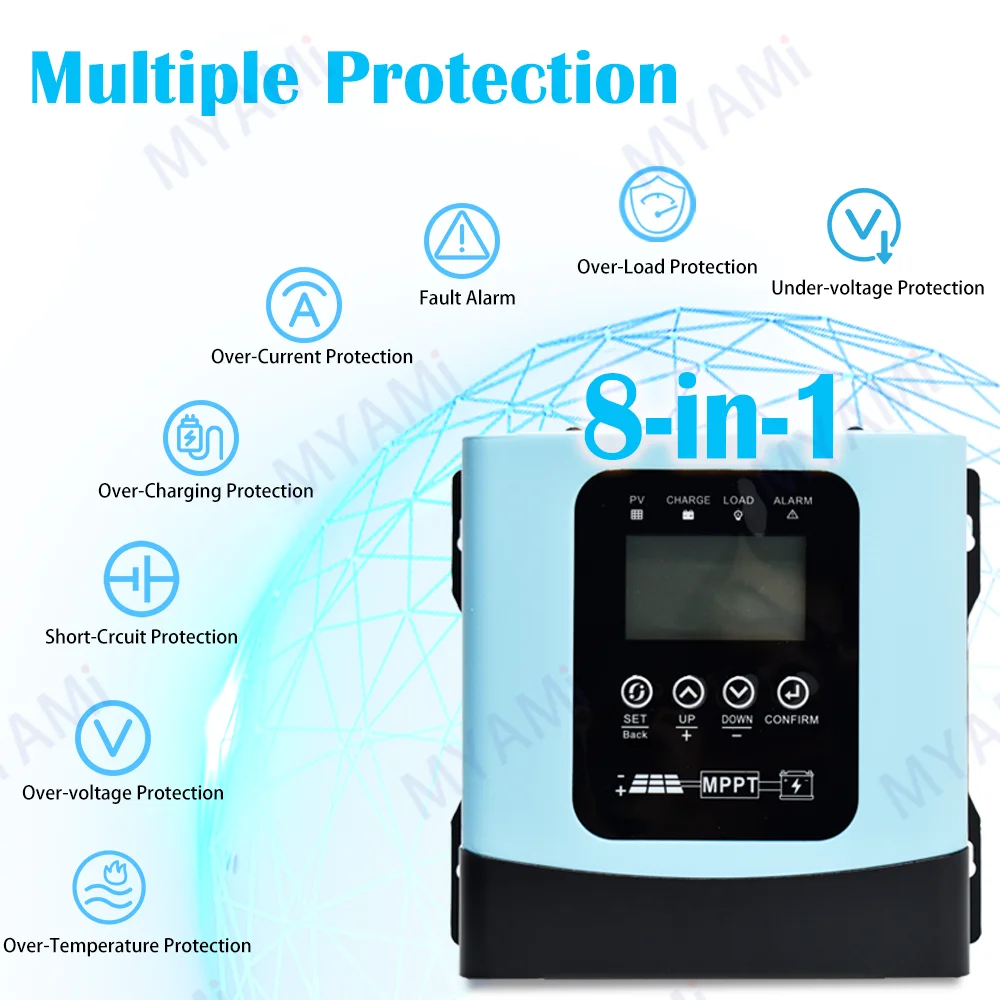

● It has automatic protection functions for overcharge, overdischarge, overload, and short circuit; RS485 communication interface, capable of multi machine communication, convenient for viewing the operating parameters of the controller.

Characteristics of MPPT controller

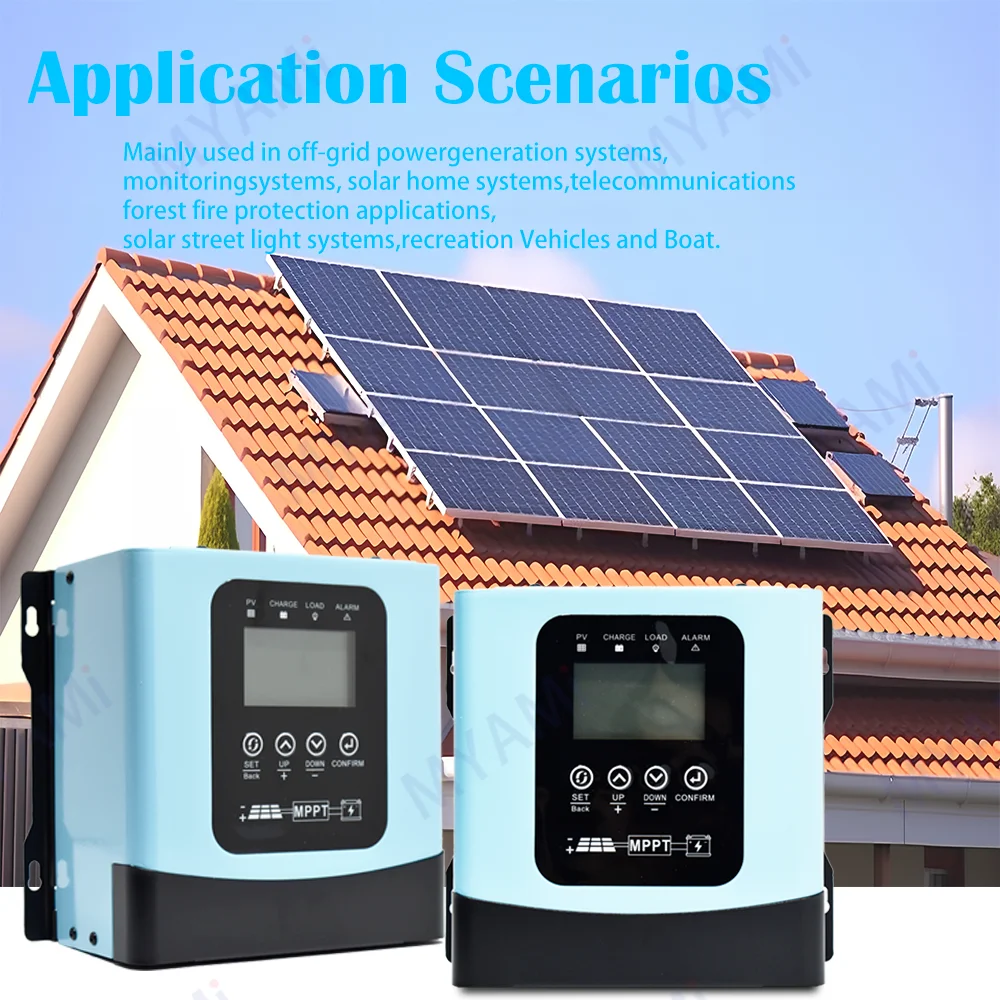

This controller is used in solar off grid power generation systems to automatically regulate battery charging and discharging. It has advanced tracking algorithms to obtain the maximum power of solar cell modules for charging the battery; Meanwhile, its low voltage disconnect (LVD) function can prevent damage caused by excessive discharge of the battery.

The battery charging process of MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can prevent damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to enable you to better utilize all the functions of the controller and improve your photovoltaic system, please carefully read the instructions and instructions in this manual.
