Portable vertical/horizontal wind turbine model three-phase permanent magnet generator scientific and educational experiment DIY

Description

Portable vertical/horizontal wind turbine model three-phase permanent magnet generator scientific and educational experiment DIY

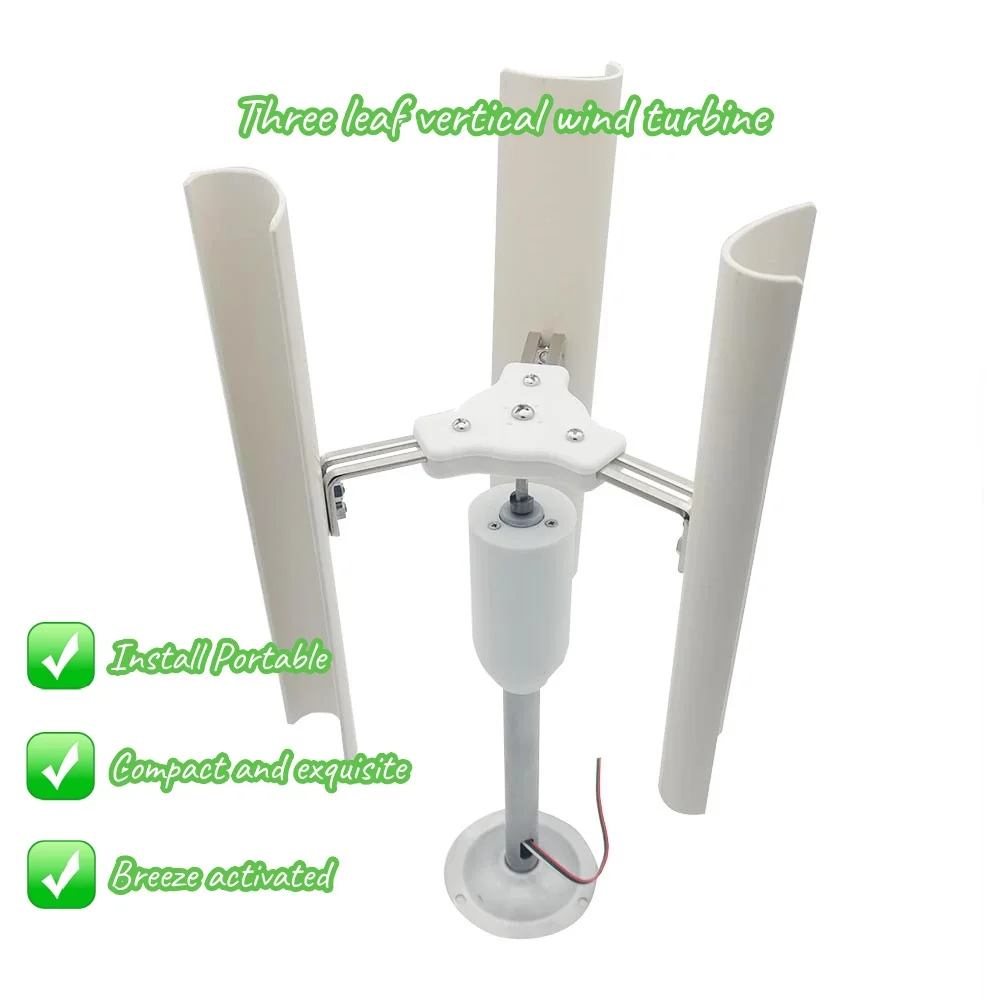

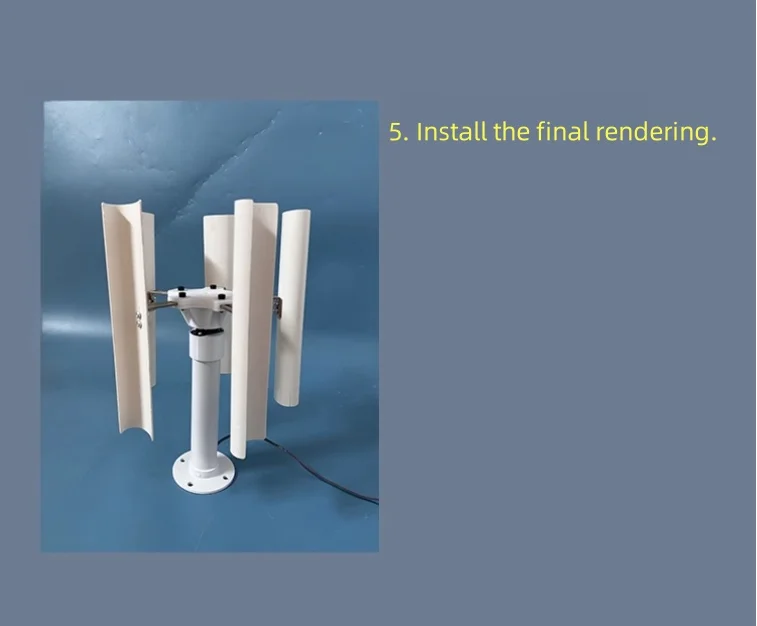

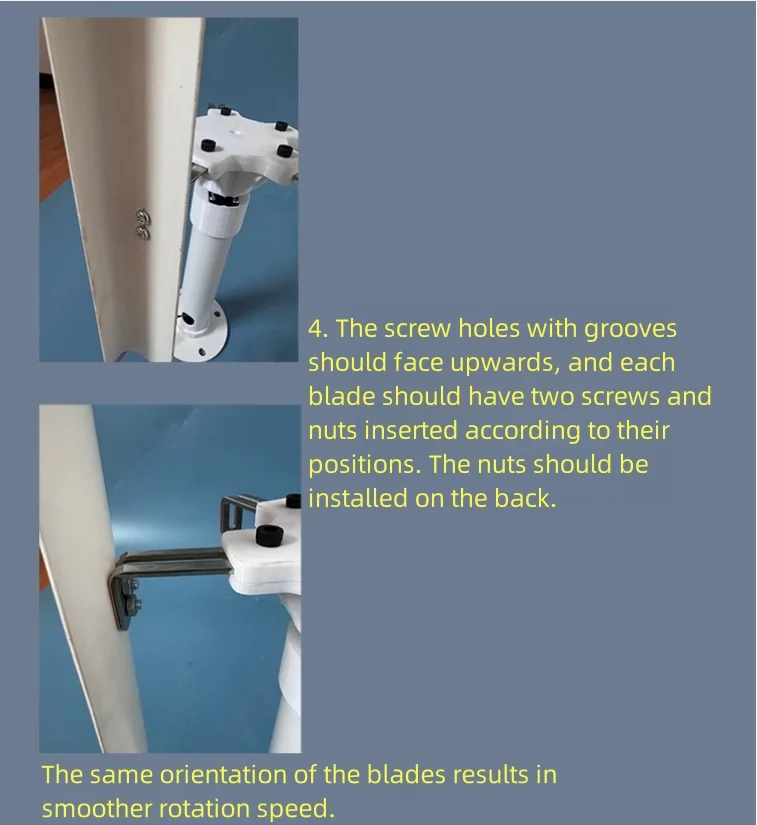

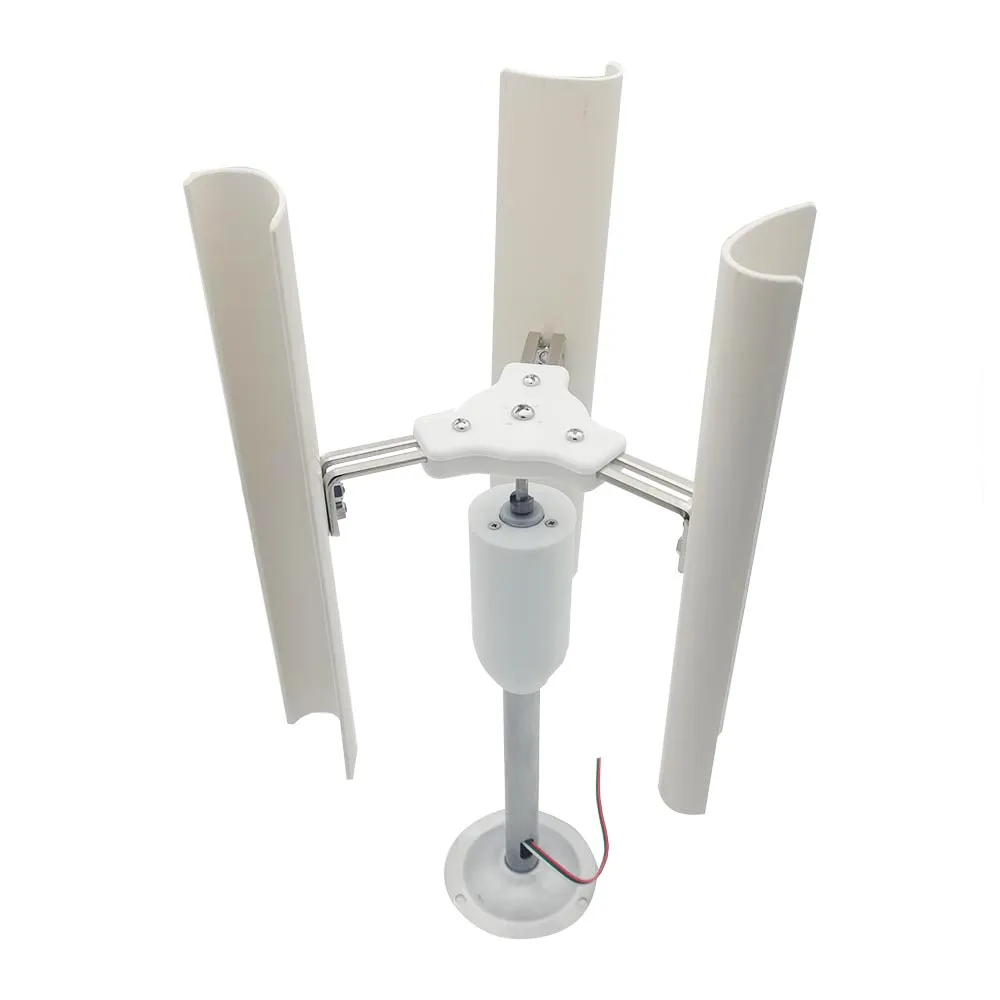

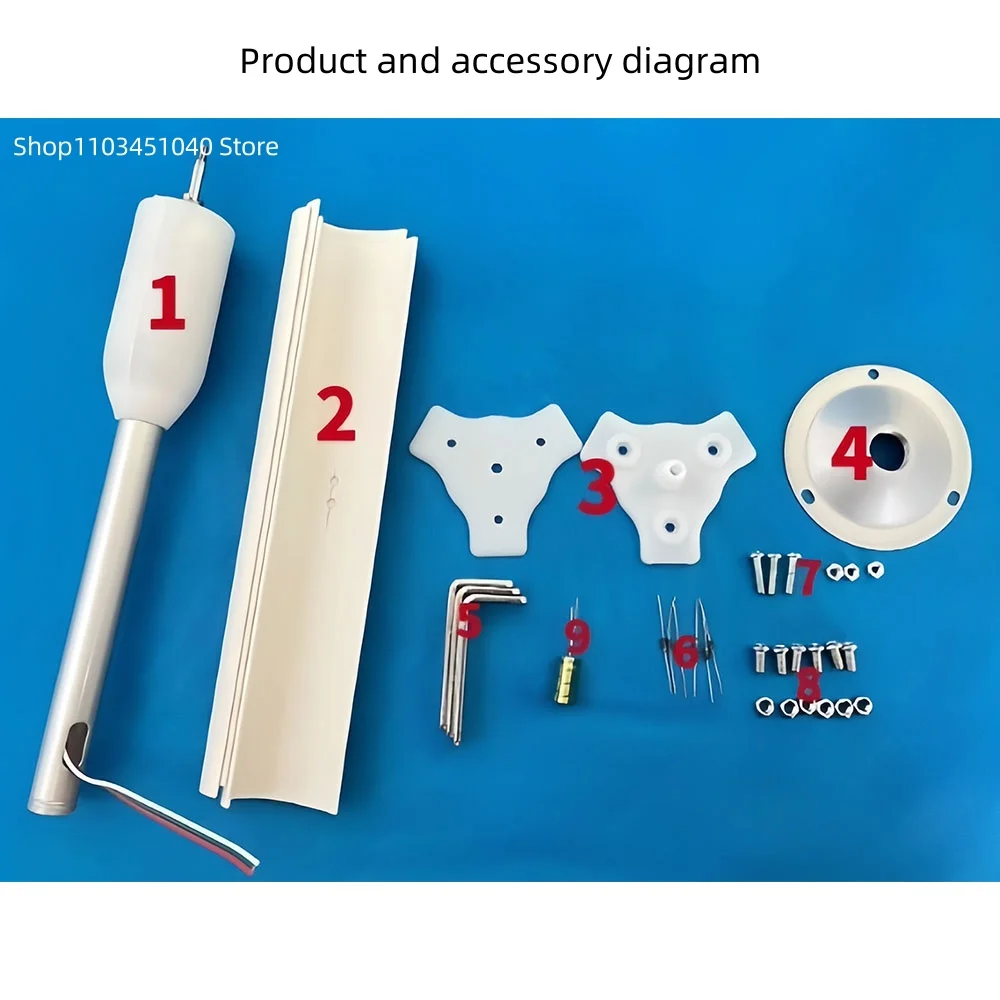

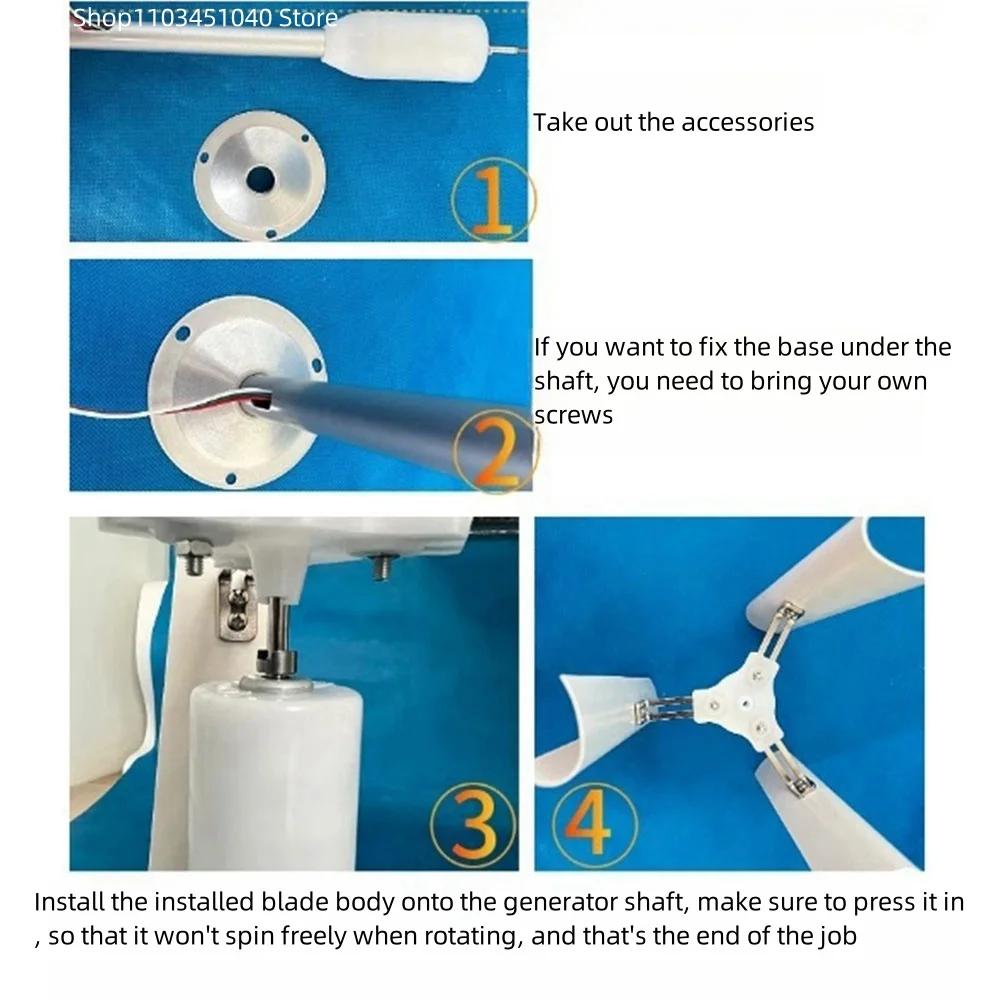

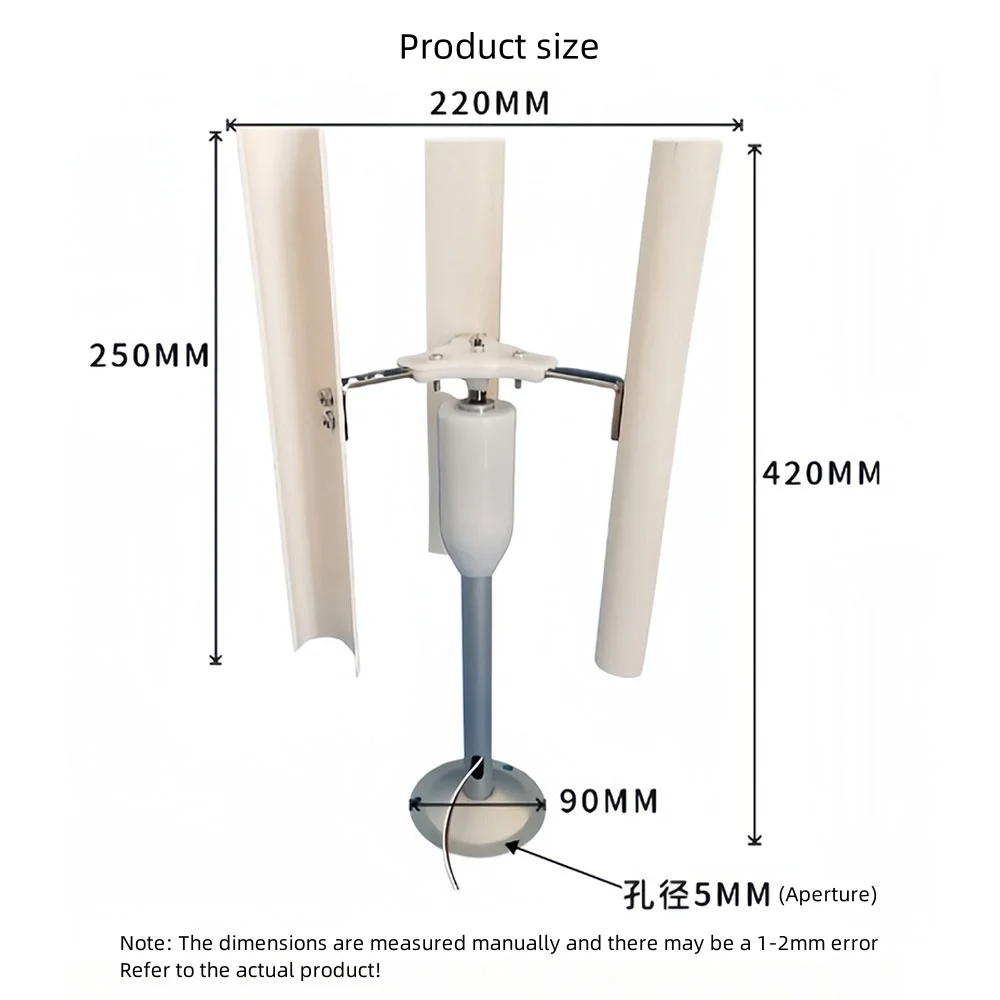

1. Three leaf vertical wind turbine generator

Parameters:

Product Name: Three Leaf Vertical Wind Turbine

Installation method: Vertical

Number of leaves: 3 pieces

Product material: PVC material

Product specifications: 420 * 220 * 90mm

Product power: 1-20W

Product voltage: 1-15V

Product weight: 690g

Three leaf vertical generator

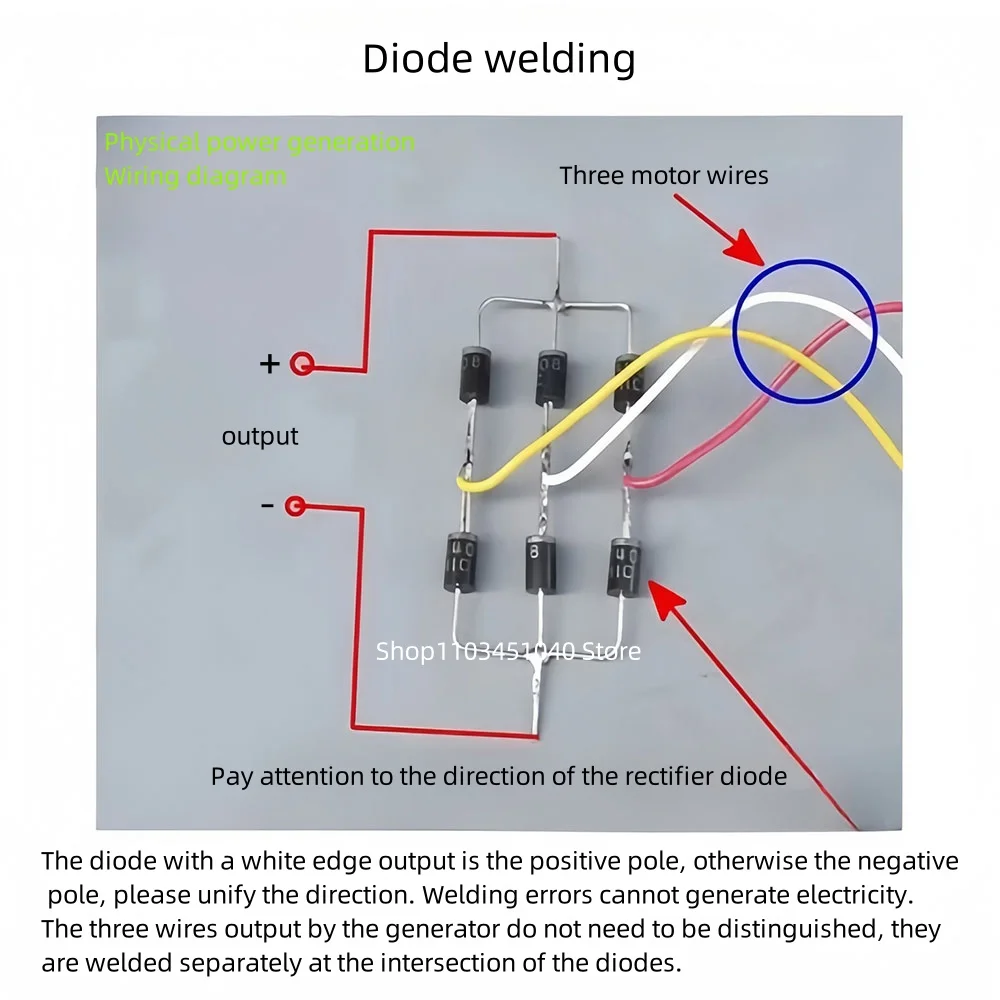

Adopting a three-phase permanent magnet synchronous generator without carbon brushes, it generates three-phase AC power with three wires at the bottom. It requires a self-contained electric magnet to weld six rectifier diodes and convert them into DC power generation.

After rectification, connect the LED and the blades rotate to generate electricity, which drives the light bulb to light up

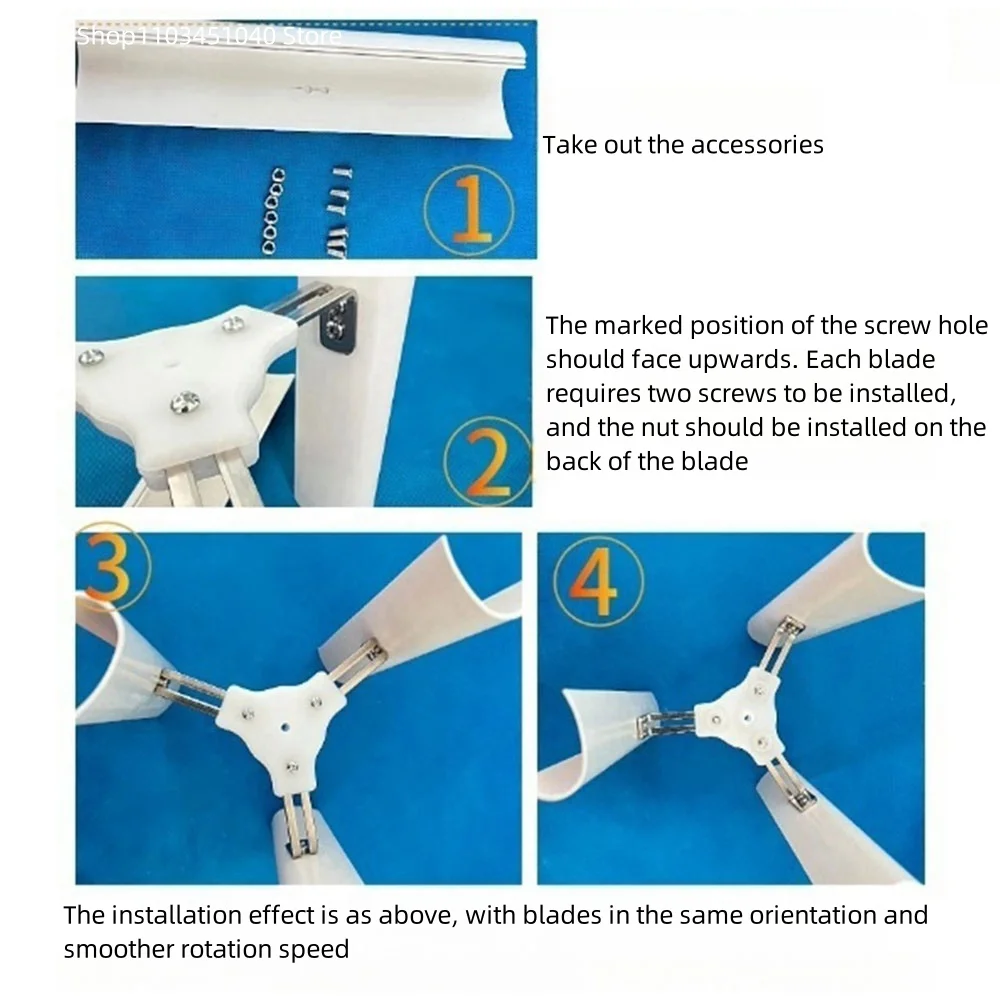

If you have any questions about assembly, please contact customer service in a timely manner!

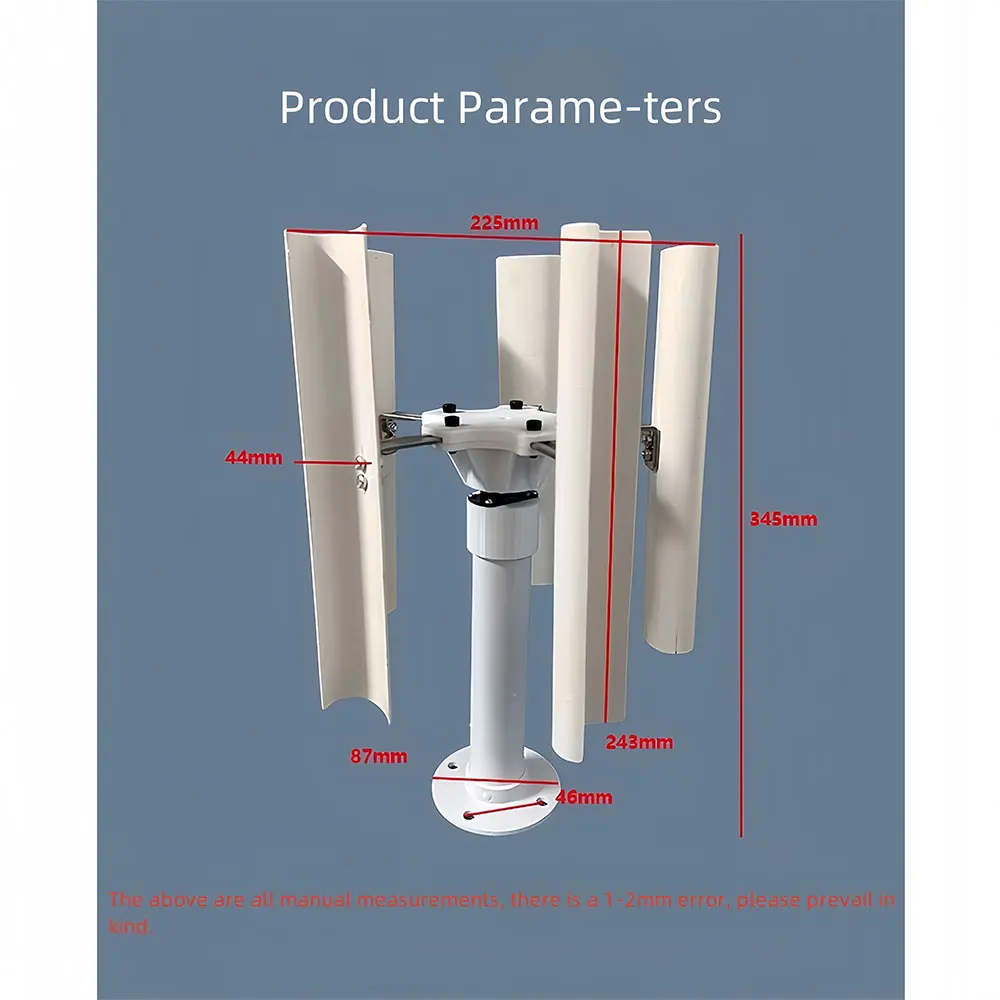

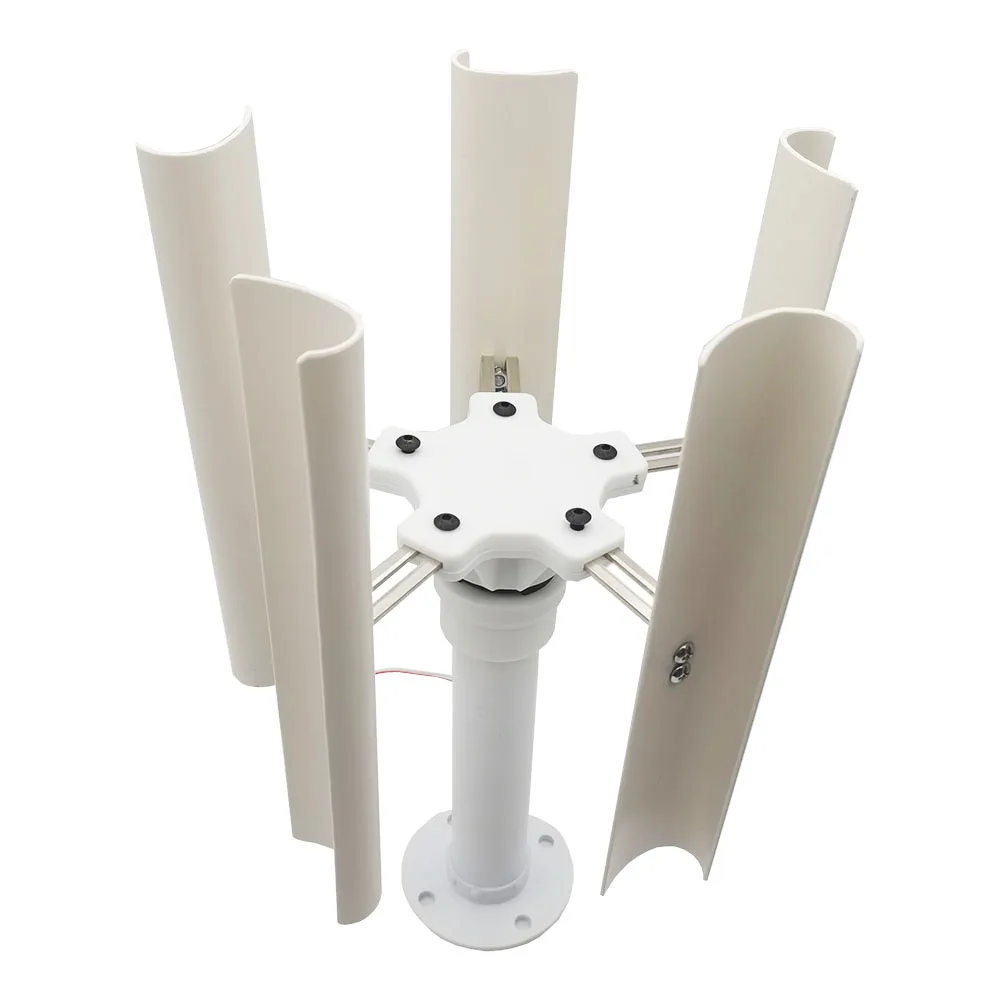

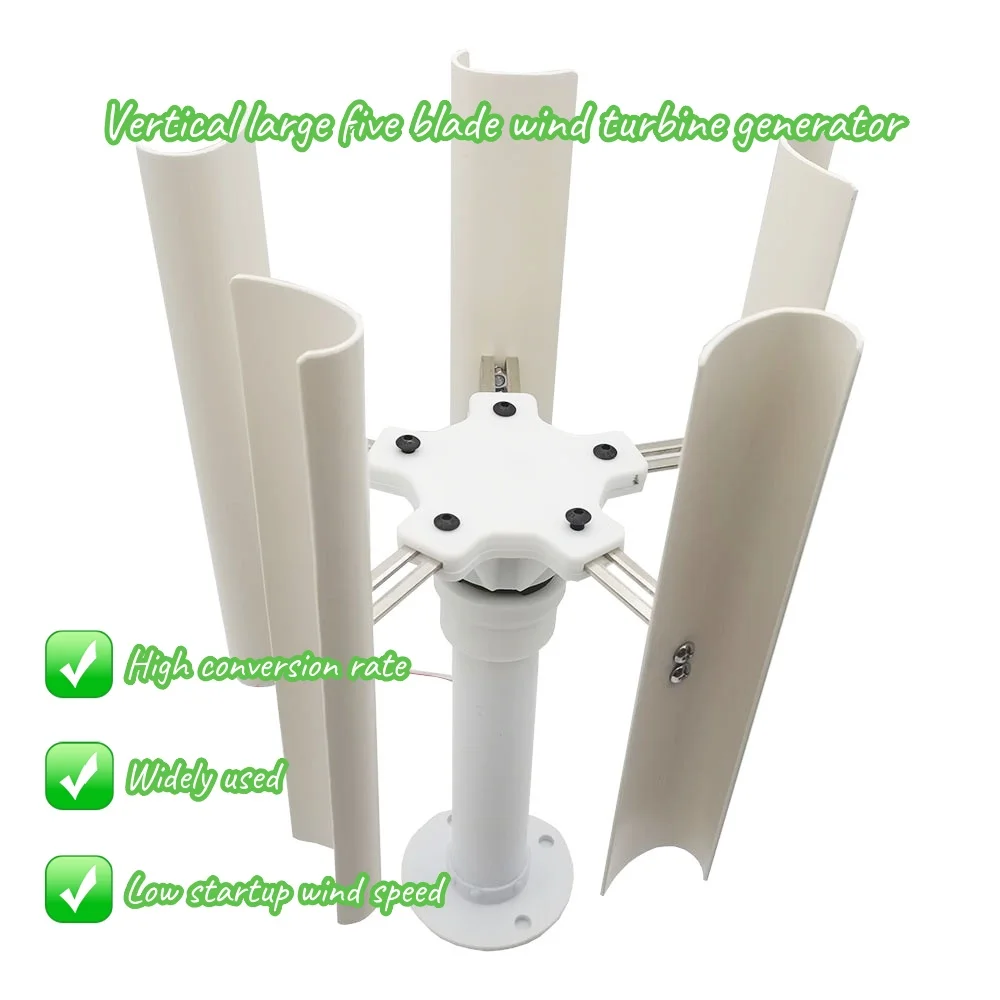

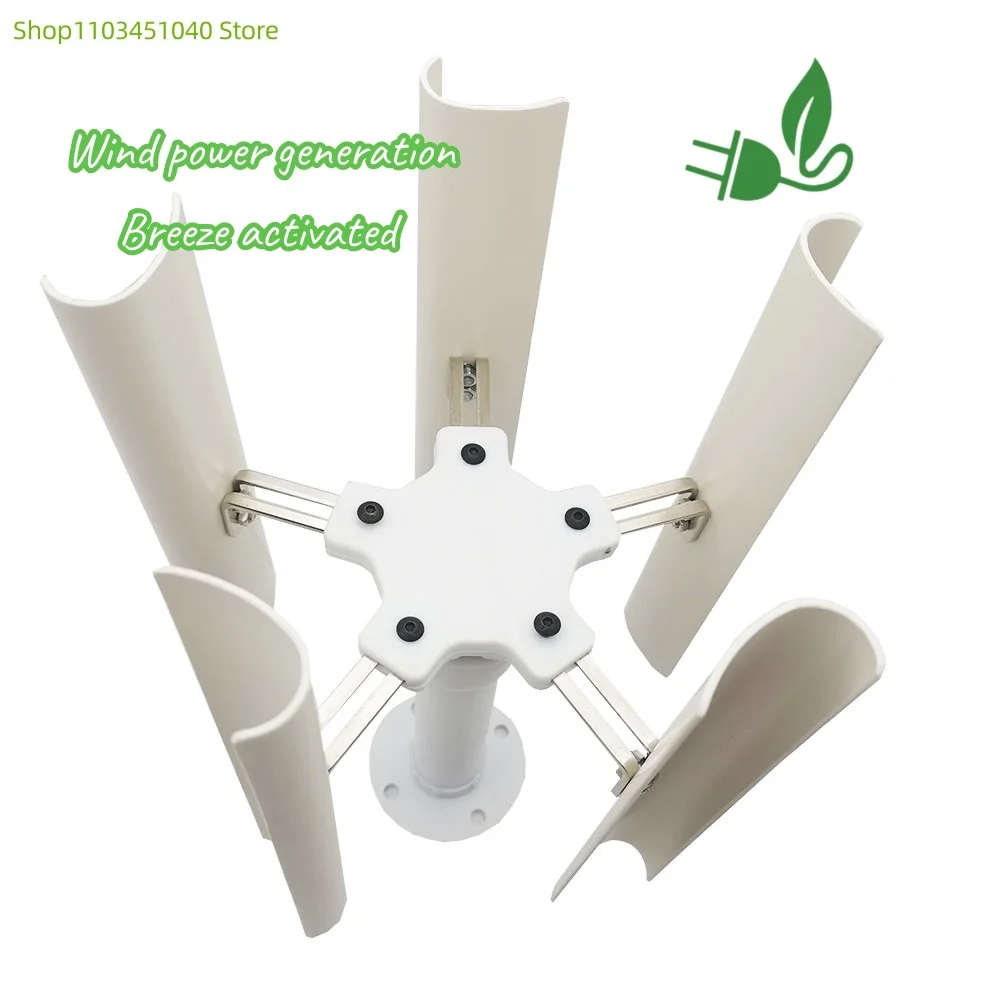

2. Vertical large five blade wind turbine

Parameters:

Product Name: Vertical Big Five Leaf Wind Turbine

Power: 20W

Current: 0.1-2 amperes

Voltage: 1-12V

Number of leaves: 5 pieces

Specification: 345 * 225 * 87mm

Color: White PCV White

Weight: 780G

Three level wind can start

Product advantages

1. Simple structure: composed of a vertical rotor and a base. In contrast, horizontal wind turbines require more complex structures such as blades, towers, gearboxes, etc.

2. Easy installation: Due to the simple structure of vertical wind turbines, installation is very convenient,

3. Strong adaptability: Vertical wind turbines can adapt to different wind speeds and directions. Due to its structure, vertical wind turbines do not require a steering mechanism and can automatically adjust direction, working normally in both low-speed and high-speed winds.

4. High efficiency and energy saving: No additional electricity is required to generate a magnetic field, resulting in low losses and high efficiency, suitable for various application scenarios.

5: High reliability. Due to the elimination of the electric brush and collector ring structure, the reliability of the permanent magnet generator is improved, reducing maintenance and malfunctions.

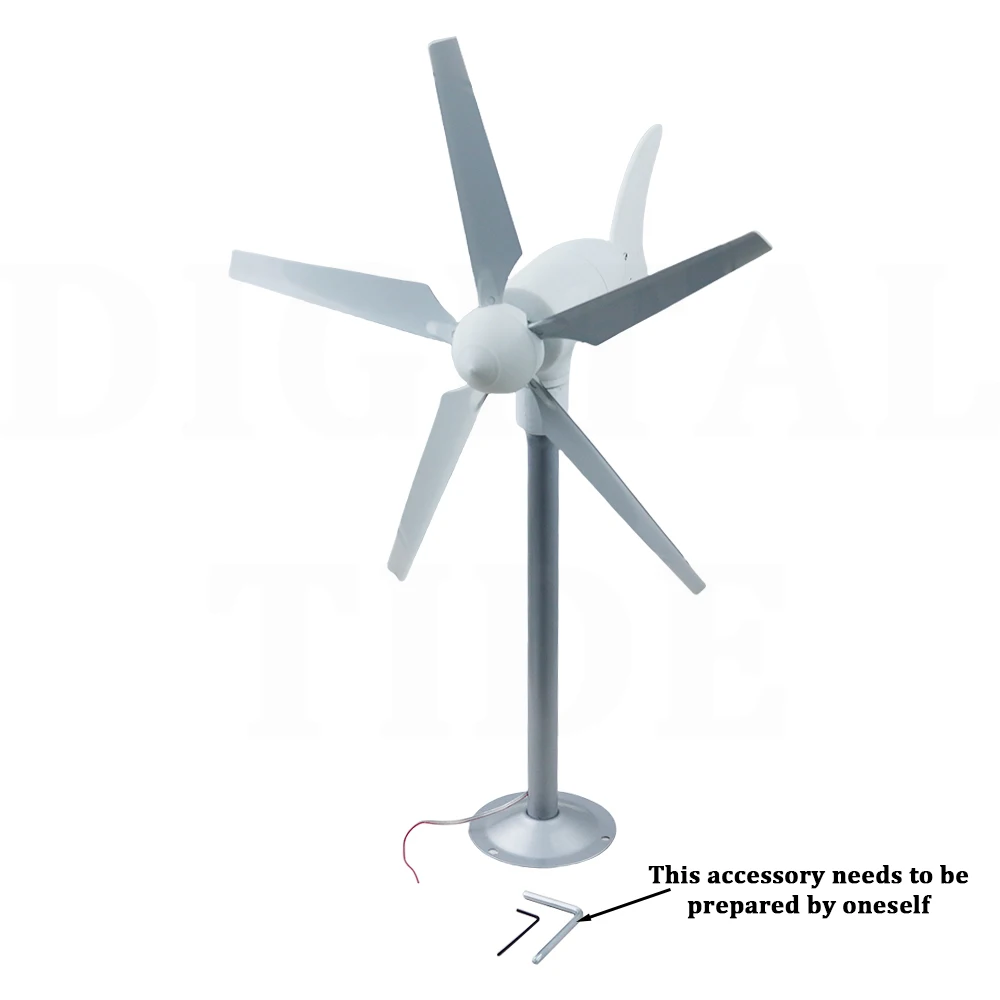

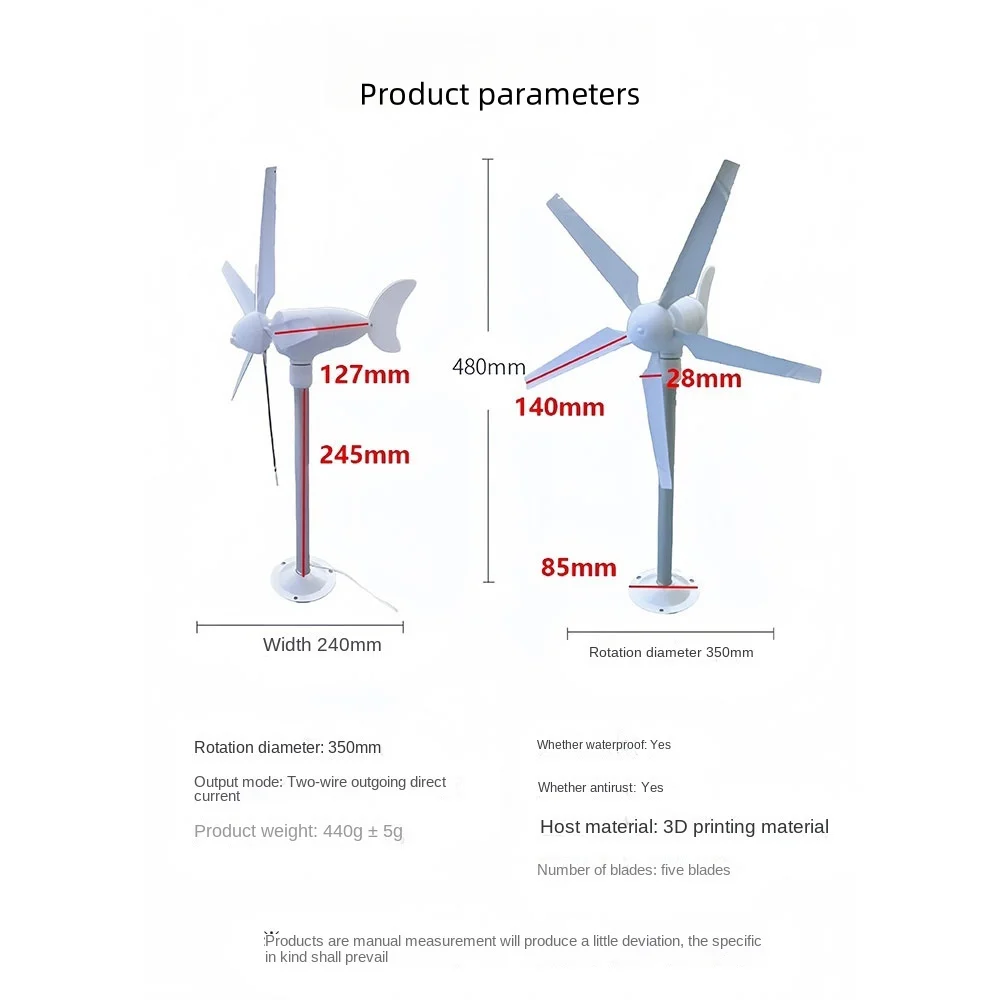

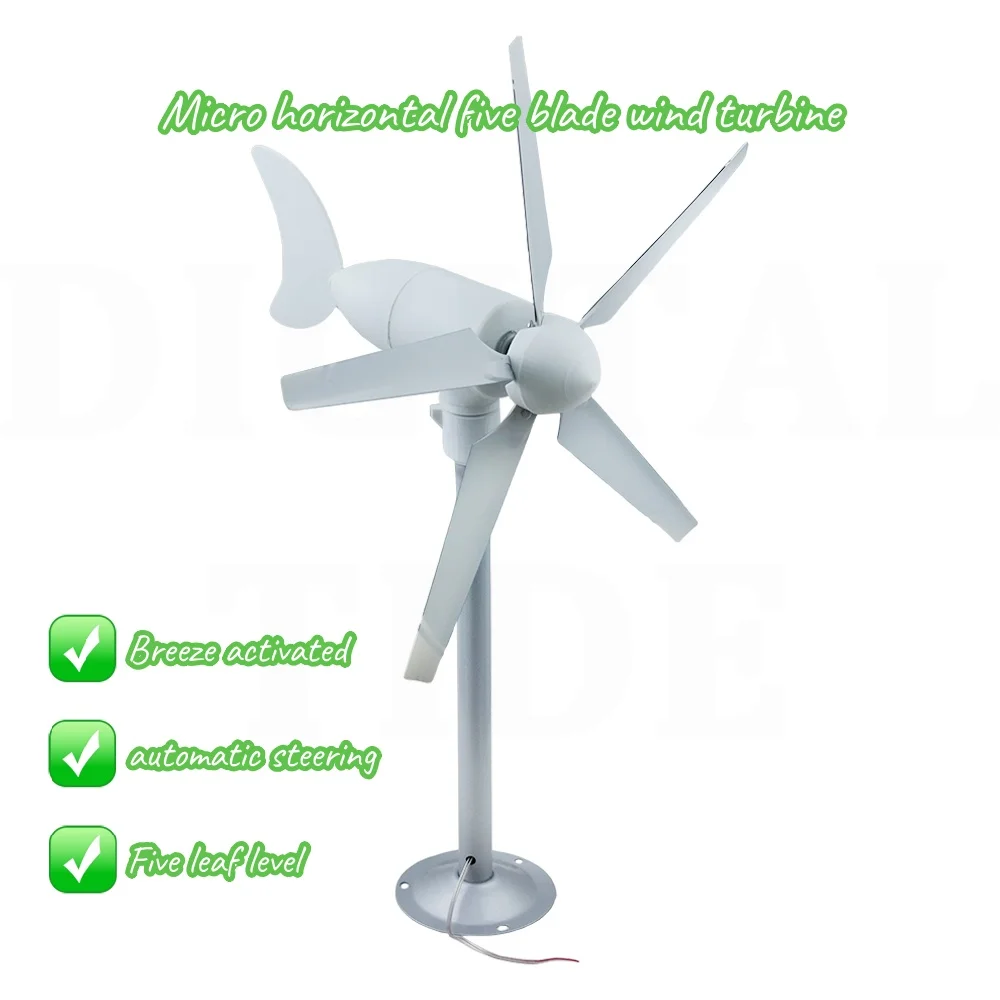

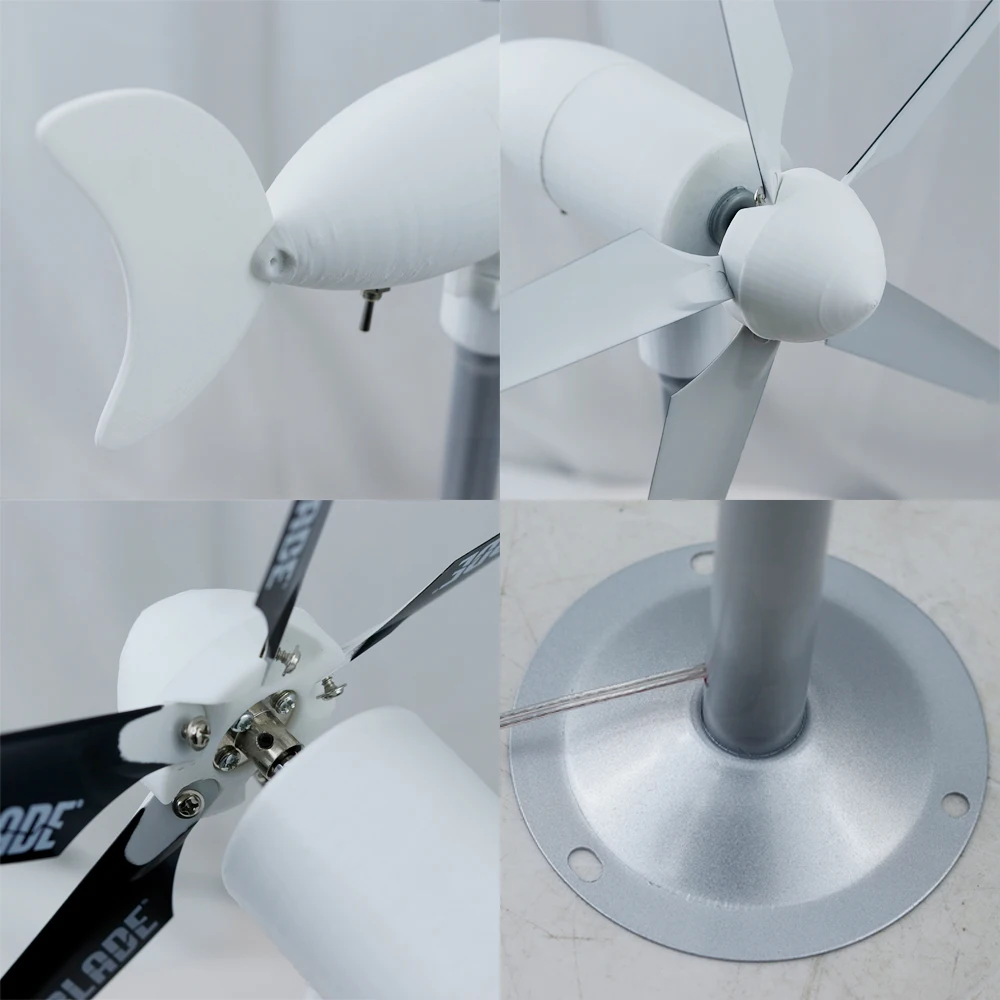

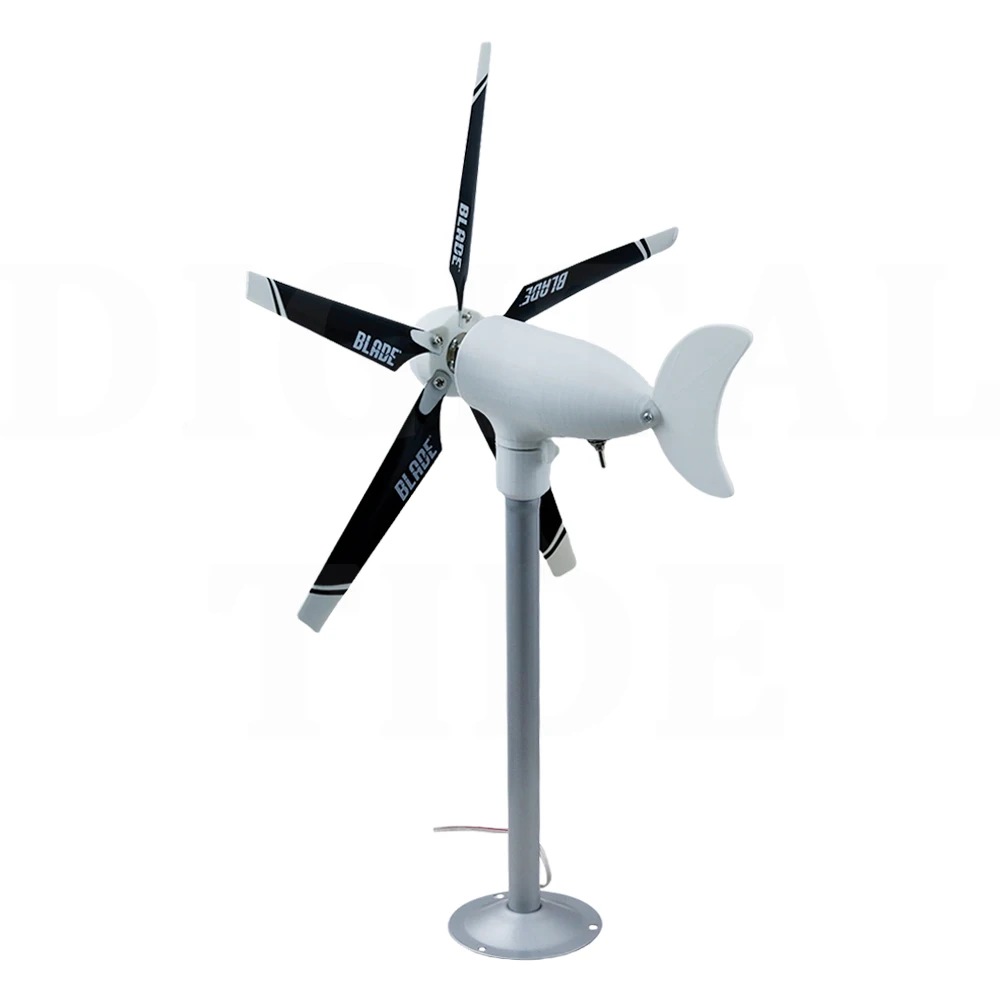

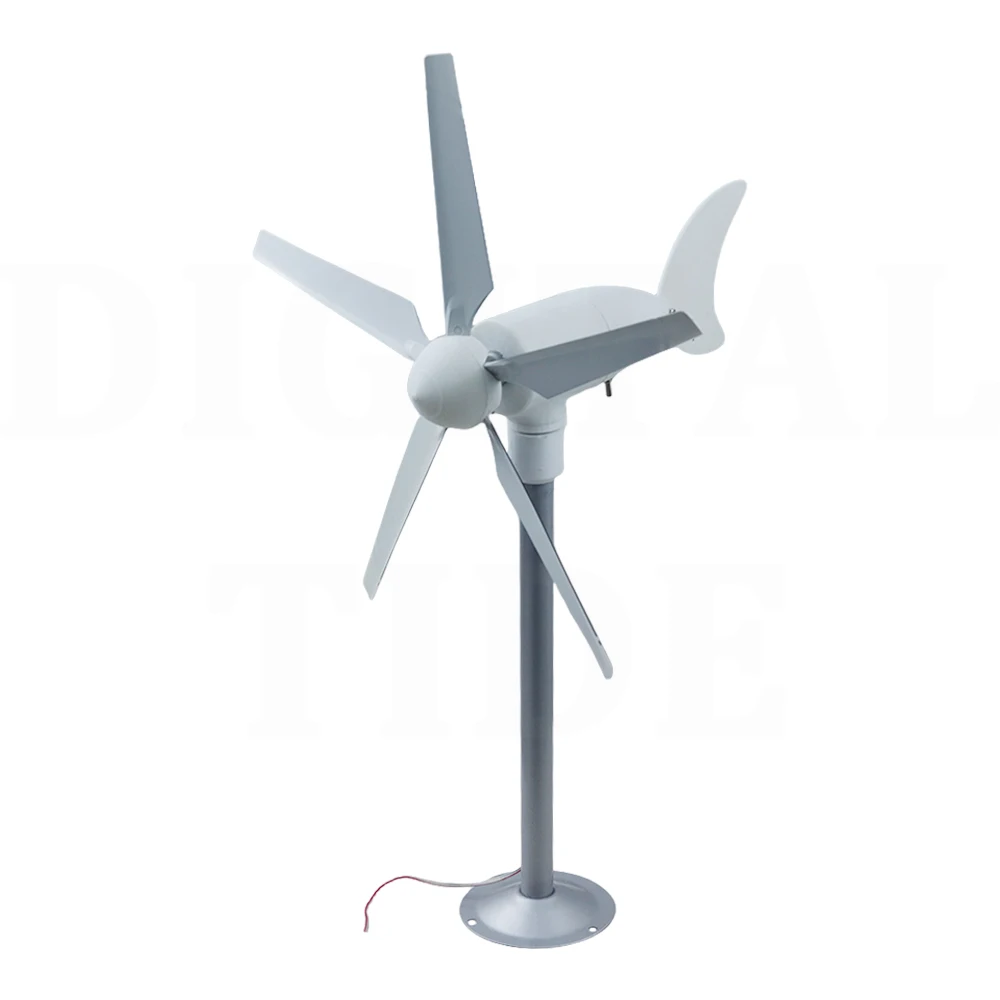

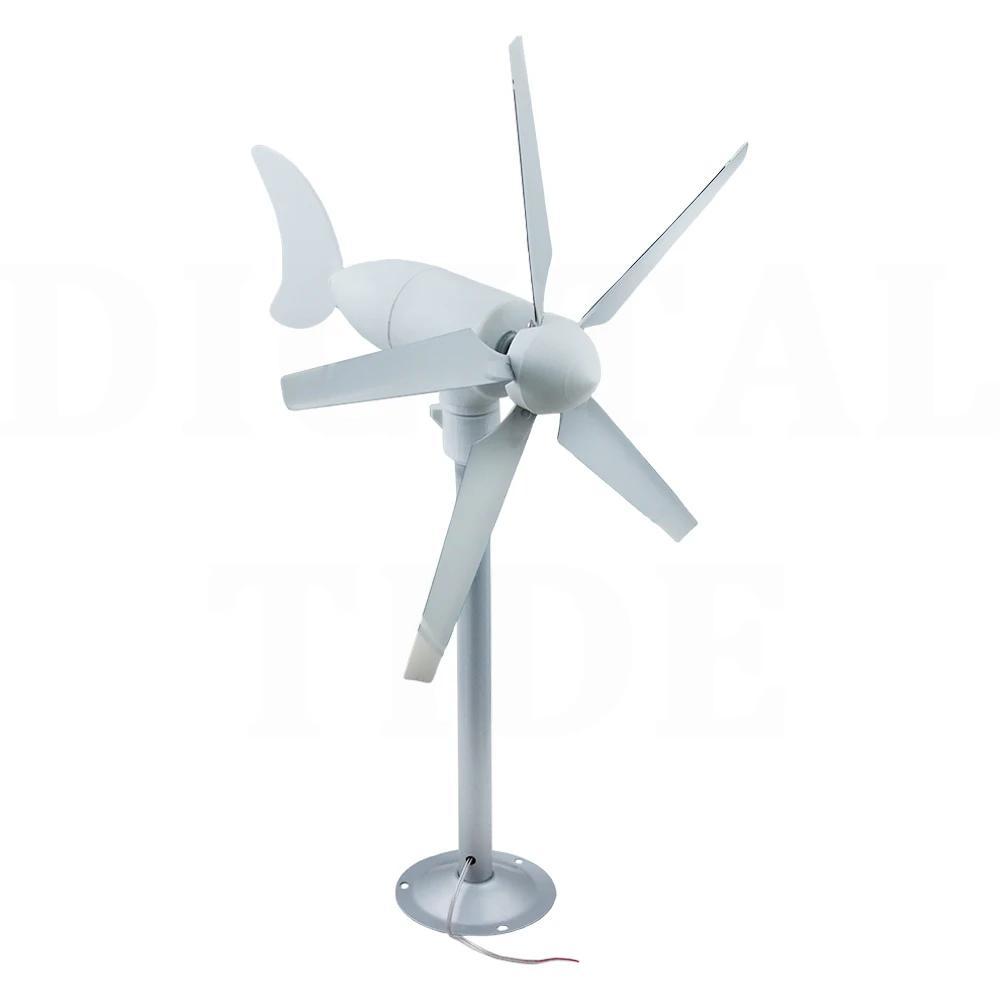

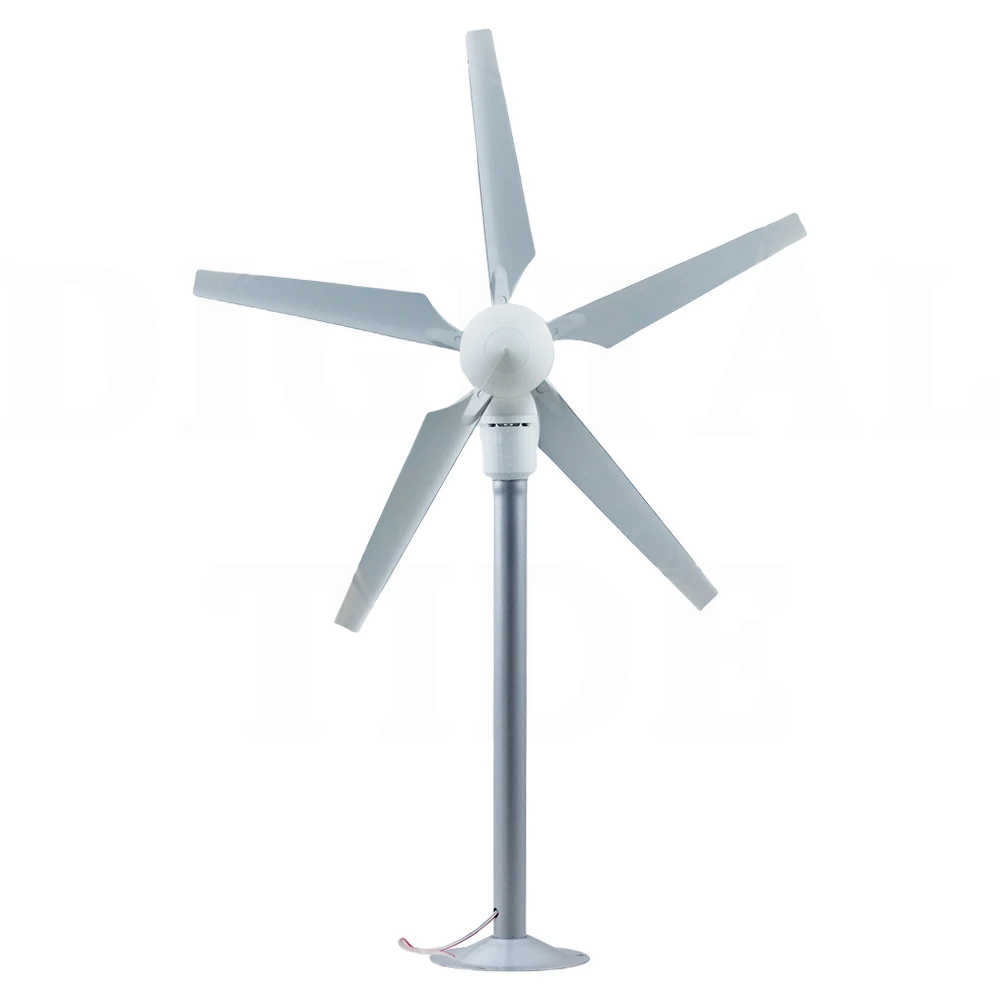

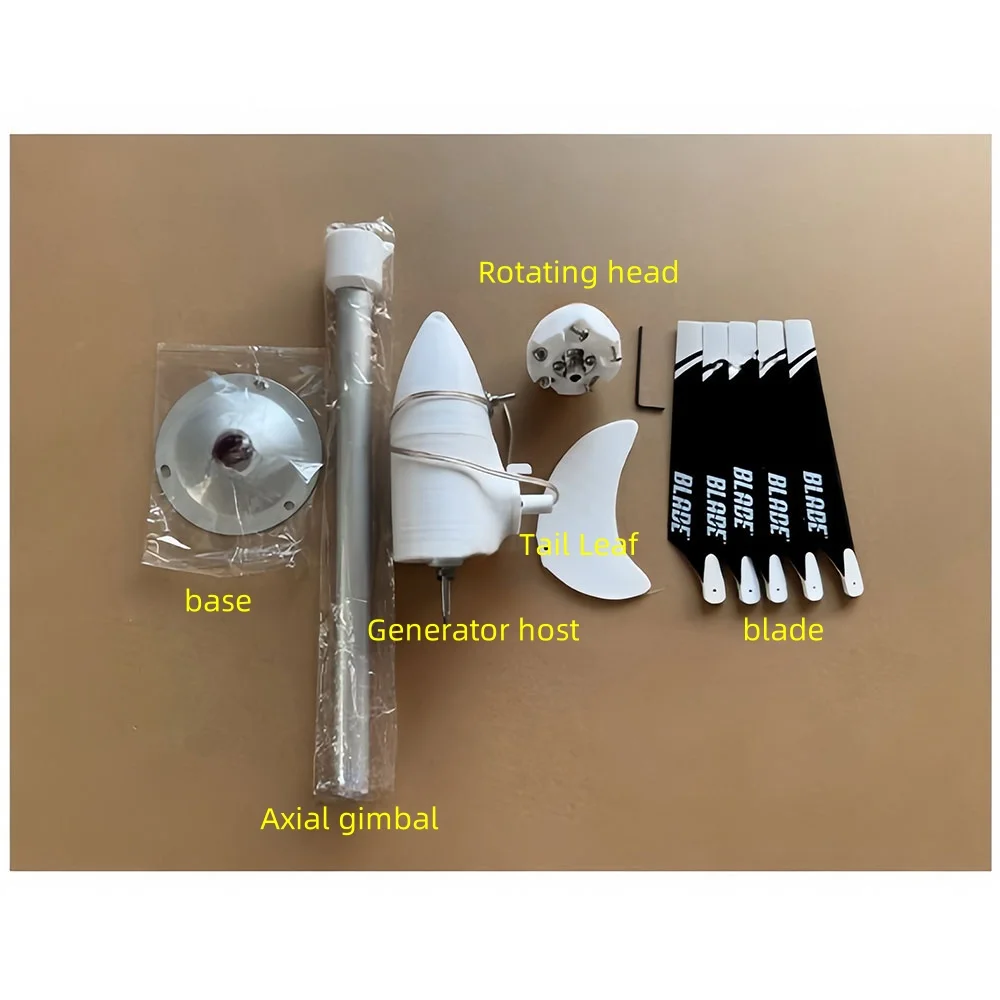

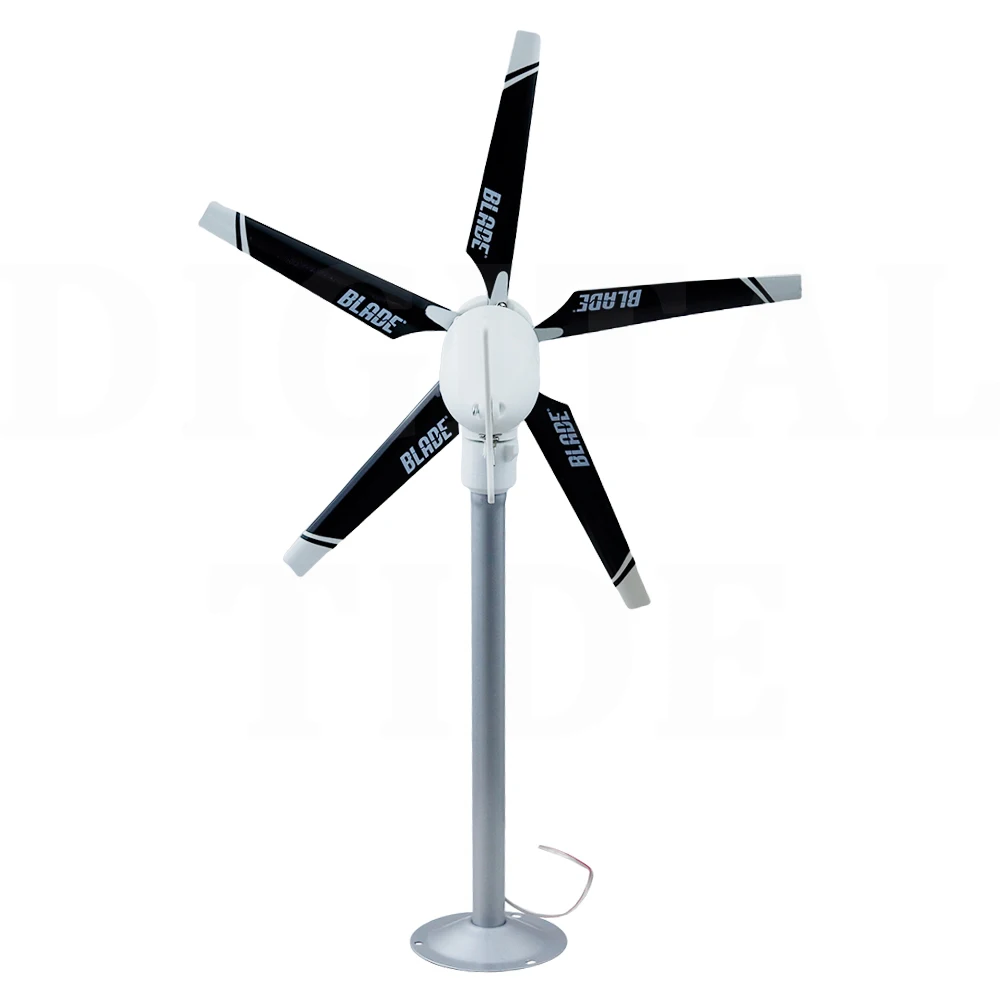

3. New 5-blade micro wind turbine

Parameters:

Product Name: New Miniature Horizontal Five Leaf Wind Turbine

Rated power: 20W

Product voltage: 1-20V

Rotation diameter: 350mm

Output mode: Two line outgoing DC

Host material: 3D printed material is used

Number of blades: Five blades

Material: Environmentally friendly printing and aluminum alloy

Specification: 480 * 240 * 85mm

Product weight: 440g ± 5g

Electricity can be generated wherever there is wind

The product is equipped with a built-in rectification and filtering module, which outputs direct current. Two wire output, connected to LED, just gently push the fan blade to light up.
