Description
- Hign-concerned Chemical: None
- Brand Name: Vieruodis
- Origin: Mainland China
- Place of Origin: Guangdong, China

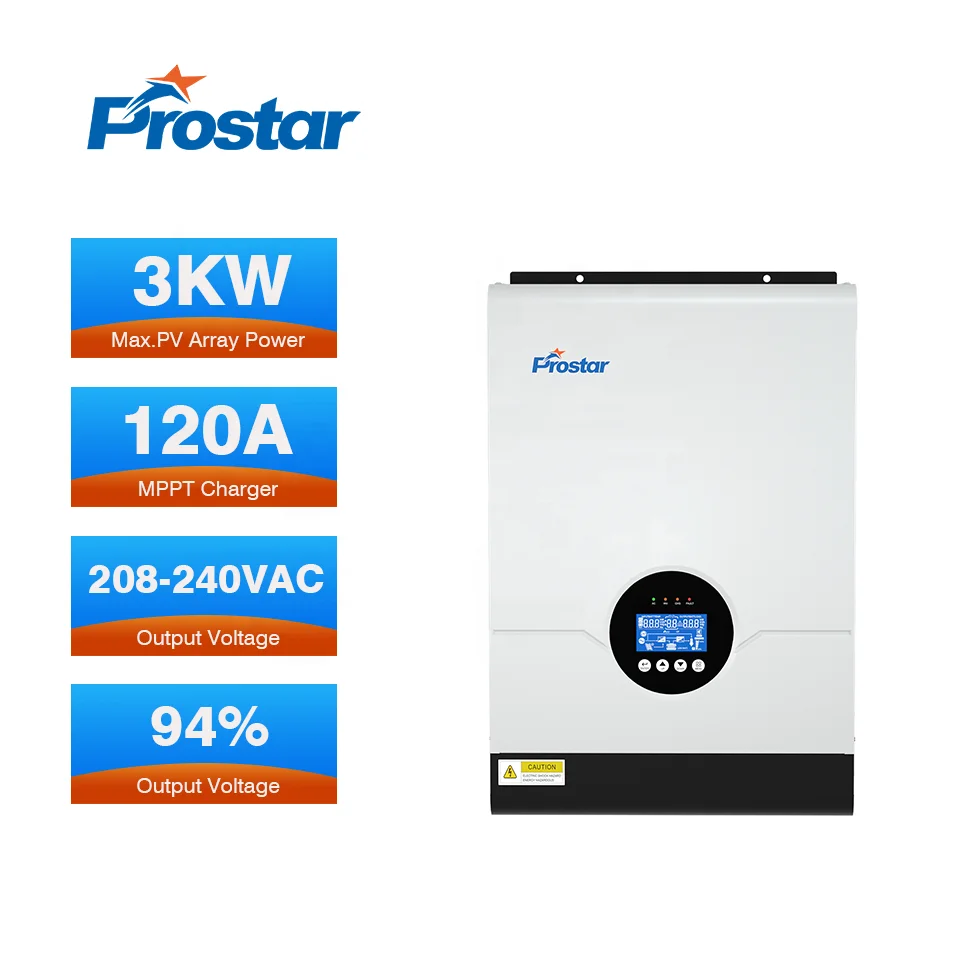

- Model Number: PIS3K
- Brand Name: Prostar
- Input Voltage: 220/230/240VAC
- Output Voltage: 220/230/240VAC
- Output Frequency: 50Hz/60Hz
- Output Type: Single Phase

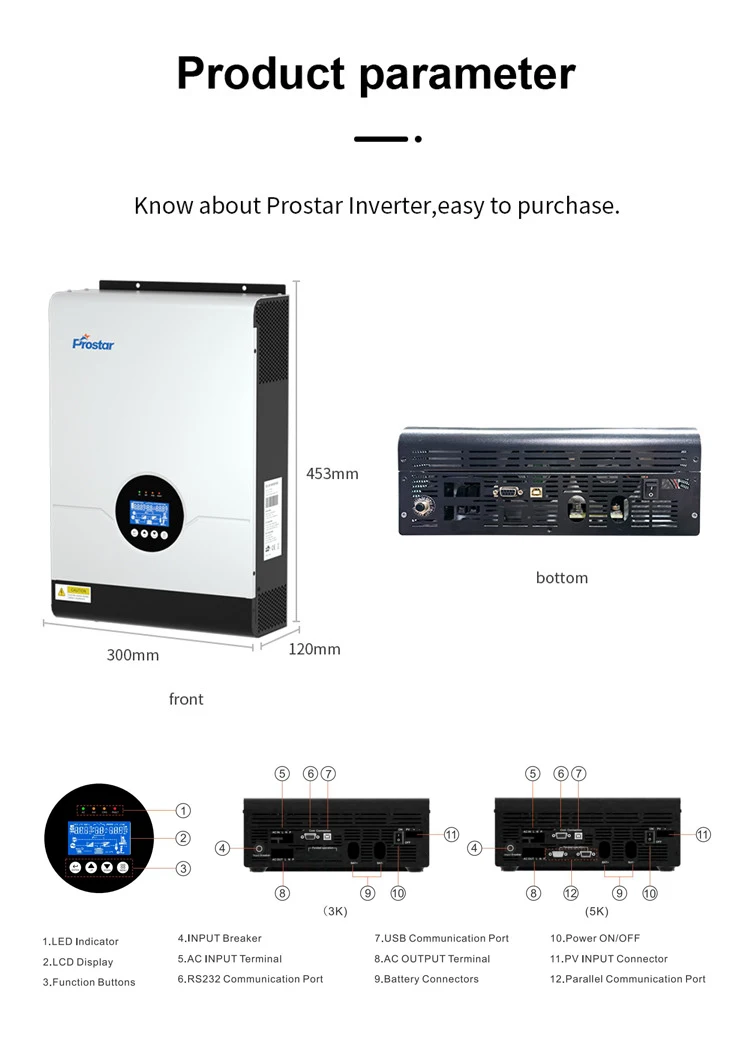

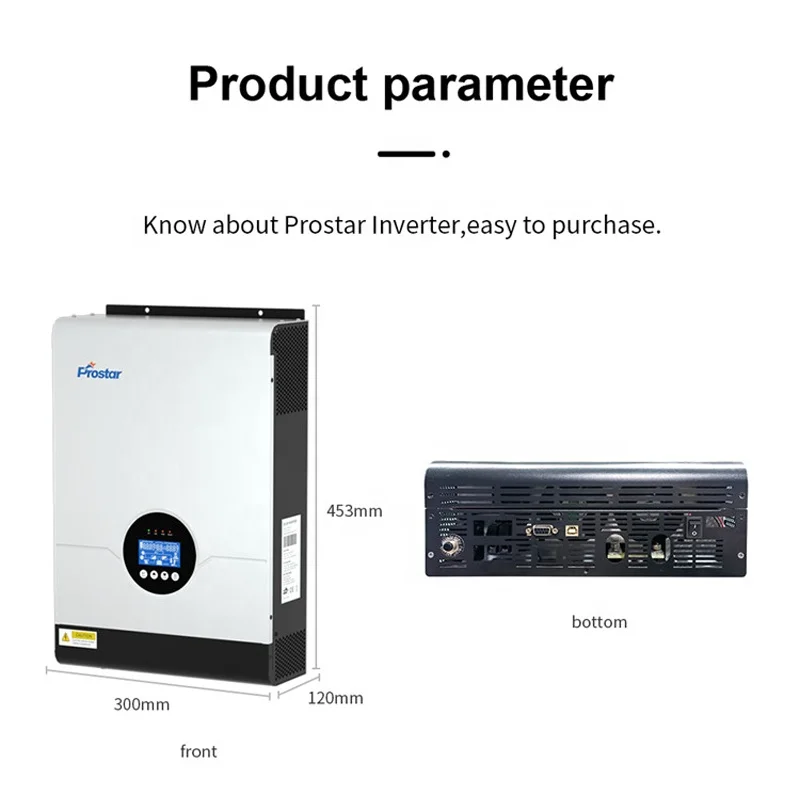

- Size: 120x300x453mm
- Type: DC/AC Inverters
- Inverter Efficiency: 94%
- Weight: 6.5KG

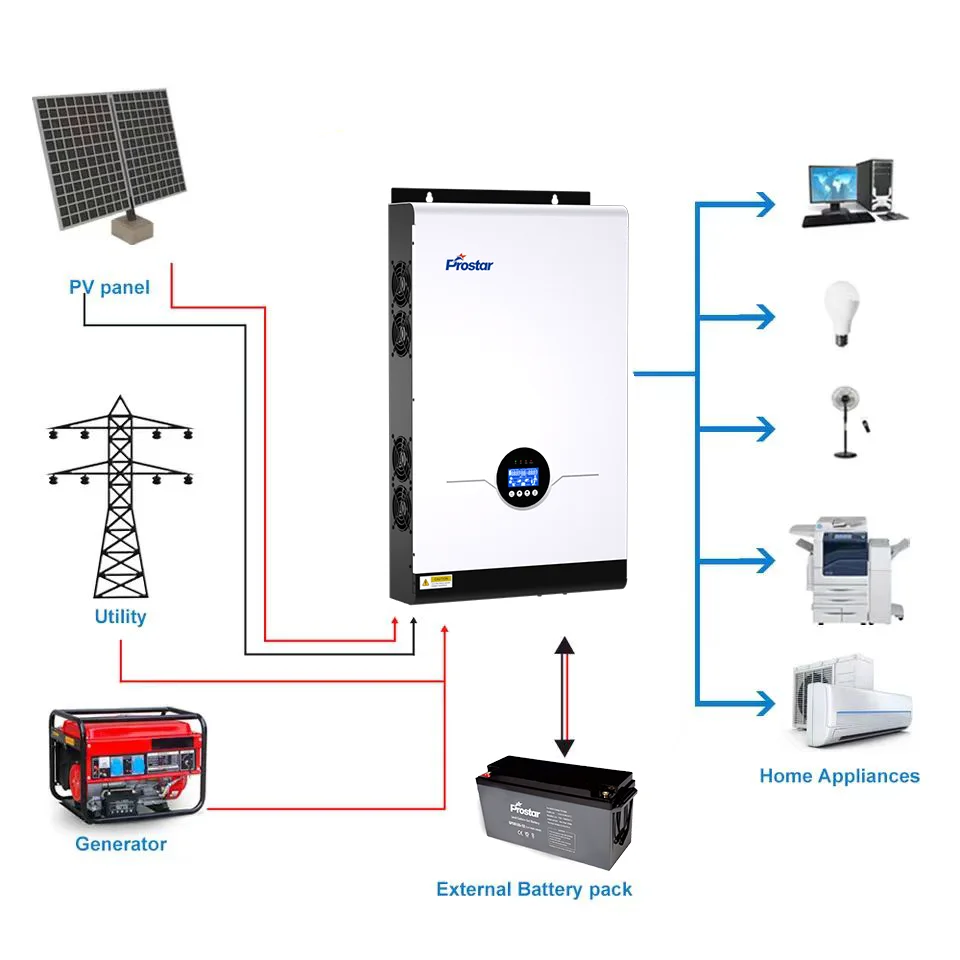

- Product name: Off Grid Solar Inverter
- Wave Form: Pure Sinve Wave
- Battery Voltage: 24VDC
- Transfer Time: 10ms
- Maximum PV Array Power: 3500W
- MPPT Range @ Operating Voltage: 120VDC-430VDC
- Maximum PV Array Open Circuit Voltage: 450VDC
- Maximum Solar Charge Current: 60A
- Maximum AC Charge Current: 2A-60A(Adjustable)
- Maximum Charge Current: 80A
- Warranty: One Year
- Certificate: CE
|
Model
|
PIS3K
|
PIS5K
|
PIS10K
|
|||
|
PHASE
|
Single phase, L+N+PE
|
|
|
|||
|
RATED POWER
|
3000VA/3000W
|
5000VA/5000W
|
10KVA/10KW
|
|||
|
Dimension DxWxH(mm)
|
120x300x453
|
|
110x400x680
|
|||
|
Net Weight (kgs)
|
8.3
|
8.8
|
18.0
|
|||
|
INPUT
|
|
|
|
|||
|
Voltage
|
208VAC/220VAC/230VAC/240VAC
|
|
|
|||
|
Selectable Voltage Range
|
170-280 VAC(For Personal Comouters:90-280 VAC(For HomeAppliances
|
|
|
|||
|
Frequency Range
|
40Hz-70Hz
|
|
|
|||
|
Power Factor
|
≥0.99
|
|
|
|||
|
OUTPUT
|
|
|
|
|||
|
AC Voltage Regulation
|
208VAC/220VAC/230VAC/240VAC ± 5%
|
|
|
|||
|
Frequency
|
Line Mode: Synchronized range; Battery Mode:50Hz/60Hz±0.1%
|
|
|
|||
|
Surge Power
|
6000VA
|
10000VA
|
20000VA
|
|||
|
Harmonic Distortion
|
≤3%(Linear Load).s5%(Non-linear Load)
|
|
|
|||
|
Efficiency (Peak)
|
94%
|
|
|
|||
|
Transfer Time
|
10ms (For Personal Computers:10ms (For Home Appliances)
|
|
|
|||
|

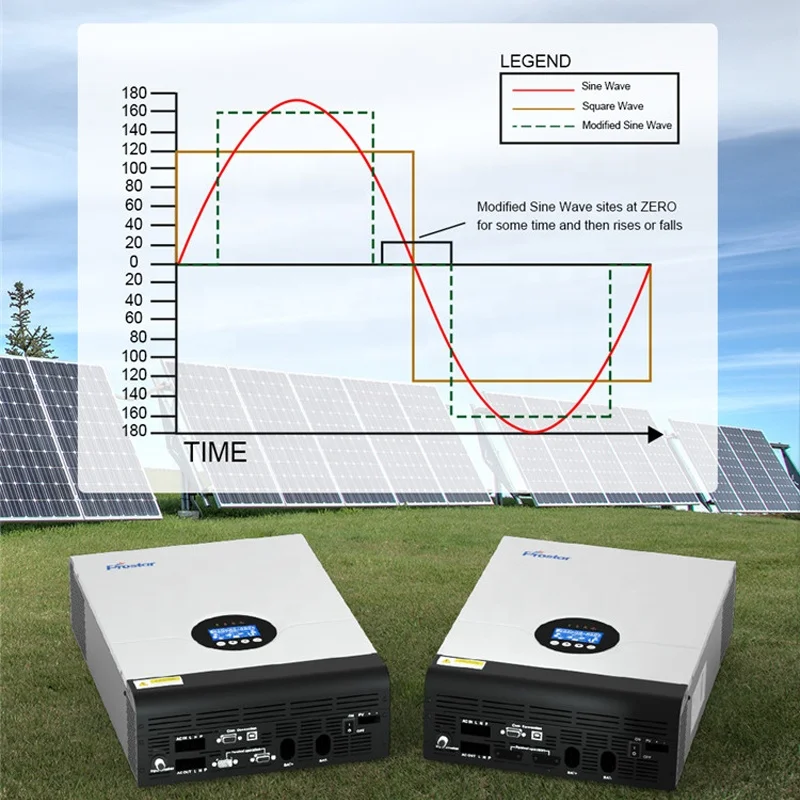

Waveform
|
Pure sine wave
|
|
|
|||
|
Overload Capacity
|
1min @102%~110% Load
10s @110%-130%Load
3s @130%~150% Load
200ms @>150% Load
|
|
|
|||
|
BATTERY
|
|
|
|
|||
|
Battery Voltage
|
24VDC
|
48 VDC
|
|
|||
|
Floating Charge Voltage
|
27VDC
|
54VDC
|
|
|||
|
Overcharge Protection
|
31VDC
|
62 VDC
|
|
|||
|
Charging Mode
|
Two stage(CC/Float)/Three stage(CC/CV/Float)/PVCharging [settable]
|
|
|
|||
|
SOLAR CHARGER & AC CHARGER
|
|
|
|
|||
|
Maximum PV Array Power
|
3800W
|
5500W
|
11000W
|
|||
|
MPPT Range @OperatingVoltage
|
120VDC-430VDC
|
|
|
|||
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|
|
|||
|
Maximum Ac Charge Current
|
120A
|
80A
|
160A
|
|||
|
Maximum Ac Charge Current
|
2A-120A(Adjustable)
|
2A-80A(Adjustable)
|
2A-160A(Adjustable)
|
|||
|
Maximum Charge Current (AC+ PV)
|
120A
|
80A
|
160A
|
|||
|
SYSTEM
|
|
|
|
|||
|

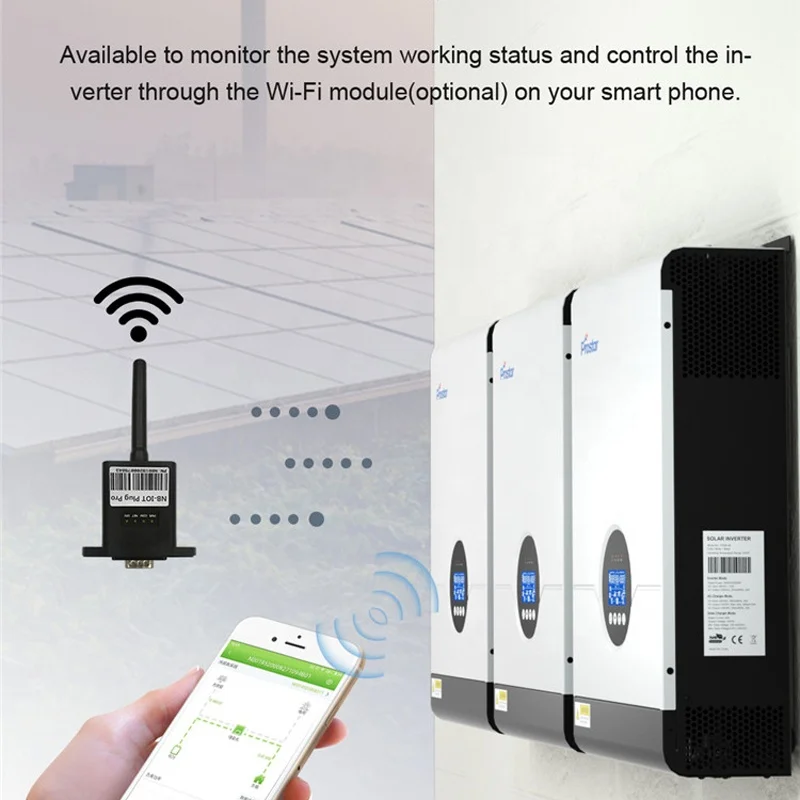

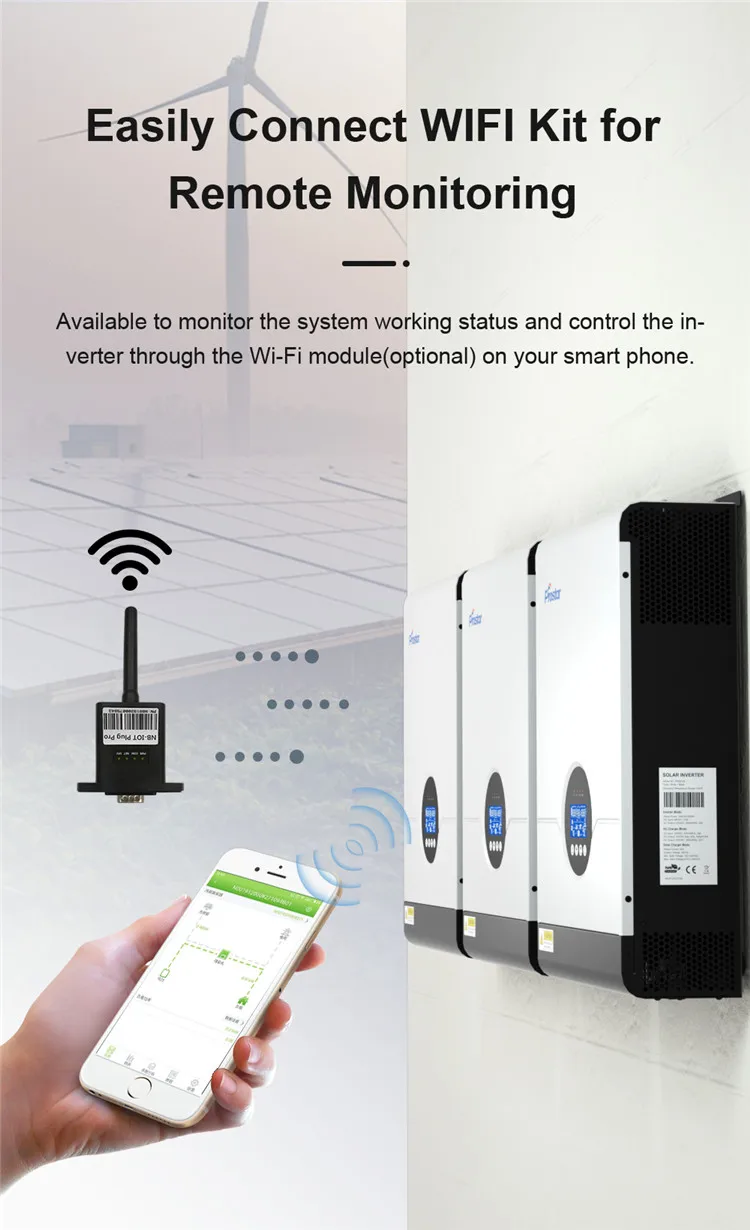

Communication Interface
|
USB,RS232
|
|
|
|||
|
Standby Power
|
＜35W
|
＜70W
|
|
|||
|
OPERATINGENVIRONMENT
|
|
|
|
|||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
|||
|
Operating Temperature
|
0°C to 40°C
|
|
|
|||
|
Storage Temperature
|
-15°C to 60°C
|
|
|
|||

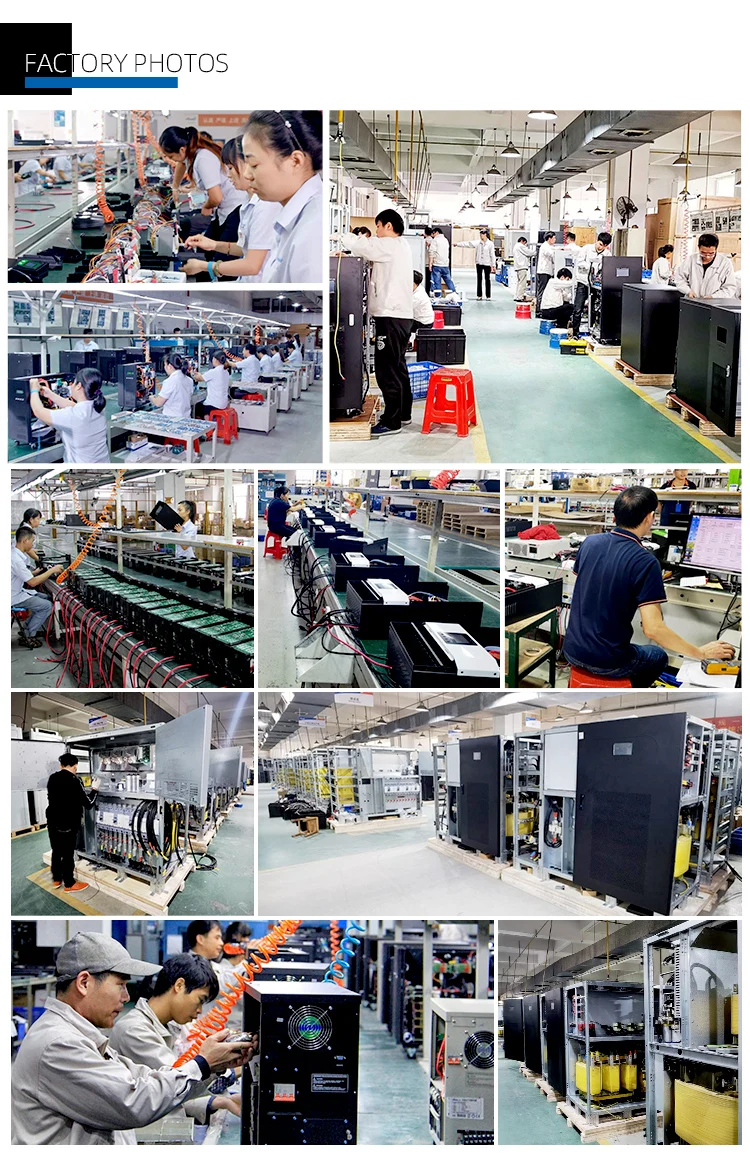

Q1:How long does it take for delivery after I place an order? A1:Sample orders are shipped within 7 days. Customized bulk items are shipped in about 25 days. Q2:Do your products have any certifications? A2: Our products have passed ISO9001:200, CE, RoHS certifications, and received IQNET certification. Q3: What are your payment methods and logistics? A3:Payment: We accept T/T, Western Union, Letter of Credit for shipment. Samples are shipped by express, such as DHL, Fedex, etc. Q4:What is the MOQ? A4:Most of the products start from 1 piece, unless there are special instructions. Q5:Are you a factory direct sales or trading company? A5:We are a 20+ years old industrial and trading company, factory low price sales, no other extra charges. Q6: How long is your warranty period? A6: The warranty period for general products is one year. Q7: What should I do if there are after-sales problems? A7: We are online 24 hours a day to solve your problems.
