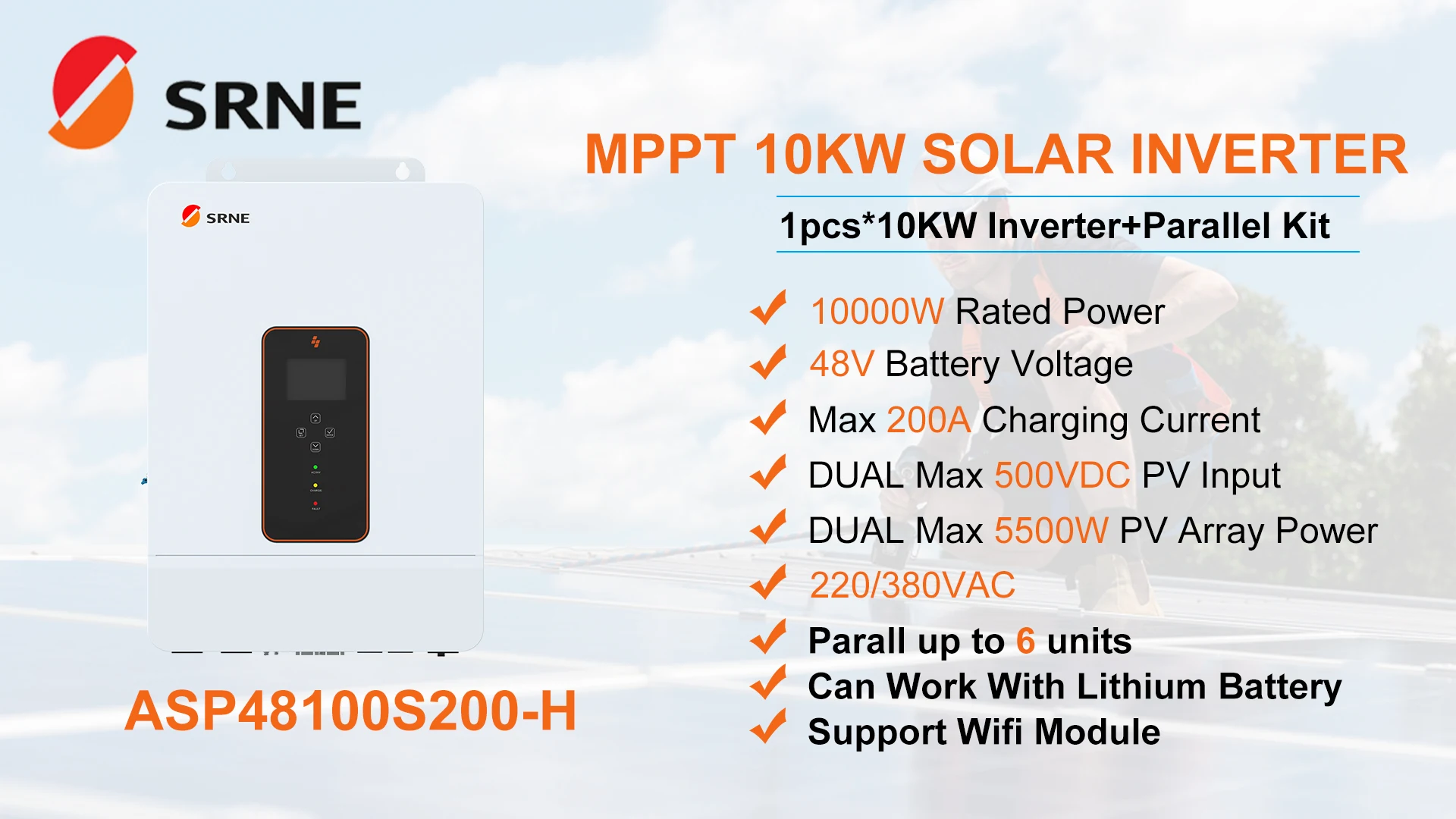

SRNE 10KW single/three Phase Inverter 48VDC To 230/380VAC Dual MPPT Max PV 500V Hybrid Solar Inverter Max Parallel 6 Units

Note :

        The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

Introduction：

         ASP series is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility

charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed,

reliability, and industrial standard through an advanced control algorithm.

Features:

• Supports lead acid battery and li-ion battery connections.

• With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply

access can trigger the activation of the li-ion battery.

• Supports single-phase parallel and parallel three-phase pure sine wave output.

• It has charging and discharging time sharing setting function.

• Stand-alone or parallel systems support 200, 208, 220, 230 and 240Vac voltage levels

• Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.

• Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.

• 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.

• With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.

• Energy saving mode function to reduce no-load energy losses.

• With two output modes of utility bypass and inverter output, with uninterrupted power supply function.

• LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.

• 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.

• Support CAN, USB, and RS485 communication.

• Off grid/On grid connected all-in-one machine.

Overview：

Sepecification：

Item Pictures：
