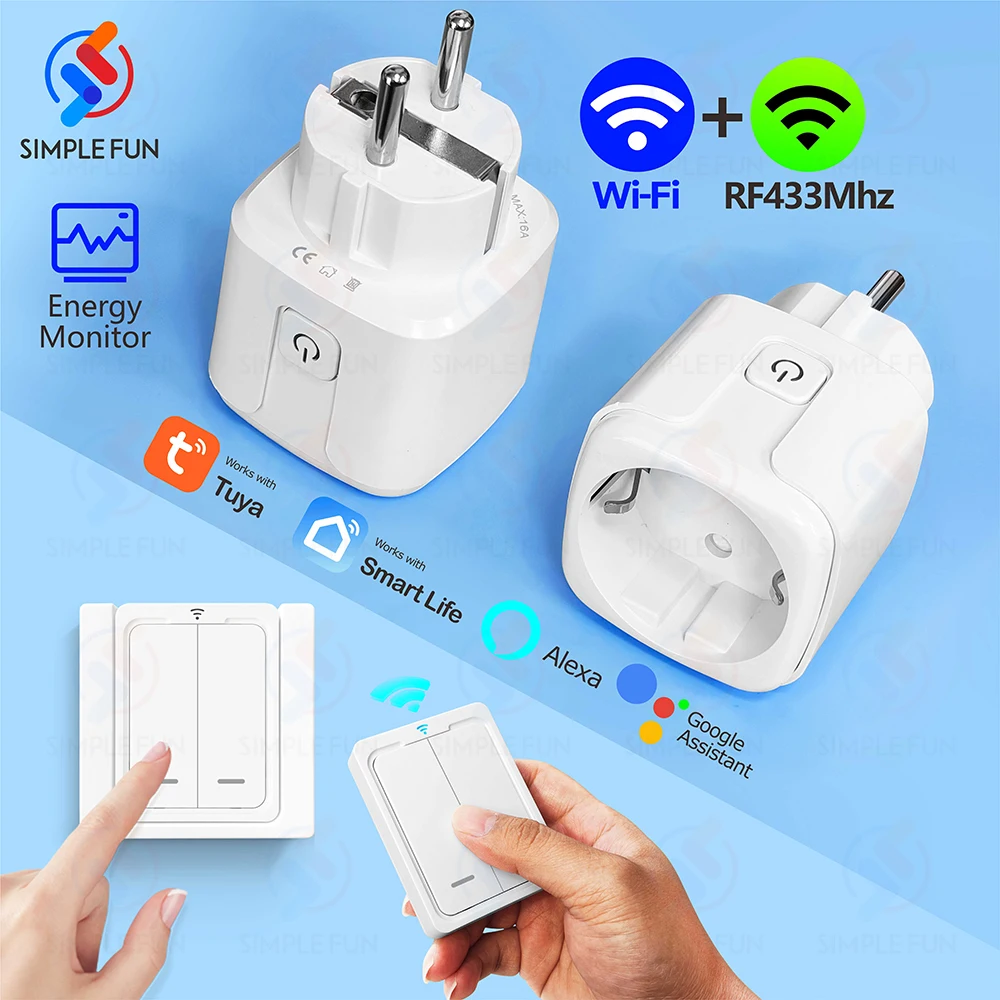

Tuya WiFi RF Smart Socket,16A 3300W Plug with Power Monitor/Power State Memory,Electrical Outlet work with Alexa Google Home
Support APP: Yes Frequency: 433 MHz Model Number: SocketWB03WiFi Wireless Communication: RF,WIFI Use: Air Conditioner,Universal,Lighting,SWITCH Brand Name: SLMPLEFUN Origin: Mainland China Certification: CE,FCC Control way: Tuya Smart life / RF / Voice Working voltage: AC 85-245 V 50/60HZ WiFi standard: 2.4GHz IEEE 802.11 b/g/n RF frequency: 433.92MHz Socket Size: 50*50*80 mm Max current: 16A Load Power: 3300W RF Signal Range: Up to 150m(theoretical distance) Controller terminal: L/N Shell: YES(PC material) Socket Feature1: 16A high […]
Description
- Support APP: Yes
- Frequency: 433 MHz
- Model Number: SocketWB03WiFi
- Wireless Communication: RF,WIFI
- Use: Air Conditioner,Universal,Lighting,SWITCH
- Brand Name: SLMPLEFUN
- Origin: Mainland China
- Certification: CE,FCC
- Control way: Tuya Smart life / RF / Voice
- Working voltage: AC 85-245 V 50/60HZ
- WiFi standard: 2.4GHz IEEE 802.11 b/g/n
- RF frequency: 433.92MHz
- Socket Size: 50*50*80 mm
- Max current: 16A
- Load Power: 3300W
- RF Signal Range: Up to 150m(theoretical distance)
- Controller terminal: L/N
- Shell: YES(PC material)
- Socket Feature1: 16A high power Safer to use
- Socket Feature2: Power monitor
- Socket Feature3: Suitable for EU and FR standard .
- Socket Feature4: Customize the initial state of on/off
- Color: White
- Wall Panel Switch: 86*86*17 mm
- Wall Panel Switch Battery: 2pcs CR2016(included)
- Wall Panel Switch Color: White
- Wall Switch Feature1: Comes with base
- Wall Switch Feature2: Panel can be magnetically attached to the base
- Amount of storage remote controls: About 30 pieces
- Modulation Mode: ASK superheterodyne wireless reception
- Application scenario: Family, Farm, Factory, Office, Supermarket
- Application2: Fan, Fish tank, Light, LED, Lamps, Pump, Water heater…
NOTE !!!
●Hello, friend, thank you for visiting our store.
In order to meet the needs of different customers, our purchase page has multiple options to choose, please buy according to your own needs, thank you.
Product Advantages
▶Various Control Methods
● APP Control
Control your plugs anytime anywhere with Tuya or Smartlife.
● Voice Control
Works with Alexa and Google Home Assistant.Conveniently control appliances via plug.
● RF433Mhz Remote Control.
You can control devices without a WiFi network, and one socket can be used with multiple of our wireless panel switches.
Control distance up to 150 meters (in open space).
● Timing Function(Timing/Schedule/Countdown)
Set a schedule via Tuya or Smartlife to automatically turn the plug on and off.
It can help you save on energy and electricity bills.
● Group Control
In the app, set all smart plugs in a group. Then one-click to turn on/off all of your appliances by smartphone.
▶ Power State Memory
The device can be configured in the application to continue to the state it was in before the power failure.

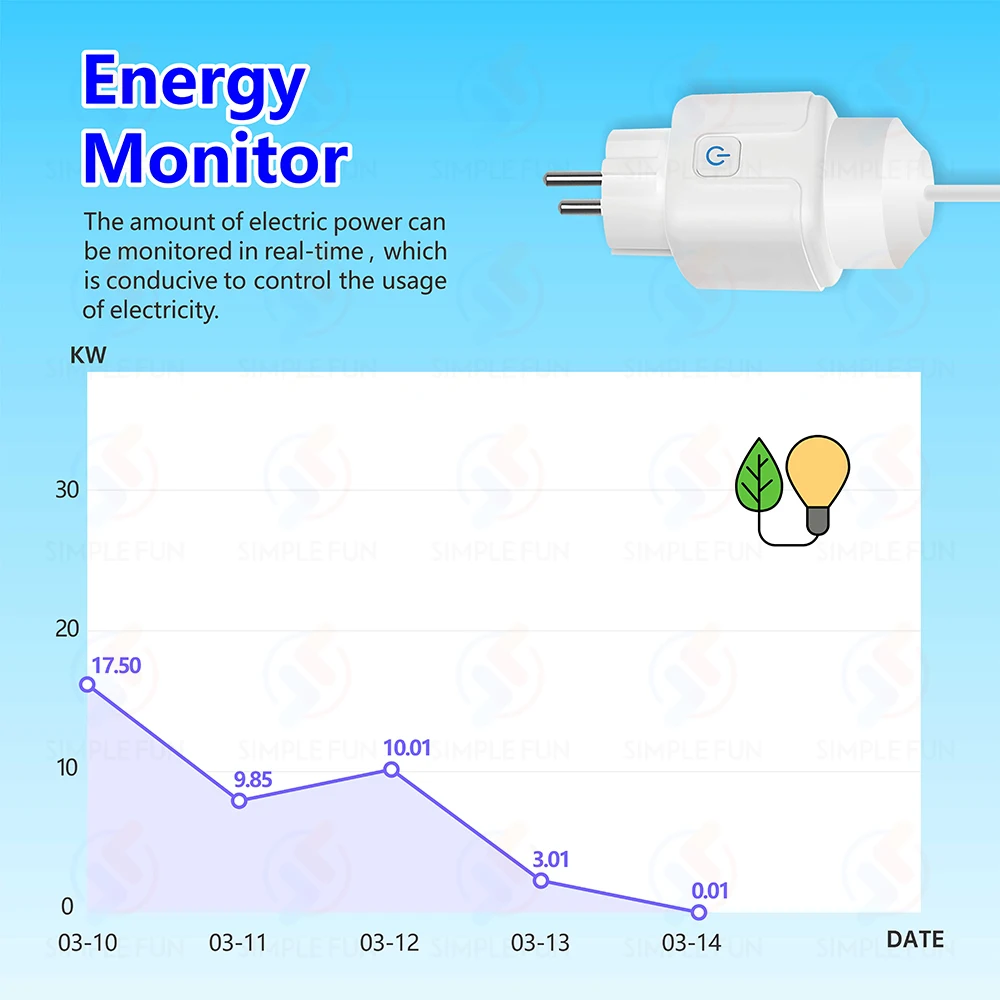

▶ Power Consumption Monitoring
The power can be monitored in real time, which is helpful for controlling power consumption.

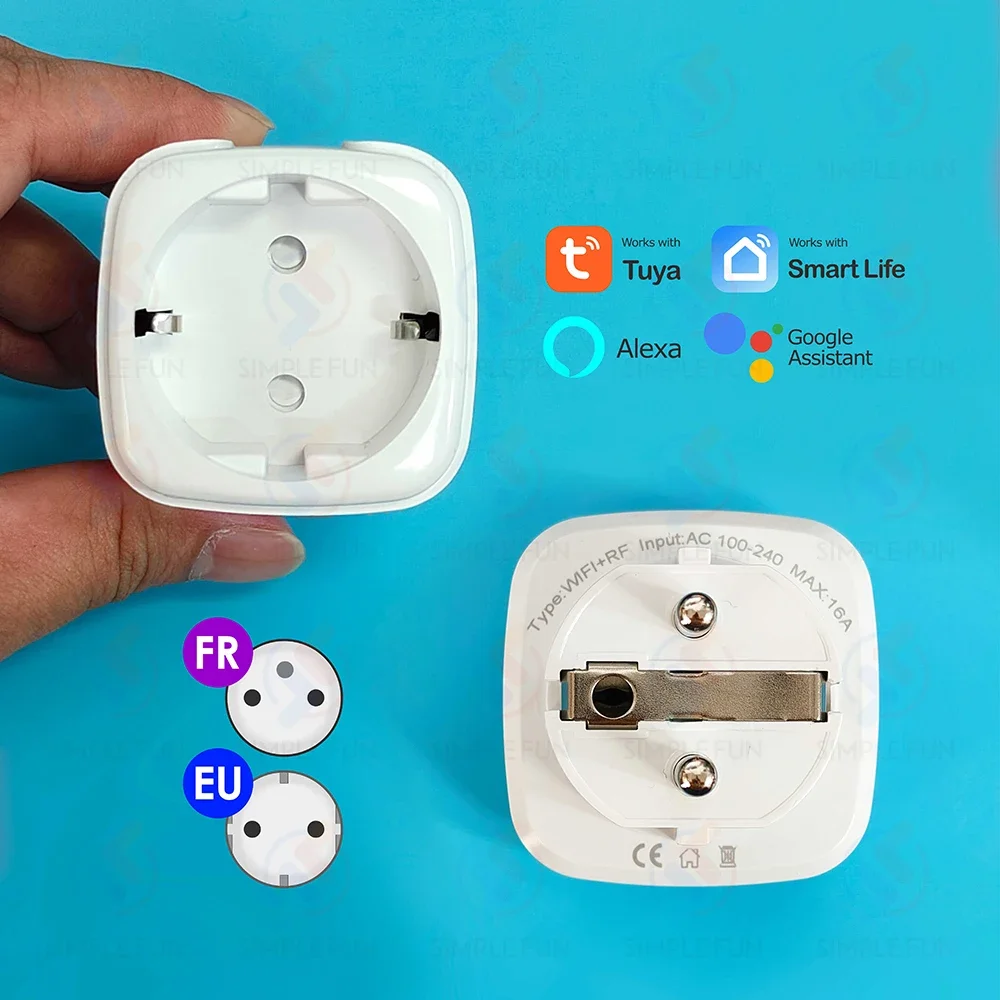

▶ 16A High Power
Meet the power of various household appliances, safer to use.
Suitable for EU standard and FR standard at the same time.
▶Wireless Panel Switch
●Magnetic separation design
The panel switch can be detached from the base and turned into a remote control, making it convenient for the elderly and children to use. The panel can be magnetically attached to the base or to a metal object, such as a refrigerator door. The base can be attached to the wall using double-sided tape (included) or screws (included).
●Low Power Consumption, Long Service Life
The panel switch key life is 100,000 times. The switch is very energy efficient. Using 2pcs CR2016 batteries (included), they can be used normally for more than 7000 times.
★Comprehensive after-sales and service
√ This product has passed CE and RoHS and FCC certification.
√ 1 year warranty or replacement commitment.
√ Our after-sales service team can provide the most professional solution to any of your problems.
▶Various Control Methods
● APP Control
● Voice Control
● RF433Mhz Remote Control.
You can control devices without a WiFi network, and one socket can be used with multiple of our wireless panel switches.
Control distance up to 150 meters (in open space).
● Timing Function(Timing/Schedule/Countdown)
Set a schedule via Tuya or Smartlife to automatically turn the plug on and off.
It can help you save on energy and electricity bills.
● Group Control
In the app, set all smart plugs in a group. Then one-click to turn on/off all of your appliances by smartphone.
● Sharing Control
The main account has exclusive permissions, which can be shared with the whole family with one click, so that the family can enjoy a convenient and funny life!
Power State Memory
The device can be configured in the application to continue to the state it was in before the power failure.
Power Consumption Monitoring
The power can be monitored in real time, which is helpful for controlling power consumption.
16A High Power
Meet the power of various household appliances, safer to use.
Suitable for EU standard and FR standard at the same time.
Wireless Panel Switch
●Magnetic separation design
The panel switch can be detached from the base and turned into a remote control, making it convenient for the elderly and children to use. The panel can be magnetically attached to the base or to a metal object, such as a refrigerator door. The base can be attached to the wall using double-sided tape (included) or screws (included).
●Low Power Consumption, Long Service Life
The panel switch key life is 100,000 times. The switch is very energy efficient. Using 2pcs CR2016 batteries (included), they can be used normally for more than 7000 times.
How to connect with smart phone:
Before connect with your phone,you need to make sure the wiring is ok.
1: Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it;
2: Open the phone WIFI and Bluetooth;
3: Press the button on switch until the indicator light flash.
4: Open "Smart Life or Tuya Smart App",
Then you can see the following APP interface to connect the phone:
How to match the wireless panel switch
▶Description:
●Toggle mode:Pressing a button on the panel switch turns the device on, pressing the same button again turns the device off.
▶Clear date:
Press the learning button 8 times . success.
▶Data matching:
●Toggle mode:
1. Press the learning button 2 times ,the indicator light will flash, then release your hand.
2. Press a button on the remote control 1 time, success.
How to match Amazon Alexa
1. Modify device name so your Amazon Alexa can easily recognize the name. For Example: Living Room Lamp, Bedroom Light.
2. Use Alexa App or Computer to set up your Amazon Alexa.
3. Select ‘Skills’ and search for ‘Smart Life’ on Menu. Enable Skill and type in your login info to link the account
4. Ask Alexa to discover devices. Then you can control your devices by voice.
Parameter
▶RF433mhz Wireless Control Socket
WiFi type: 2.4GHZ 802.11b/g/n
Network security level: WPA/WPA
Max current : 16A
Max load : 3300W
RF frequency : 433MHz
Working temperature : -30~+80
Receiving Sensitivity : more than 97dbm
Amount of storage remote controls : about 30 pieces
Support encoding : 1527 Leaning code
Size :50*50*80mm
Standby power consumption:less than 0.7W
Housing: ABS+PC fireproof materia



▶RF433mhz Wireless Panel Switch
Feature:Panel can be magnetically attached to the base
Support encoding : 1527 Leaning code
RF frequency : 433MHz
Size: 86*86*17 mm.
Battery : CR2016*2( Included)
Screw: Included
Double-sided tape: Included
Base:Included
▶Please contact with us if you have any questions.Thank you.
▶We have own factory,if you want to do ODM OEM bussiness,please contact with us.
