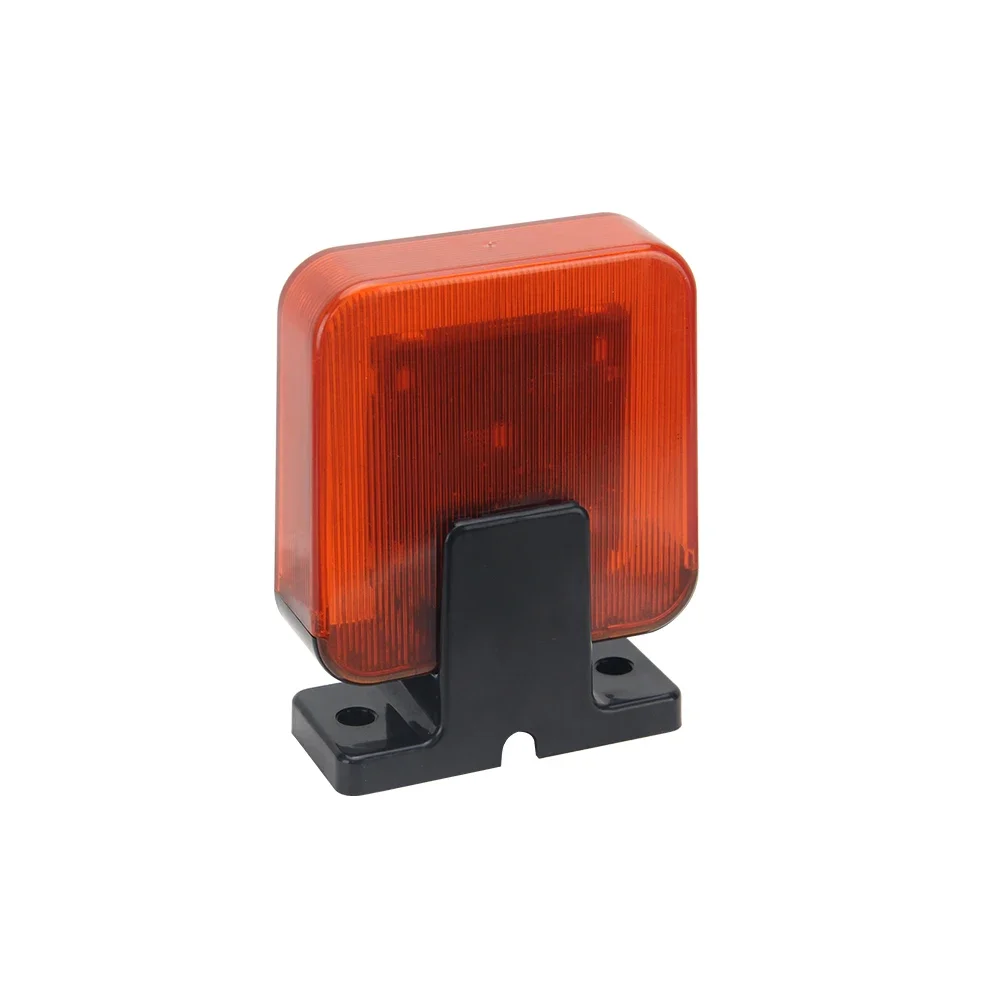

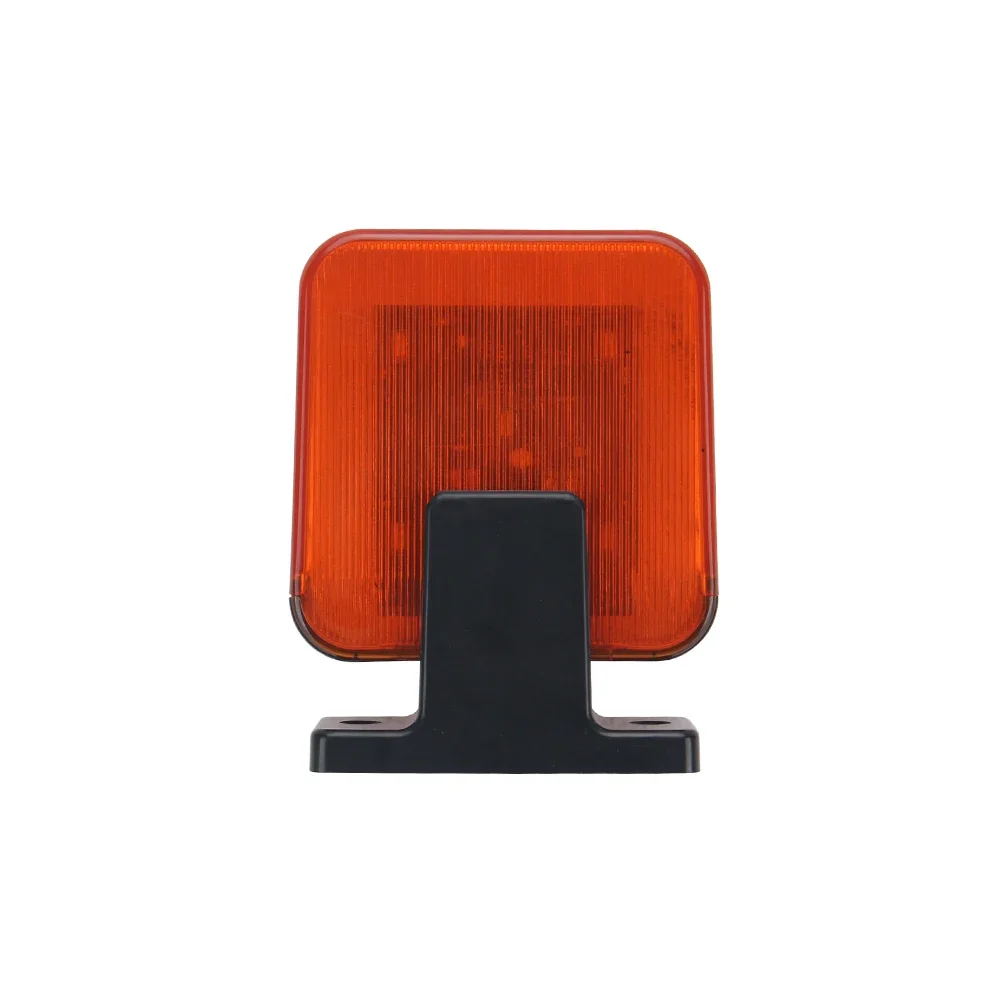

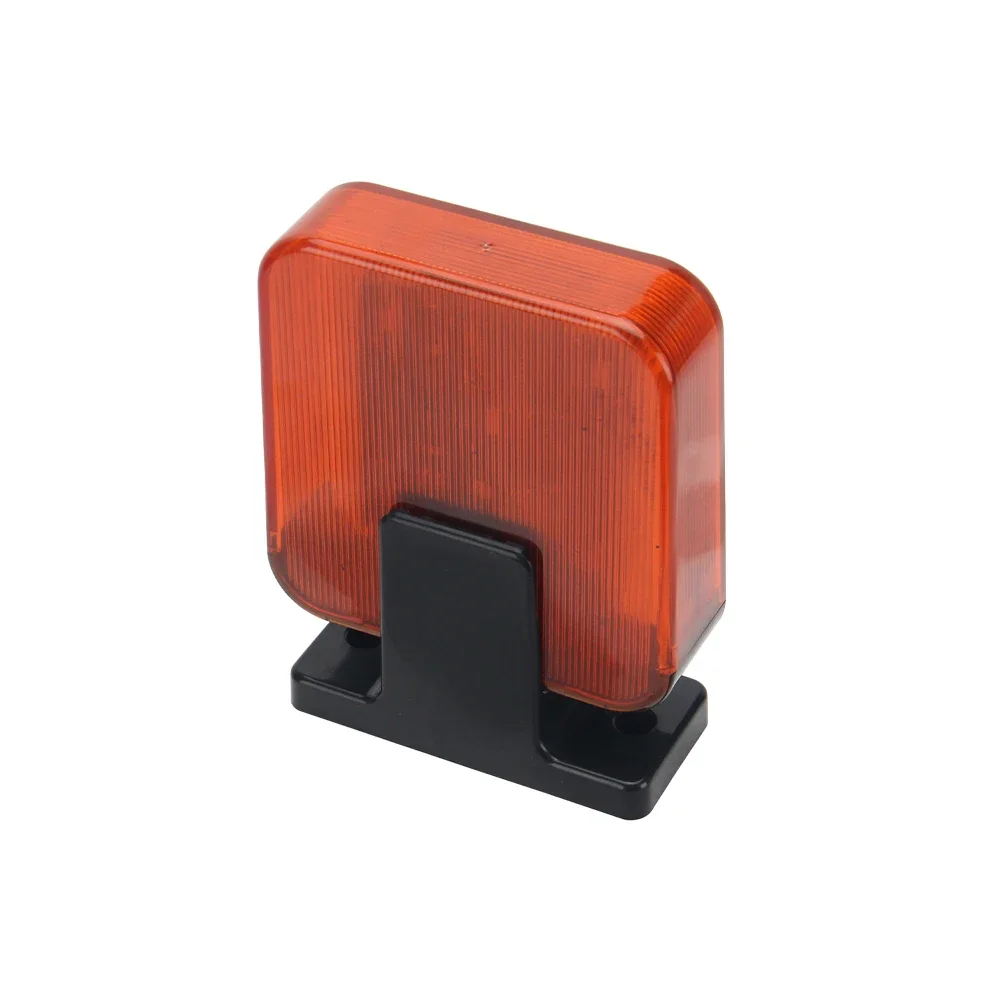

Universal 12V-256V Outdoor LED Signal Alarm Light Strobe Flashing Light Wall Mount Emergency Warning Lamp

Safety Instruction

1.For security, please read the user manual carefully before initial operation;
2.Please be sure the power is off before connecting, the product is produced without fuse;
3.This system must not endanger life or property during the running failure or its security risks
have been eliminated.

Specification

Working voltage: 12-265V AC/DC
Loading capacity: 1.5W
Weight: 200g
Flashing frequency: 1Hz

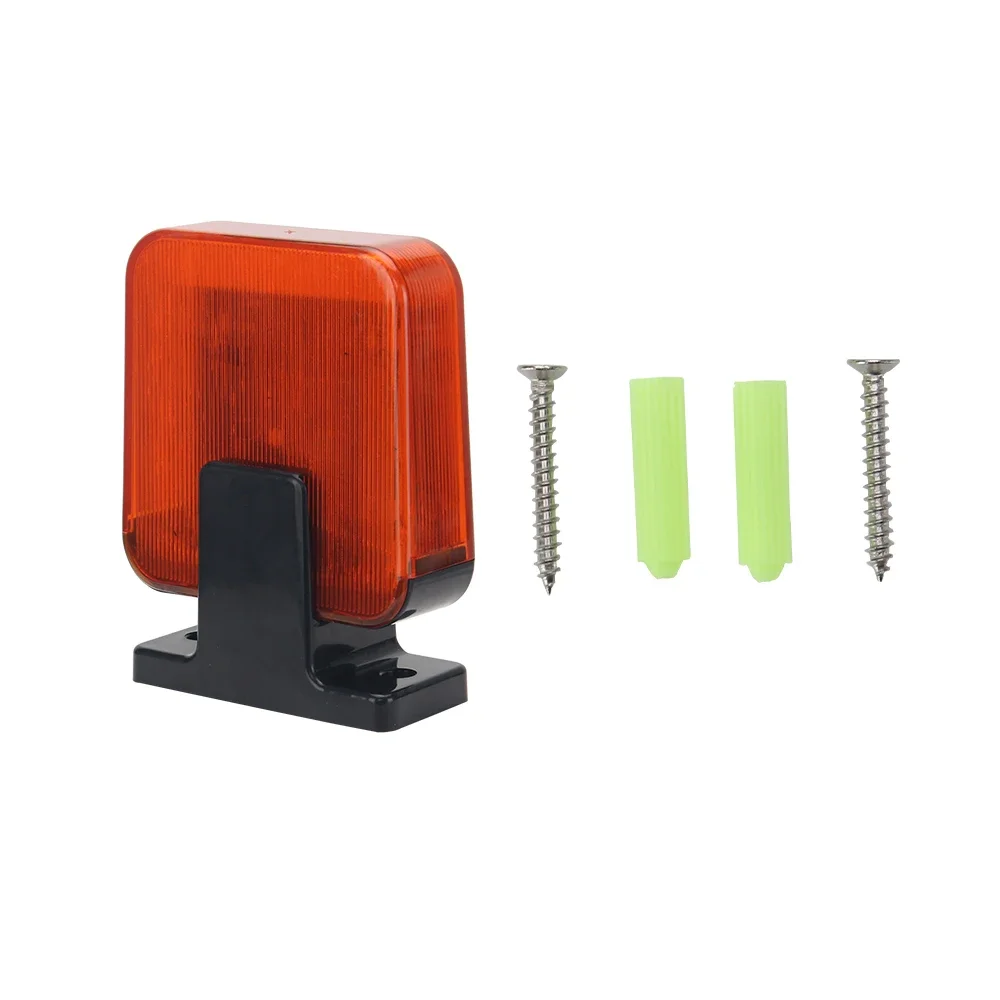

Installation method: Vertical/horizontal
Working temperature: -20°C~+60°C
Protection level: IP54
Size: 98*40*125mm

Tolerance temperature -20 ℃~+60 ℃

Notice：

1,Terminal 1 is for connectino thepower input; working voltage is 12-265VAC/DC.
2,Terminal 2 is for connecting the antenna of RF controller to extend the effective working distance

wide range of uses:

Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters
Electrical appliances/Home automation i.e. lights, Alarm system, access control system
