Description
- Hign-concerned Chemical: None
- is_customized: Yes
- Output Frequency: 50HZ, 60HZ
- Model Number: UPS&charger Inversor
- Output Power: 1 – 200KW
- Type: DC/AC Inverters
- Output Type: SINGLE
- Origin: Mainland China
- Certification: CE

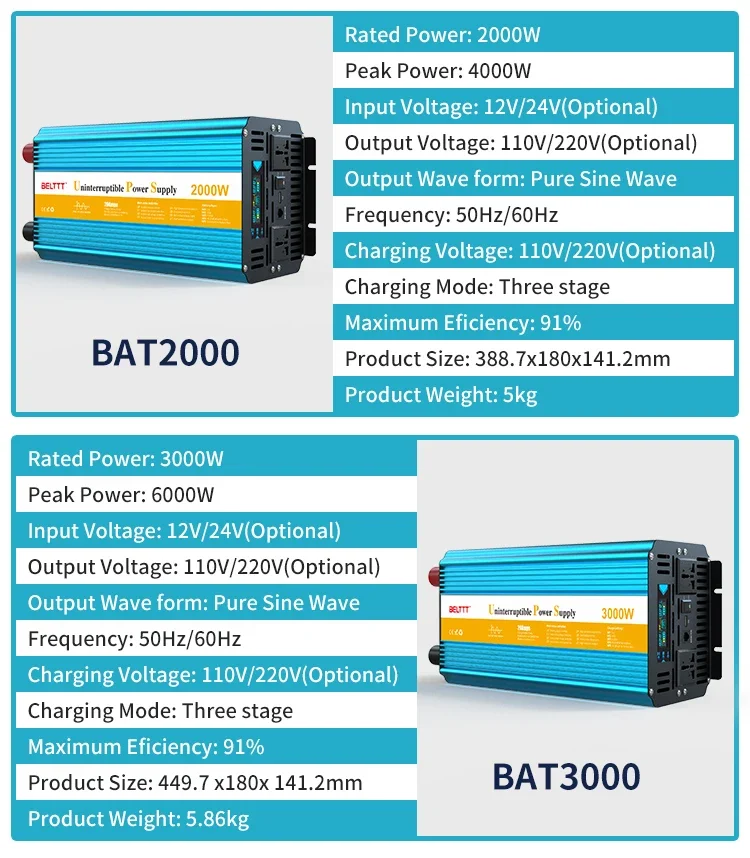

- Rated power: 1500W 2000W 3000W 4000W
- Peak power: 3000W 4000W 6000W 8000W
- DC voltage: 12V/24V
- AC voltage: 220V

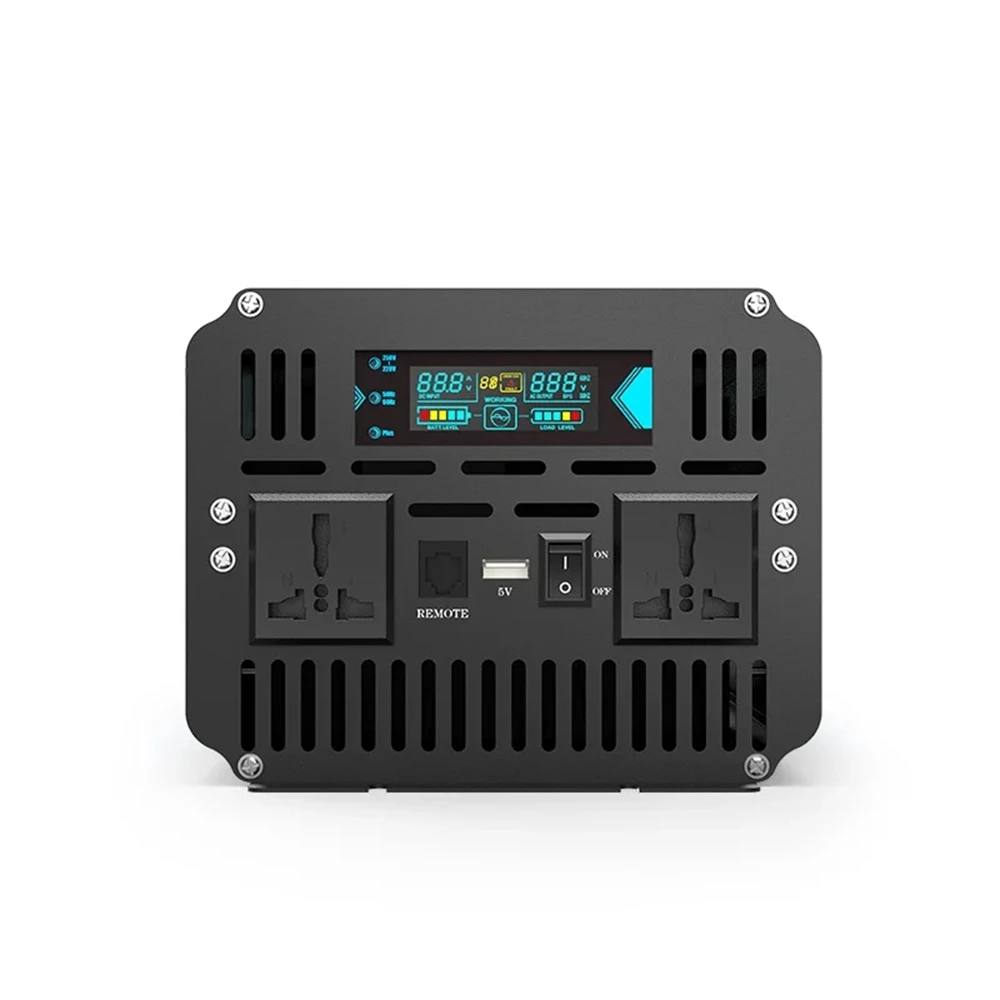

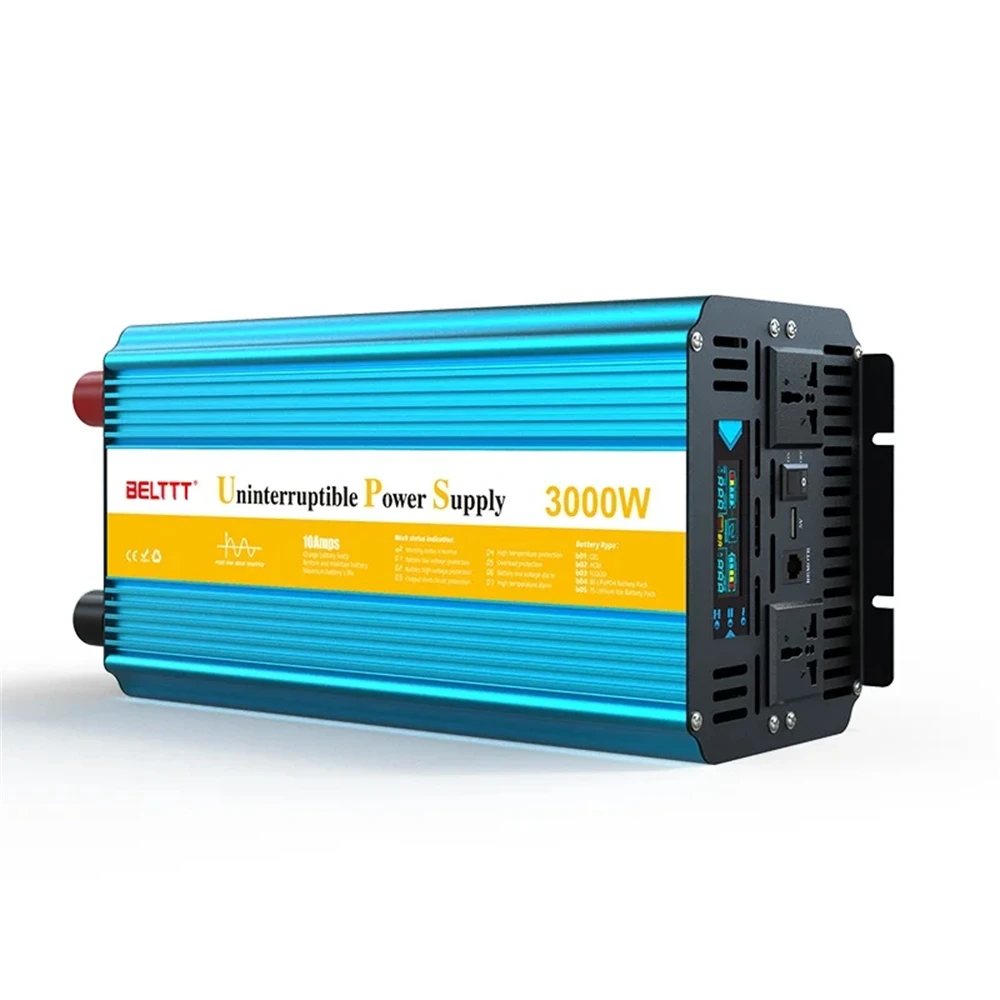

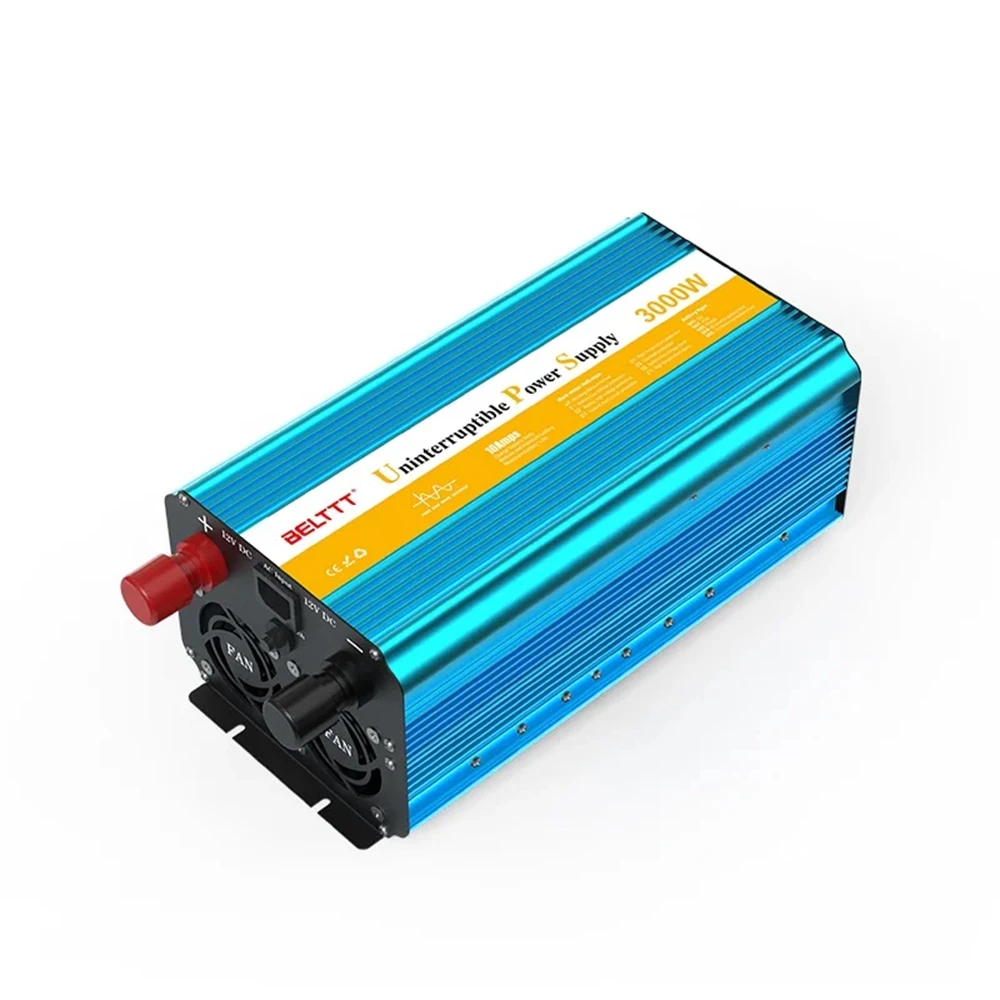

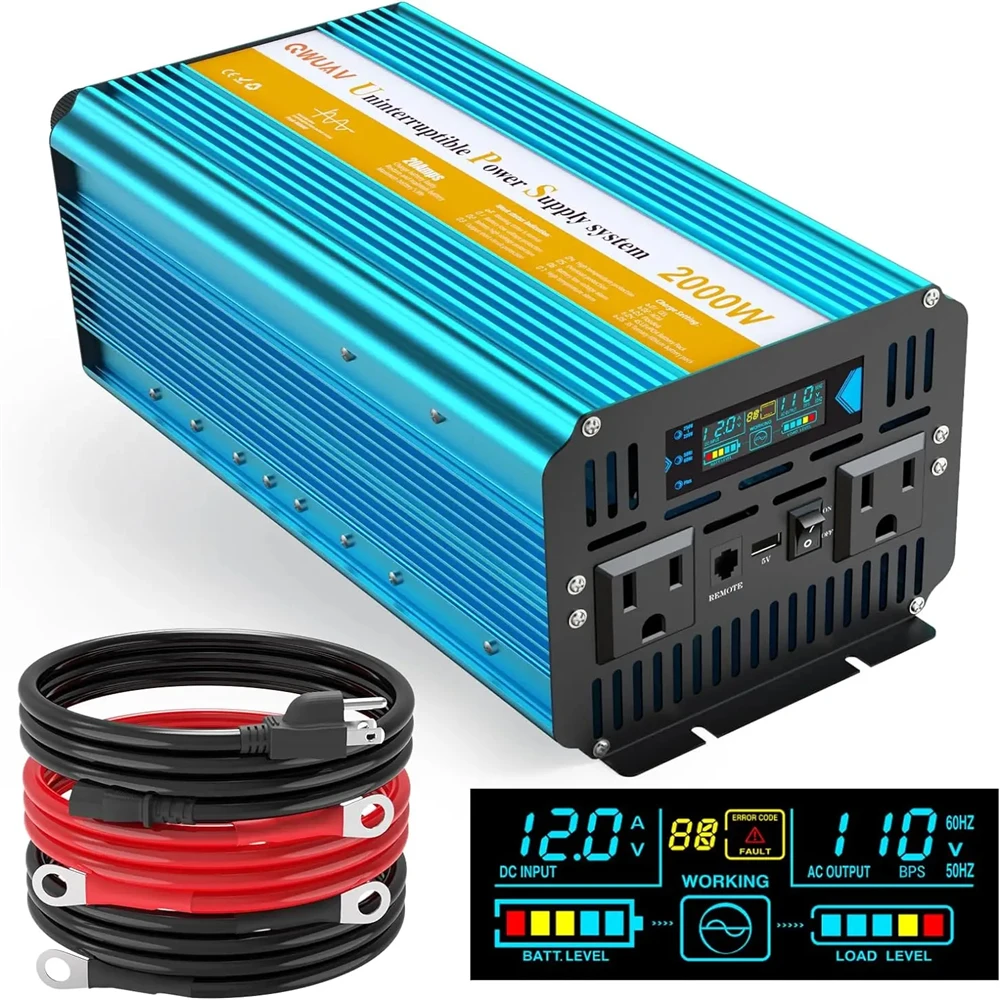

UPS Charger Inverter DC 12V 24V To AC 220V 3000W 4000W 6000W 8000W Car Power Inverter Pure Sine Wave Transformer Backup Battery
|

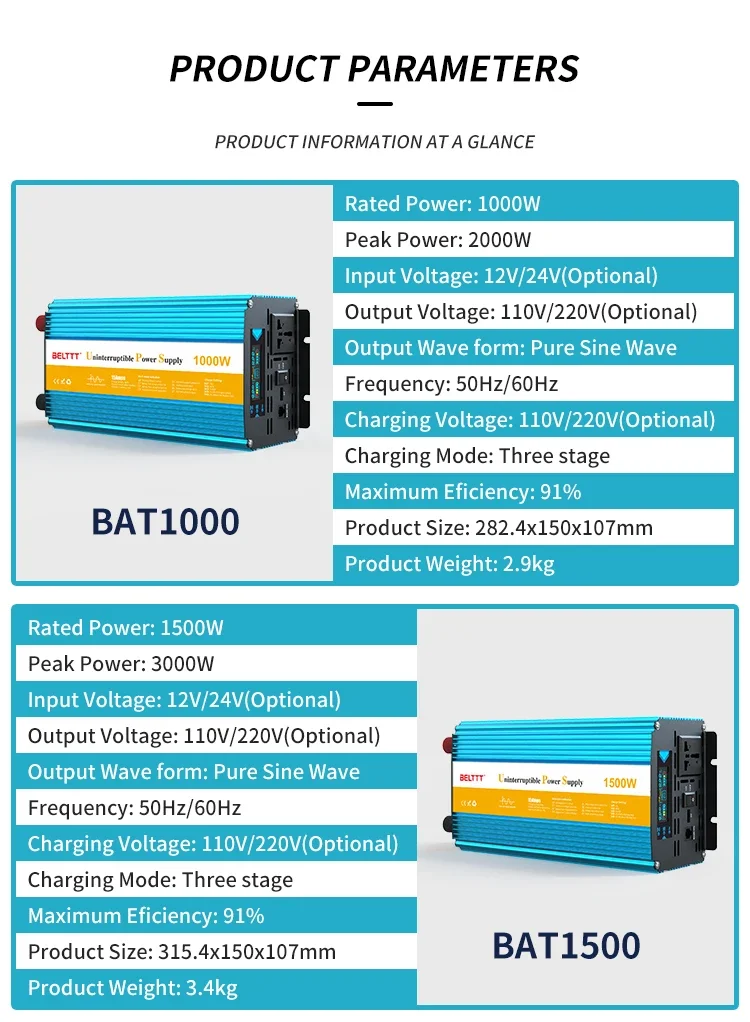

Max ContinousPower |
1000W |
1500W |
2000W |
3000W |
|
Peak Power |
2000W |
3000W |
4000W |
6000W |
|
Input Voltage |
12V/24V(Optional) |
|||
|
|
10-15V(12V)/20-31V(24V) |
|||
|
Output Waveform |

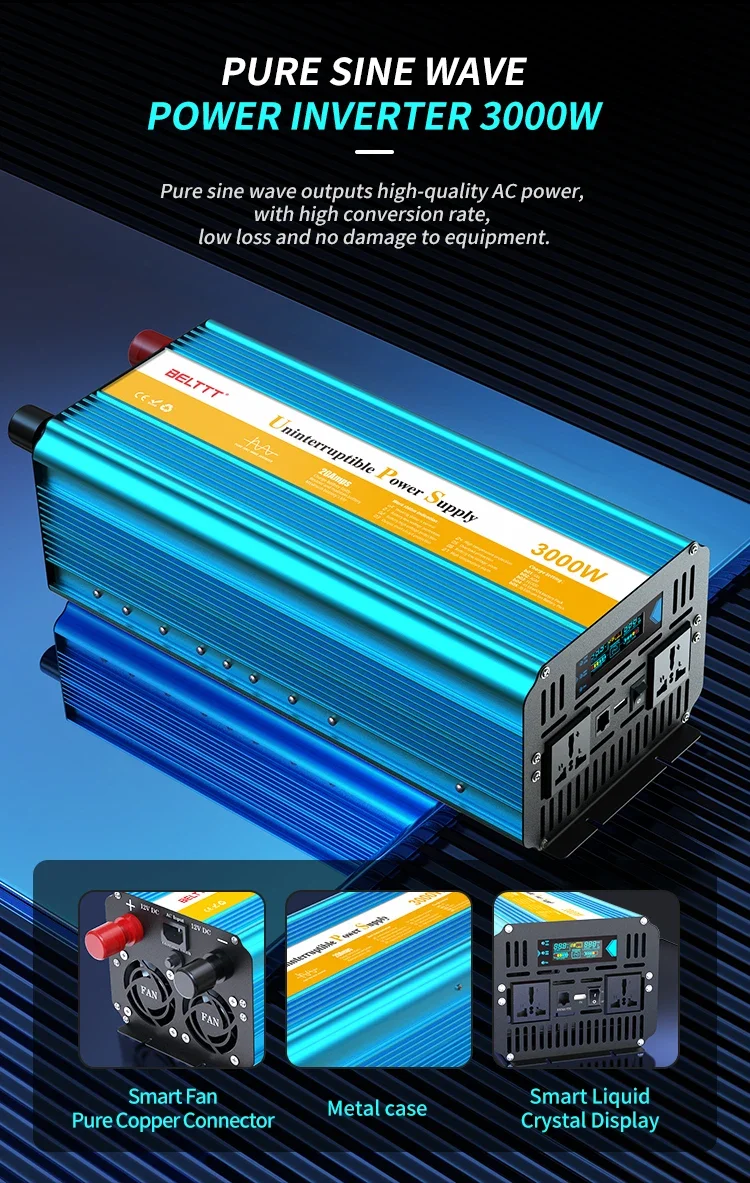

Pure Sine Wave |
|||
|
Output Frequency |
50HZ or 60HZ |
|||
|
Output Voltage |
220V±10% |
|||
|
Charging Voltage |
220V±10% |
|||
|
Working Temp |
0-40℃ |
|||
|
Working Humidity |
20-90%RH |
|||
|
Transfer Efficiency |
≥85% |
≥90% |
||
|

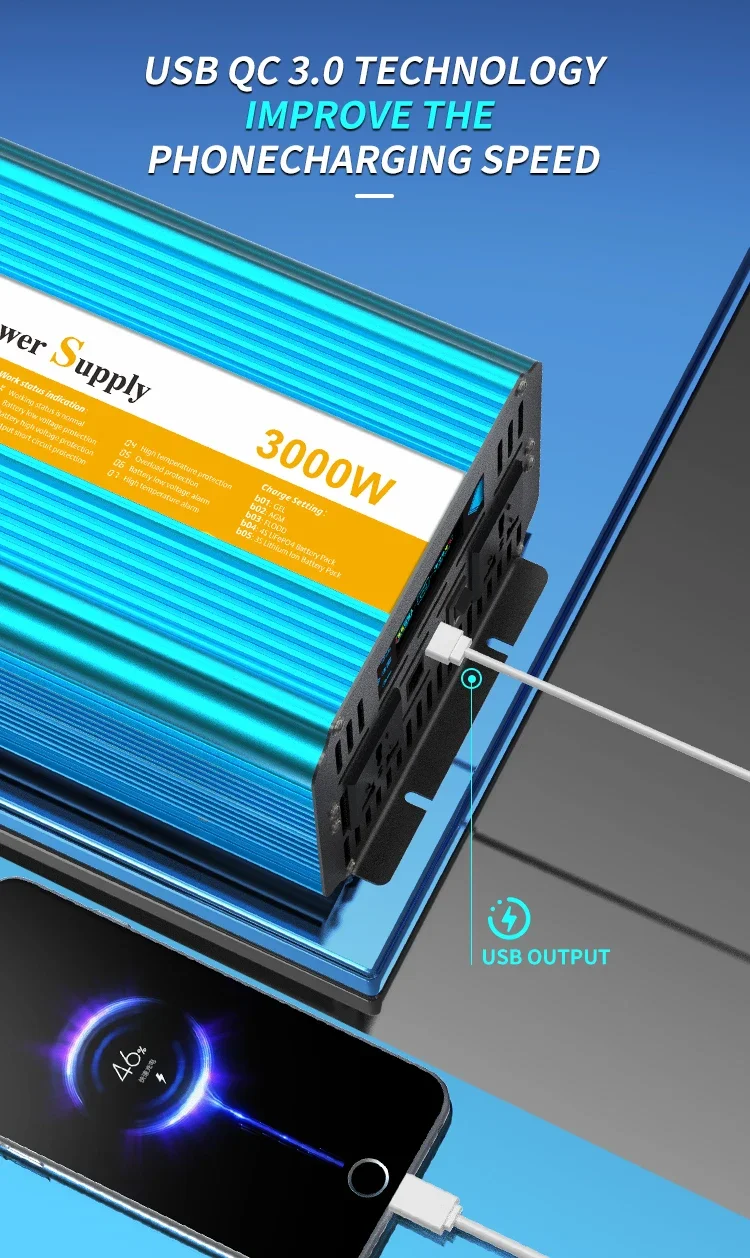

USB Interface |
1*5V |
|||
|
AC Socket |
2*Multi-function |
|||
|

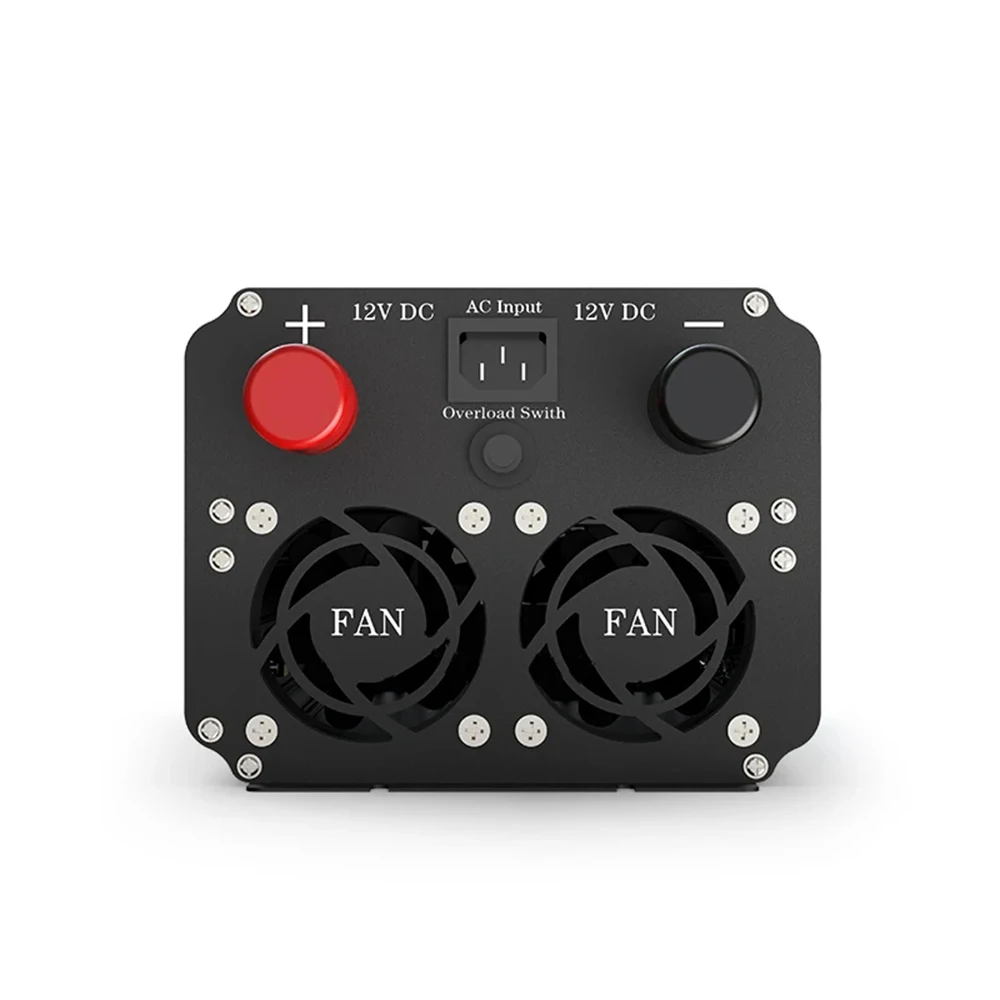

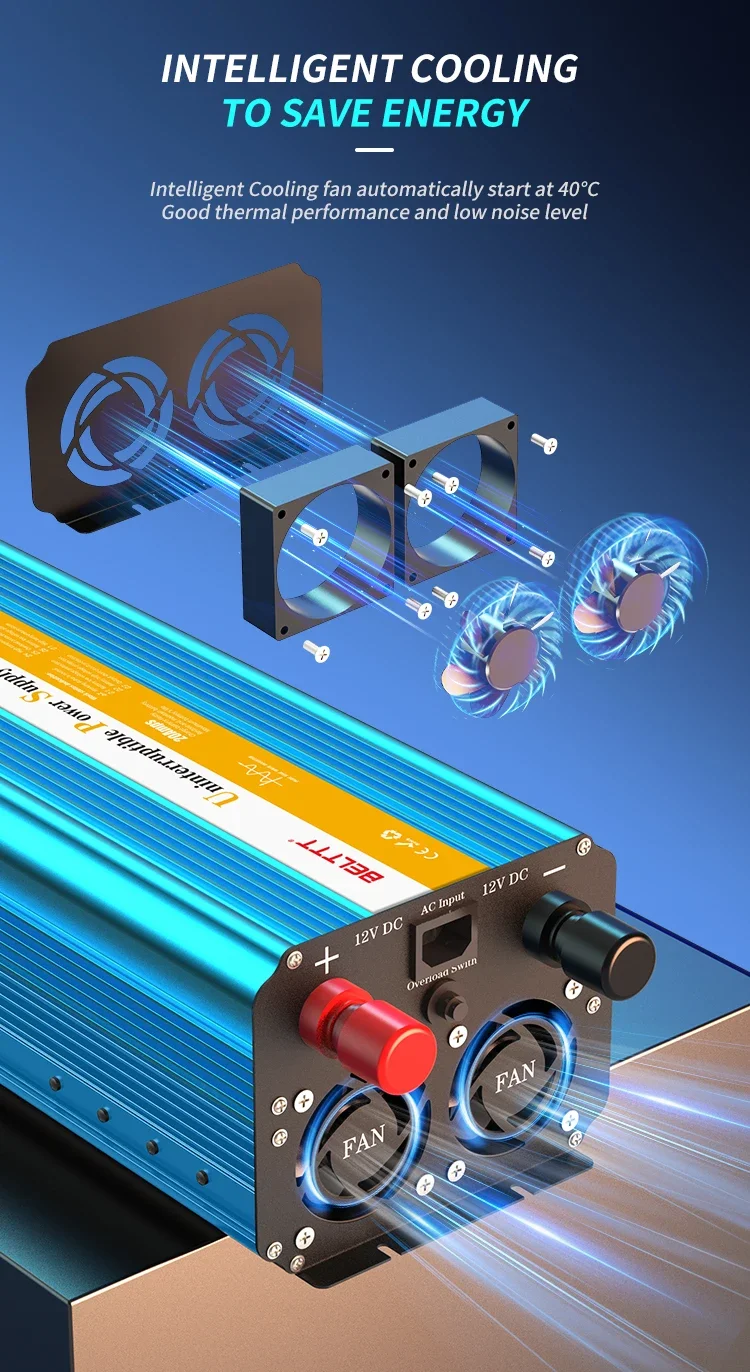

Cooling |
2*Smart Fans |
|||
|
Switching time |
≤20mS |
≤30mS |
||
|

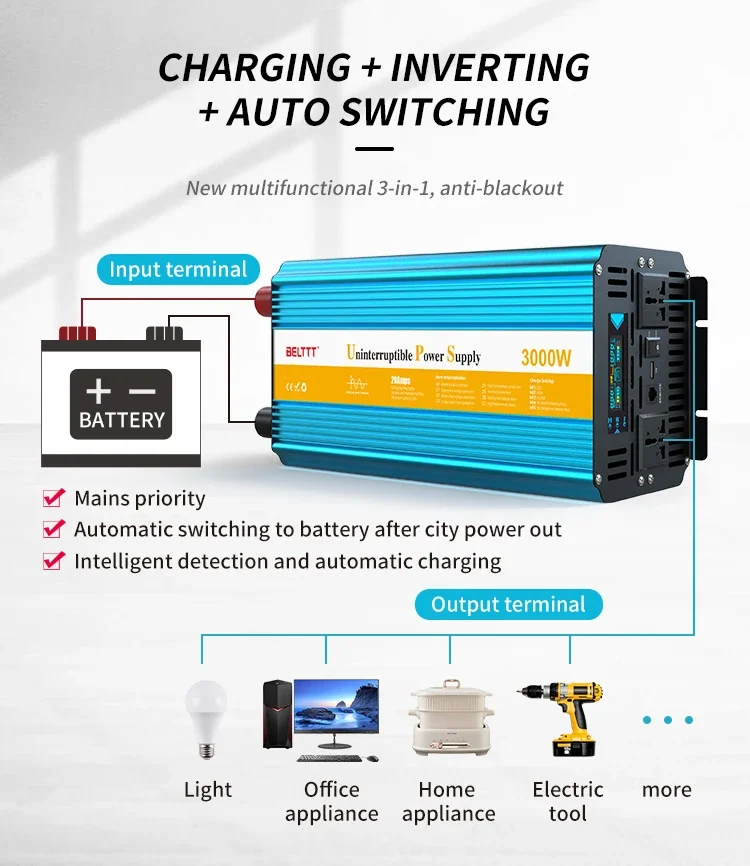

Charging Mode |
Constant Current,Constant Voltage,Float Charge(3stage) |
|||
|
Protection |
Input Low Voltage/Hight Voltage/Overload/High Temp/Short Circuit |
|||
|
Product Size(mm) |
309*180*142 |
384*180*142 |
454*180*142 |
529*180*147 |
|
AC Charge Current(A) |
15 |
15 |
25 |
25 |
|
N.W(kg) |
3.45 |
4.35 |
5.3 |
6.6 |
|
Remark |
All specification are measured at conventional voltage and ambient temp of 25℃ |
|||
