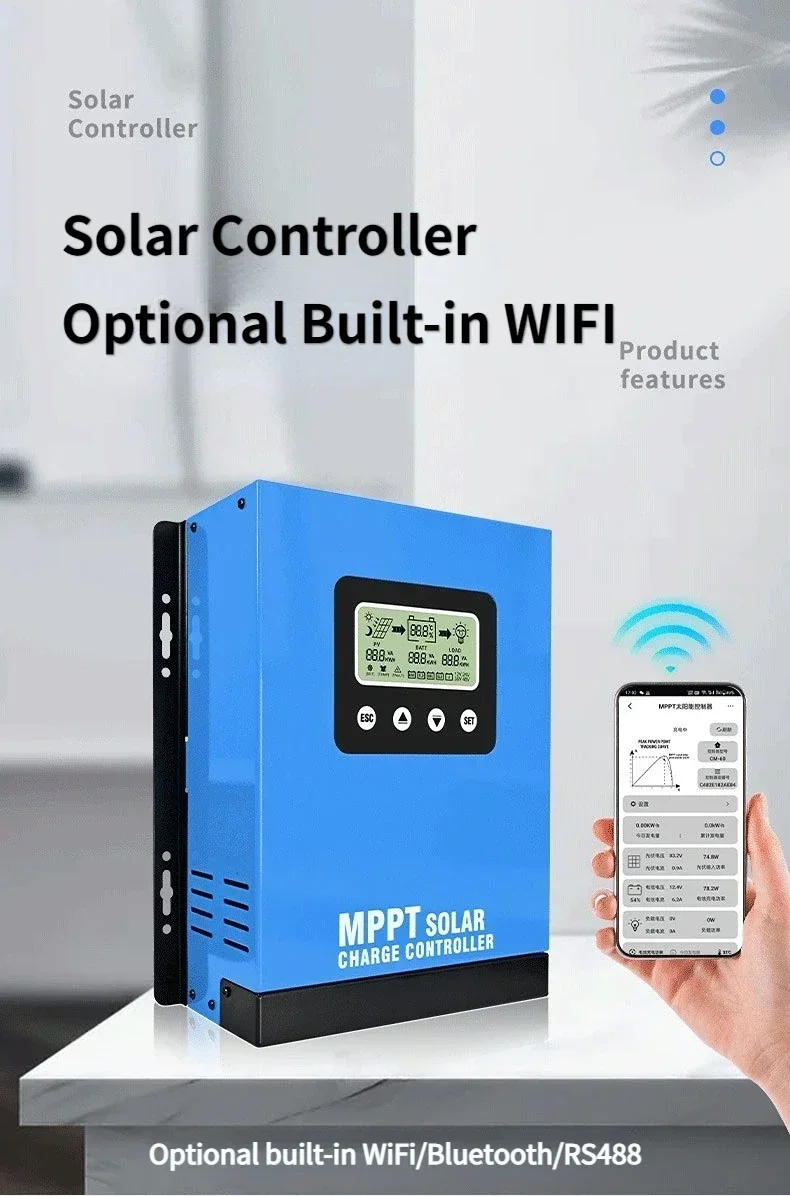

WIFI Solar Charge Controller 12V-48V with LCD PV Load Solar Controller Regulator 30A 60A 100A 120A MPPT Solar Battery Charger

Features:

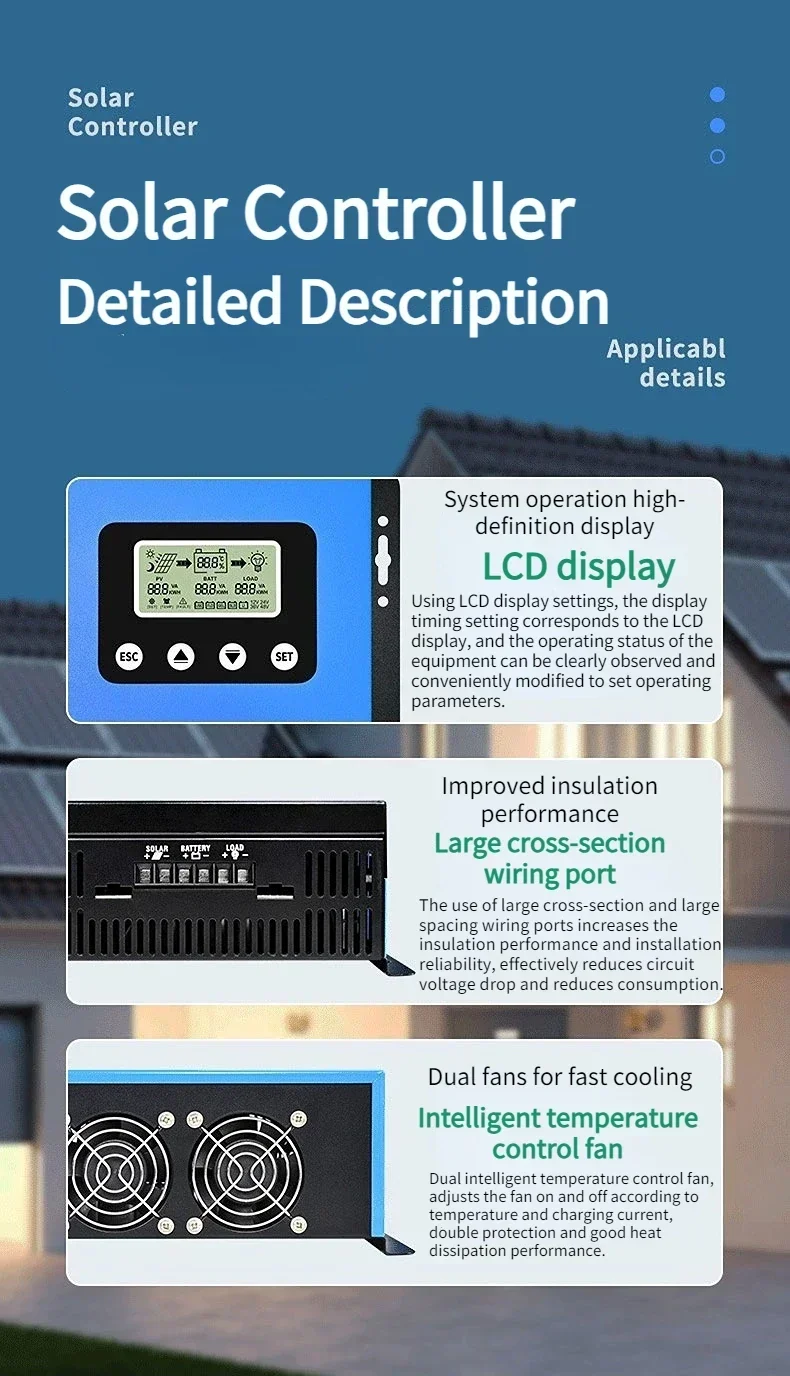

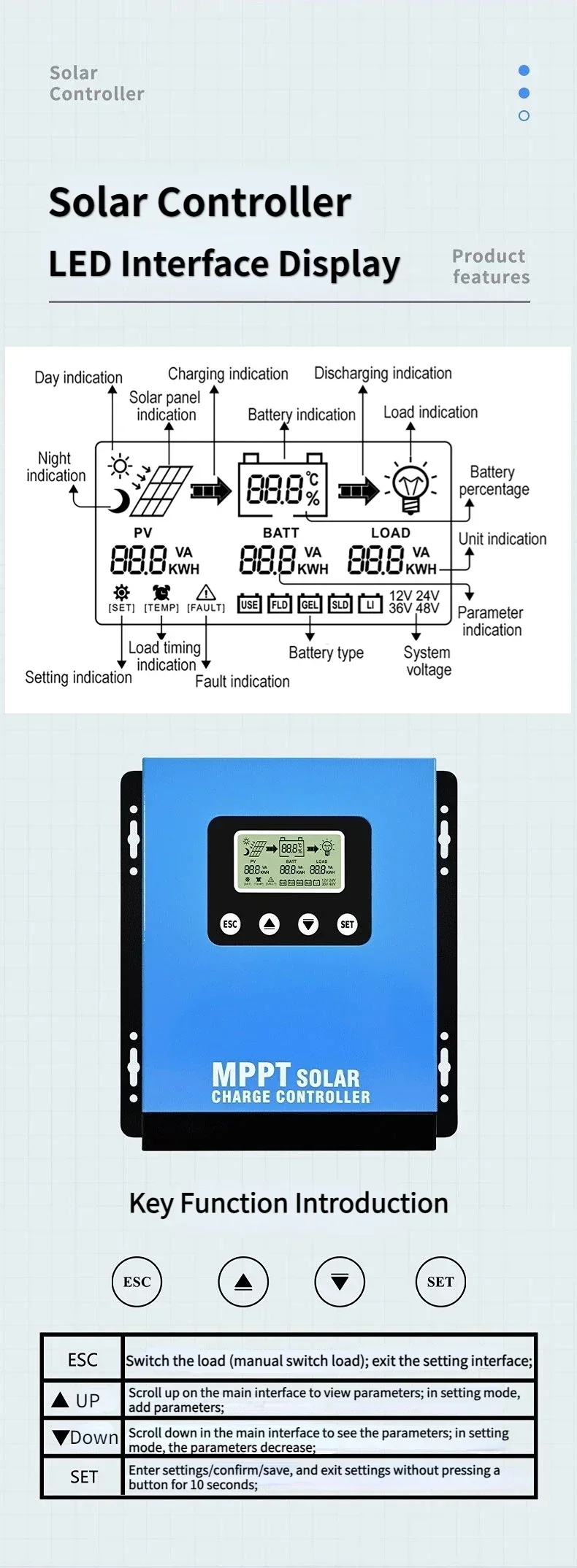

* LCD display: LCD display setting is adopted, and the display timing setting corresponds to the LCD display, which can clearly observe the operation status of the equipment and facilitate the modification and setting of the operation parameters.

* Large-section wiring port: The wiring port with large cross-section and large spacing is adopted to increase the insulation performance and installation reliability, effectively reduce the circuit voltage drop and reduce consumption.

* Working mode setting: Multi-function button, just press to adjust all function settings.

* Intelligent temperature control fan: Dual intelligent temperature control fan, adjusts the fan on and off according to temperature and charging current, double protection and good heat dissipation performance.

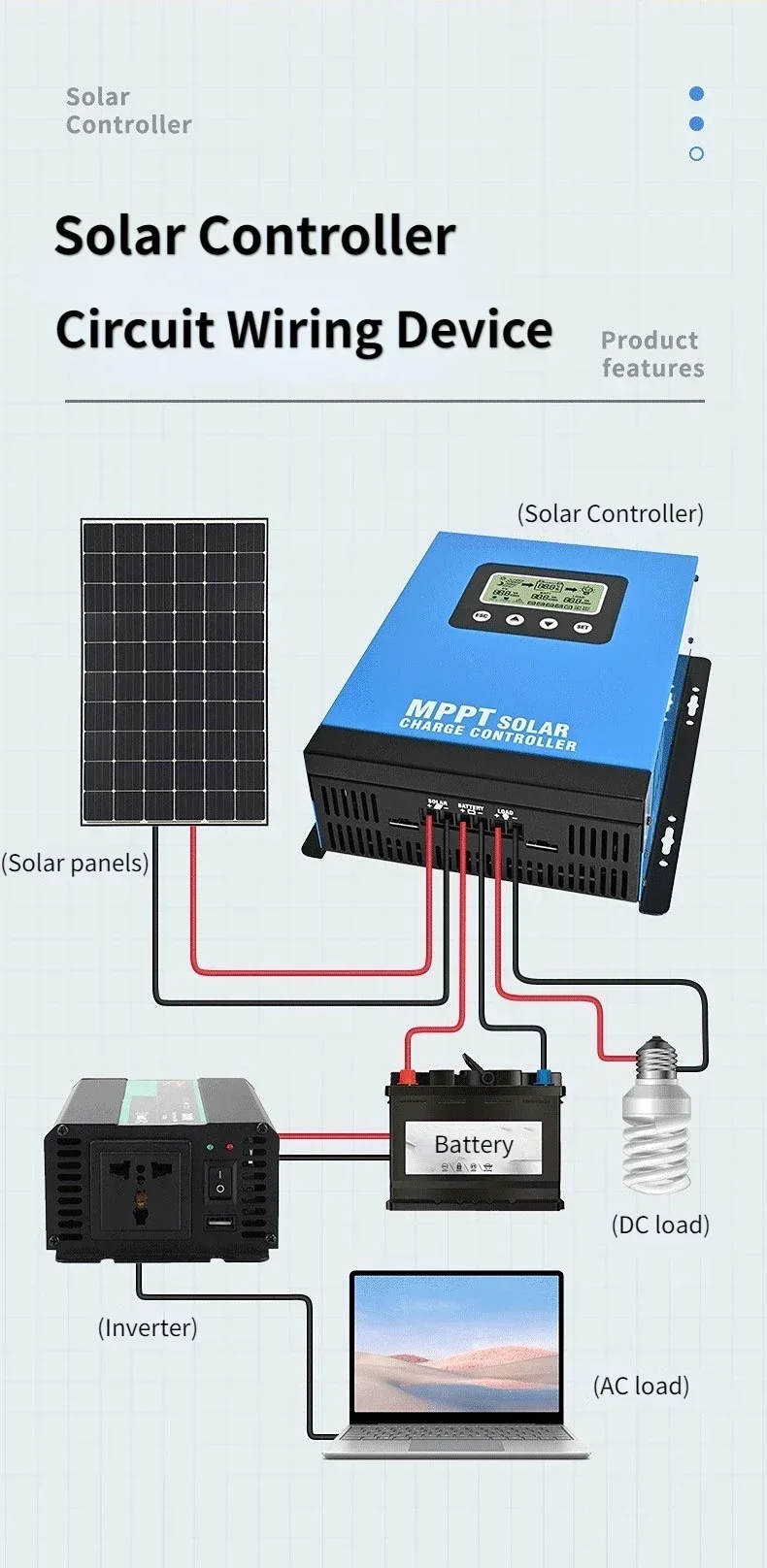

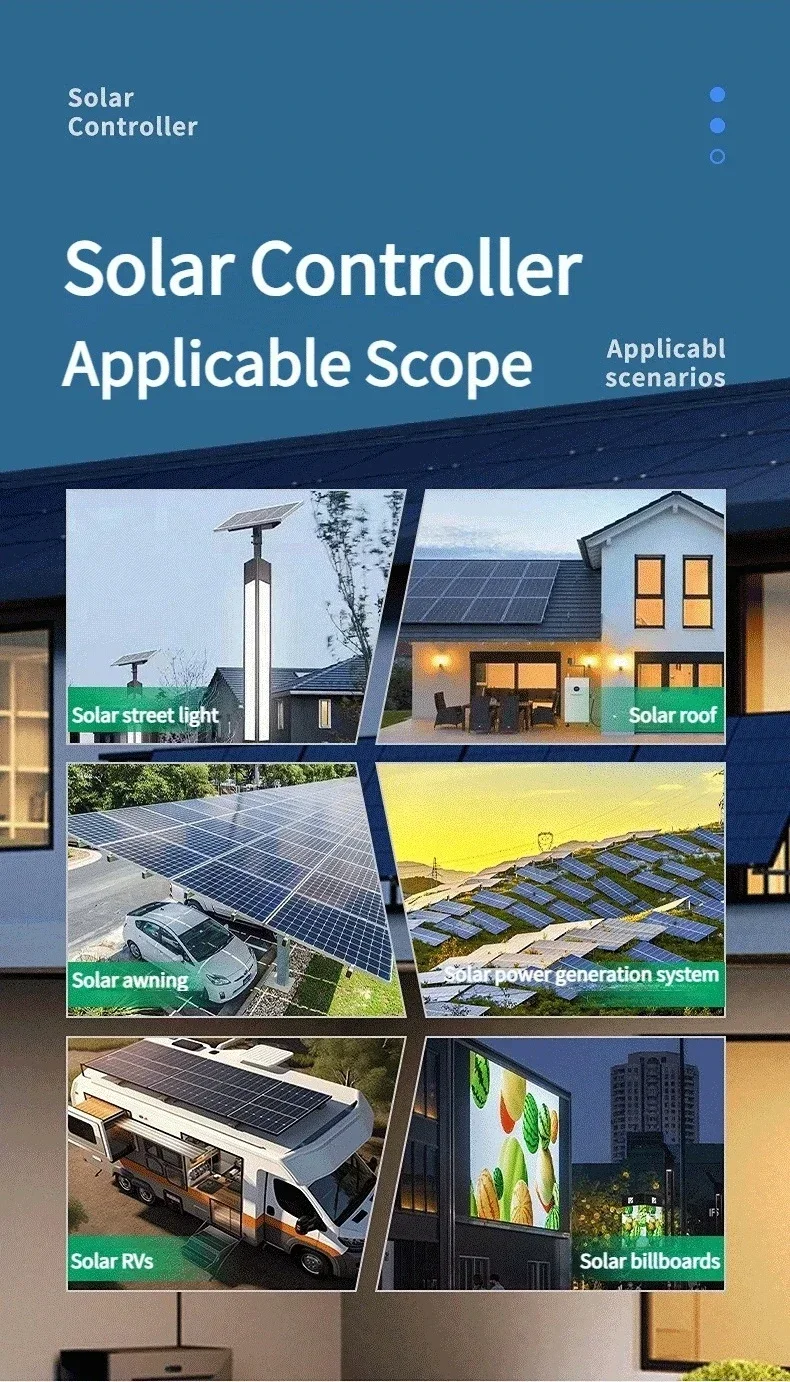

* Wide range of applications: Suitable for solar street lights, solar roofs, solar billboards, solar power generation systems, solar RVs, and solar awnings.

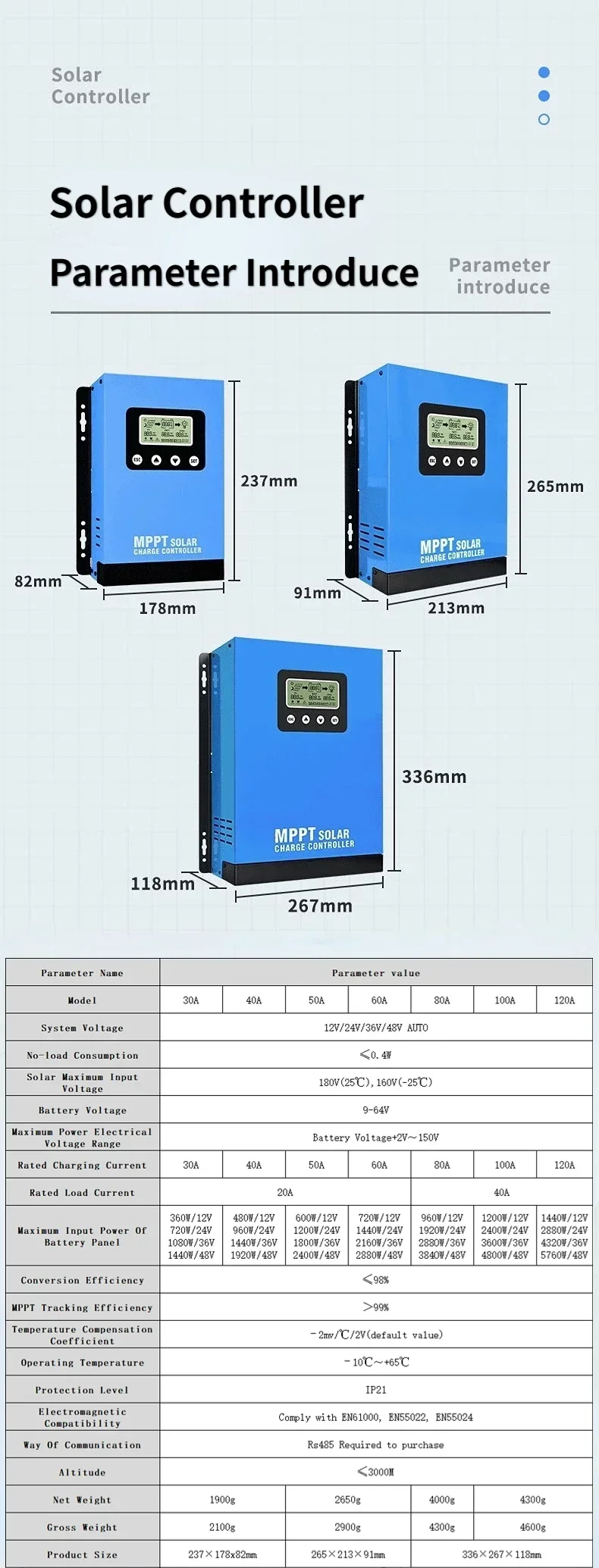

Specification:

Name: Solar controller

System voltage: 12V/24/36V/48V self-identification

No-load consumption: ≤0.4W

Maximum solar input voltage: 180V(25℃), 160V(-25℃)

Battery voltage: 9-64V

Maximum power voltage range: battery voltage +2V~150V

Rated charging current: 30A,40A,50A,60A.80A,100A,120A

Rated load current: 20A/40A

Maximum input power of the battery panel:
30A:360W/12V, 720W/24V, 1080W/36V, 1440W/48V
40A:480W/12V, 960W/24V, 1440W/36V, 1920W/48V
50A:600W/12V, 1200W/24V, 1800W/36V, 2400W/48V
60A:720W/12V, 1440W/24V, 2160W/36V, 2880W/48V
80A:960W/12V, 1920W/24V, 2880W/36V, 3840W/48V
100A:1200W/12V, 2400W/24V, 3600W/36V, 4800W/48V
120A:1440W/12V, 2880W/24V, 4320W/36V, 5760W/48V

Conversion efficiency: ≤98%

MPPT tracking efficiency: ＞99%

Temperature compensation coefficient: -2mv/℃/2V

Working temperature: -10℃~+65℃

Protection level: IP21

Altitude: ≤3000m

Color: black + blue

Packing included:

1 x Solar Controller
